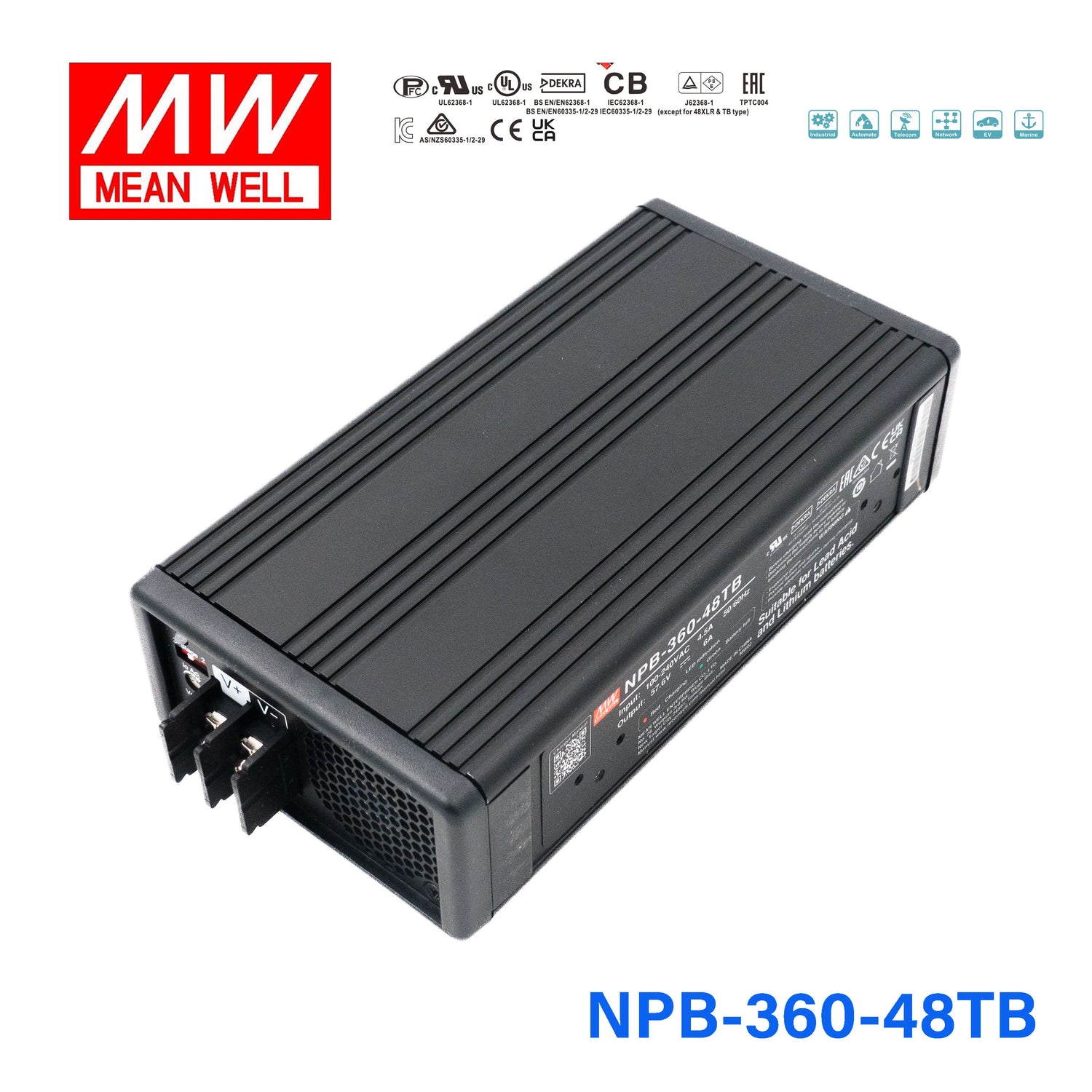

Mean Well NPB-360-48TB Battery Charger 360W 48V Terminal Block 6A

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-360-48TB

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the output of the Mean Well NPB-360-48TB battery charger?

The NPB-360-48TB is a 360W AC-DC battery charger with a 57.6V DC output rated at 6A. This makes it a 48V-class charger intended for applications that need that charging voltage and current range.

What type of charging profile does the NPB-360-48TB support?

This model supports 2-stage or 3-stage charging. That gives buyers flexibility when selecting a charger for battery charging applications that require a controlled charging process.

Is the Mean Well NPB-360-48TB suitable for industrial or commercial battery charging use?

Yes, this model is positioned for battery charging applications where a 360W, 57.6V DC output is appropriate. Its feature set, including PFC and staged charging support, makes it relevant for professional and commercial use cases.

Does the NPB-360-48TB support a wide AC input range?

Yes, the product is specified with universal AC input. That makes it easier to use across different AC power environments without needing a model change for common input standards.

Can the NPB-360-48TB operate in demanding temperature conditions?

This charger is rated for operation from -30°C to 70°C. That wide temperature range helps it fit applications where ambient conditions may be much colder or hotter than typical indoor environments.

What are the physical and ownership considerations for the NPB-360-48TB?

The unit weighs 1.3 kg, which can matter when planning equipment layouts or transportable systems. Mean Well lists this model with a 3-year warranty period, which is useful for evaluating long-term support expectations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12TB Battery Charger 360W 12V Terminal Block 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-24XLR Battery Charger 360W 24V 3 Pin Power Pin 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-24AD1 Battery Charger 360W 24V Anderson Connector 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12XLR Battery Charger 360W 12V 3 Pin Power Pin 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-12AD1 Battery Charger 360W 12V Anderson Connector 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
