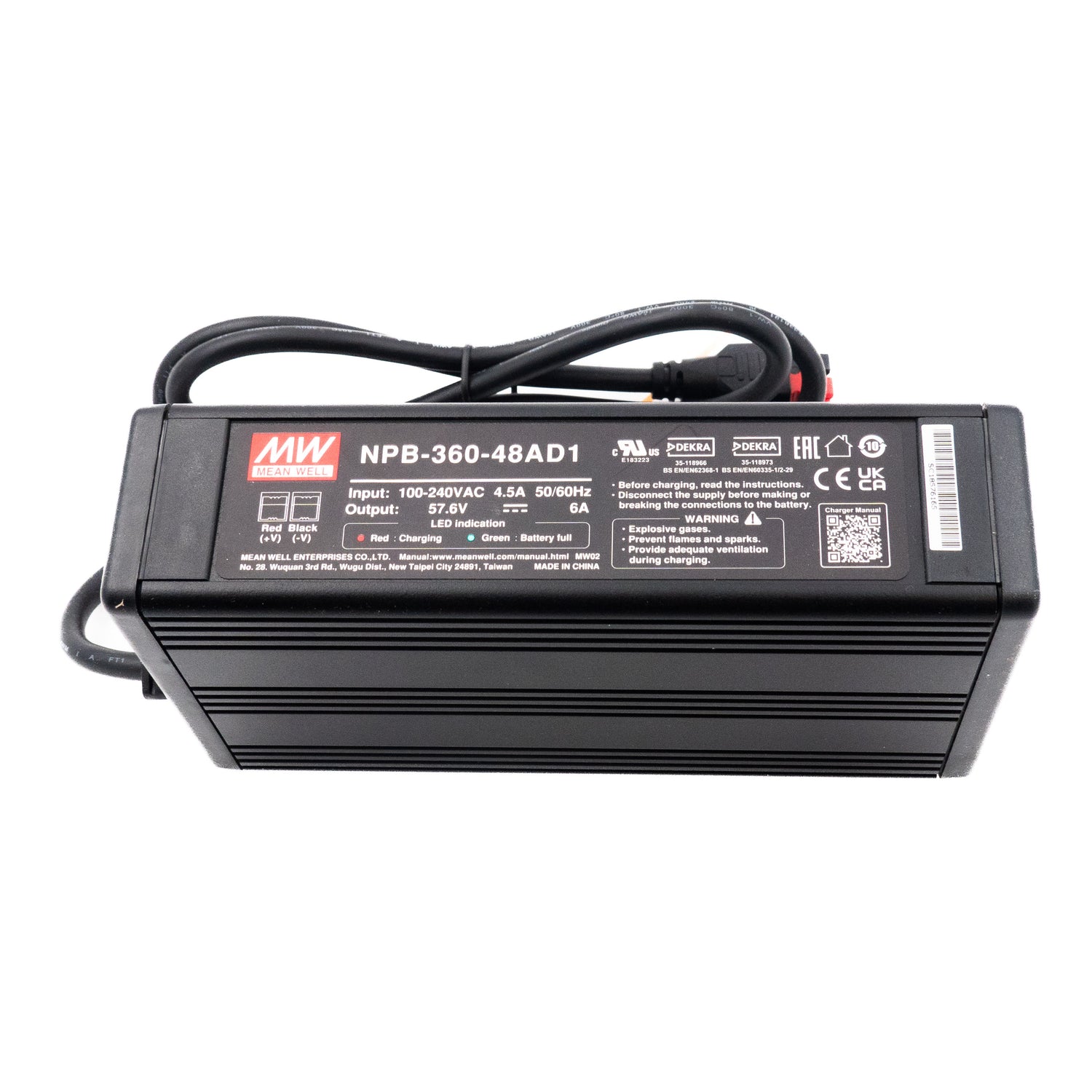

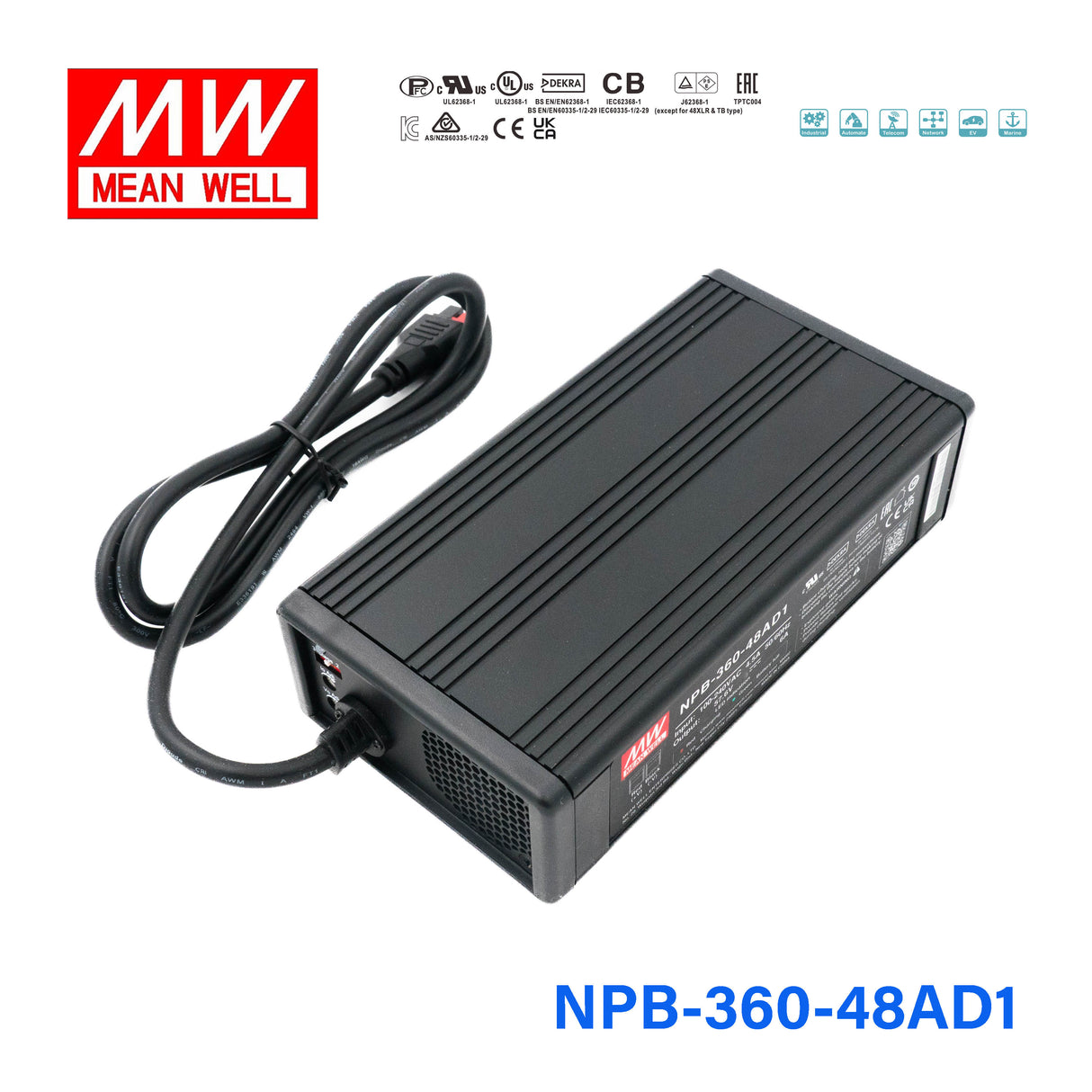

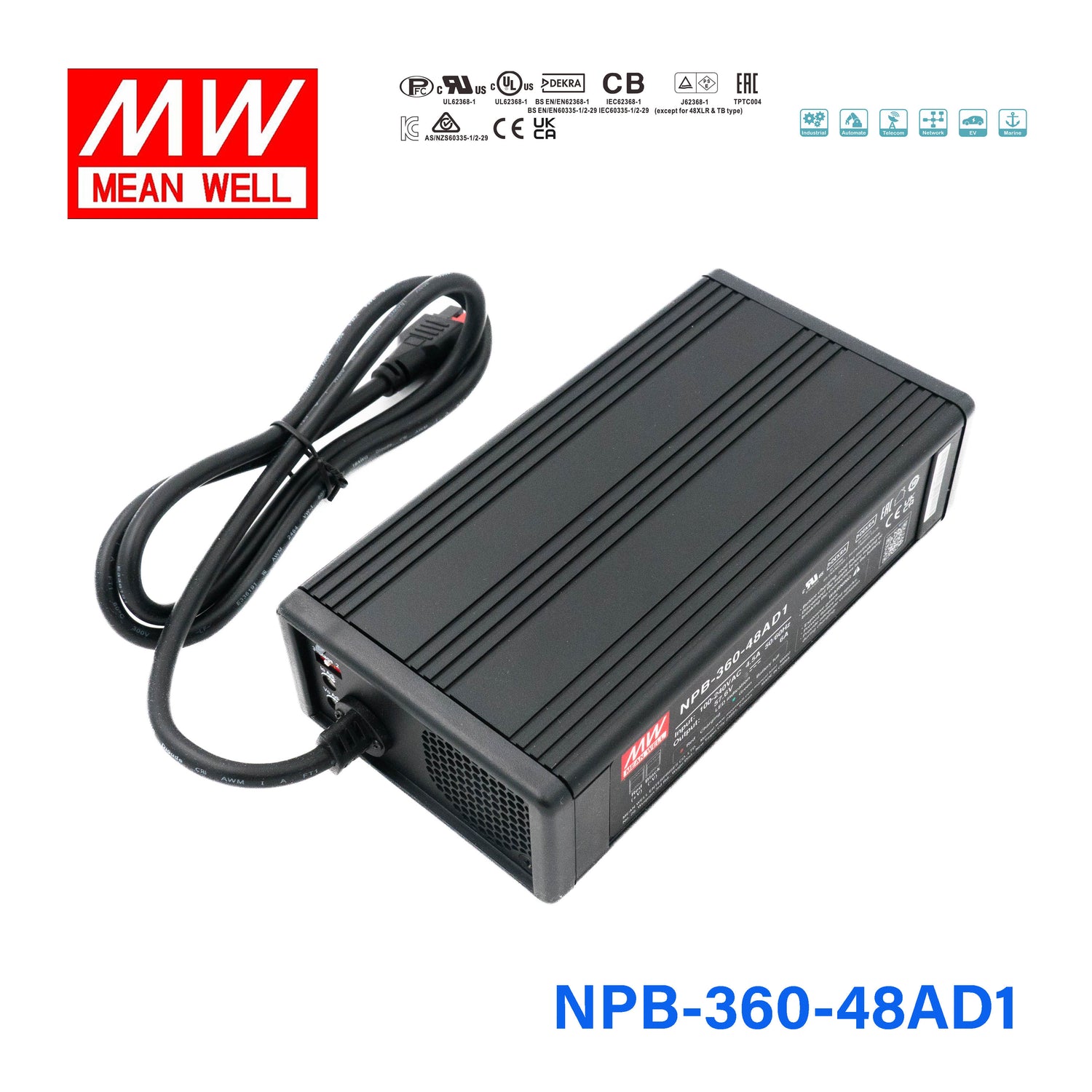

Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector 6A

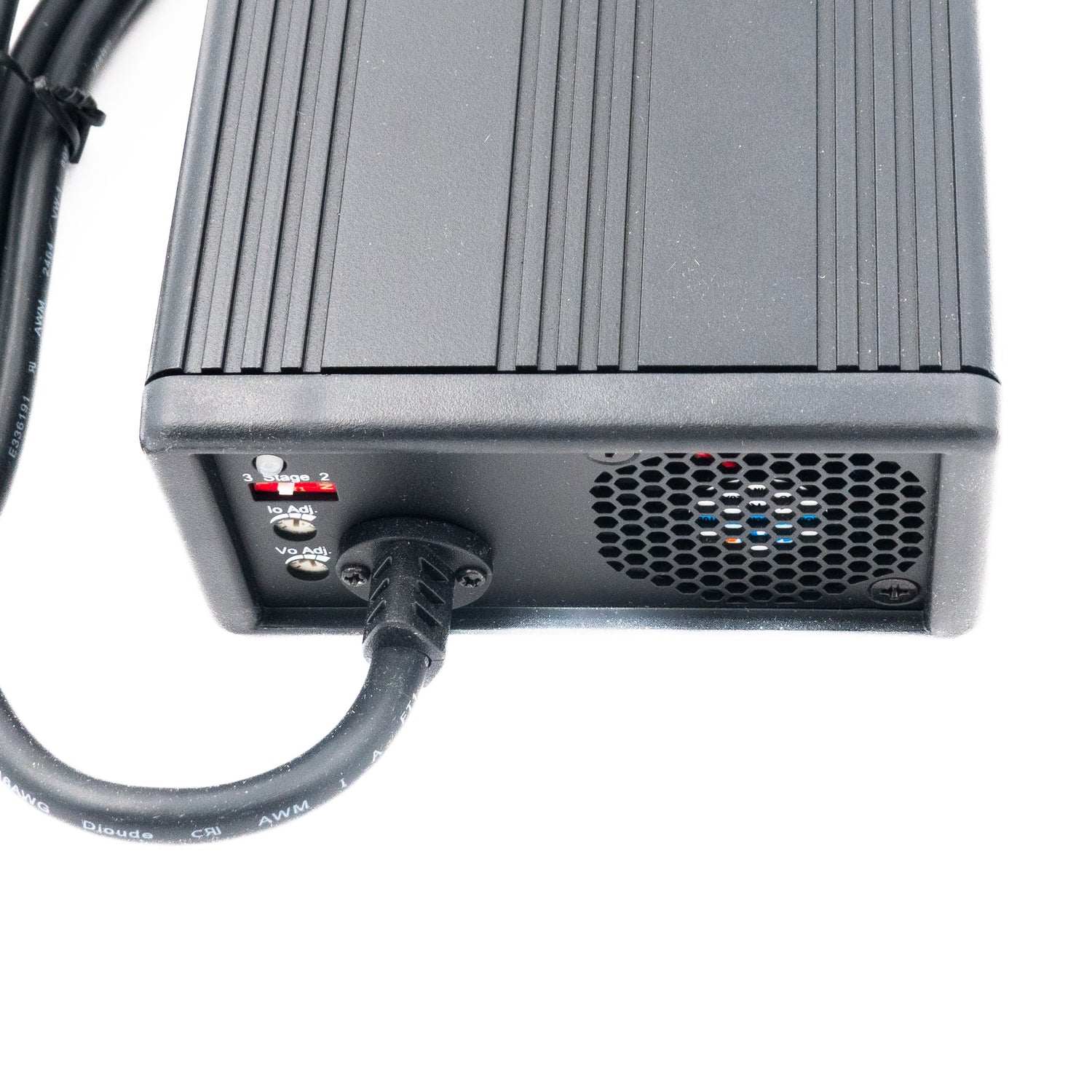

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-360-48AD1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-360-48AD1 designed for?

The Mean Well NPB-360-48AD1 is an AC-DC battery charger intended for 48V-class battery charging applications that require controlled charging and a portable form factor. It provides up to 360W output and is described as supporting 2-stage or 3-stage charging.

What are the main output specifications of the NPB-360-48AD1?

This model delivers a nominal output of 57.6V DC at 6A. Its total power rating is 360W, which matches applications needing a higher-voltage battery charger in this output class.

Does this model include an Anderson connector?

Yes, the product description for the NPB-360-48AD1 specifies an Anderson connector. That makes it a suitable option for buyers who specifically need this connector style on the charger model they purchase.

Can the NPB-360-48AD1 be used in demanding temperature conditions?

This charger is rated for operation from -30°C to 70°C. That wide temperature range makes it more suitable than many general-purpose chargers for industrial or variable-environment use, provided the rest of the application is designed for those conditions.

How does the NPB-360-48AD1 compare with lower-power 48V battery chargers?

A key difference is its 360W output rating, with 57.6V DC at 6A. Compared with lower-power 48V chargers, this model is better suited where a higher charging output is needed, while still being offered as a single-output charger with PFC.

Is the NPB-360-48AD1 suitable for buyers looking for a portable industrial charger?

It is positioned in portable battery charger categories and weighs 1.3 kg, which supports use in applications where portability matters. Buyers evaluating compact industrial chargers may also consider its universal AC input and 3-year warranty as practical purchasing factors.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12TB Battery Charger 360W 12V Terminal Block 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48TB Battery Charger 360W 48V Terminal Block 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-24XLR Battery Charger 360W 24V 3 Pin Power Pin 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-24AD1 Battery Charger 360W 24V Anderson Connector 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12XLR Battery Charger 360W 12V 3 Pin Power Pin 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-12AD1 Battery Charger 360W 12V Anderson Connector 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
