Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

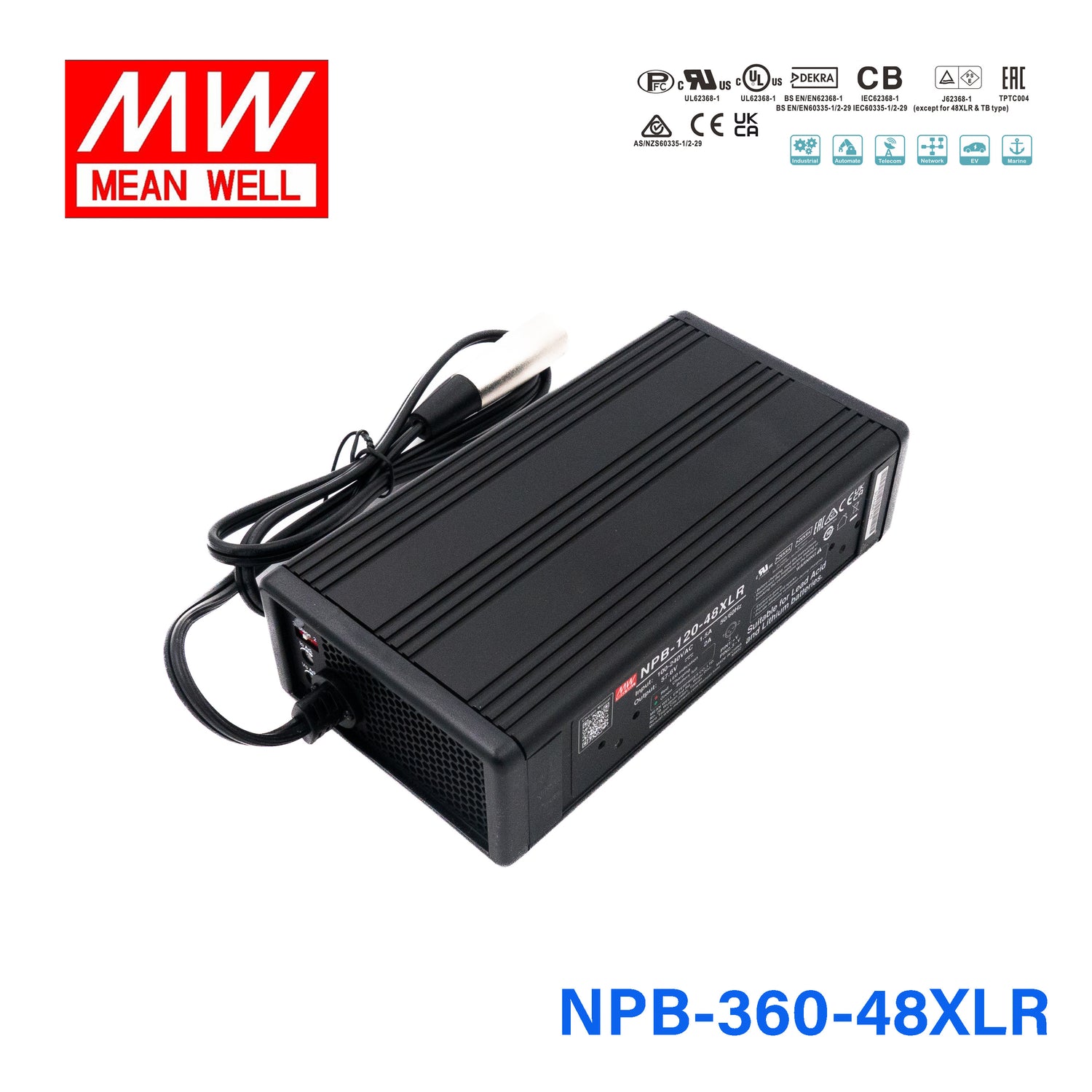

Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin 6A

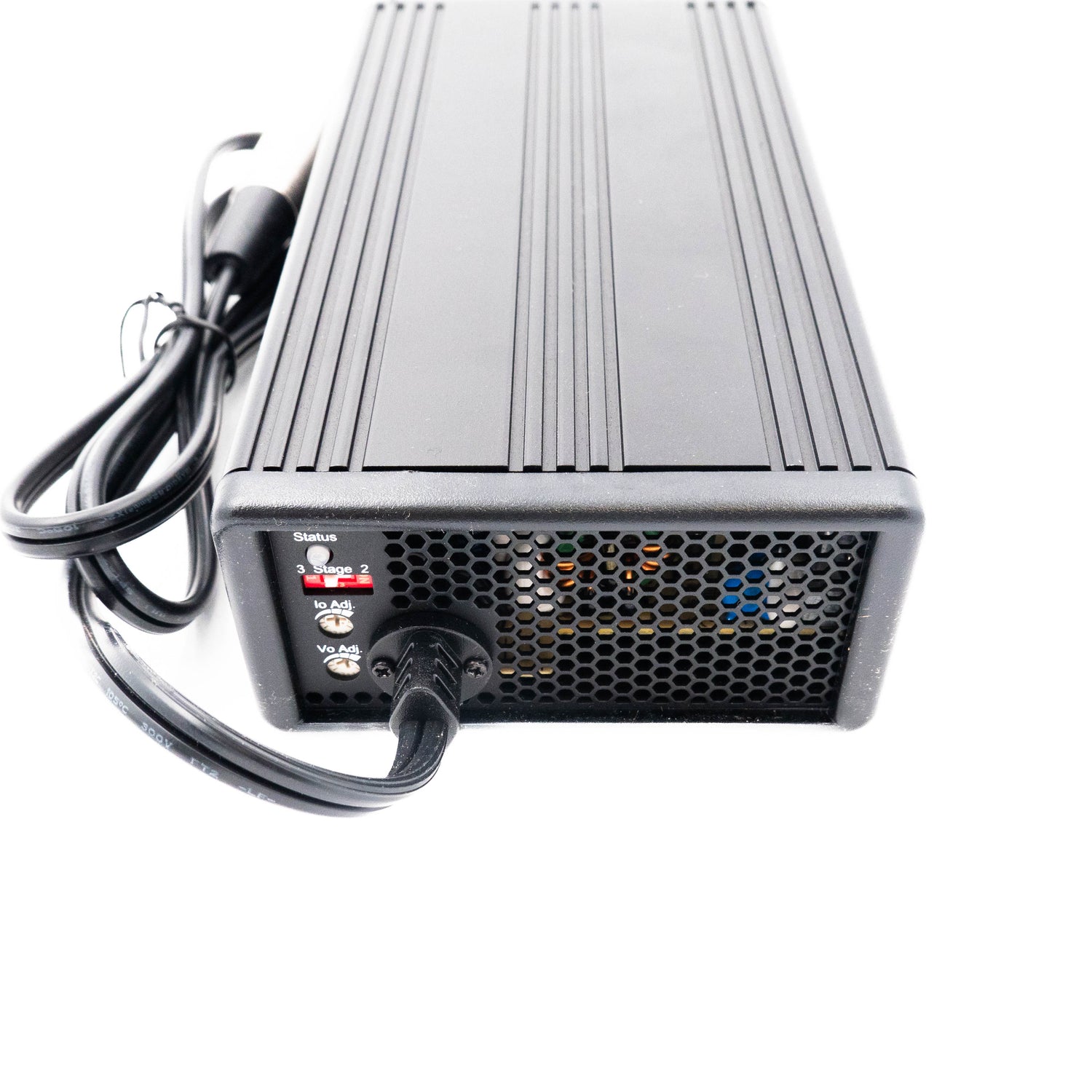

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-360-48XLR

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-360-48XLR designed for?

The NPB-360-48XLR is an AC-DC battery charger intended for 48V battery-charging applications. This model delivers up to 360W with a 57.6Vdc output at 6A, making it a fit for buyers who need a dedicated charger rather than a general-purpose power supply.

What are the main output specifications of the NPB-360-48XLR?

This model is rated at 360W and provides a 57.6Vdc output with 6A rated current. Those are the key electrical figures buyers typically use when checking whether the charger matches the battery system requirements for a 48V setup.

Does the NPB-360-48XLR support staged battery charging?

Yes. The NPB-360-48XLR supports 2-stage or 3-stage charging, which is useful for battery-charging applications that require a defined charging profile. It also includes power factor correction and accepts universal AC input.

How does the NPB-360-48XLR compare with lower-current 48V chargers?

The main difference is charging capacity: this model delivers up to 6A at 57.6Vdc with a 360W power rating. For buyers comparing options within 48V chargers, that makes it better suited to applications needing higher charging throughput than smaller, lower-current units.

Can the NPB-360-48XLR be used in harsh temperature conditions?

This charger is rated for operation from -30°C to 70°C. That wide temperature range makes it more suitable for demanding commercial or industrial environments than chargers limited to narrower indoor-only conditions.

What physical and model-specific details should buyers know about the NPB-360-48XLR?

The NPB-360-48XLR weighs 1.3 kg and is supplied in the 3 pin power pin version of the NPB-360-48 series. It also carries a 3-year warranty, which is an important commercial consideration for replacement cycles and support planning.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12TB Battery Charger 360W 12V Terminal Block 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-48TB Battery Charger 360W 48V Terminal Block 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-24XLR Battery Charger 360W 24V 3 Pin Power Pin 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-24AD1 Battery Charger 360W 24V Anderson Connector 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12XLR Battery Charger 360W 12V 3 Pin Power Pin 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-12AD1 Battery Charger 360W 12V Anderson Connector 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
