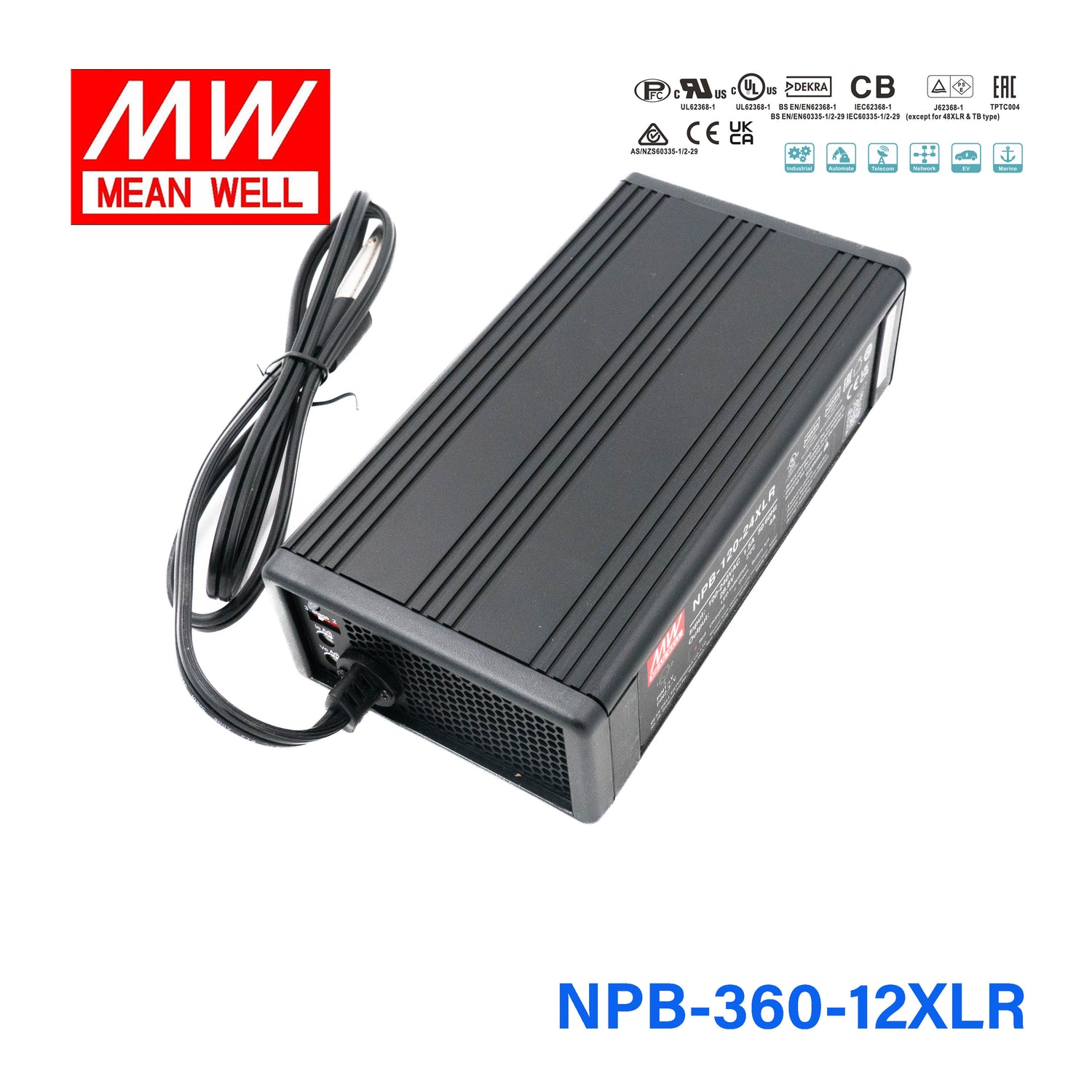

Mean Well NPB-360-12XLR Battery Charger 360W 12V 3 Pin Power Pin 20A

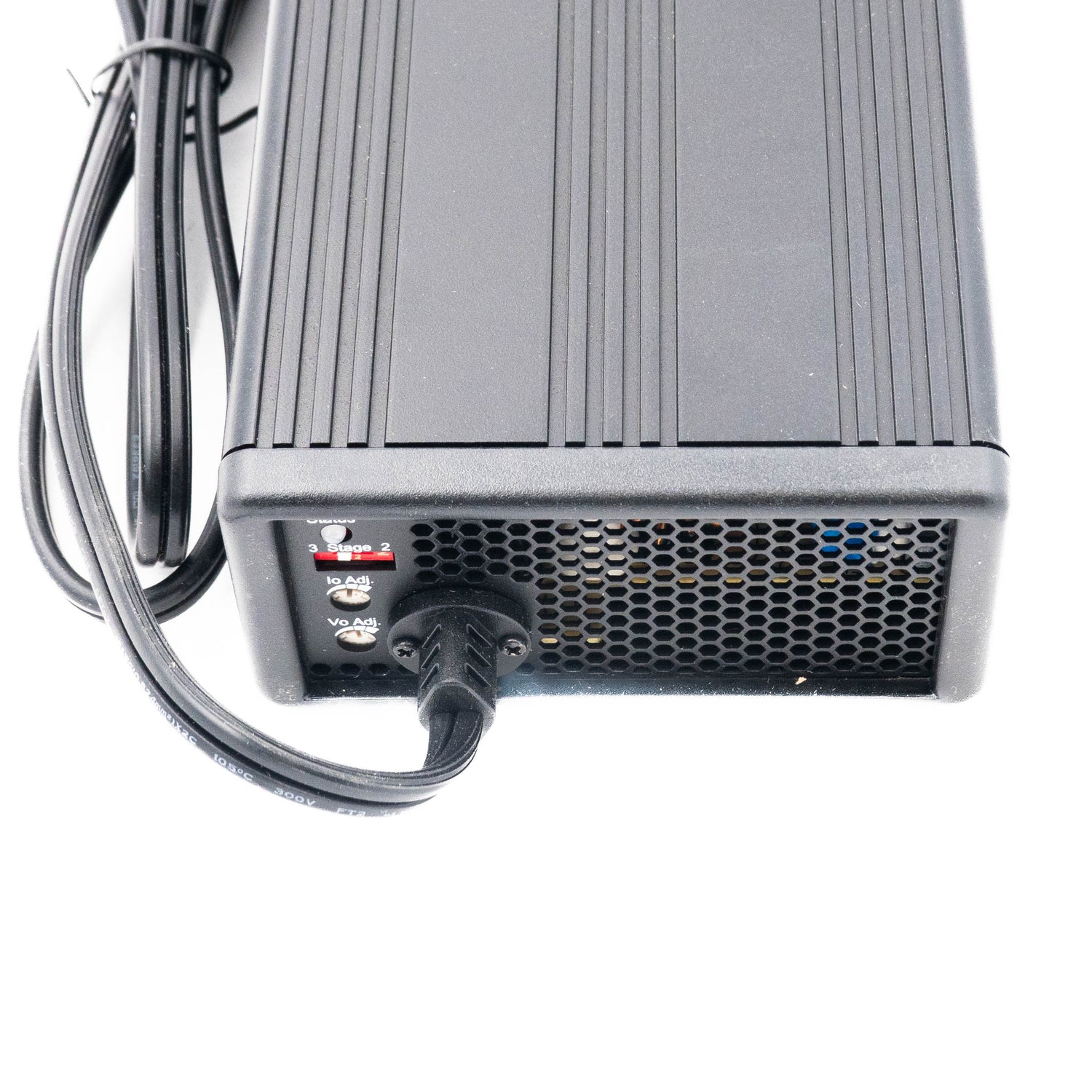

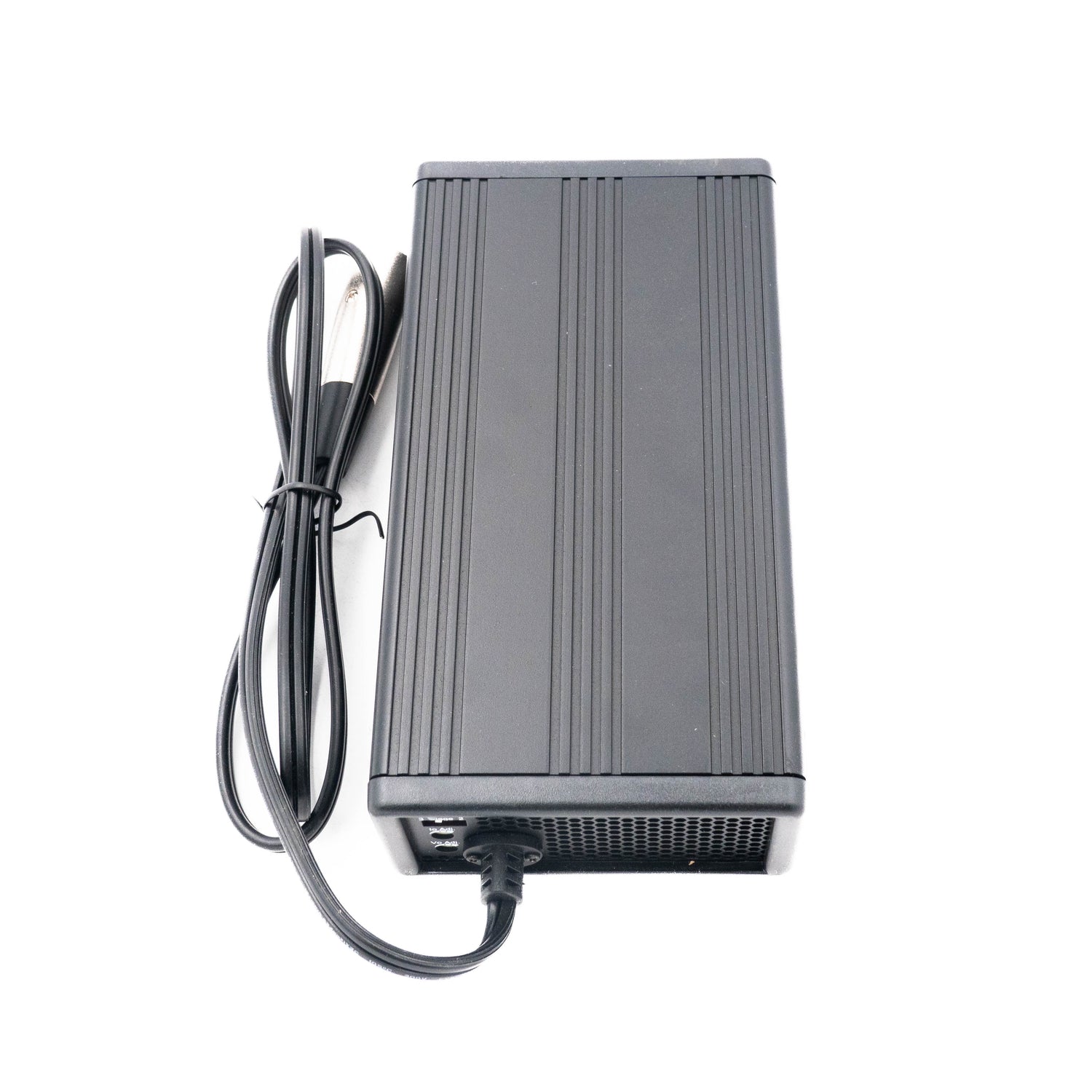

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-360-12XLR

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-360-12XLR designed for?

The NPB-360-12XLR is an AC-DC battery charger intended for 12V battery charging applications that need a 360W charger. It provides a 14.4Vdc output at up to 20A, making it suitable for portable or fixed commercial charging use where a dedicated battery charger is required.

What are the key output specifications of the NPB-360-12XLR?

This model is rated at 360W with an output of 14.4Vdc and a rated current of 20A. Those specifications make it a high-power 12V battery charger within the Mean Well NPB series.

Does this model support multi-stage battery charging?

Yes. The product description states that the NPB-360-12XLR supports 2-stage or 3-stage charging. That makes it more battery-charger-specific than a standard fixed-output power supply.

Can the NPB-360-12XLR handle demanding operating environments?

This charger has a specified operating temperature range of -30°C to 70°C. That wide range makes it suitable for environments that may be too hot or too cold for lighter-duty chargers, provided the rest of the system is designed for those conditions.

Is this a universal-input charger?

Yes. The product description lists universal AC input, which helps when the charger may be used across different standard AC supply environments. It also includes power factor correction (PFC) as part of its AC-DC charger design.

What should buyers know about the physical size and support coverage of this model?

The NPB-360-12XLR weighs 1.3 kg, which is useful for evaluating portability and enclosure planning. It also carries a 3-year warranty period from the manufacturer.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12TB Battery Charger 360W 12V Terminal Block 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48TB Battery Charger 360W 48V Terminal Block 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-24XLR Battery Charger 360W 24V 3 Pin Power Pin 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-24AD1 Battery Charger 360W 24V Anderson Connector 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12AD1 Battery Charger 360W 12V Anderson Connector 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
