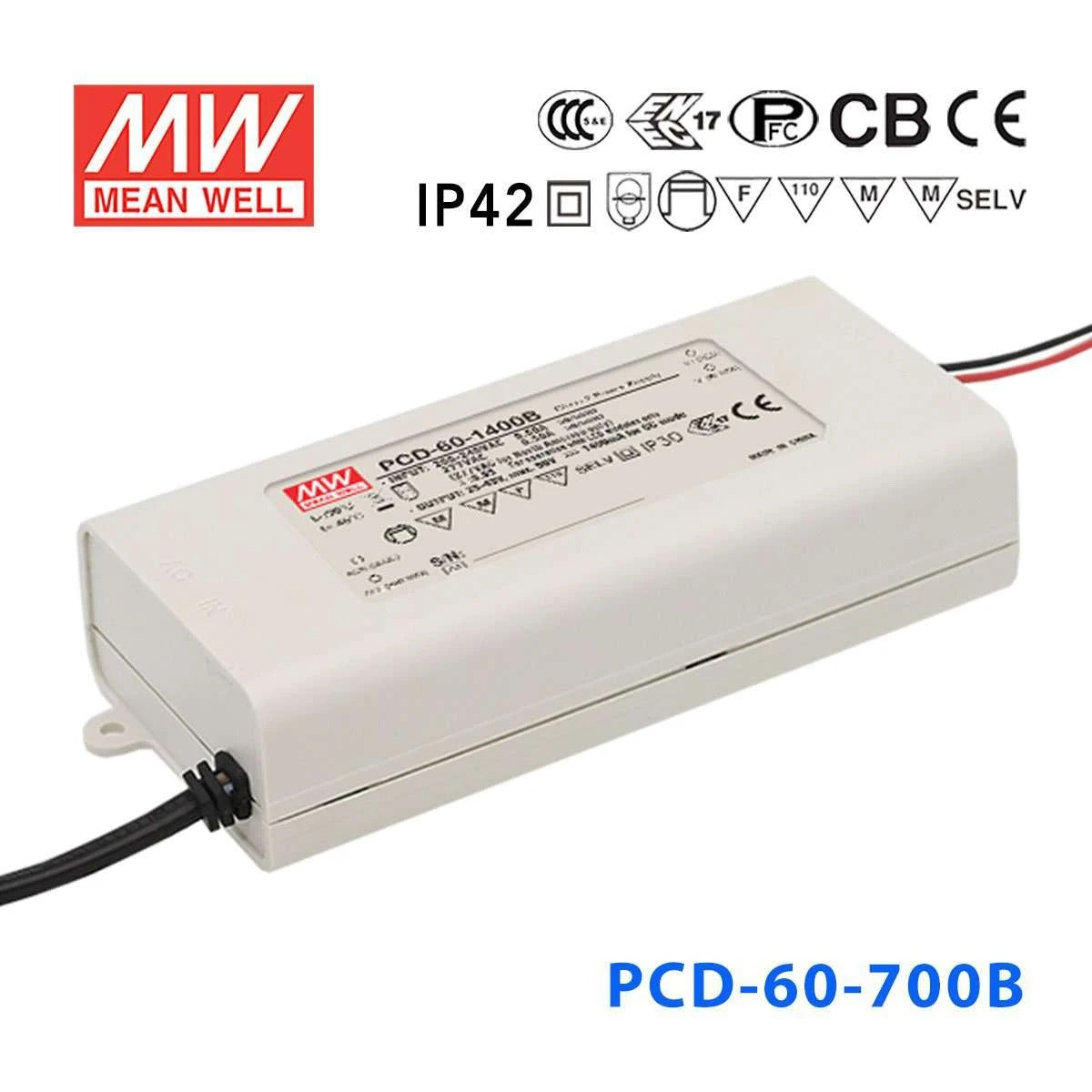

Mean Well PCD-60-700B Power Supply 60W 700mA

Yes, this driver is designed for constant current LED loads at 700mA, which is a common drive level for many LED downlight engines. The compatible load also needs to fall within the 50-86V CC output range. Because it is a constant current driver, it should be matched to fixtures that specify constant current rather than constant voltage input.

It can be suitable for signage modules or small LED arrays when the LED load is built for 700mA constant current and the total forward voltage is within 50-86V. The 60.2W rating supports larger constant current LED assemblies than lower-power models in the series. It is not meant for constant voltage LED products that expect a fixed DC output.

Yes, the 50-86V CC range makes it relevant for linear or compact LED engines that place multiple LEDs in series and require 700mA. That combination can suit higher-voltage LED arrays more naturally than lower-voltage, higher-current modules. The final fit still depends on the array's total forward voltage at 700mA.

There is no single fixed LED count because the number of LEDs depends on the forward voltage of each LED in the load. For compatibility, the load must require 700mA constant current and have a total forward voltage within the 50-86V CC range. This is different from sizing a constant voltage power supply, where the output voltage is fixed and the current draw is set by the load.

Across the PCD-60 series, PCD-60-500B is 500mA with a 70-108V CC range and 54W, PCD-60-700B is 700mA with a 50-86V range and 60.2W, PCD-60-1050B is 1050mA with a 34-57V range and 59.85W, PCD-60-1400B is 1400mA with a 25-43V range and 60.2W, PCD-60-1750B is 1750mA with a 20-34V range and 59.5W, PCD-60-2000B is 2000mA with an 18-30V range and 60W, and PCD-60-2400B is 2400mA with a 15-25V range and 60W. This 700mA version sits between the higher-voltage 500mA model and the lower-voltage, higher-current variants. The correct choice depends on the LED module's required current and forward-voltage range.

The stated operating temperature range is -30°C to +45°C, and the enclosure is a plastic casing rated IP42. That makes it more appropriate for indoor LED applications where moderate ingress protection is acceptable. If the environment is more exposed, the IP42 rating is the first limit to review.
