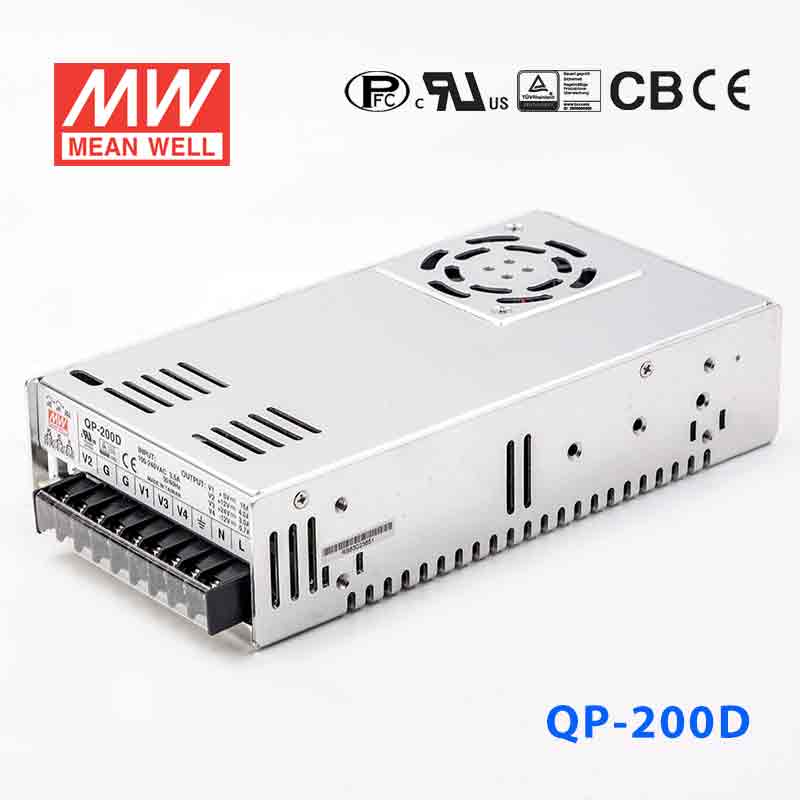

Mean Well QP-200D Power Supply 200W 5V 12V 24V -12V 15A

built-in active PFCPF>0.95quad output
SKU QP-200D
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

QP-200D is the 5V 12V 24V -12V output model of this series: rated current 15A 4A 3A 0.7A, rated power 203.4W, typical efficiency 75%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • CH1,2 can be adjustable from -5~+10%
  • With power good and fail signal output(Optional)
  • Built-in remote sense function for CH1,2
  • 100% full load burn-in test
  • CH4 can set to positive after consult us before delivery(Optional)
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

QP-200DSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 CH2 CH3 CH4
DC VOLTAGE
5V 12V 24V -12V
RATED CURRENT
15A 4A 3A 0.7A
CURRENT RANGE
3 ~ 20A 0 ~ 6A 0.4 ~ 5A 0 ~ 1A
RATED POWER
203.4W
PEAK CURRENTNote.4
20A 7A 6A 1A
RIPPLE & NOISE (max.)Note.2
100mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V CH2: 11.4 ~ 13.2V
VOLTAGE TOLERANCENote.3
±3.0% ±3.0% +10,-6% ±6.0%
LINE REGULATION
±1.0% ±1.0% ±2.0% ±1.0%
LOAD REGULATION
±2.0% ±2.0% ±6.0% ±2.0%
SETUP, RISE TIME
800ms, 50ms at full load
HOLD UP TIME (Typ.)
24ms at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
75%
AC CURRENT (Typ.)
3.5A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1:5.75 ~ 6.75V CH2:13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

POWER GOOD / POWER FAIL(OPTIONAL)
10ms/1ms

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃ , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
± 0.03%/℃ (0~50℃ )
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1456.9K hrs min. Telcordia SR-332 (Bellcore) ; 226.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.2Kg; 12pcs/15.4Kg/0.9CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

QP-200D Mechanical Specification
Mechanical Specification
QP-200D Block Diagram
Block Diagram
QP-200D Derating Curve
Derating Curve

Downloads

FAQ

Can I use the QP-200D for industrial systems that need 5V control power and 24V field-device power together?

Yes, this model is relevant for mixed-voltage industrial electronics because it provides 5V, 12V, 24V, and -12V outputs from one constant-voltage supply. The main 5V rail is rated at 15A and the total output power is 203.4W.

Is the QP-200D a fit for embedded platforms that combine logic, analog, and higher-voltage subsystems?

It can be a strong fit when one assembly needs low-voltage logic plus higher-voltage rails in the same equipment. The combination of 5V, 12V, 24V, and -12V supports mixed digital and analog sections, and the 90-264VAC input suits standard AC-fed installations.

Would the QP-200D work in automation or instrumentation equipment that still uses a -12V rail?

Yes, the included -12V output is useful for instrumentation or interface designs that still rely on bipolar analog rails while also needing 5V, 12V, and 24V. With 203.4W total power and 5V at 15A, it is aimed at multi-rail assemblies rather than a single-voltage application.

Is this power supply intended for outdoor environments?

The available specs do not show any IP rating, so outdoor exposure should not be assumed from this product data. The stated operating temperature range is -10C to +60C, so the environment needs to remain within that range.

How does the QP-200D compare with similar QP multi-output models?

Among the nearby 200 class models, QP-200-3A is 200W with 5V and 15A, QP-200-3B is 204.9W, QP-200-3C is 210W, QP-200-3D is 203.9W with 5V and 10A, QP-200-3E is 206W, QP-200D is 203.4W with 5V and 15A, and QP-200F is 202.5W with 5V and 15A. Above that, QP-320D and QP-320F move to 316W with 5V and 20A, while the family also includes 100W, 146W, 150.2W, and 152W models plus 375W to 378W 5V and 24V units.
