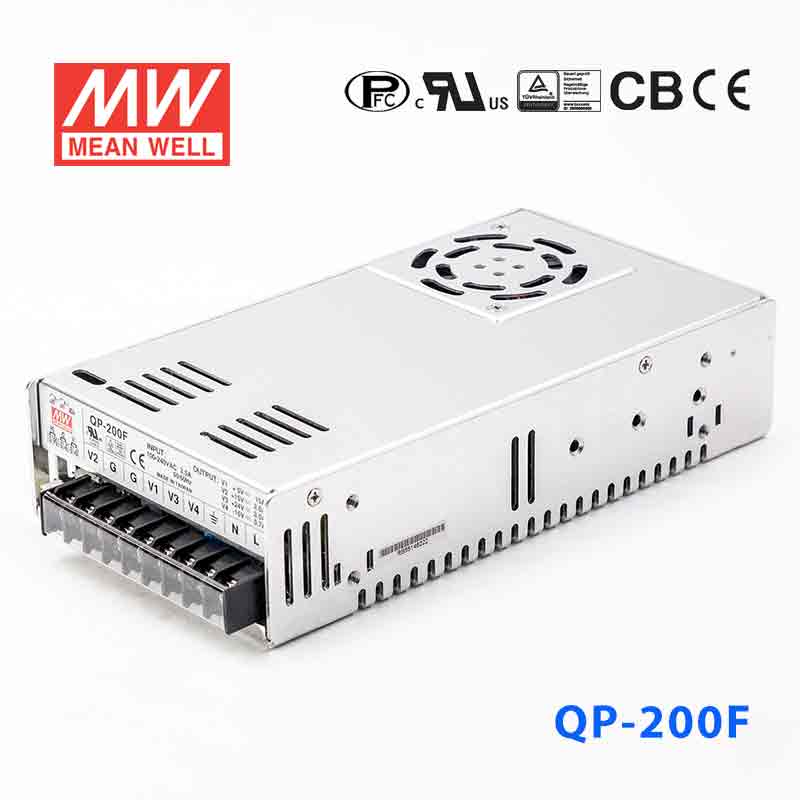

Mean Well QP-200F Power Supply 200W 5V 15V 24V -15V 15A

built-in active PFCPF>0.95quad output
SKU QP-200F
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

QP-200F is the 5V 15V 24V -15V output model of this series: rated current 15A 3A 3A 0.7A, rated power 202.5W, typical efficiency 75%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • CH1,2 can be adjustable from -5~+10%
  • With power good and fail signal output(Optional)
  • Built-in remote sense function for CH1,2
  • 100% full load burn-in test
  • CH4 can set to positive after consult us before delivery(Optional)
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

QP-200FSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 CH2 CH3 CH4
DC VOLTAGE
5V 15V 24V -15V
RATED CURRENT
15A 3A 3A 0.7A
CURRENT RANGE
3 ~ 20A 0 ~ 5A 0.4 ~ 5A 0 ~ 1A
RATED POWER
202.5W
PEAK CURRENTNote.4
20A 6A 6A 1A
RIPPLE & NOISE (max.)Note.2
100mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V CH2: 14.25 ~ 16.5V
VOLTAGE TOLERANCENote.3
±3.0% ±3.0% +10,-6% ±6.0%
LINE REGULATION
±1.0% ±1.0% ±2.0% ±1.0%
LOAD REGULATION
±2.0% ±2.0% ±6.0% ±2.0%
SETUP, RISE TIME
800ms, 50ms at full load
HOLD UP TIME (Typ.)
24ms at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
75%
AC CURRENT (Typ.)
3.5A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V CH2:17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

POWER GOOD / POWER FAIL(OPTIONAL)
10ms/1ms

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃ , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
± 0.03%/℃ (0~50℃ )
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1456.9K hrs min. Telcordia SR-332 (Bellcore) ; 226.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.2Kg; 12pcs/15.4Kg/0.9CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

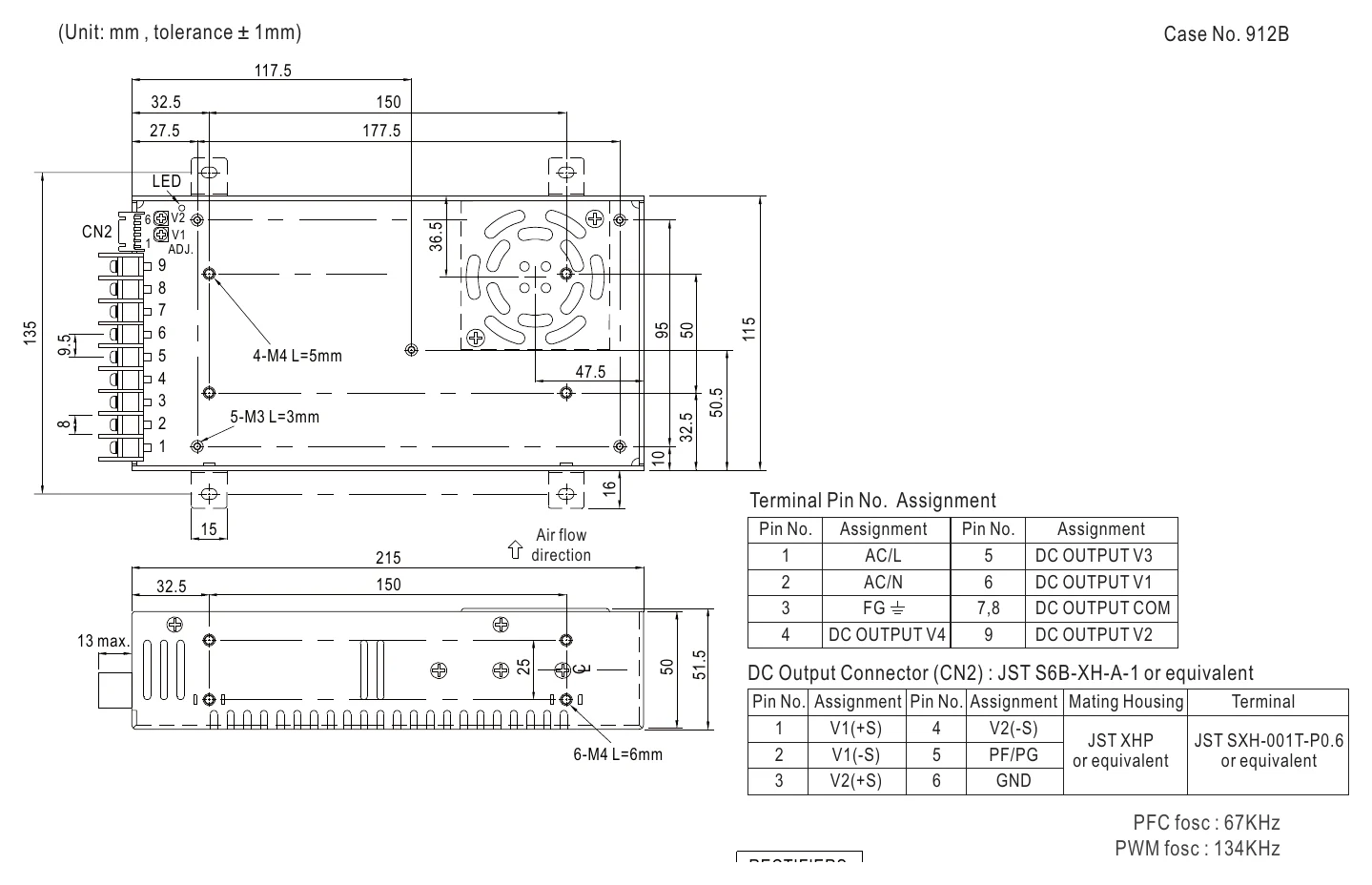

QP-200F Mechanical Specification
Mechanical Specification

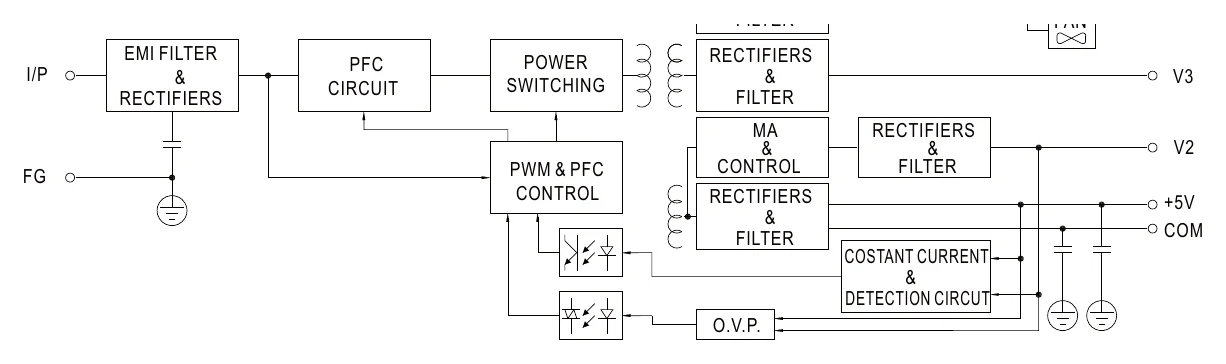

QP-200F Block Diagram
Block Diagram

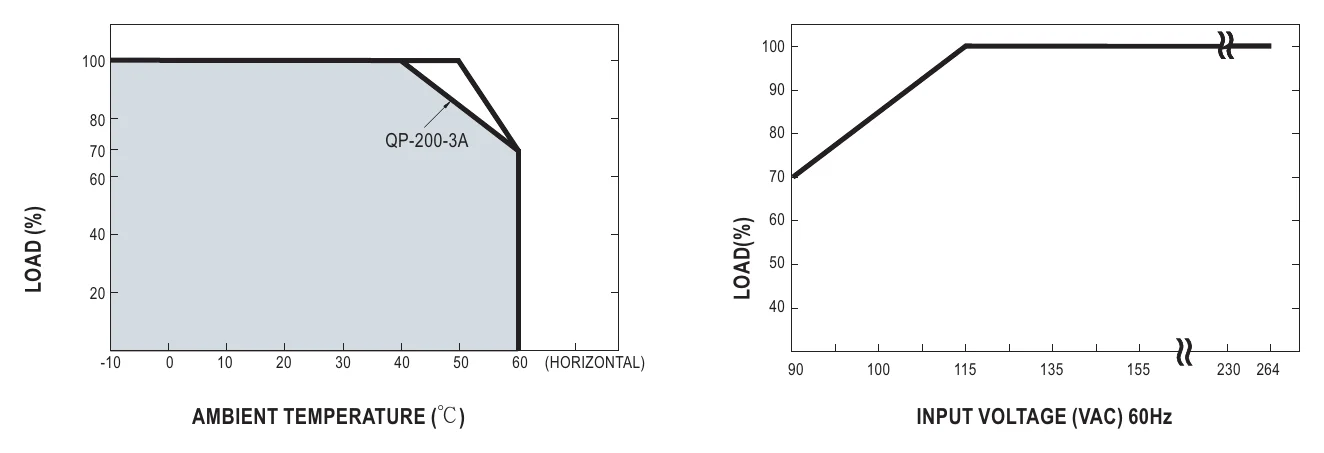

QP-200F Derating Curve
Derating Curve

Downloads

FAQ

Can I use the QP-200F for industrial electronics that need 24V plus +/-15V support rails?

Yes, this supply is suited to mixed-voltage electronic equipment because it provides 5V, 15V, 24V, and -15V outputs in one constant-voltage unit. Its main 5V output is rated at 15A and the total available power is 202.5W.

Is the QP-200F a good match for embedded or automation hardware with analog stages on +/-15V?

It can be a good match for equipment that combines digital control electronics with analog circuitry that needs 15V and -15V rails. The addition of a 24V output also makes it useful in systems where several regulated voltages are needed from one 90-264VAC source.

Would this model fit test and measurement equipment with multiple DC rails?

Yes, the quad-output format is aligned with bench or rack equipment that uses 5V logic together with 15V, -15V, and 24V rails. At 202.5W total power, it is intended for multi-rail assemblies rather than a simple low-power single-output load.

Can the QP-200F be used in outdoor or exposed ambient locations?

The listed specifications do not include an IP rating, so this product is not defined here as outdoor-rated or weatherproof. Its operating temperature range is -10C to +60C, which sets the temperature window in the provided data.

How does the QP-200F compare with other QP 200 series models?

In the 200 range provided here, QP-200-3A is 200W with 5V and 15A, QP-200-3B is 203.4W, QP-200-3C is 203.4W, QP-200-3D is 203.9W with 5V and 10A, QP-200-3E is 203.4W, QP-200D is 203.4W with 5V and 15A, and QP-200F is 202.5W with 5V and 15A. The broader family also includes 100W, 146W, 150.2W, and 152W options, 316W models with 5V and 20A, and 375W to 378W models in 5V and 24V versions.
