Mean Well

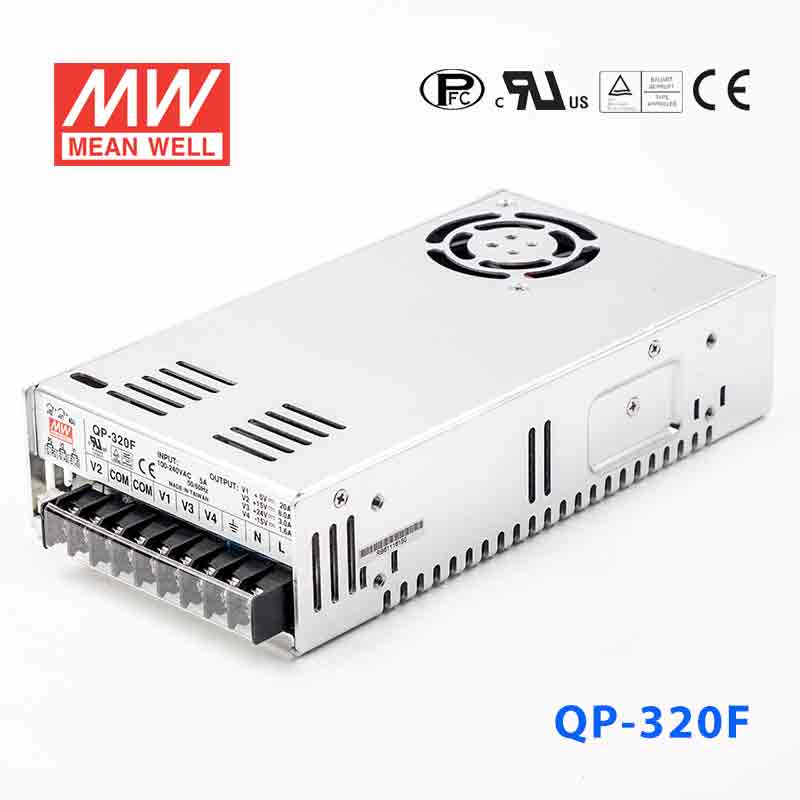

Mean Well QP-320F Power Supply 320W 5V 15V 24V -15V 20A

built-in active PFCPF>0.95quad output
SKU QP-320F
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

QP-320F is the CH1: 5V / CH2: 15V / CH3: 24V / CH4: -15V output model of this series: rated current CH1: 20A / CH2: 8A / CH3: 3A / CH4: 1.6A, rated power 316W, typical efficiency 83%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • CH1 & CH2 can be adjusted from -5% ~ +10%
  • With power good and fail signal output
  • Built-in remote sense function for CH1 & CH2
  • LED indicator for power on
  • 100% full load burn-in test
  • 20A peak load capability for 24V channel
  • 3 years warranty

Specifications

QP-320FSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2 / CH3 / CH4
DC VOLTAGE
CH1: 5V / CH2: 15V / CH3: 24V / CH4: -15V
RATED CURRENT
CH1: 20A / CH2: 8A / CH3: 3A / CH4: 1.6A
CURRENT RANGE
CH1: 2.5 ~ 20A / CH2: 0 ~ 10A / CH3: 0.2 ~ 5A / CH4: 0.2 ~ 1.6A
PEAK CURRENT
CH1: 20A / CH2: 10A / CH3: 20A,≦1ms(Note5) / CH4: 1.6A
RATED POWER
316W
RIPPLE & NOISE (max.)Note.2
CH1: 100mVp-p / CH2: 150mVp-p / CH3: 150mVp-p / CH4: 150mVp-p
VOLTAGE ADJ. RANGE
CH1,2:+10,-5%
VOLTAGE TOLERANCENote.3
CH1: ±3.0% / CH2: ±3.0% / CH3: +10,-6% / CH4: ±10%
LINE REGULATION
CH1: ±1.0% / CH2: ±2.0% / CH3: ±2.0% / CH4: ±3.0%
LOAD REGULATION
CH1: ±2.0% / CH2: ±3.0% / CH3: ±6.0% / CH4: ±8.0%
SETUP, RISE TIME
800ms,50ms/230VAC 3000ms,50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
83%
AC CURRENT (Typ.)
4A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.)
25A/115VAC 45A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1:5.75 ~ 6.75V / CH2:17.25 ~ 20.25V; Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

POWER GOOD / POWER FAIL
10ms/1ms

ENVIRONMENT

WORKING TEMP.
-10 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1477.2K hrs min. Telcordia SR-332 (Bellcore) ; 213.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.2Kg; 12pcs/15.4Kg/0.9CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Every output channel can provide up to the maximum current, but total load can't exceed the rated output power.
  5. 5. CH3(24V) peak current 20A,≦1ms, repeatable in every 100ms. CH3(24V) output must be above 16V in the period of peak current.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

QP-320F Mechanical Specification
Mechanical Specification
QP-320F Block Diagram
Block Diagram

Downloads

FAQ

Can I use the QP-320F for a mixed-voltage industrial control cabinet?

It can fit control systems that need multiple DC rails from one supply because this model is a quad output design with 5V, 15V, 24V, and -15V outputs. The total rated power is 316W, and the main 5V output is rated at 20A. That makes it more suitable for mixed-voltage industrial or embedded electronics than a single-output supply.

Is the QP-320F suitable for embedded test benches that need both positive and negative rails?

Yes, it is appropriate for embedded or electronics test environments that need both positive and negative DC rails, because the listed outputs include 15V and -15V along with 5V and 24V. With 316W total capacity, it is intended for systems where several regulated voltages are required from one chassis supply.

Can this power supply be used in automation equipment with a heavy 5V load?

It can suit automation or computing loads that draw heavily from 5V because the 5V output is rated at 20A. The unit is also a constant voltage design, which matches equipment that expects a fixed DC rail rather than current-regulated output.

Would the QP-320F work for industrial electronics that need wide AC input compatibility?

It is a fit for equipment that may be deployed across different AC mains regions because the input range is 90-264VAC. That makes it practical for industrial and IT hardware built for international power environments while still providing up to 316W total output.

How does the QP-320F compare with other QP series models?

Within the listed QP series, lower-power options include QP-100 variants at 100W, QP-150 variants around 146W to 152W, and QP-200 variants around 200W to 203.9W. The QP-320D and QP-320F are both 316W with 5V and 20A listed, while higher-power single-output models include QP-375-24B and QP-375-24C at 375W 24V, plus QP-375-5A through QP-375-5E at 375W to 378W with 5V variants including one listed at 30A. This model stands out in the list for combining 316W with quad output capability.

Is the QP-320F appropriate for outdoor or harsh-environment use?

The stated operating temperature is -10°C to +70°C, which supports use in a broad indoor equipment temperature range. No IP rating is listed in the provided specs, so exposed outdoor or washdown suitability cannot be confirmed from this data alone.
