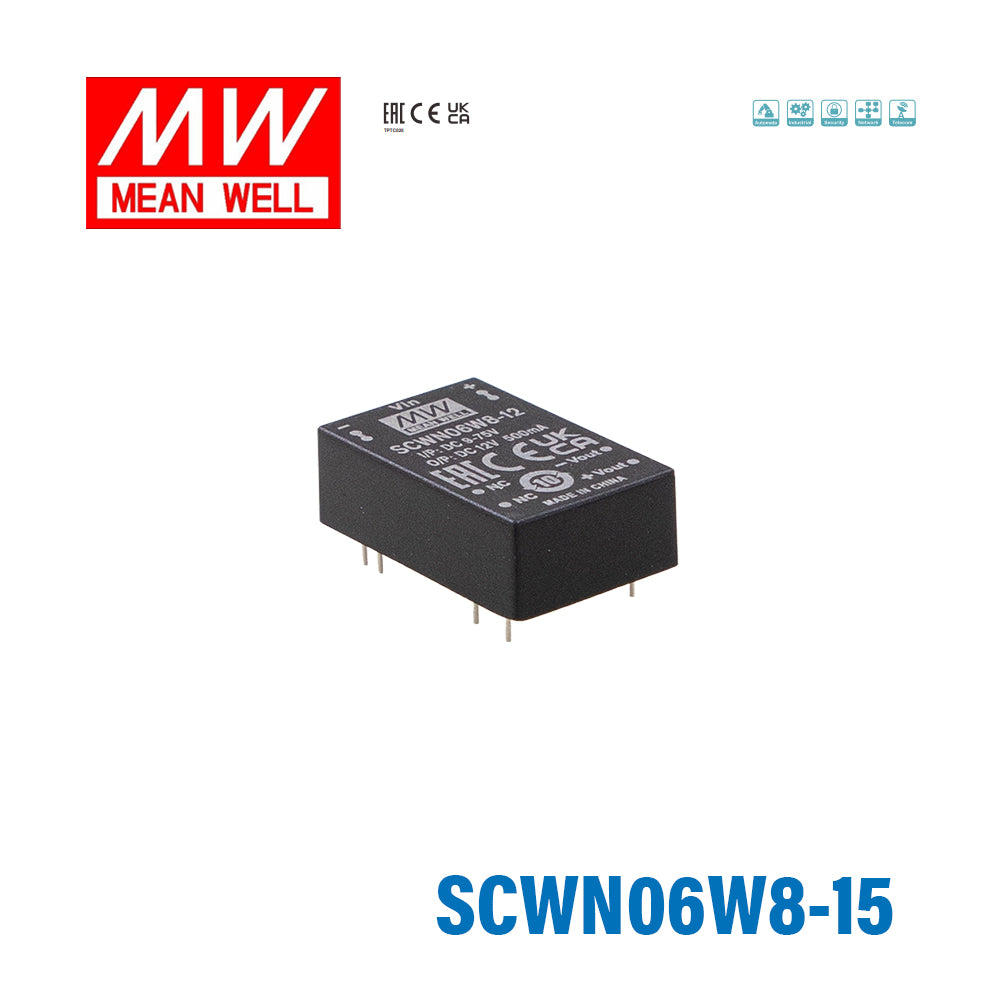

Mean Well SCWN06W8-15 DC-DC Converter - 6W 9~75V DC in 15V out 6mA
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓High efficiency up to 86%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well SCWN06W8-15 used for?
The SCWN06W8-15 is a 6W DC-DC converter module designed for applications that need a regulated 15V DC output from a very wide DC input range. It is suited to industrial and OEM equipment that may operate from nominal 12V, 24V, 36V, 48V, or 72V DC systems.
What input voltage range does the SCWN06W8-15 support?
This model supports an ultra-wide 9 to 75V DC input range. That 8:1 range makes it useful in systems where input voltage can vary significantly across different DC bus standards.
What output does the SCWN06W8-15 provide?
The SCWN06W8-15 provides a regulated 15V DC output and is rated for 6W of output power. It is intended for applications that need a compact isolated DC-DC converter in this voltage and power class.
Can the SCWN06W8-15 be used in harsh temperature environments?
Yes. This converter is specified for operation from -40°C to +95°C, which makes it suitable for demanding industrial environments where wide temperature tolerance is important.
Does the SCWN06W8-15 require a minimum load to operate properly?
No. Mean Well specifies that this model requires no minimum load, which can simplify use in systems where load conditions vary during operation.
What protection and isolation features are included in the SCWN06W8-15?
The SCWN06W8-15 includes short circuit, overload, over voltage, and UVLO protection. It also provides 3KVdc input-to-output isolation, which is important in designs that require electrical separation between input and output sides.
