Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

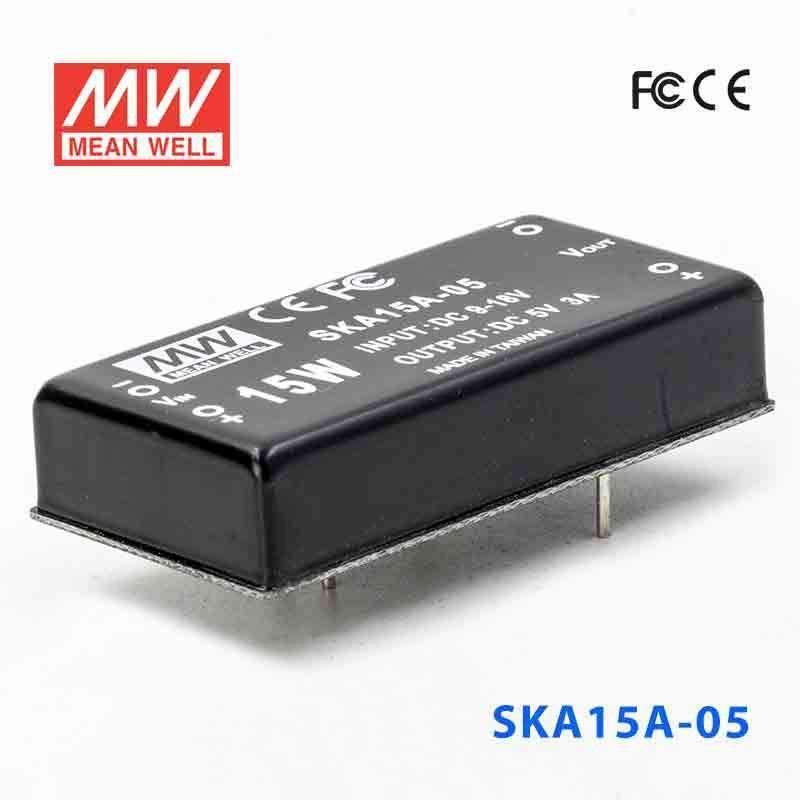

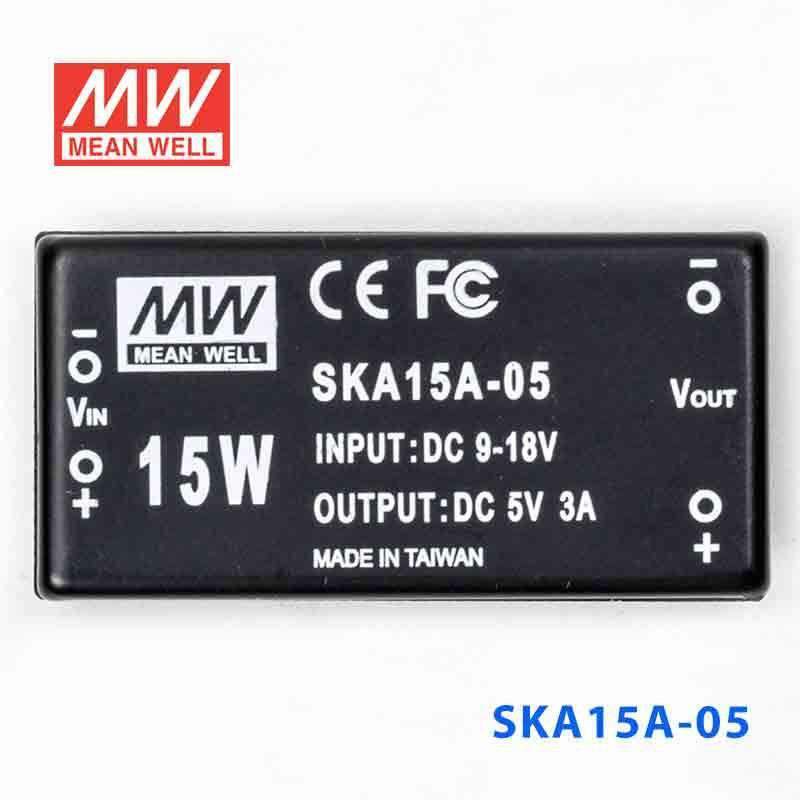

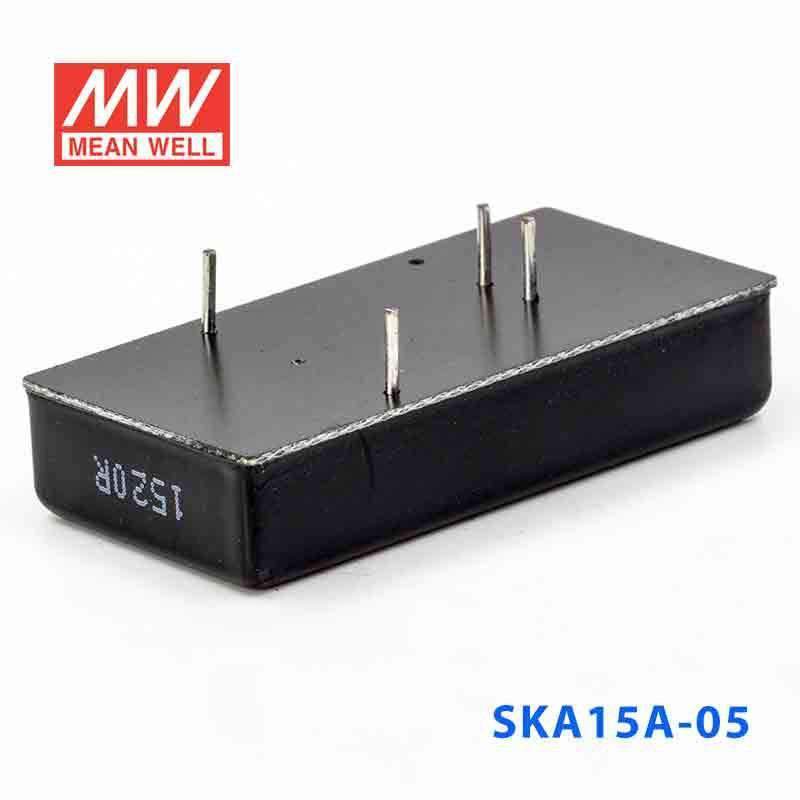

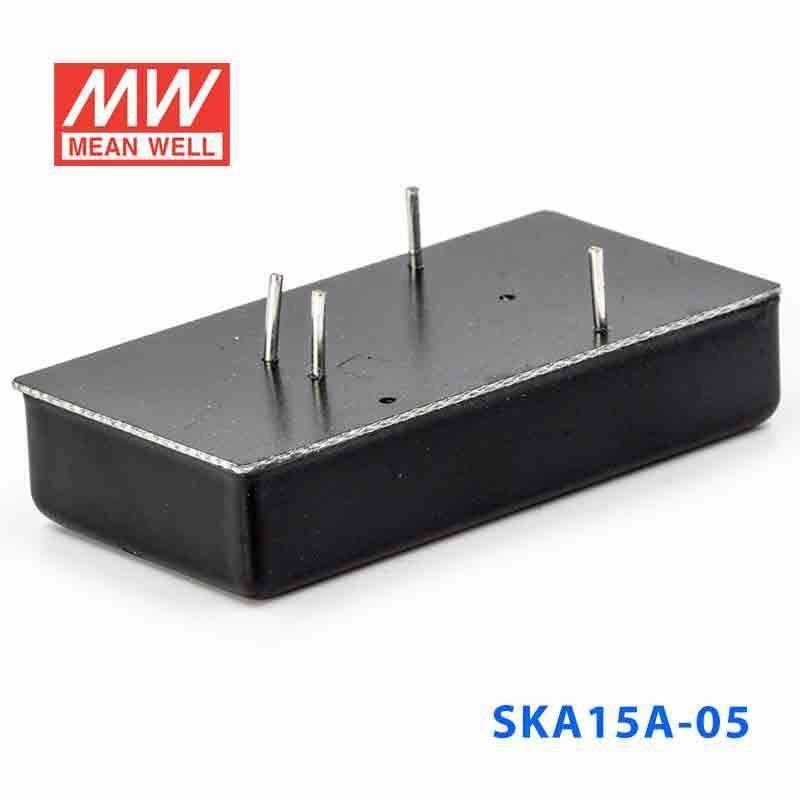

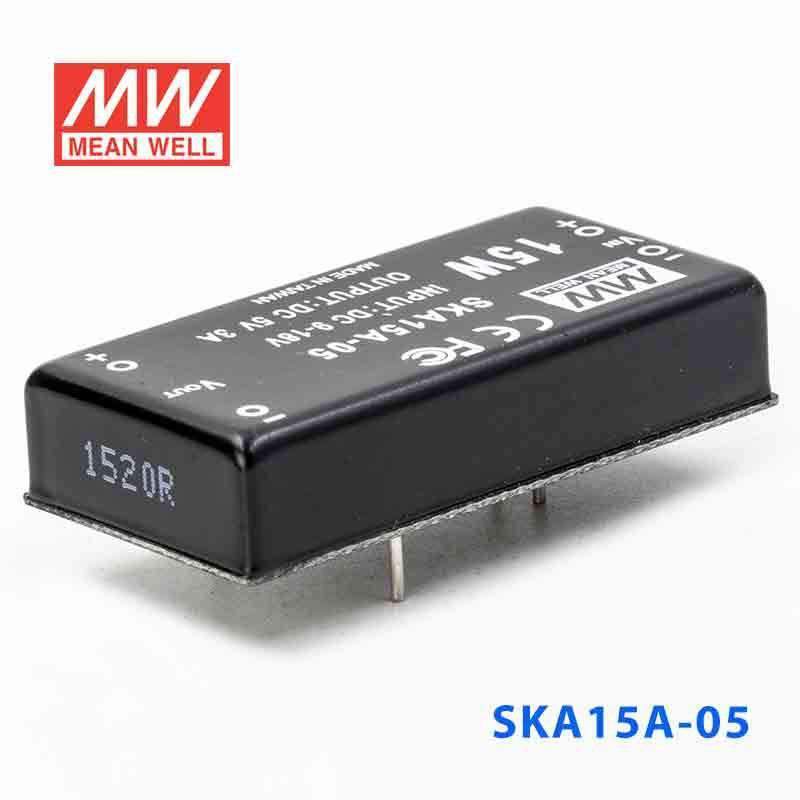

Mean Well SKA15A-05 DC-DC Converter - 9.9W - 9~18V in 5V out

SKU:

SKA15A-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range(option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	110%~250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40~+71°C (refer to output derating curve)
Storage temperature	-40°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2" x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

9.9 Watt
Output Voltage

5 Volt
Rated Current

3 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA15A-05 to power 5V embedded controllers or single-board electronics from 9-18VAC?

Yes, this converter accepts 9-18VAC input and delivers a constant 5V output. With up to 3A output current and a 9.9W rating, it fits 5V logic and embedded loads that stay within that power range.

Is the SKA15A-05 appropriate for 5V HMI, interface, or communication modules in control equipment?

It can be used where a regulated 5V rail is needed for compact control electronics. The 3A output current gives more headroom than the 12V and 15V versions in the same family, while still keeping the total output within 9.9W.

Can this 5V converter support industrial sensor hubs or low-voltage accessory boards?

Yes, it is suited to 5V accessory electronics that need constant-voltage output rather than a variable supply. The combination of 5V output and 3A maximum current works for grouped low-voltage boards as long as the total demand does not exceed 9.9W.

Does the SKA15A-05 fit small automation assemblies with tight mounting space?

Its body measures 50.8 × 25.4 × 11.27 mm and the unit weighs 0.032 kg. That small format is useful when 5V conversion has to fit inside compact control or embedded equipment.

Is the SKA15A-05 intended for indoor panels or exposed outdoor use?

It has a wide operating temperature range of -40°C to +71°C, which supports use in demanding equipment environments. Since no IP rating is specified, it is better treated as a converter for protected indoor cabinets or enclosed assemblies instead of direct outdoor exposure.

What are the differences between the SKA15A-05 and the other SKA15A outputs?

All SKA15A models use the same 9-18VAC input range and 9.9W power class. The output choices are 3.3V at 3A for SKA15A-033, 5V at 3A for SKA15A-05, 12V at 1.25A for SKA15A-12, and 15V at 1A for SKA15A-15.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA15C-15 DC-DC Converter - 15W - 36~72V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKA15C-12 DC-DC Converter - 15W - 36~72V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKA15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKA15C-033 DC-DC Converter - 15W - 36~72V in 3.3V out	15W	3.3V	3A	Indoor	View
Mean Well SKA15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKA15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKA15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKA15B-033 DC-DC Converter - 15W - 18~36V in 3.3V out	15W	3.3V	3A	Indoor	View
Mean Well SKA15A-15 DC-DC Converter - 9.9W - 9~18V in 15V out	9.9W	15V	1A	Indoor	View
Mean Well SKA15A-12 DC-DC Converter - 9.9W - 9~18V in 12V out	9.9W	12V	1.25A	Indoor	View
Mean Well SKA15A-033 DC-DC Converter - 9.9W - 9~18V in 3.3V out	9.9W	3.3V	3A	Indoor	View
