Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

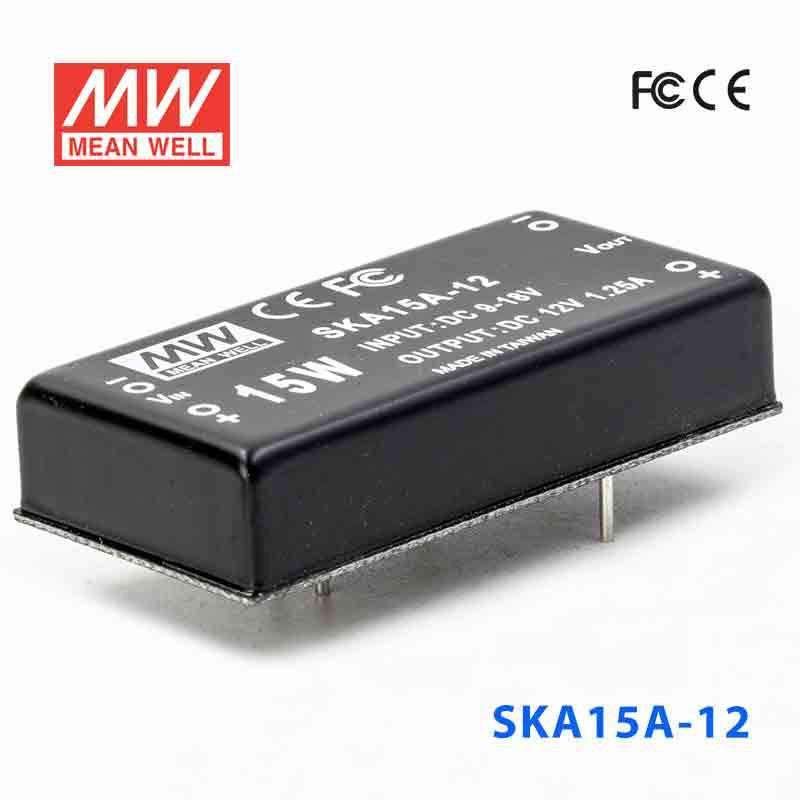

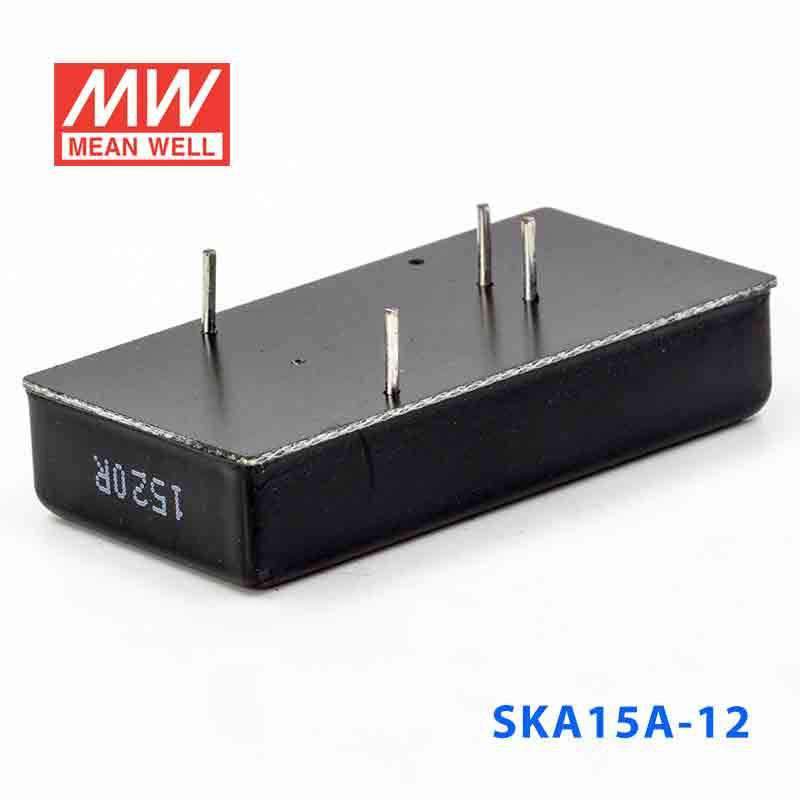

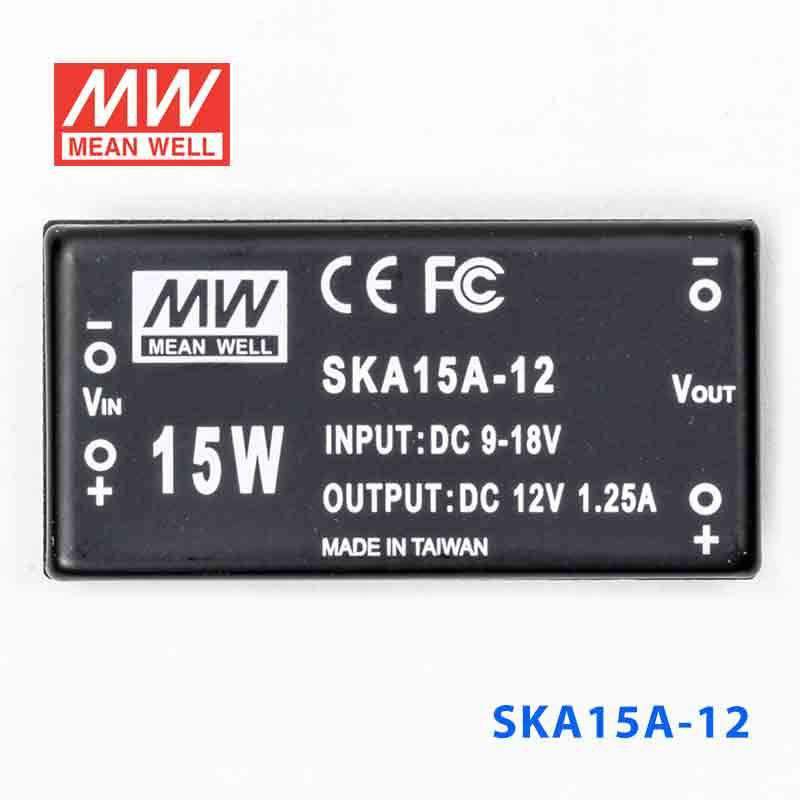

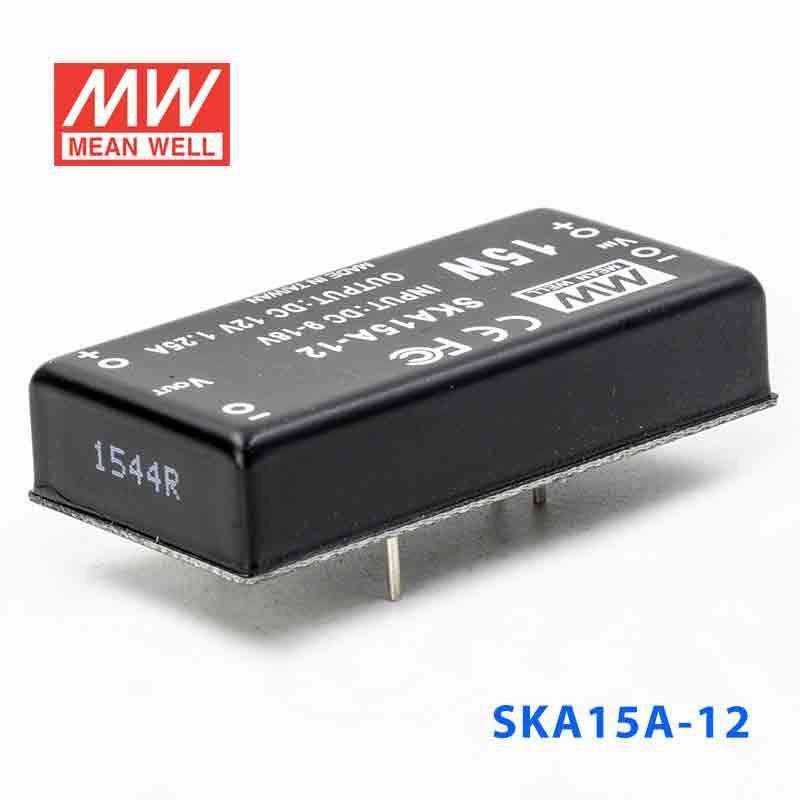

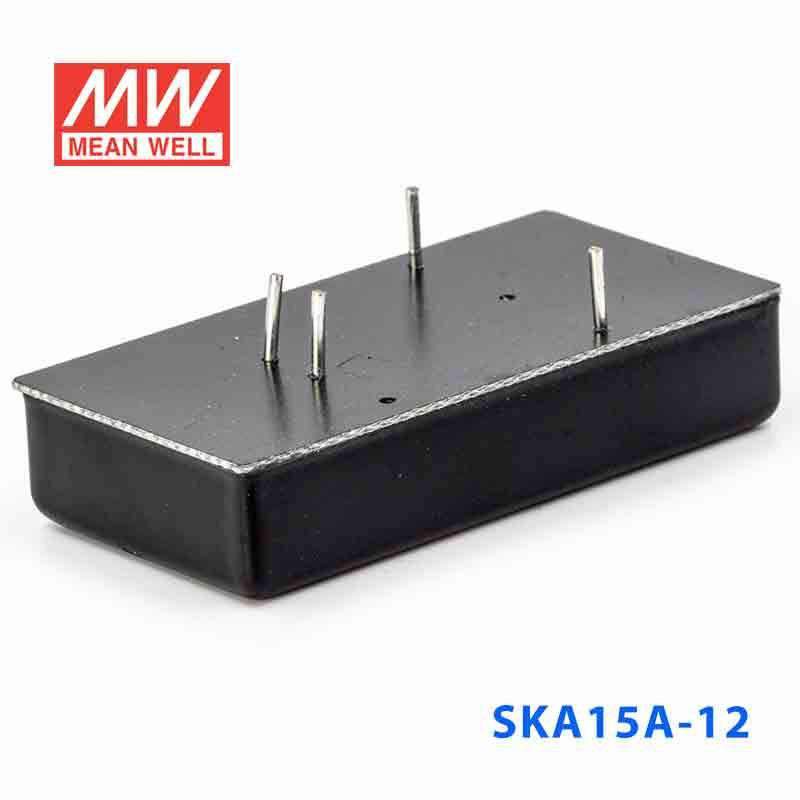

Mean Well SKA15A-12 DC-DC Converter - 9.9W - 9~18V in 12V out 1.25A

SKU:

SKA15A-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKA15A is a 15W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit
✓ 3 years warranty

Frequently Asked Questions

Can I use the SKA15A-12 for 12V automation accessories powered from a 9-18VAC source?

Yes, this model converts 9-18VAC input to a constant 12V output. It provides up to 1.25A with a 9.9W rating, which makes it suitable for lower-power 12V control accessories and auxiliary circuits within that load limit.

Is the SKA15A-12 suitable for 12V relays, indicator devices, or control-side peripherals?

It is a fit for 12V devices that need regulated constant-voltage output and do not exceed 1.25A. Because the total output power is 9.9W, it is better matched to lighter-duty 12V peripherals than to larger 12V loads.

Can this converter be used for small 12V monitoring or instrumentation circuits in industrial equipment?

Yes, the 12V constant-voltage output suits monitoring and instrumentation sections that run on 12V from a 9-18VAC source. The 1.25A current limit and 9.9W rating define it as a compact auxiliary supply rather than a high-power 12V source.

Is the SKA15A-12 appropriate when I need a small 12V converter inside a control enclosure?

The unit measures 50.8 × 25.4 × 11.27 mm and weighs 0.032 kg, so it is sized for compact equipment layouts. That makes it practical for control assemblies where 12V conversion has to fit into a limited footprint.

Can the SKA15A-12 handle cold or hot operating conditions, and is it outdoor rated?

Its specified operating range is -40°C to +71°C, which supports use across a broad industrial temperature span. No IP rating is listed, so it should be used in protected enclosures rather than in directly exposed outdoor conditions.

How does the SKA15A-12 differ from the other SKA15A versions?

The SKA15A family shares the same 9.9W rating and 9-18VAC input range, but the output options differ. SKA15A-033 is 3.3V at 3A, SKA15A-05 is 5V at 3A, SKA15A-12 is 12V at 1.25A, and SKA15A-15 is 15V at 1A.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA15W8-15 15W DC-DC Converter 15VDC 1A	—	—	—	Indoor	View
Mean Well SKA15W8-12 15W DC-DC Converter 12VDC 1.25A	—	—	—	Indoor	View
Mean Well SKA15W8-05 15W DC-DC Converter 5VDC 3A	—	—	—	Indoor	View
Mean Well SKA15C-15 DC-DC Converter - 15W - 36~72V in 15V out 1A	15W	15V	1A	Indoor	View
Mean Well SKA15C-12 DC-DC Converter - 15W - 36~72V in 12V out 1.25A	15W	12V	1.25A	Indoor	View
Mean Well SKA15C-05 DC-DC Converter - 15W - 36~72V in 5V out 3A	15W	5V	3A	Indoor	View
Mean Well SKA15C-033 DC-DC Converter - 15W - 36~72V in 3.3V out 3A	15W	3.3V	3A	Indoor	View
Mean Well SKA15B-15 DC-DC Converter - 15W - 18~36V in 15V out 1A	15W	15V	1A	Indoor	View
Mean Well SKA15B-12 DC-DC Converter - 15W - 18~36V in 12V out 1.25A	15W	12V	1.25A	Indoor	View
Mean Well SKA15B-05 DC-DC Converter - 15W - 18~36V in 5V out 3A	15W	5V	3A	Indoor	View
Mean Well SKA15B-033 DC-DC Converter - 15W - 18~36V in 3.3V out 3A	15W	3.3V	3A	Indoor	View
Mean Well SKA15A-15 DC-DC Converter - 9.9W - 9~18V in 15V out 1A	9.9W	15V	1A	Indoor	View
Mean Well SKA15A-05 DC-DC Converter - 9.9W - 9~18V in 5V out 3A	9.9W	5V	3A	Indoor	View
Mean Well SKA15A-033 DC-DC Converter - 9.9W - 9~18V in 3.3V out 3A	9.9W	3.3V	3A	Indoor	View
