Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

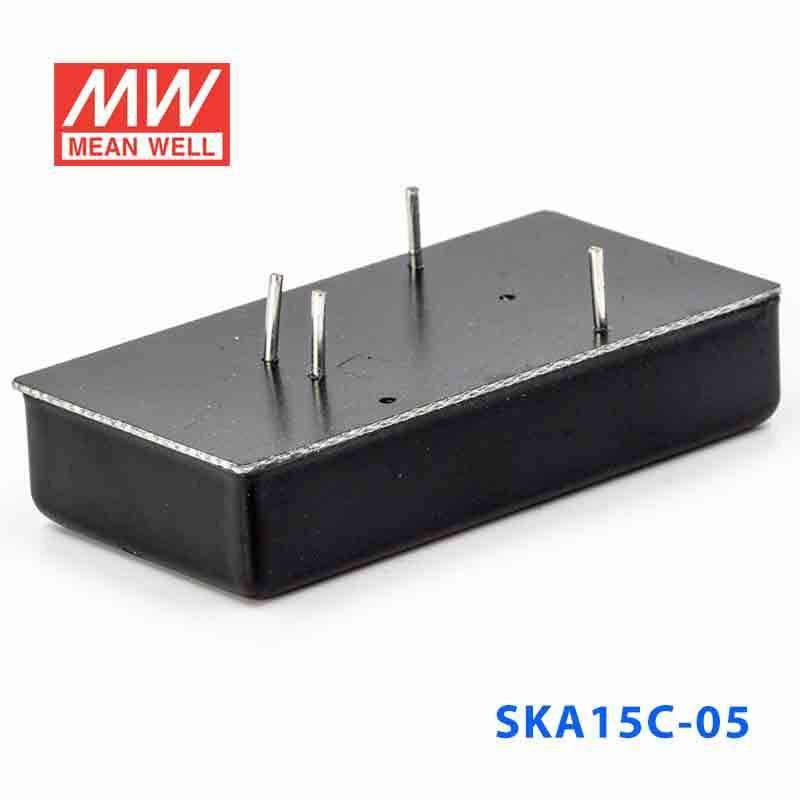

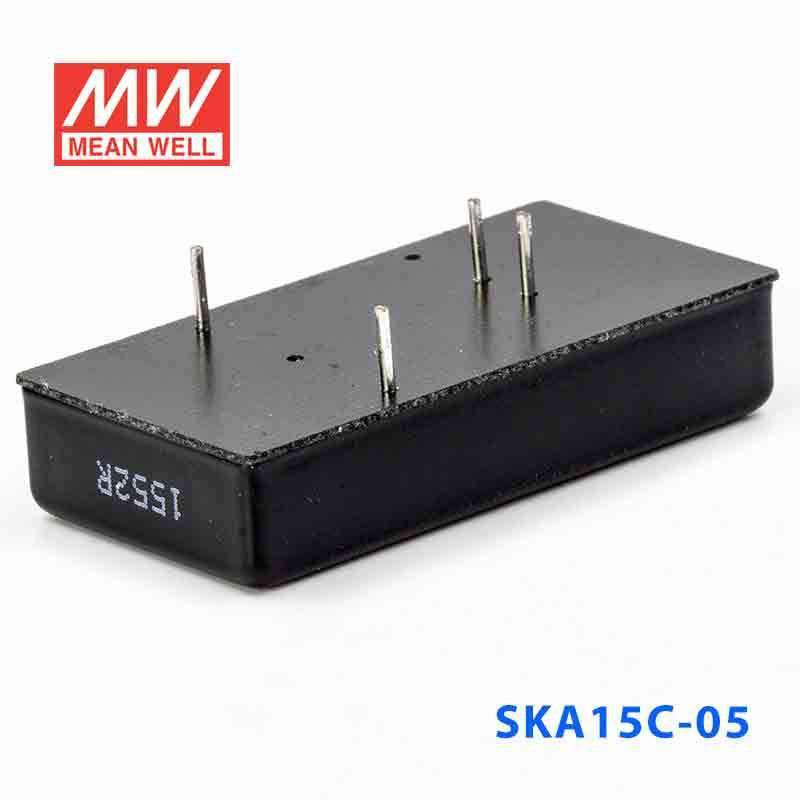

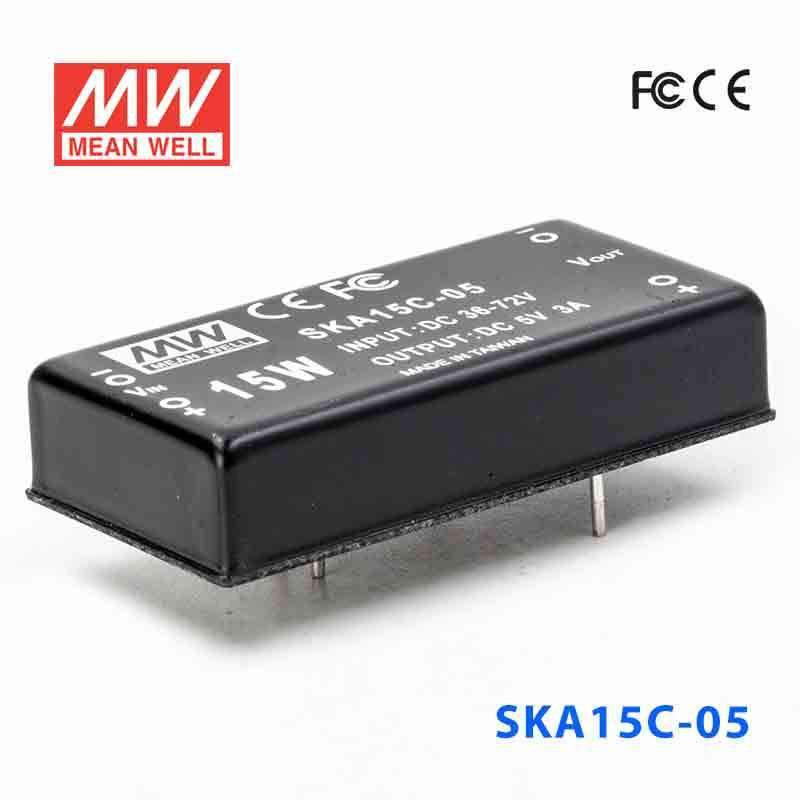

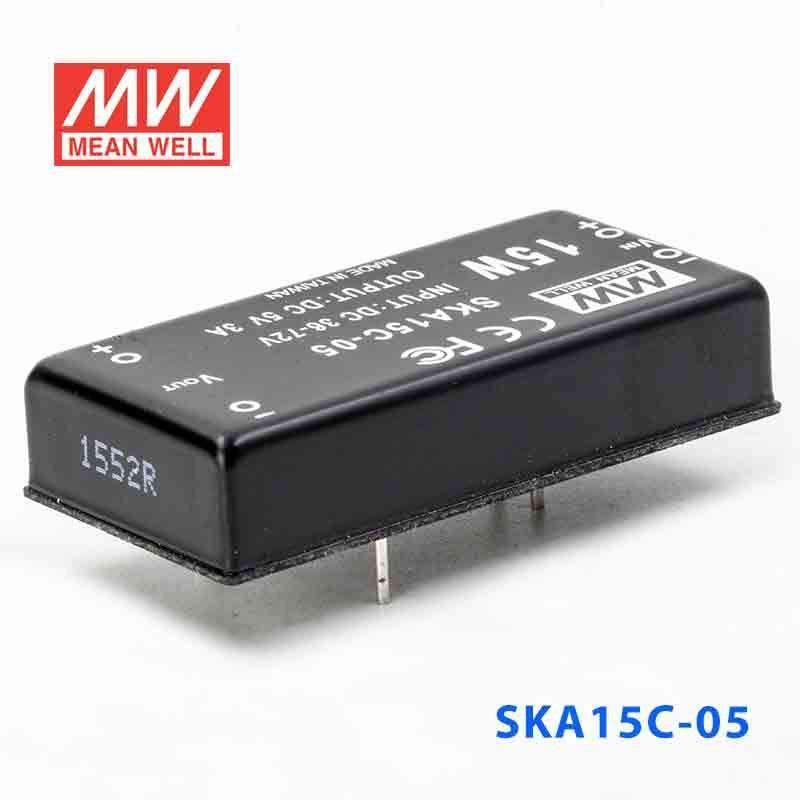

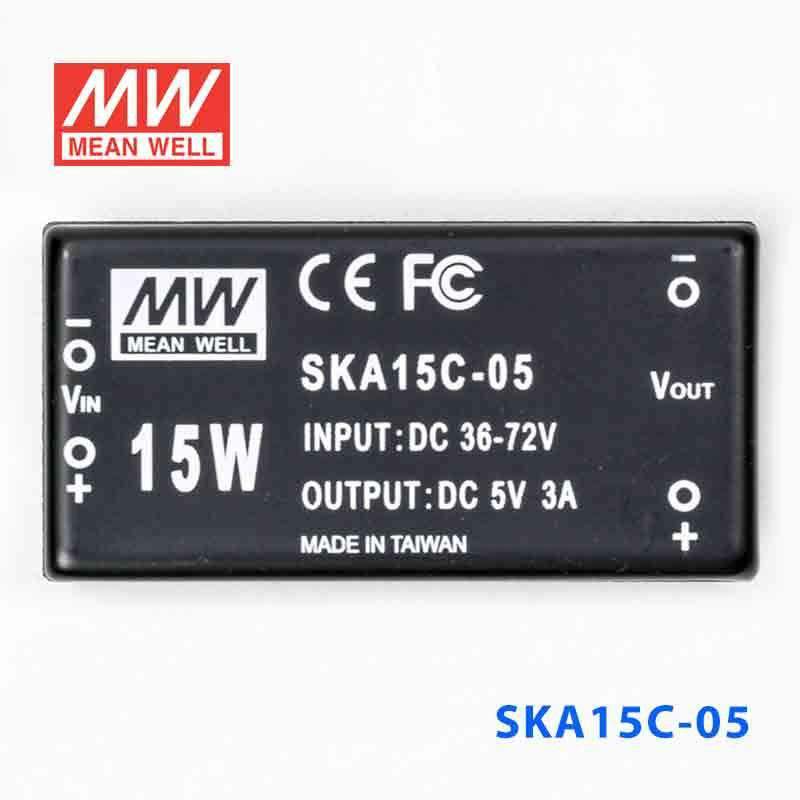

Mean Well SKA15C-05 DC-DC Converter - 15W - 36~72V in 5V out

SKU:

SKA15C-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range(option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	110%~250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40~+71°C (refer to output derating curve)
Storage temperature	-40°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2" x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

15 Watt
Output Voltage

5 Volt
Rated Current

3 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA15C-05 for 5V industrial controllers or interface electronics?

This converter supplies constant 5V output at up to 3A with 15W total power. It is appropriate for 5V control or interface loads that stay within that output limit and use the listed 36-72VAC input range.

Is the SKA15C-05 suitable for powering 5V embedded boards in equipment with a higher input range?

It can be used where the embedded board needs regulated 5V and the load is no more than 3A. The main selection checks are the 5V constant-voltage output, the 15W maximum power, and the listed 36-72VAC input specification.

Can this model support 5V sensors, gateways, or small automation electronics?

Yes, if those 5V loads do not exceed 3A output current or 15W total power. Its compact 50.8 × 25.4 × 11.27 mm size can also be useful in dense equipment layouts.

Is the SKA15C-05 intended for harsh indoor environments or exposed outdoor use?

The product is rated for operation from -40°C to +71°C, so the temperature range supports demanding indoor industrial conditions. Because no IP rating is listed, the provided specs do not identify it as sealed or outdoor-rated.

What are the output differences within the SKA15C family?

These models share the same 36-72VAC input range and 15W power rating, but their outputs are different. SKA15C-033 is 3.3V at 3A, SKA15C-05 is 5V at 3A, SKA15C-12 is 12V at 1.25A, and SKA15C-15 is 15V at 1A.
