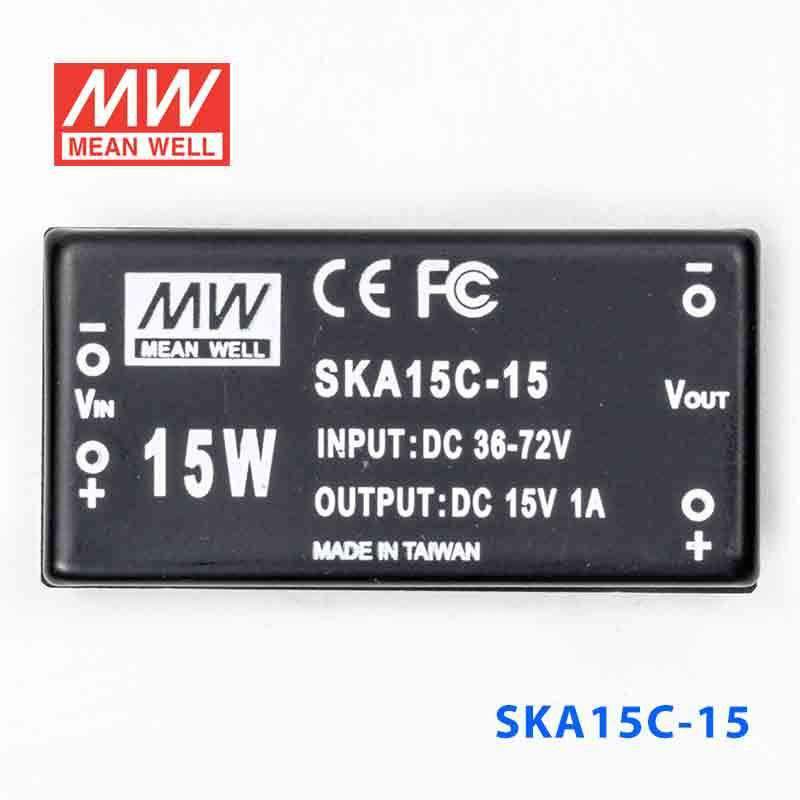

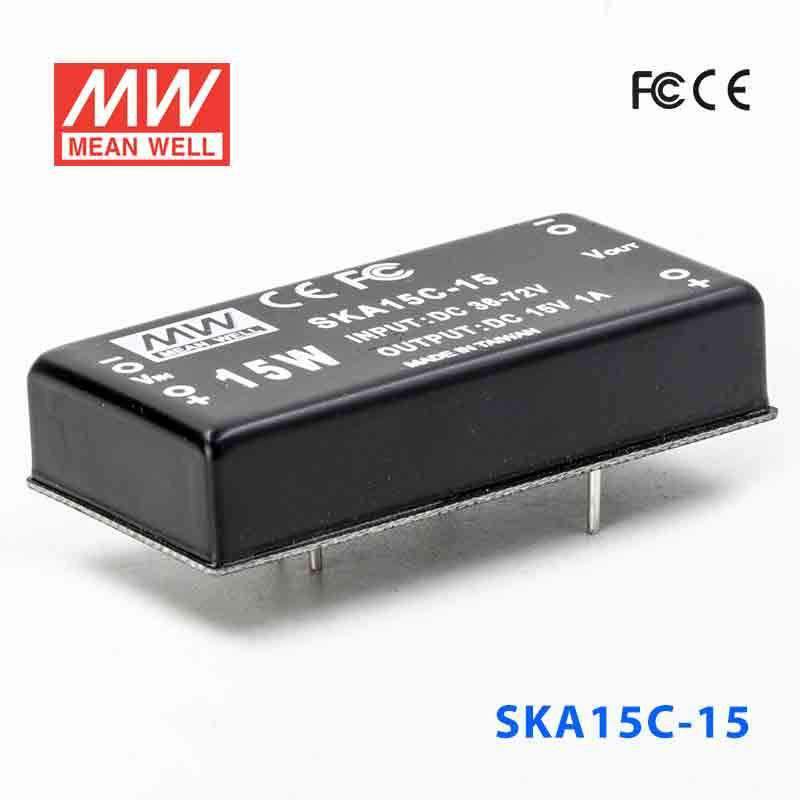

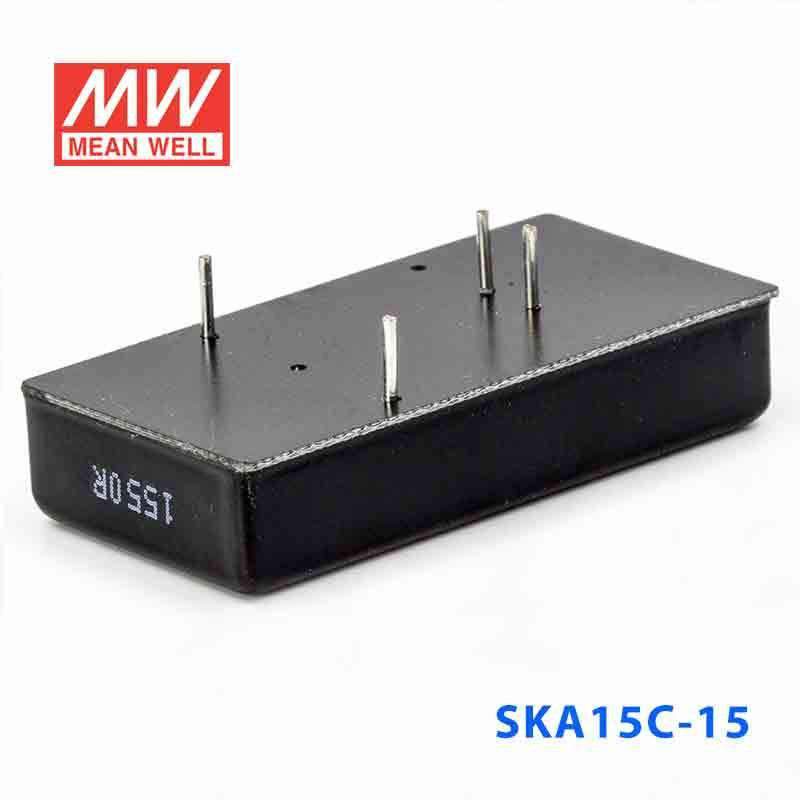

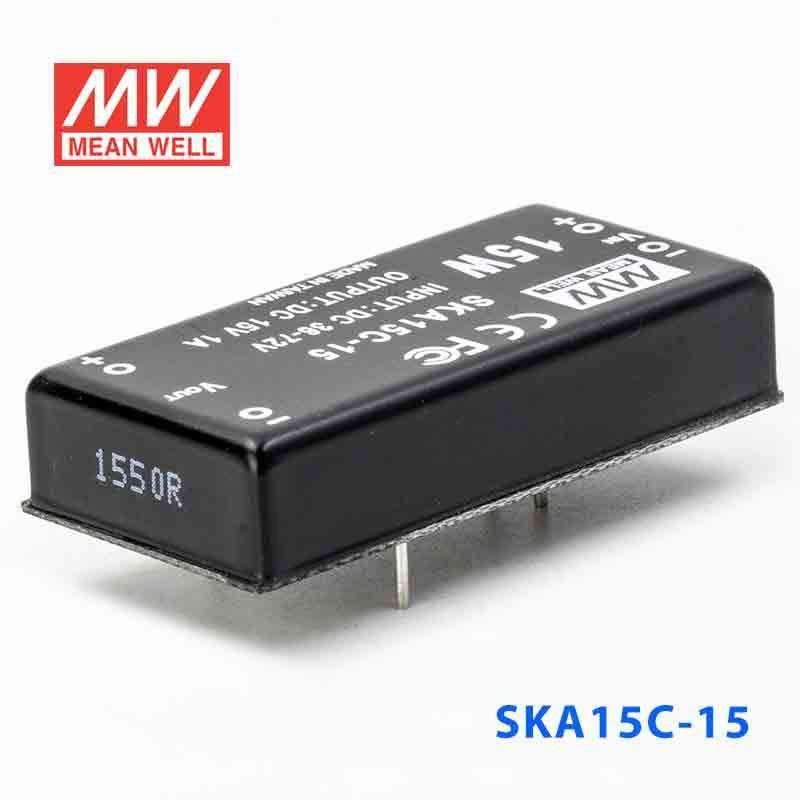

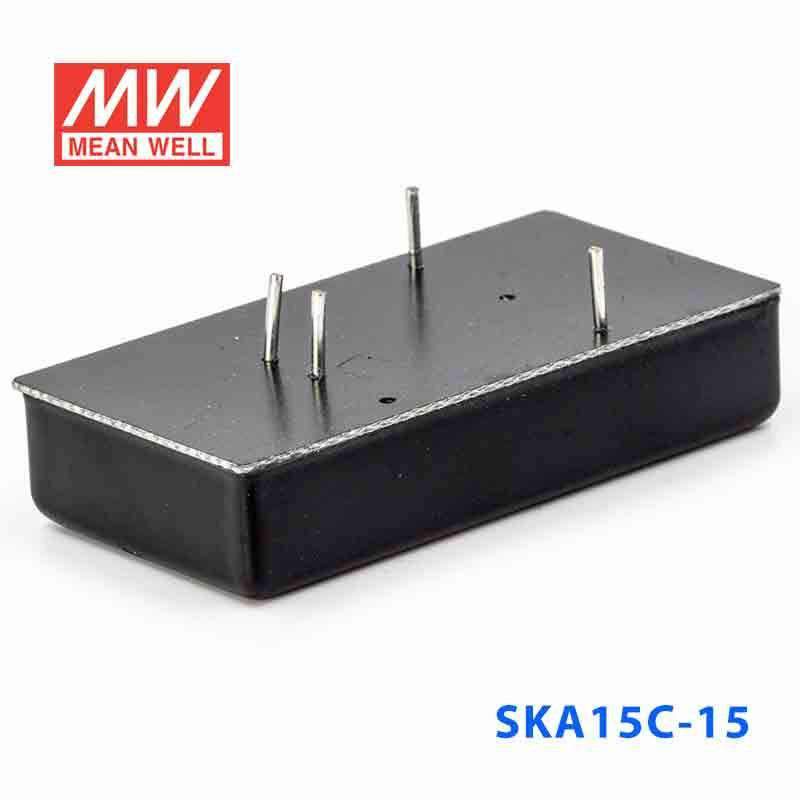

Mean Well SKA15C-15 DC-DC Converter - 15W - 36~72V in 15V out

SKU:

SKA15C-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range(option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	110%~250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40~+71°C (refer to output derating curve)
Storage temperature	-40°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2" x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

15 Watt
Output Voltage

15 Volt
Rated Current

1 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA15C-15 for a 15V industrial control or instrumentation circuit?

Yes, if the source is within 36-72VAC and the load needs constant 15V output. The converter is rated for 15W and up to 1A, so it suits lower-power 15V control and instrumentation circuits within that limit.

Is this a good fit for 15V embedded boards or analog modules in automation equipment?

It can be used where the electronics require a regulated 15V constant-voltage supply and the total load stays at or below 1A. Its compact size of 50.8 × 25.4 × 11.27 mm also helps in dense embedded or panel designs.

Can the SKA15C-15 power 15V signal-conditioning or interface hardware?

It is suitable for 15V constant-voltage hardware as long as the total draw does not exceed 15W. For signal-conditioning or interface hardware, the key check is that the combined load stays within the 1A output rating.

Would this converter work for a small 15V control subsystem inside a machine or cabinet?

Yes, for smaller 15V subsystems that need constant voltage and fit inside the 15W, 1A output envelope. The unit is also lightweight at 0.032 kg, which can help where low mass and compact dimensions matter.

What is the difference between the SKA15C-15 and the other SKA15C models?

All SKA15C versions listed here are 15W converters with the same 36-72VAC input range. The difference is output: SKA15C-033 is 3.3V at 3A, SKA15C-05 is 5V at 3A, SKA15C-12 is 12V at 1.25A, and SKA15C-15 is 15V at 1A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA15C-12 DC-DC Converter - 15W - 36~72V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKA15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKA15C-033 DC-DC Converter - 15W - 36~72V in 3.3V out	15W	3.3V	3A	Indoor	View
Mean Well SKA15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKA15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKA15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKA15B-033 DC-DC Converter - 15W - 18~36V in 3.3V out	15W	3.3V	3A	Indoor	View
Mean Well SKA15A-15 DC-DC Converter - 9.9W - 9~18V in 15V out	9.9W	15V	1A	Indoor	View
Mean Well SKA15A-12 DC-DC Converter - 9.9W - 9~18V in 12V out	9.9W	12V	1.25A	Indoor	View
Mean Well SKA15A-05 DC-DC Converter - 9.9W - 9~18V in 5V out	9.9W	5V	3A	Indoor	View
Mean Well SKA15A-033 DC-DC Converter - 9.9W - 9~18V in 3.3V out	9.9W	3.3V	3A	Indoor	View
