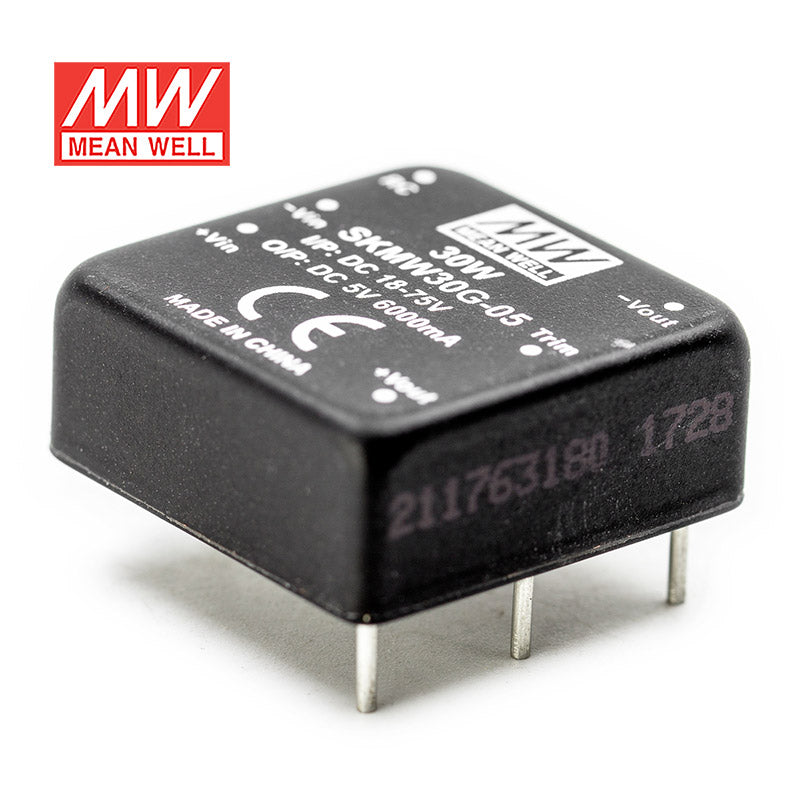

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKMW30G-05 DC-DC Converter - 30W - 18~75V in 5V out

SKU:

SKMW30G-05

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 1"x1" package with industry-standard pinout

Operating temperature range -40~+85°C

4:1 ultrawide input range

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 90%

Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage

1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty

General Specification

Voltage accuracy	±1.5%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +85°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient	0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm)	25.425.410.2mm (110.4 inch)
Potting material	Black coated copper with a non-conductive base

Specifications

Brand

Mean Well
Series

SKMW Series
Power Rating

30 Watt
Output Voltage

5 Volt
Rated Current

6 Ampere
Input Voltage

18V~75V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

2.54 cm
Width

2.54 cm
Height

1.02 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKMW30G-05 for 5V industrial controllers or interface electronics?

Yes, it provides a constant 5V output with up to 6A and a total power rating of 30W. That makes it suitable for 5V industrial controllers, interface electronics, and embedded boards that stay within those output limits.

Is the SKMW30G-05 a fit for USB-adjacent or logic-level equipment inside industrial systems?

For equipment that requires a regulated 5V rail, this model offers 5V constant voltage and up to 6A. Its 18-75V input range also makes it useful where the source bus is higher than the final logic or control voltage.

Can this converter power compact automation modules with moderate 5V current demand?

It can support compact automation modules that need 5V power, as long as the load does not exceed 6A or 30W. The small 25.4 x 25.4 x 10.2 mm package also helps in dense control assemblies.

Is the SKMW30G-05 suitable for outdoor enclosures?

The operating temperature range is -40C to +85C, which covers a broad thermal envelope. However, no IP rating is listed in the provided specs, so outdoor exposure protection is not defined by the product data shown here.

How does the SKMW30G-05 compare with the other SKMW30G models?

The series keeps the same 30W class and 18-75V input range across all four versions. The available outputs are 3.3V at 7.5A, 5V at 6A, 12V at 2.5A, and 15V at 2A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKMW30G-15 DC-DC Converter - 30W - 18~75V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKMW30G-12 DC-DC Converter - 30W - 18~75V in 12V out	30W	12V	2.5A	Indoor	View
Mean Well SKMW30G-03 DC-DC Converter - 30W - 18~75V in 3.3V out	30W	3.3V	7.5A	Indoor	View
Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out	30W	12V	2.5A	Indoor	View
Mean Well SKMW30F-05 DC-DC Converter - 30W - 9~36V in 5V out	30W	5V	6A	Indoor	View
Mean Well SKMW30F-03 DC-DC Converter - 30W - 9~36V in 3.3V out	30W	3.3V	7.5A	Indoor	View
