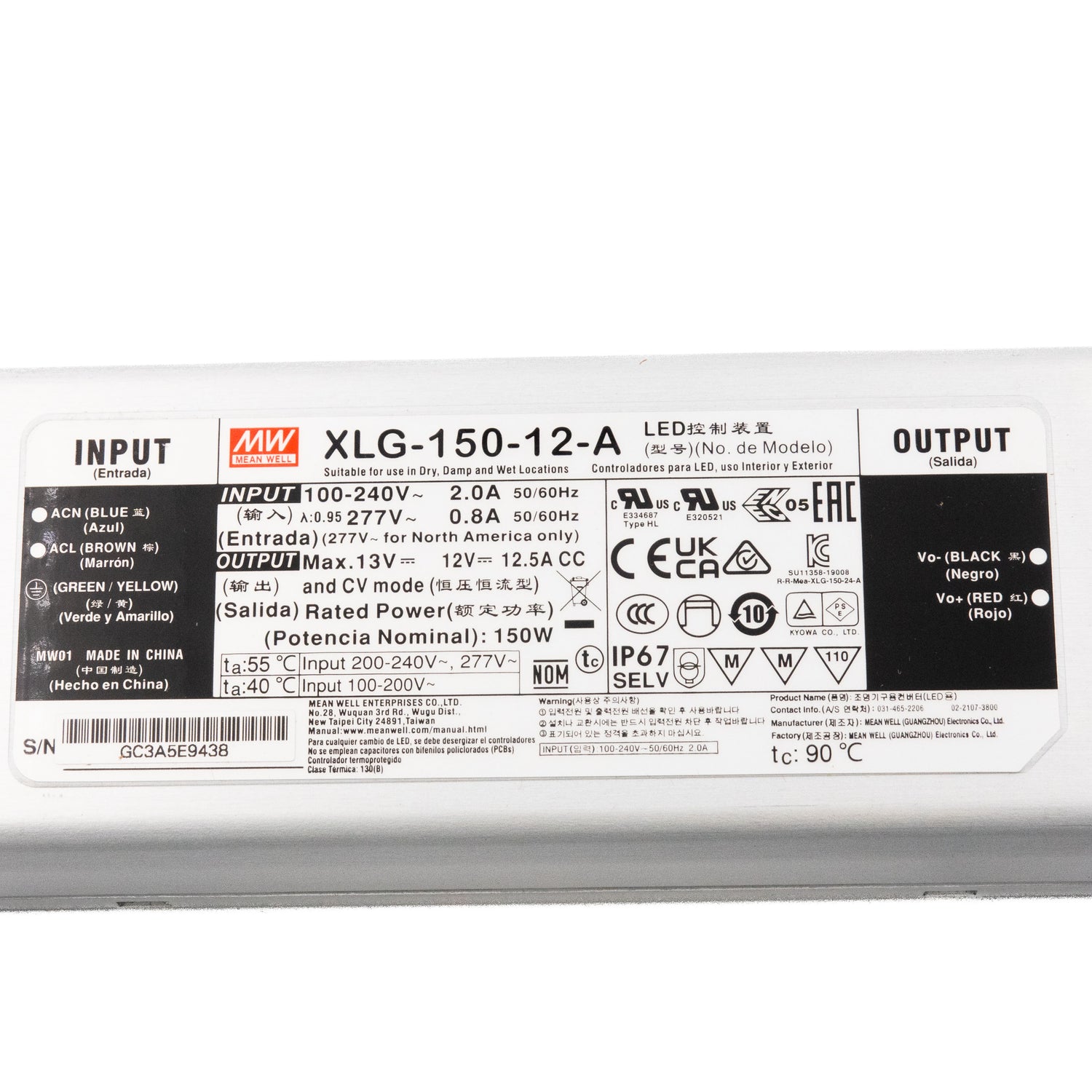

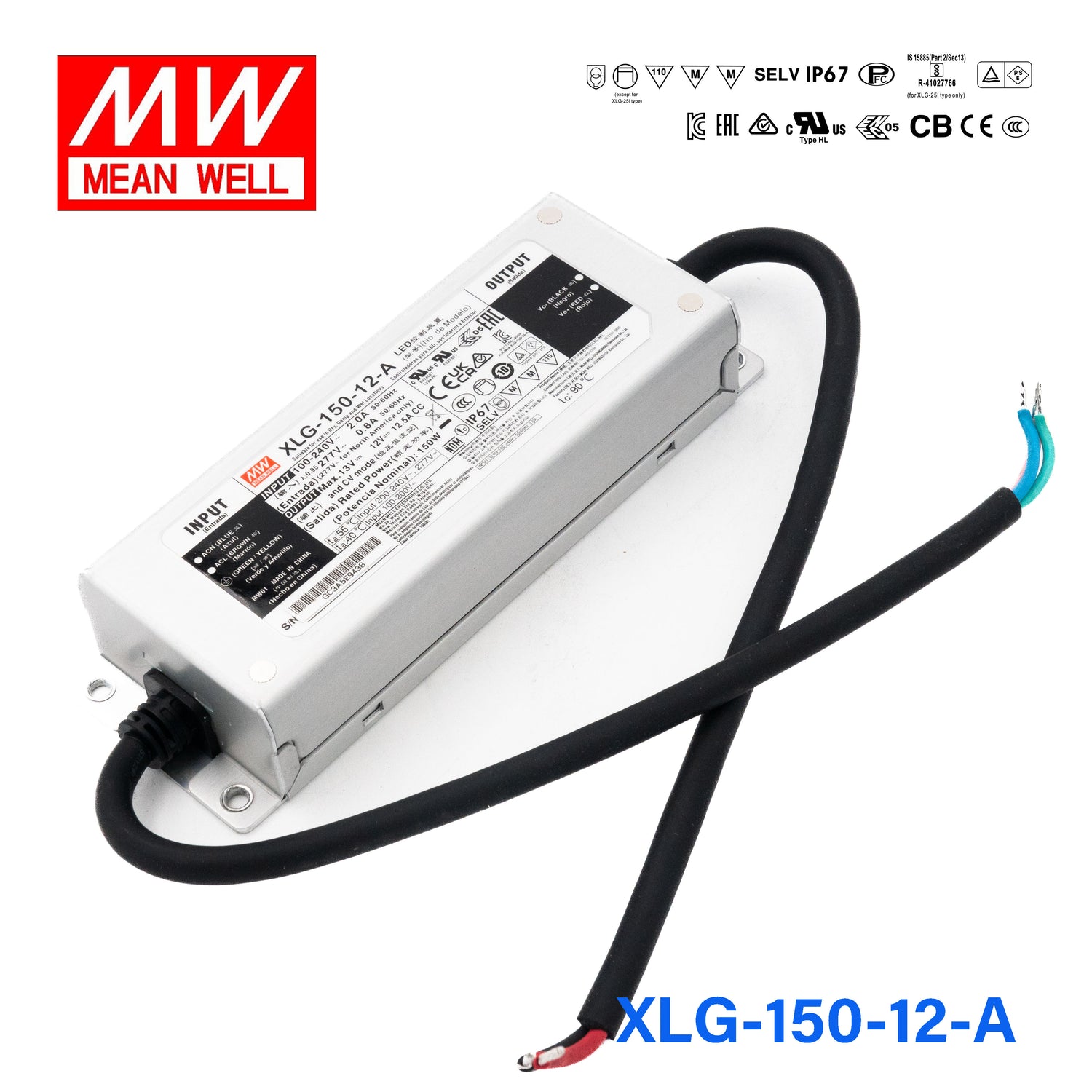

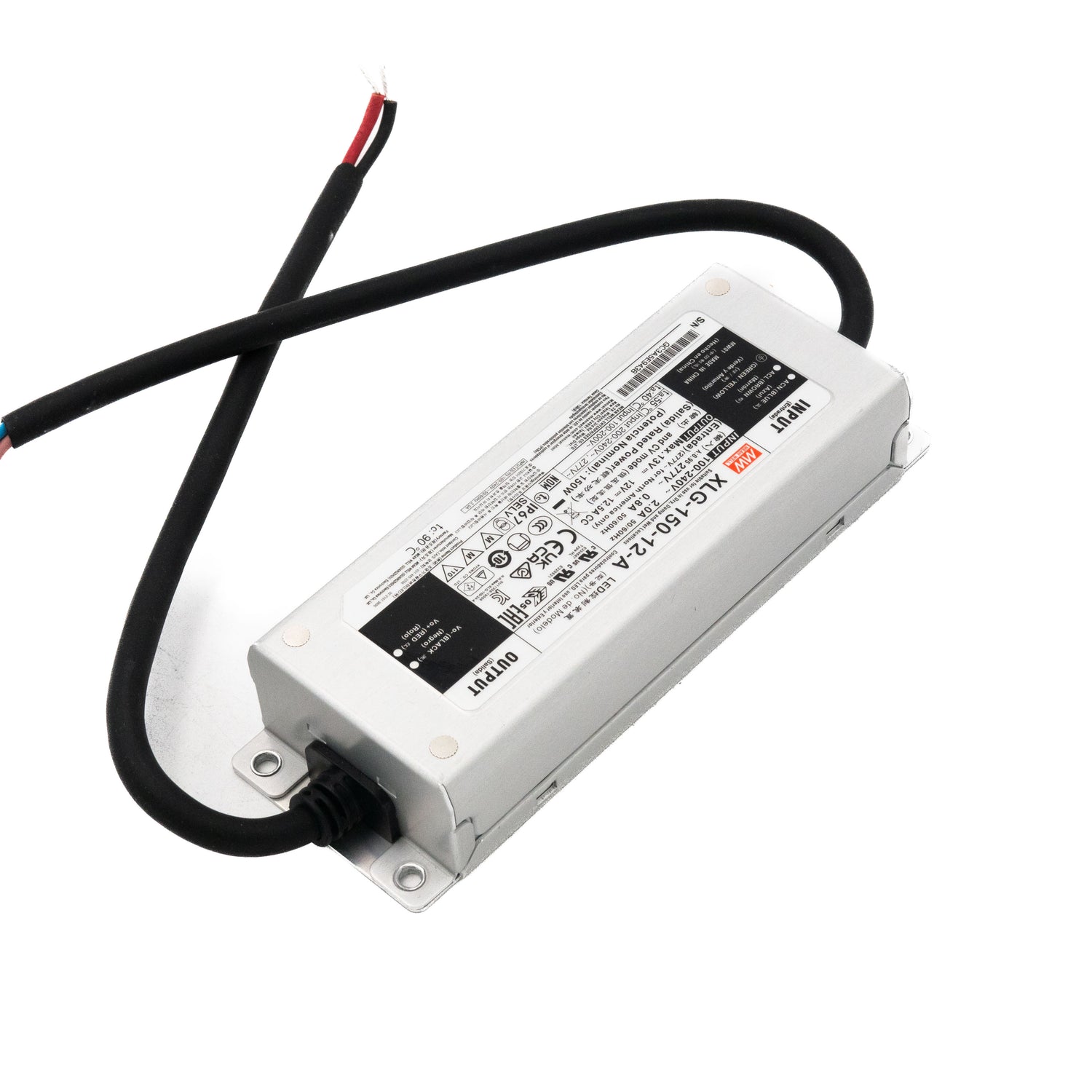

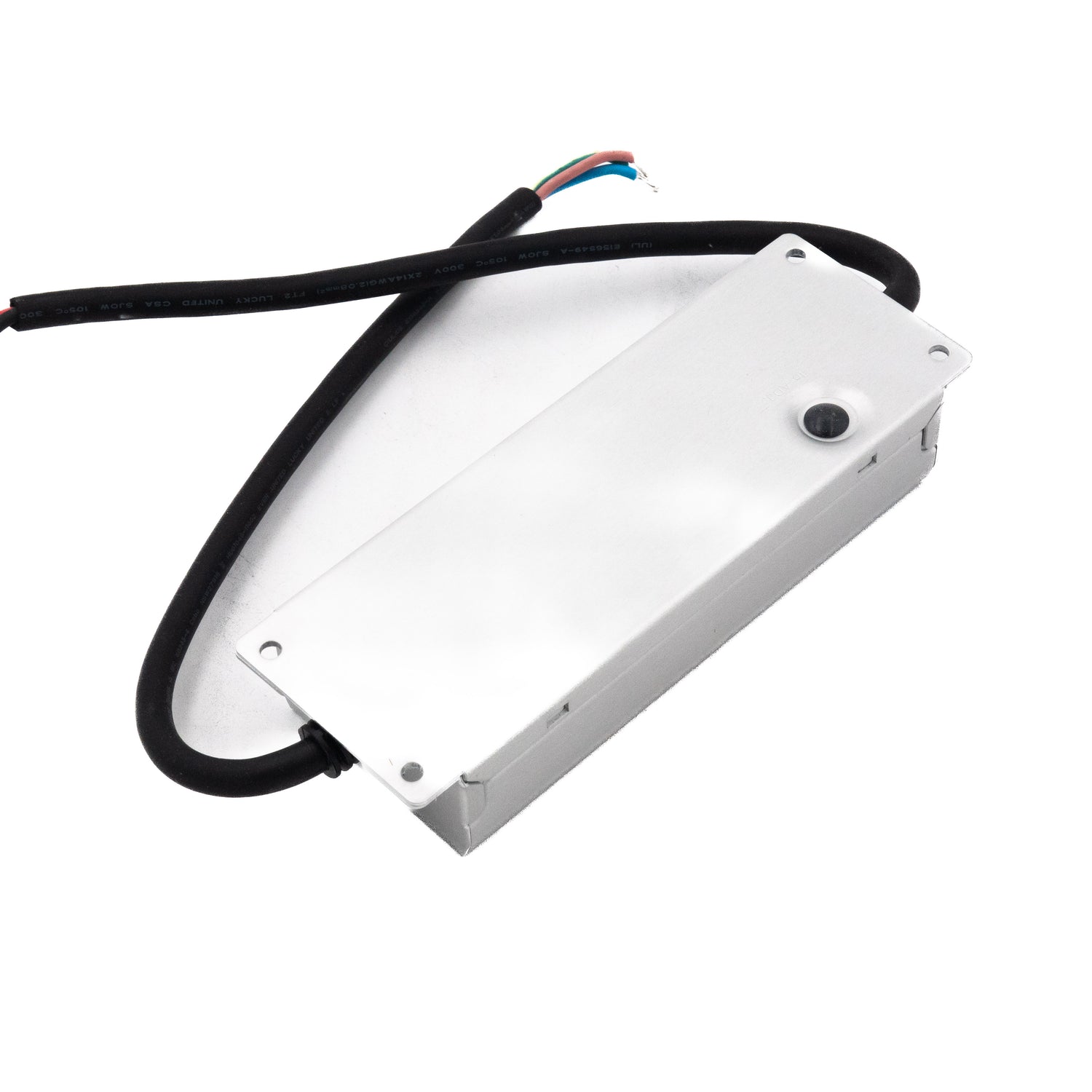

Mean Well XLG-150-12-A Power Supply 150W 12V - Adjustable
Please Login for Pricing
Description
Description
The XLG-150-12 is a 150W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 4.2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length18 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLG-150-12-A for 12V LED strip lighting in display shelving or coves?
Yes, this driver is sized for 12V LED lighting loads up to 150W with 12.5A available output current. It is a fit for 12V strip-based accent lighting as long as the total strip load stays within 150W.
Is this a good choice for 12V illuminated signs or light boxes?
It can be used for 12V sign lighting when the sign load is within the driver's 150W maximum and 12V output. The IP67 housing also suits sign projects where the power supply may be exposed to rain or washdown conditions.
Can I use this power supply for outdoor 12V architectural or landscape lighting?
Yes, for 12V LED lighting loads up to 150W, this model is suitable for outdoor use because it is rated IP67 Waterproof. Its operating temperature range of -40°C to +90°C also supports demanding outdoor environments.
How much 12V LED strip can the XLG-150-12-A run?
The maximum strip load is 150W at 12V. To estimate strip length, use 150W divided by your strip's rated power per meter, and check your strip rated power per meter before final sizing.
Is the XLG-150-12-A suitable for wet or exposed locations?
Yes, its IP67 Waterproof rating means it is intended for environments where water and dust resistance matter more than an indoor-only supply. The metal case and -40°C to +90°C operating range also make it suitable for harsh conditions.
How does the XLG-150-12-A compare with other XLG 150W adjustable models?
Within the 150W adjustable group, XLG-150-12-A and XLG-150-12-AB are both 150W, 12V, 12.5A models. The 24V counterparts are XLG-150-24-A and XLG-150-24-AB at 150W, 24V, 6.25A, while higher-voltage 150W siblings include XLG-150-L-A at 214V and 1.05A and XLG-150-M-A at 120V and 1400A.
Other XLG-150 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-150-24-A Power Supply 150W 24V - Adjustable | 150W | 24V | 6.25A | IP67 | View |
| Mean Well S-XLG-150-24 Power Supply 150W 24V with AU/NZ plug | 150W | 24V | 6.25A | IP67 | View |
| Mean Well S-XLG-150-12 Power Supply 150W 12V with AU/NZ plug | 150W | 12V | 12.5A | IP67 | View |
| Mean Well XLG-150-L-A AC-DC Single output LED driver Constant Power Mode 150W | 150W | 214V | 1.05A | IP67 | View |
| Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimmable | 150W | 24V | 6.25A | IP67 | View |
| Mean Well XLG-150-12-AB Power Supply 150W 12V - Adjustable and Dimmable | 150W | 12V | 12.5A | IP67 | View |
