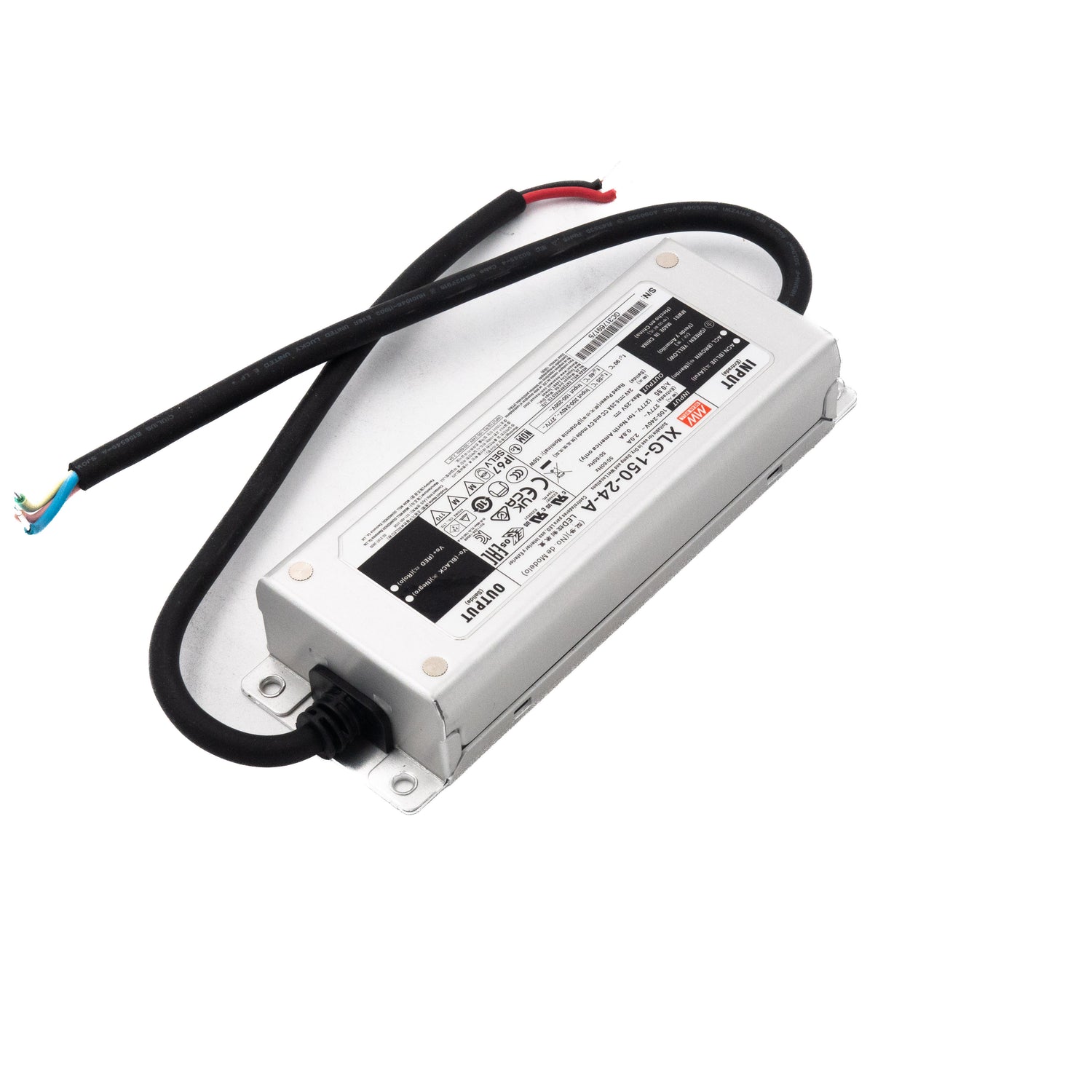

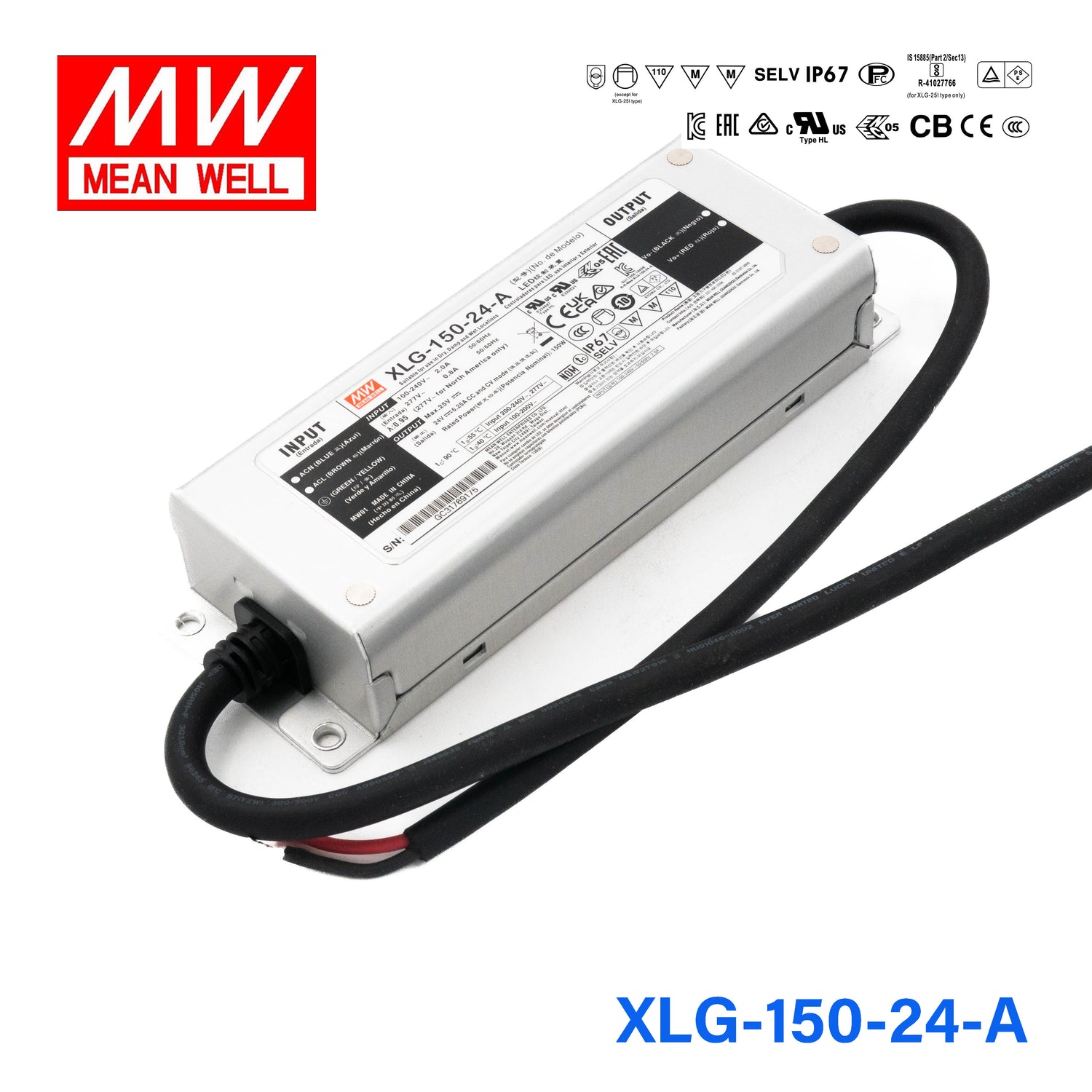

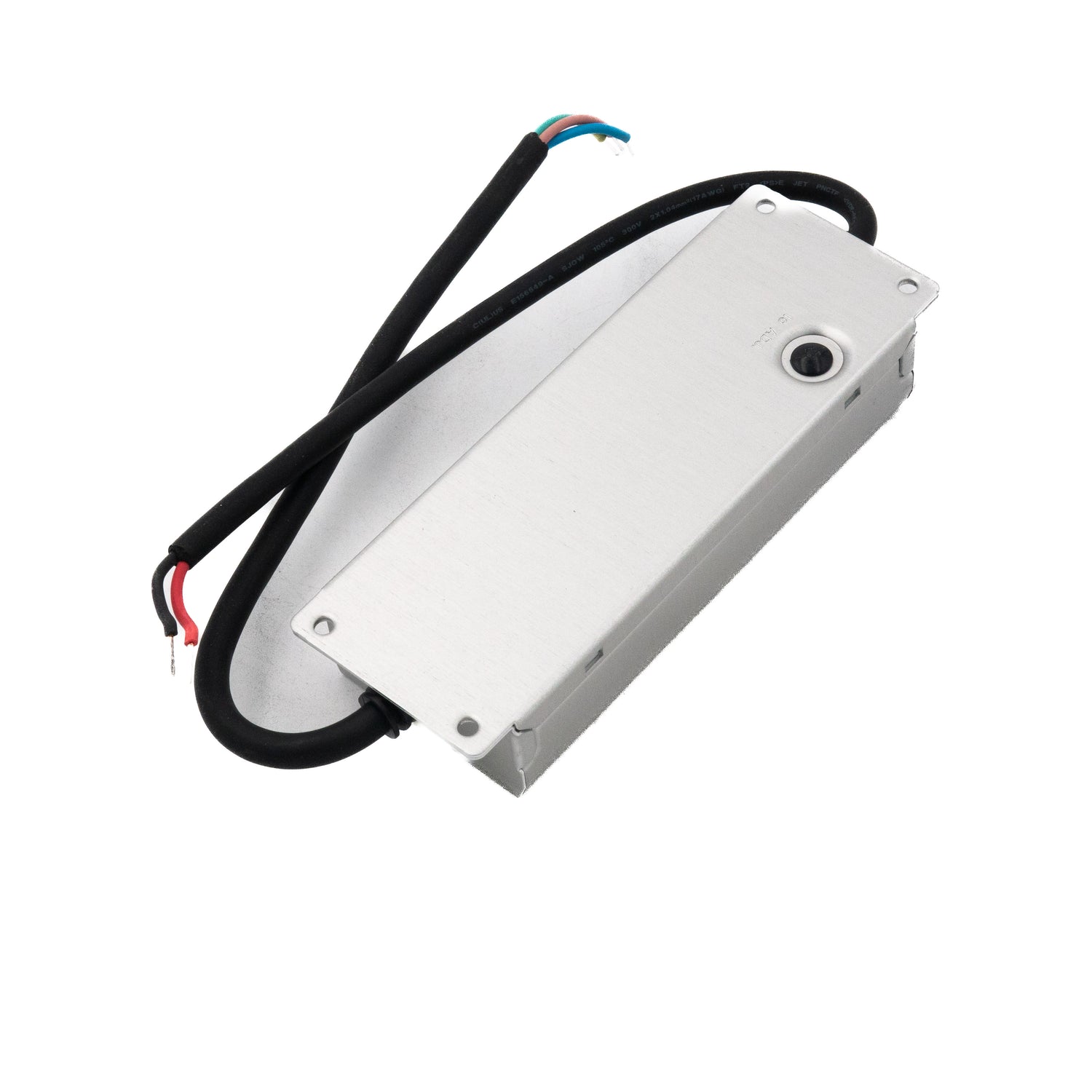

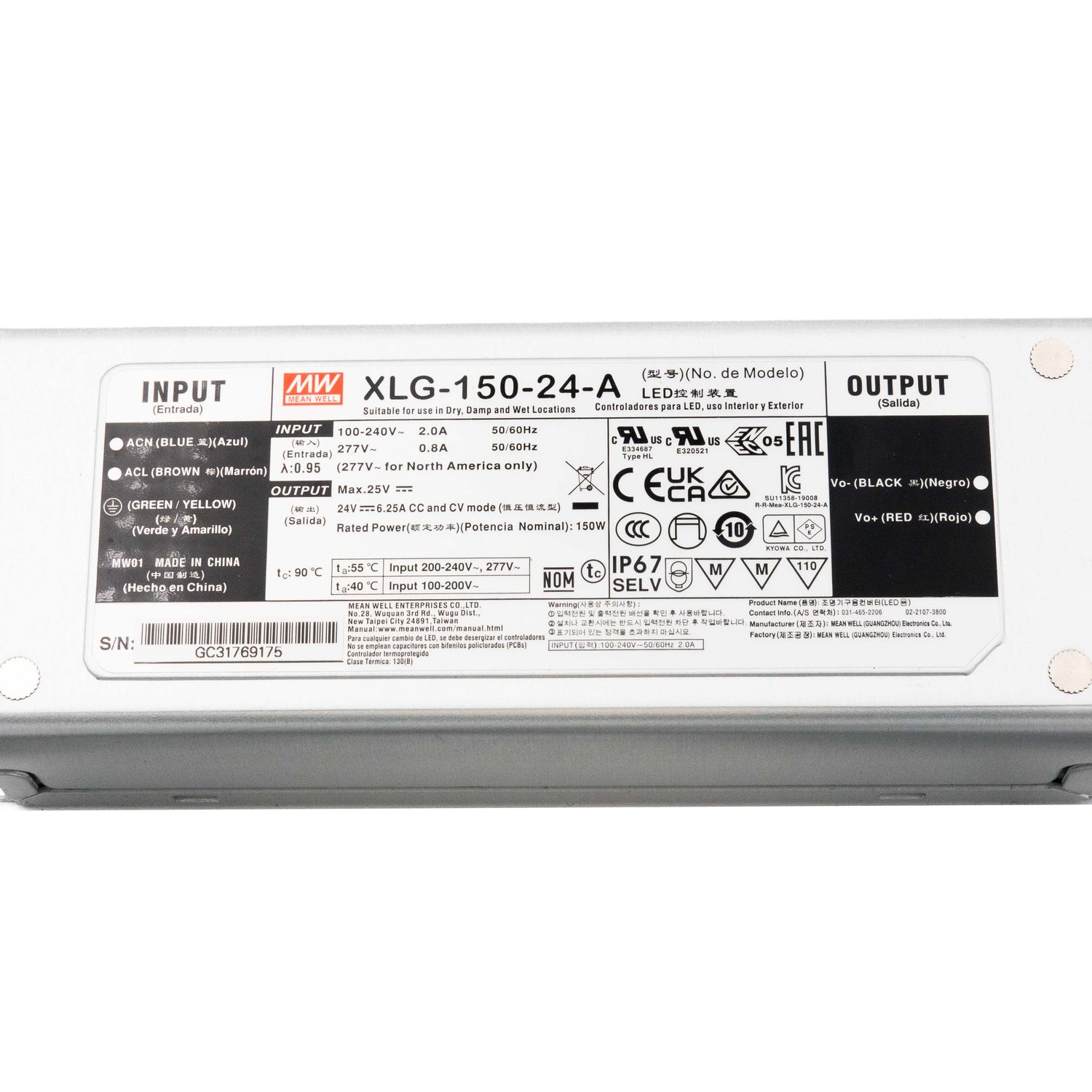

Mean Well XLG-150-24-A Power Supply 150W 24V - Adjustable
Please Login for Pricing
Description
Description
The XLG-150-24 is a 150W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 4.2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length18 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLG-150-24-A for 24V LED strip lighting in coves or linear runs?
Yes, this driver is intended for 24V LED lighting loads up to 150W with 6.25A available output current. It suits 24V strip lighting projects when the combined strip load does not exceed 150W.
Is this suitable for 24V sign lighting or illuminated cabinets?
It can be used for 24V signage and cabinet lighting as long as the total load stays within 150W at 24V. The IP67 Waterproof rating also makes it appropriate for signs installed in exposed conditions.
Can the XLG-150-24-A power outdoor 24V architectural accent lighting?
Yes, for compatible 24V LED lighting loads up to 150W, this model is suitable for outdoor accent applications. Its IP67 Waterproof rating and -40°C to +90°C operating range support demanding environments.
How do I estimate LED strip length with this 24V 150W driver?
The maximum available strip power is 150W at 24V. To estimate run length, divide 150W by your strip's rated watts per meter, and check your strip rated power per meter before final selection.
Is the XLG-150-24-A okay for wet locations or exposed outdoor enclosures?
Yes, the IP67 Waterproof rating means it is designed for applications where water and dust protection matter. Its metal case and operating temperature range of -40°C to +90°C add suitability for tough outdoor conditions.
How does XLG-150-24-A compare with the other 150W XLG voltage options?
XLG-150-24-A and XLG-150-24-AB are both 150W, 24V, 6.25A models. The 12V versions are XLG-150-12-A and XLG-150-12-AB at 150W, 12V, 12.5A, while higher-voltage 150W siblings include XLG-150-L-A at 214V and 1.05A and XLG-150-M-A at 120V and 1400A.
Other XLG-150 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-150-12-A Power Supply 150W 12V - Adjustable | 150W | 12V | 12.5A | IP67 | View |
| Mean Well S-XLG-150-24 Power Supply 150W 24V with AU/NZ plug | 150W | 24V | 6.25A | IP67 | View |
| Mean Well S-XLG-150-12 Power Supply 150W 12V with AU/NZ plug | 150W | 12V | 12.5A | IP67 | View |
| Mean Well XLG-150-L-A AC-DC Single output LED driver Constant Power Mode 150W | 150W | 214V | 1.05A | IP67 | View |
| Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimmable | 150W | 24V | 6.25A | IP67 | View |
| Mean Well XLG-150-12-AB Power Supply 150W 12V - Adjustable and Dimmable | 150W | 12V | 12.5A | IP67 | View |
