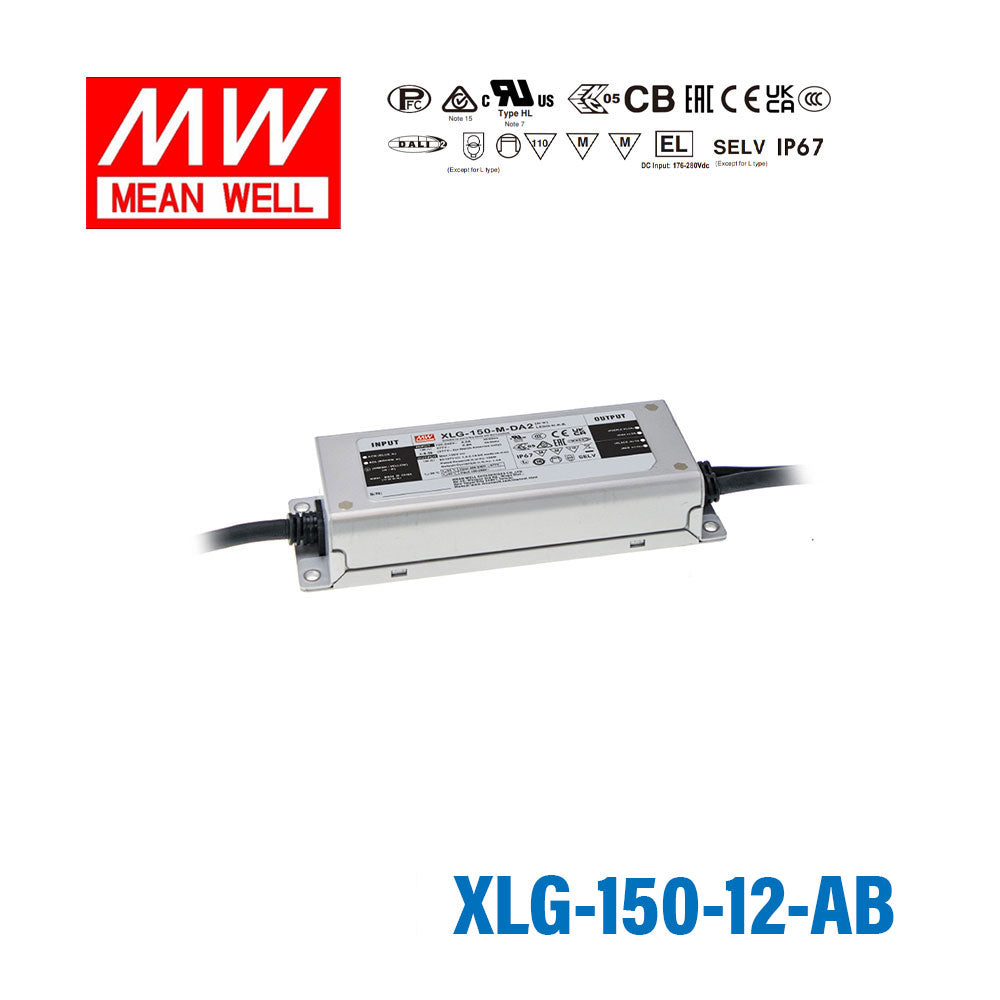

Mean Well XLG-150-12-AB Power Supply 150W 12V - Adjustable and Dimm...
Please Login for Pricing
Description
Description
The XLG-150-12 is a 150W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 4.2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length18 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-150-12-AB power 12V LED strip lighting for retail displays or shelving?
Yes, this model provides 12V output with up to 150W and 12.5A available for compatible LED lighting loads. It is appropriate for 12V strip-based display lighting when the total demand remains within 150W.
Is this driver suitable for 12V channel letters or sign cabinets?
Yes, it can support 12V signage loads that stay within the driver's 150W maximum output. Its IP67 Waterproof rating is also useful for signs exposed to weather.
Can I use the XLG-150-12-AB for 12V LED lighting in outdoor commercial spaces?
For compatible 12V LED loads up to 150W, this driver is suited to outdoor lighting applications because it carries an IP67 Waterproof rating. The -40°C to +90°C operating temperature range supports use in hot and cold conditions.
What LED strip length can I estimate from this 12V 150W driver?
This unit can supply up to 150W at 12V. Estimated strip length equals 150W divided by your strip's watts per meter, so check your strip rated power per meter before sizing the run.
Can this driver be used where rain, dust, or washdown exposure is possible?
Yes, the IP67 Waterproof enclosure is intended for wet and dusty environments rather than dry indoor-only spaces. The metal case and operating range of -40°C to +90°C also support harsher site conditions.
What is the difference between XLG-150-12-AB and nearby XLG 150W siblings?
XLG-150-12-AB and XLG-150-12-A share the same 150W, 12V, 12.5A electrical rating. In the same 150W family, XLG-150-24-A and XLG-150-24-AB are 24V, 6.25A models, and XLG-150-L-A is a 214V, 1.05A version.
Other XLG-150 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-150-24-A Power Supply 150W 24V - Adjustable | 150W | 24V | 6.25A | IP67 | View |
| Mean Well XLG-150-12-A Power Supply 150W 12V - Adjustable | 150W | 12V | 12.5A | IP67 | View |
| Mean Well S-XLG-150-24 Power Supply 150W 24V with AU/NZ plug | 150W | 24V | 6.25A | IP67 | View |
| Mean Well S-XLG-150-12 Power Supply 150W 12V with AU/NZ plug | 150W | 12V | 12.5A | IP67 | View |
| Mean Well XLG-150-L-A AC-DC Single output LED driver Constant Power Mode 150W | 150W | 214V | 1.05A | IP67 | View |
| Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimmable | 150W | 24V | 6.25A | IP67 | View |
