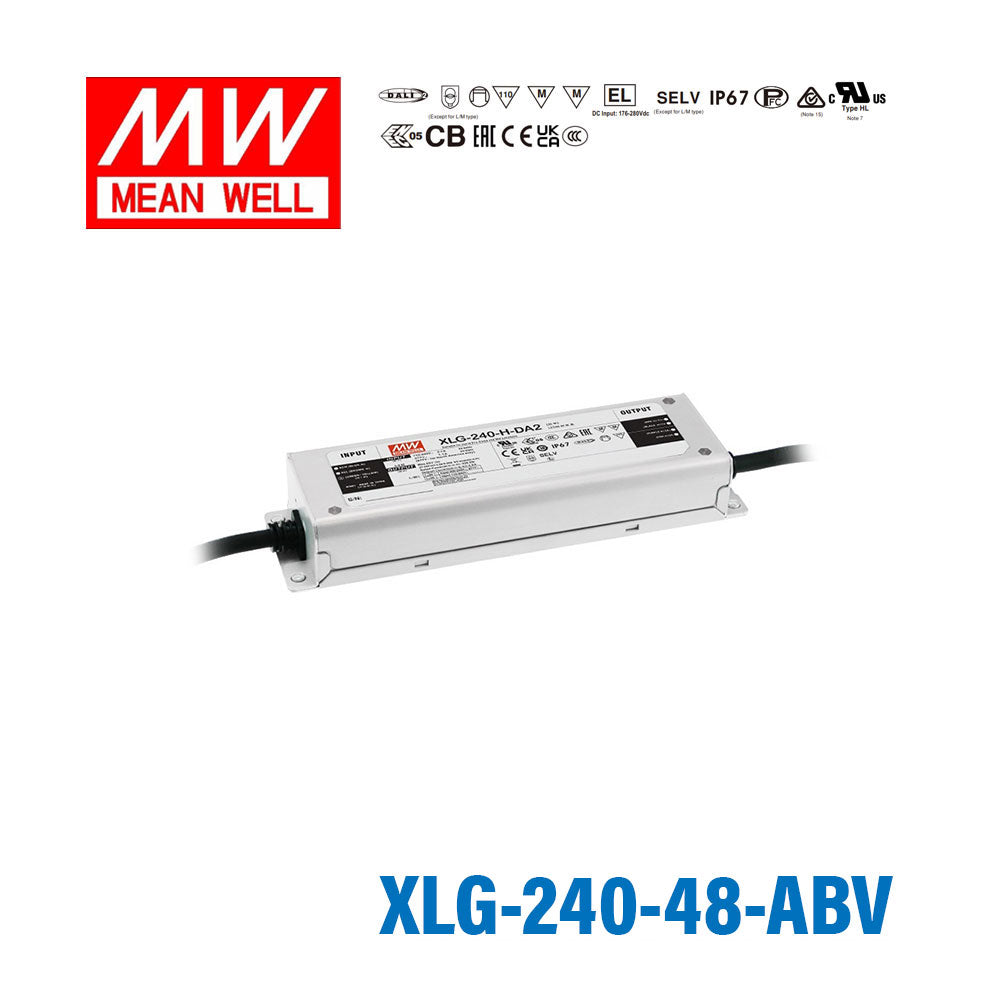

Mean Well XLG-240-48-ABV Power Supply 240W 48V 5A
Please Login for Pricing
Description
Description
Key Features
- ✓Wide input range 100~305V AC(Class I)
- ✓Full power output at 70~100% Constant power mode operation
- ✓Metal case with IP67, suitable for outdoor application
- ✓Surge protection with 6KV/4KV (10KV/6KV optional)
- ✓3-in-1 Dimming function (Dim to off and Isolation design)
- ✓Protection functions: OVP / SCP / OCP / OTP
- ✓Lifetime >50,000 hrs
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,SELV,UL
-
Operation ModeConstant Voltage
-

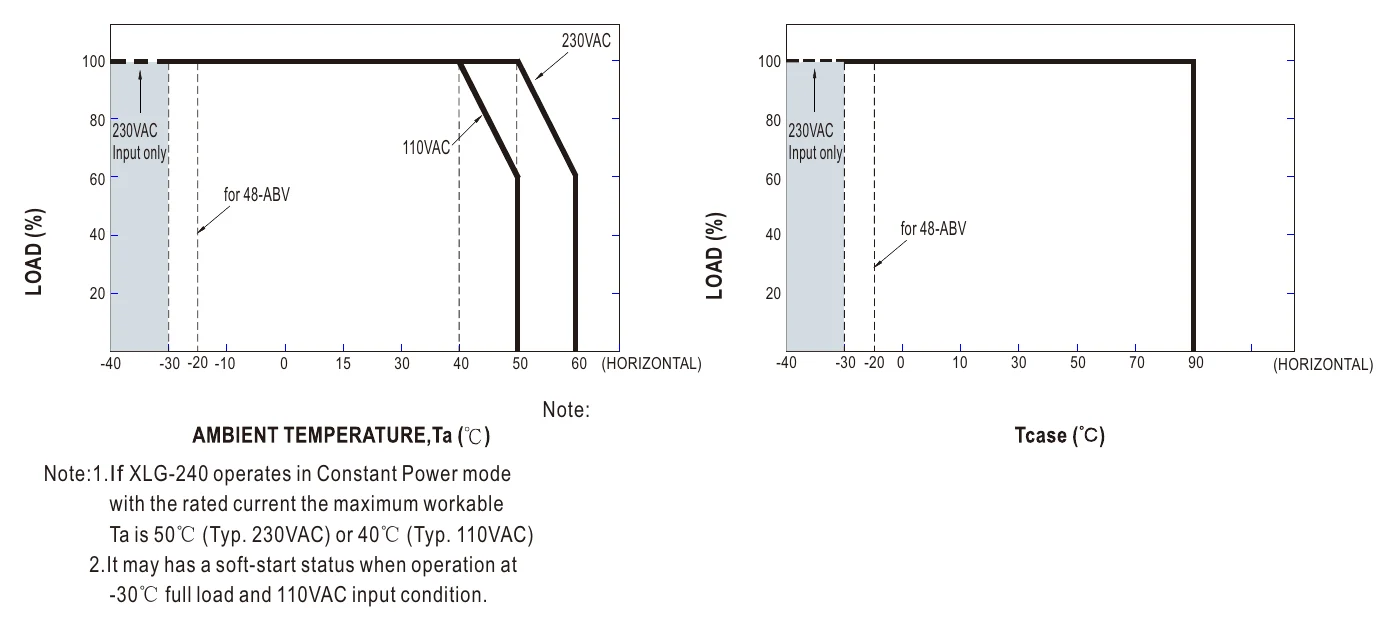

Operating Temperature-20°C~90°C
-
Warranty5 Year
-

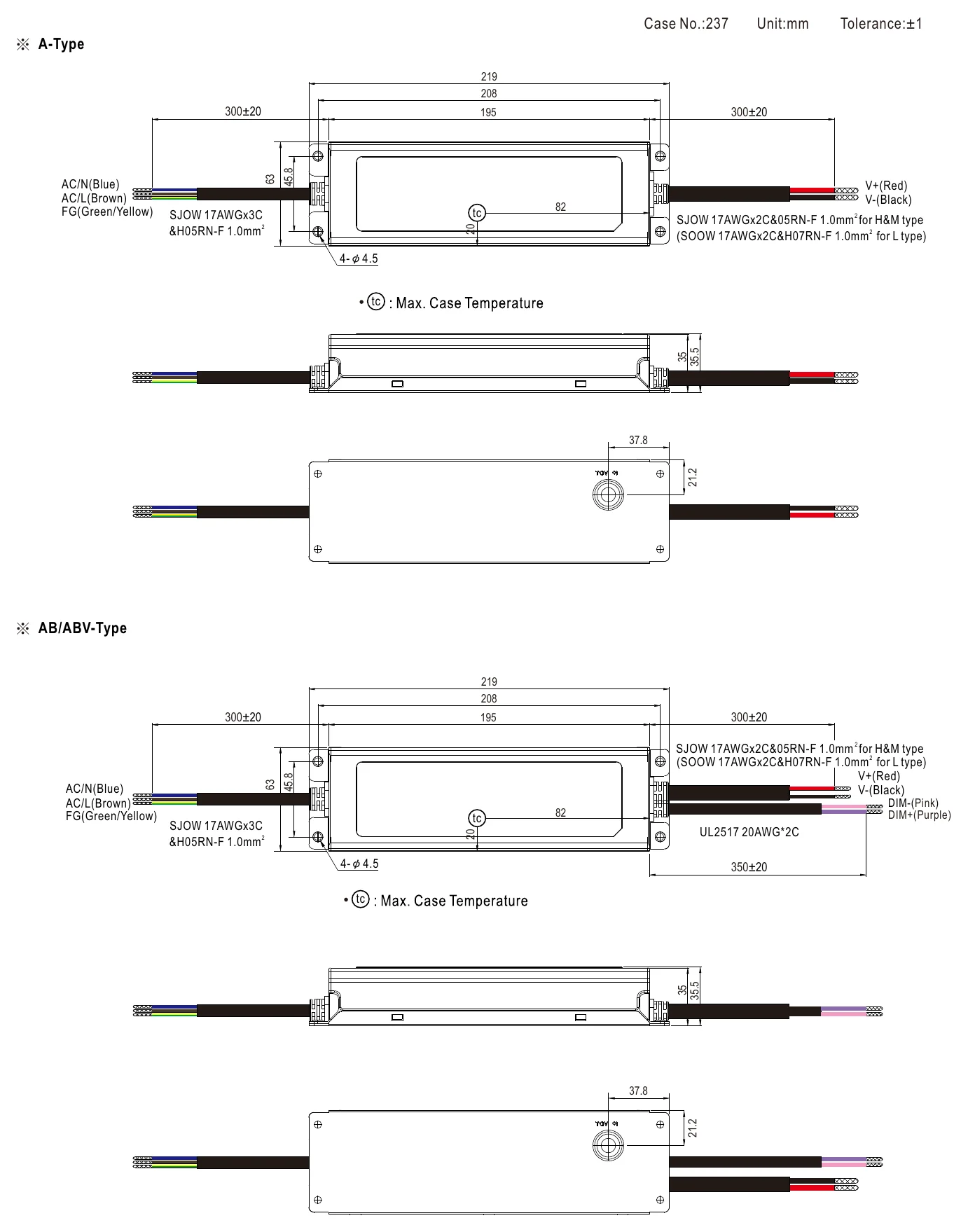

Length21.9 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the Mean Well XLG-240-48-ABV best suited for?
The XLG-240-48-ABV is suited for 48V constant-voltage LED applications that need up to 240W of output power. Its 5A rated output makes it a fit for commercial LED loads that stay within those voltage, current, and power limits.
Does the XLG-240-48-ABV support dimming?

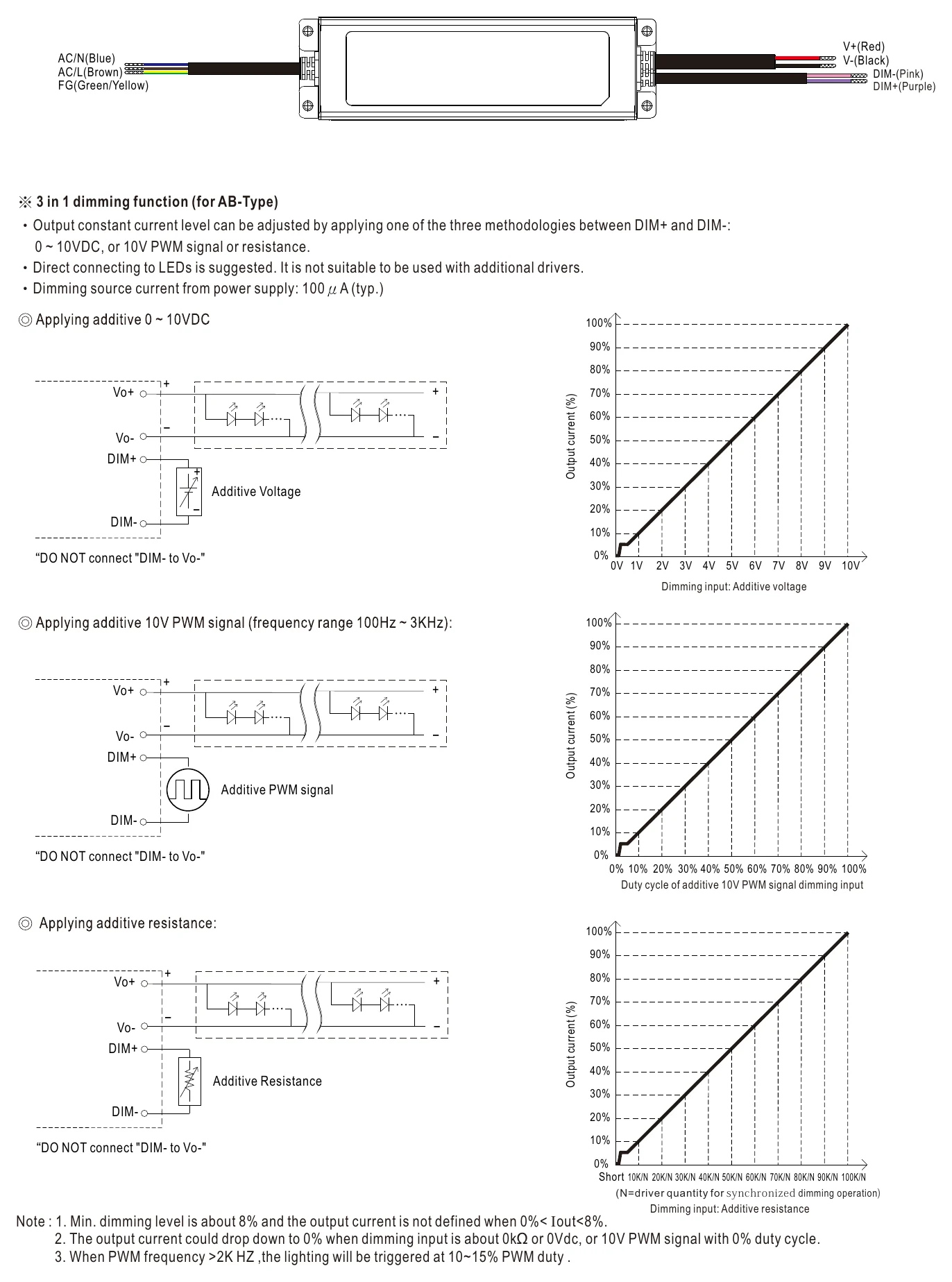

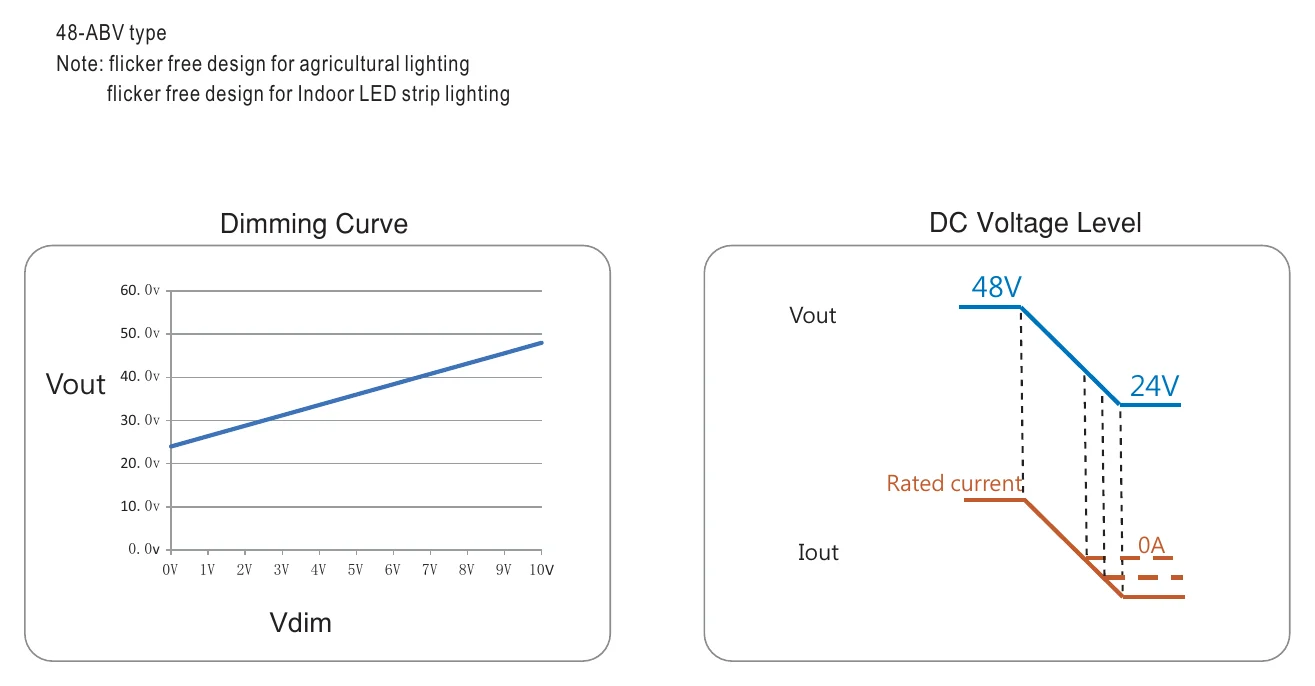

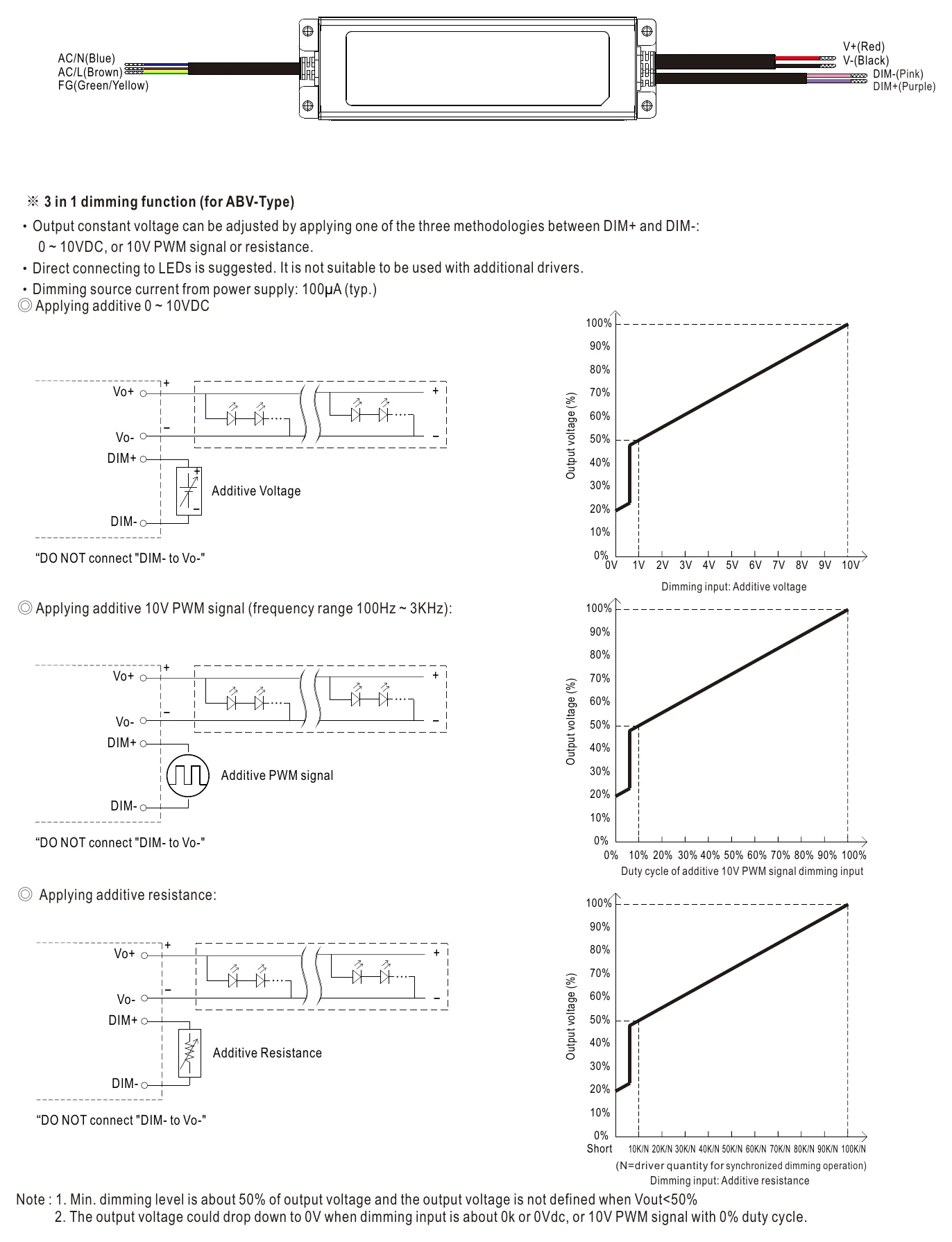

Yes. This model supports 3-in-1 dimming control, including 0-10V, 10V PWM, and resistance dimming. It is listed with dim-to-off and an isolated dimming design.
Can the XLG-240-48-ABV be used outdoors?
Yes. The XLG-240-48-ABV has a metal case with an IP67 rating, making it suitable for outdoor applications. Buyers should still confirm that the full fixture or enclosure design is appropriate for the intended environment.
What input voltage range does the XLG-240-48-ABV accept?

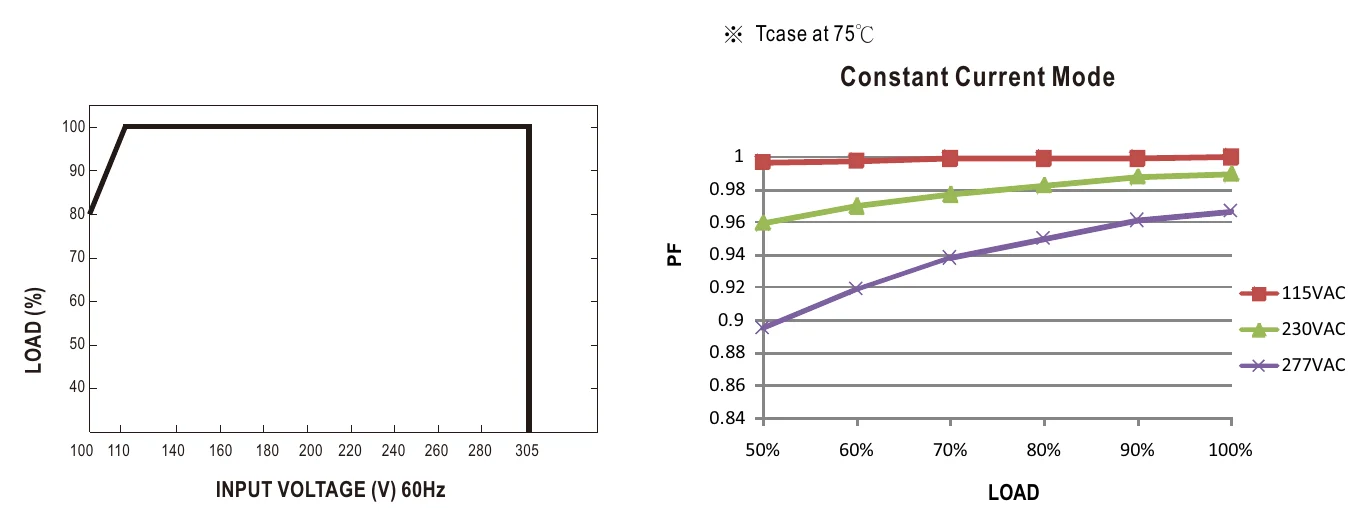

This model accepts a wide AC input range of 100 to 305VAC. The product data also lists a DC input range of 142 to 431VDC.
How much output power does the XLG-240-48-ABV provide?
The XLG-240-48-ABV provides 240W of rated output power. Its listed output is 48V at 5A, which should be matched to the requirements of the LED load.
What protections are included with the XLG-240-48-ABV?
The listed protection functions are over-voltage protection, short-circuit protection, over-current protection, and over-temperature protection. The product data also lists surge protection of 6KV/4KV, with 10KV/6KV noted as optional.
What warranty and lifetime are listed for the XLG-240-48-ABV?

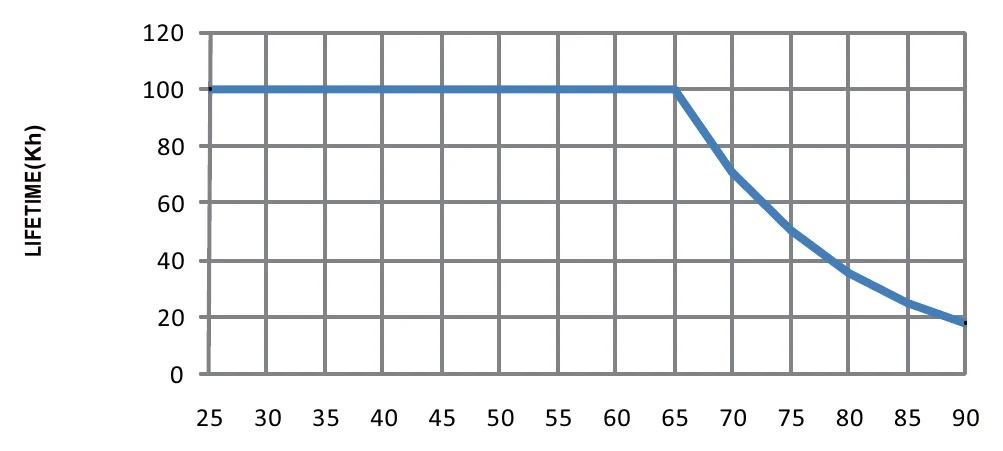

The XLG-240-48-ABV is listed with a 5-year warranty. The product data also states a lifetime of more than 50,000 hours.
Other XLG-240 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-240-M-DA2 Power Supply 239.4W 1400mA - DALI2 Dimmable | 239.4W | 197V | 1.4A | IP67 | View |
| Mean Well XLG-240-L-DA2 Power Supply 239.4W 700mA - DALI2 Dimmable | 239.4W | 380V | 0.7A | IP67 | View |
| Mean Well XLG-240-H-DA2 Power Supply 239.6W 4900mA - DALI2 Dimmable | 239.6W | 65V | 4.9A | IP67 | View |
| Mean Well XLG-240-M-AB Power Supply 240W 1400mA - Adjustable and Dimmable | 239.4W | 60V | 1.4A | IP67 | View |
| Mean Well XLG-240-M-A Power Supply 240W 1400mA - Adjustable | 239.4W | 186V | 1.4A | IP67 | View |
| Mean Well XLG-240-L-AB Power Supply 240W 700mA - Adjustable and Dimmable | 239.4W | 60V | 0.7A | IP67 | View |
| Mean Well XLG-240-L-A Power Supply 240W 700mA - Adjustable | 239.4W | 186V | 0.7A | IP67 | View |
| Mean Well XLG-240-H-AB Power Supply 240W 1400mA - Adjustable and Dimmable | 239.6W | 60V | 4.9A | IP67 | View |
| Mean Well XLG-240-H-A Power Supply 240W 1400mA - Adjustable | 239.6W | 186V | 4.9A | IP67 | View |
