Mean Well

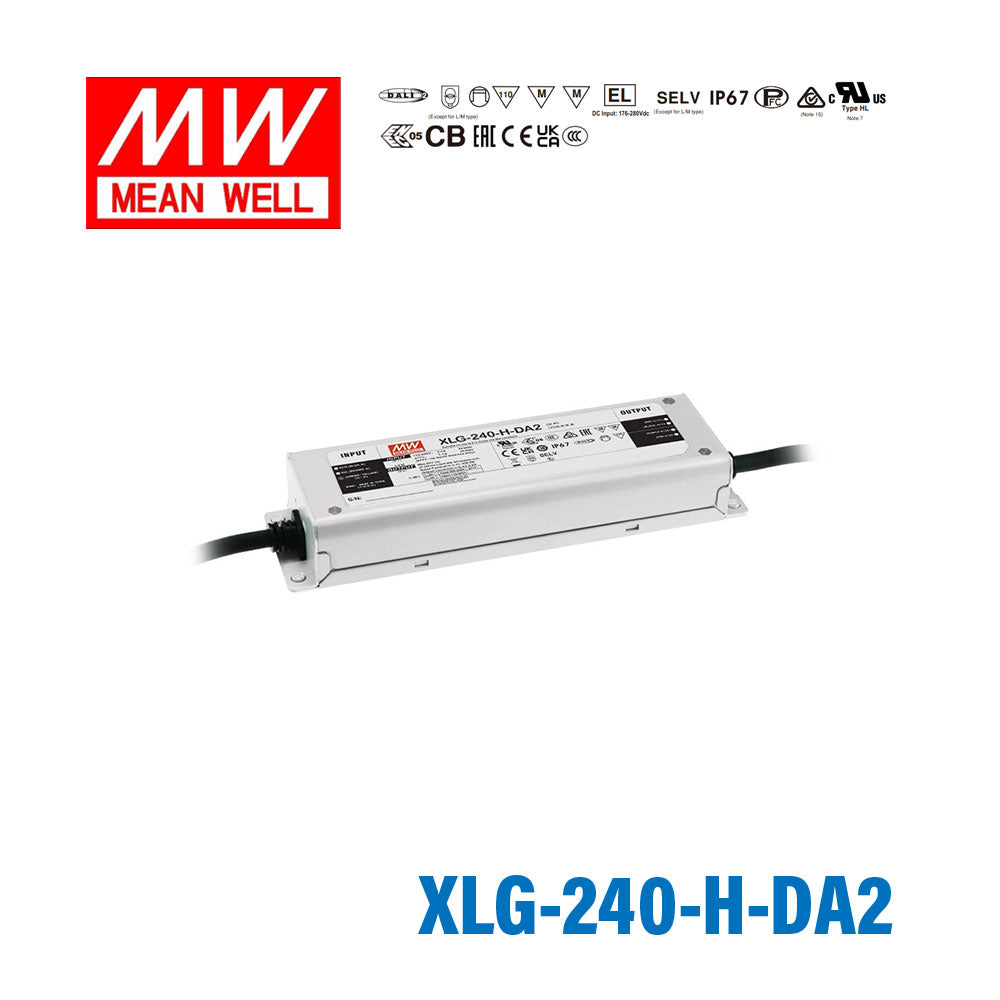

Mean Well XLG-240-H-DA2 Power Supply 239.6W 4900mA - DALI2 Dimmable

constant current region 27~56Vcurrent adjustable from 2400~6660mAminimum dimming level 8%
SKU XLG-240-H-DA2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

XLG-240-H-DA2 is the model of this series: rated power 239.6W, typical efficiency 93%.

XLG-240-DA2 series is a 240W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function. XLG-240-DA2 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 6660mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240-DA2 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

  • Wide input range 100~305V AC( Class I)
  • Full power output at 70~100% Constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV
  • DALI-2 Dimming with minimum level 8%
  • 12V/250mA Auxiliary power available(optional)
  • India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
  • Protection functions: SCP/OTP
  • Life time >50,000 hrs. and 5 years warranty

Specifications

XLG-240-H-DA2Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT(Default)
4900mA
RATED POWER
239.6W
CONSTANT CURRENT REGIONNote.2
27 ~ 56V
FULL POWER CURRENT RANGE
4280~6660mA
OPEN CIRCUIT VOLTAGE (max.)
65V
CURRENT ADJ. RANGE
(Via the built-in potentiometer)
CURRENT ADJ. RANGE
2400~6660mA
CURRENT RIPPLE
5%(@ full load)
CURRENT TOLERANCE
±5%
AUXILIARY DC OUTPUT
12V@250mA tolerance ±10%, ripple 200mVp-p (only for DA2-A-type)
SET UP TIME
500ms/230VAC, 1200ms/115VAC

INPUT

VOLTAGE RANGENote.4
100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION
THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.)Note.14
93%
AC CURRENT (Typ.)
2.7A / 115VAC 1.3A / 230VAC 1.1A/277VAC
INRUSH CURRENT(Typ.)
COLD START 85A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER
2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
STANDBY POWER CONSUMPTION
Standby power consumption <0.5W (Dimming OFF, Only for standard version DA2-type)

PROTECTION

SHORT CIRCUIT
Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
INPUT OVER VOLTAGENote.7
320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
OVER TEMPERATURE
Stage 1: Derating to 75% loading; stage 2: Derating to 50% loading. recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.06%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent ,GB/T19510.1,GB/T19510.213; EAC TP TC 004; IS 15885(Part2/Sec13)(for XLG-240I-DA2 only); IP67 approved
DALI STANDARDS
Comply with IEC62386-101,102,207,251,Device type 6(DT6)
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.8KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55015(CISPR15) ,GB/T 17743
RadiatedBS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic CurrentBS EN/EN61000-3-2 ,GB17625.1Class C @load≥50%
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN61547

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RadiatedBS EN/EN61000-4-3Level 2
EFT/BurstBS EN/EN61000-4-4Level 3
SurgeBS EN/EN61000-4-54KV/Line-Line 6KV/Line-Earth
ConductedBS EN/EN61000-4-6Level 2
Magnetic FieldBS EN/EN61000-4-8Level 4
Voltage Dips and InterruptionsBS EN/EN61000-4-11>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF
1988.7K hrs min. Telcordia SR-332 (Bellcore) ; 170.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
1Kg;16pcs/16Kg/0.80CUFT
Test conditions and notes17
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. Especially when the temperature inside driver is very high, it will lead to a longer set up time.
  6. 6. Based on IEC 62386-101/102 DALI power on timing and interruption regulations,the set up time needs to test with a DALI controller which can support for DALI power on function,otherwise the set up time will be longer than 500ms.
  7. 7. Input over voltage only for XLG-240 I series,and I series without UL/CSA certificate.
  8. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  12. 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. The efficiency will drop 1% based on auxiliary power version with full load 3W condition.
  15. 15. H type:RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations； M/L type:RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1
  16. 16. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
  17. 17. This series need to consider build in using to comply with Type HL application.

Technical drawings

XLG-240-H-DA2 BLOCK DIAGRAM
BLOCK DIAGRAM
XLG-240-H-DA2 DRIVING METHODS OF LED MODULE
DRIVING METHODS OF LED MODULE
XLG-240-H-DA2 DIMMING OPERATION
DIMMING OPERATION
XLG-240-H-DA2 OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
XLG-240-H-DA2 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
XLG-240-H-DA2 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
XLG-240-H-DA2 LIFE TIME
LIFE TIME
XLG-240-H-DA2 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
XLG-240-H-DA2 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • Street lighting
  • Floodlight Lighting
  • Stage lighting
  • Fishing lighting
  • Horticulture lighting
  • Bay lighting
  • Type HL for use in class I, Division 2

Downloads

FAQ

Can the XLG-240-H-DA2 power high-bay LED fixtures in an industrial facility with DALI controls?

Yes. At 239.6W and up to 4900mA constant current (27–56V range), this driver can supply high-power LED high-bay modules. The DALI2 interface integrates with industrial building automation systems for occupancy-based or scheduled dimming down to 8%.

Is the XLG-240-H-DA2 suitable for stadium or sports lighting arrays requiring intelligent dimming?

Yes. The 239.6W output with adjustable current from 2400–6660mA and DALI2 dimming supports high-lumen LED arrays typical in sports and outdoor venue lighting. The IP67 waterproof rating accommodates outdoor luminaire enclosures.

Can I use this driver for large LED downlight arrays in a shopping centre with a DALI BMS?

Yes. The DALI2 protocol allows direct integration with building management systems for zone-level dimming control. The driver's 239.6W capacity with constant current in the 27–56V range supports clusters of high-power LED downlight modules in retail environments.

What is the current adjustment range of the XLG-240-H-DA2?

The output current is adjustable from 2400mA to 6660mA, with 4900mA as the nominal rating. The DALI2 minimum dimming level is 8% of the configured output.

Can the XLG-240-H-DA2 be used in cold storage or outdoor environments?

Yes. The driver is rated IP67 waterproof and operates from –40°C to +90°C, making it suitable for cold storage facilities, outdoor luminaire housings, and other harsh environments with wide temperature swings.

How many LEDs can the XLG-240-H-DA2 drive in series?

The constant current output region is 27–56V. The number of LEDs depends on each LED's individual forward voltage — no fixed count applies. Confirm the total series string forward voltage is within 27–56V at the configured drive current.

How does the XLG-240-H-DA2 compare to the XLG-200-H-DA2 and XLG-150-H-DA2?

The XLG-150-H-DA2 is rated 150W at up to 2800mA; the XLG-200-H-DA2 is 200W at up to 3500mA; the XLG-240-H-DA2 is 239.6W at up to 4900mA. All share the DALI2 interface, IP67 rating, and the same 27–56V CC voltage region. Select based on the total wattage and maximum drive current required by the LED array.
