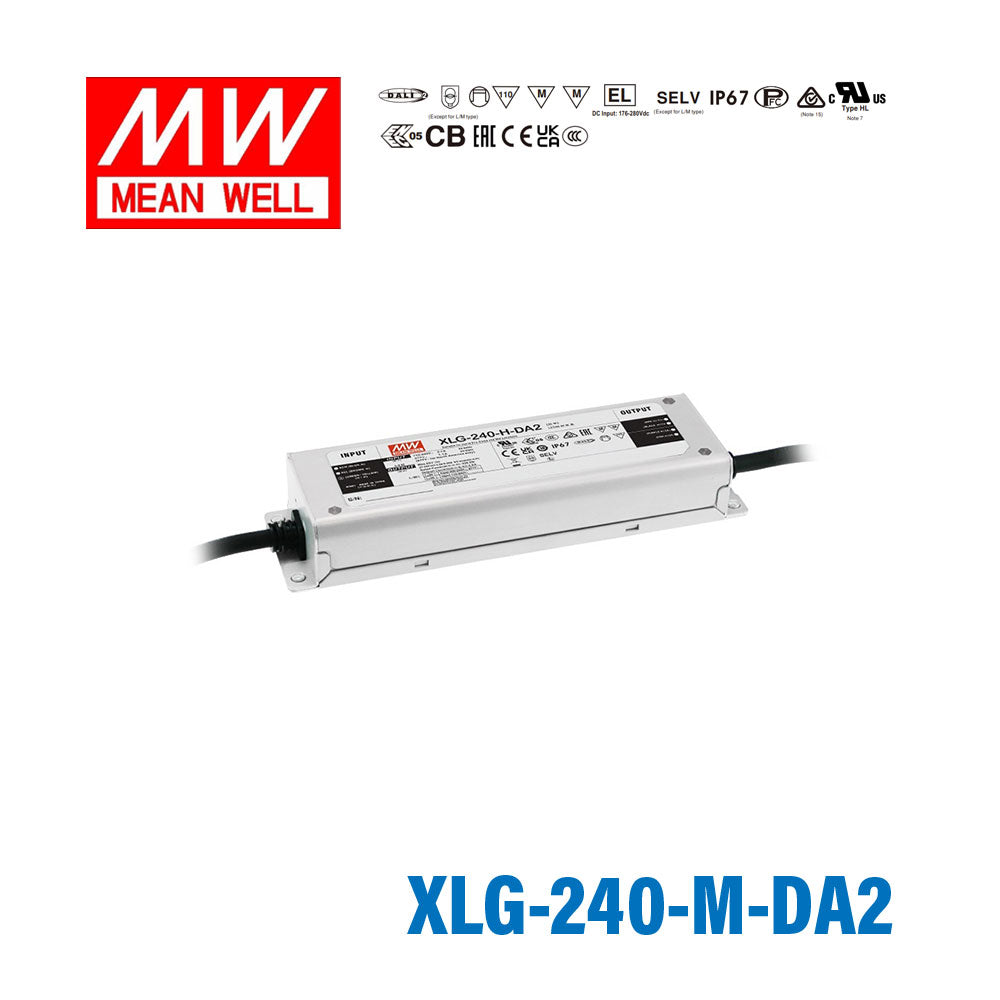

Mean Well XLG-240-M-DA2 Power Supply 239.4W 1400mA - DALI2 Dimmable

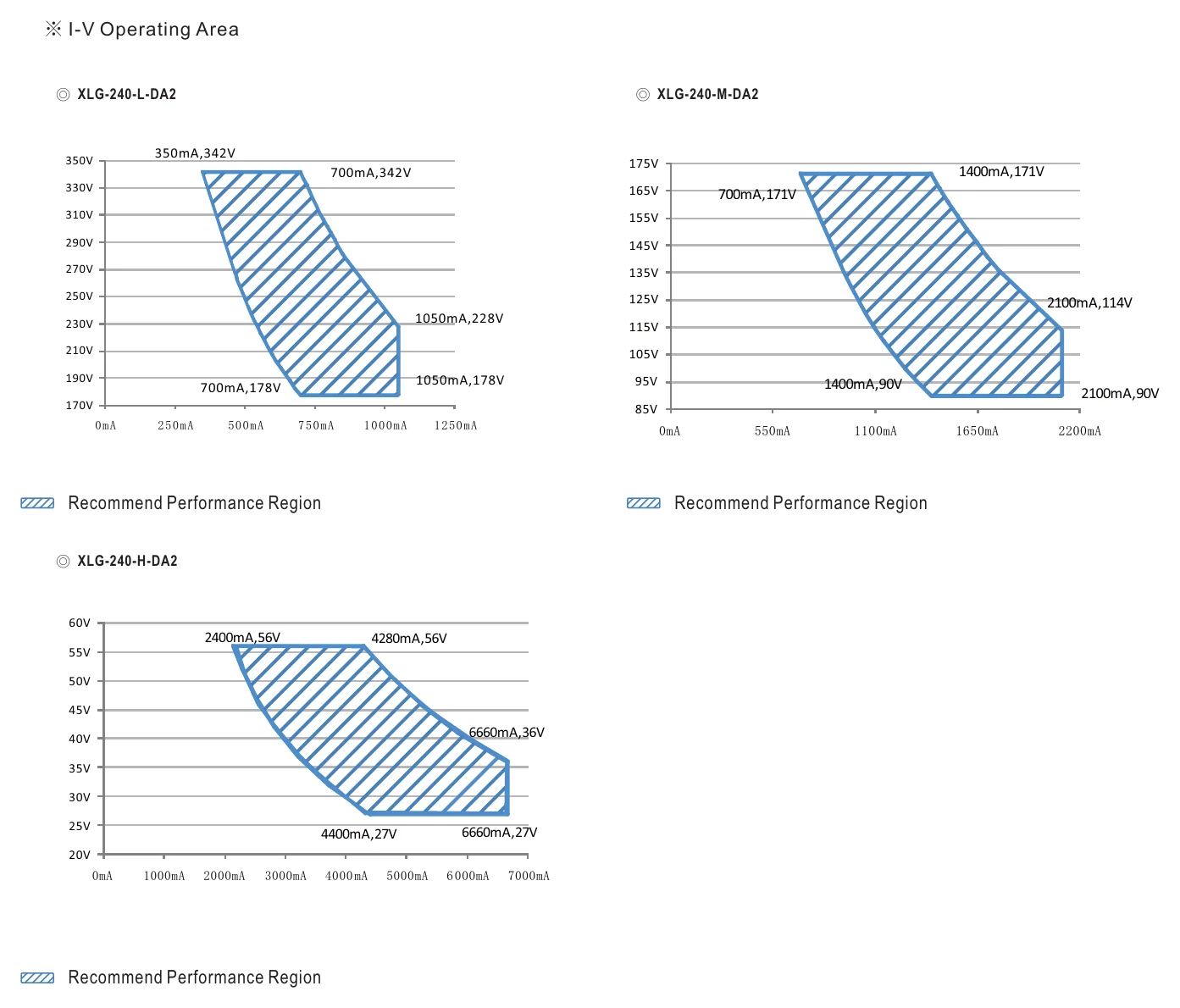

constant current region 90~171V, current adjustable from 700~2100mA, minimum dimming level 8%

SKU:

XLG-240-M-DA2

Model

76W 1400mA DALI2 Dimmable

SKU: XLG-75-H-DA2

150W 1400mA DALI2 Dimmable

SKU: XLG-150-M-DA2

240W 1400mA H Adjustable

SKU: XLG-240-H-A

240W 1400mA Adjustable and Dimmable

SKU: XLG-240-H-AB

240W 1400mA M Adjustable

SKU: XLG-240-M-A

240W 1400mA M Adjustable and Dimmable

SKU: XLG-240-M-AB

240W 1400mA DALI2 Dimmable

SKU: XLG-240-M-DA2

315W 1400mA DALI2 Dimmable

SKU: XLG-320-L-DA2

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓Wide input range 100~305V AC(Class I)
✓Full power output at 70~100% Constant power mode operation
✓Metal case with IP67, suitable for outdoor application
✓Surge protection with 6KV/4KV

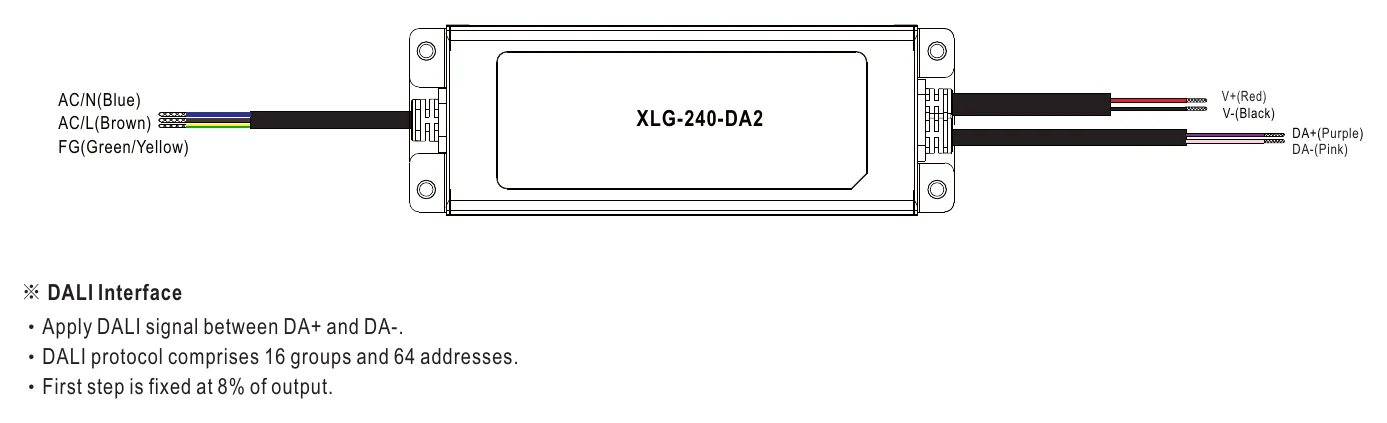

✓DALI-2 Dimming with a minimum level 8%
✓12V/250mA Auxiliary power available(optional)
✓Protection functions: SCP/OTP

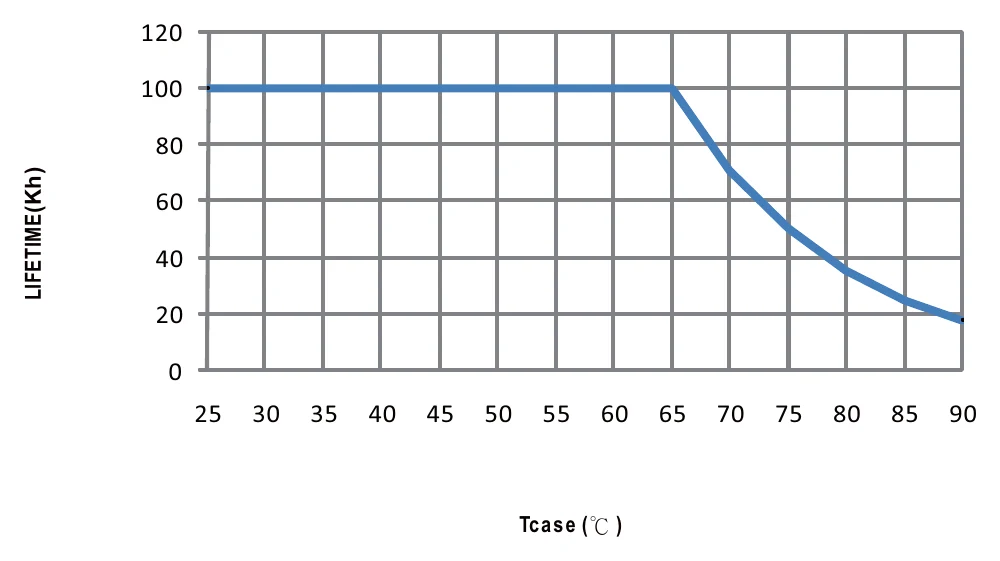

✓Lifetime >50,000 hrs
✓5 years warranty

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

239.4 Watt
Output Voltage

197 Volt
Rated Current

1.4 Ampere

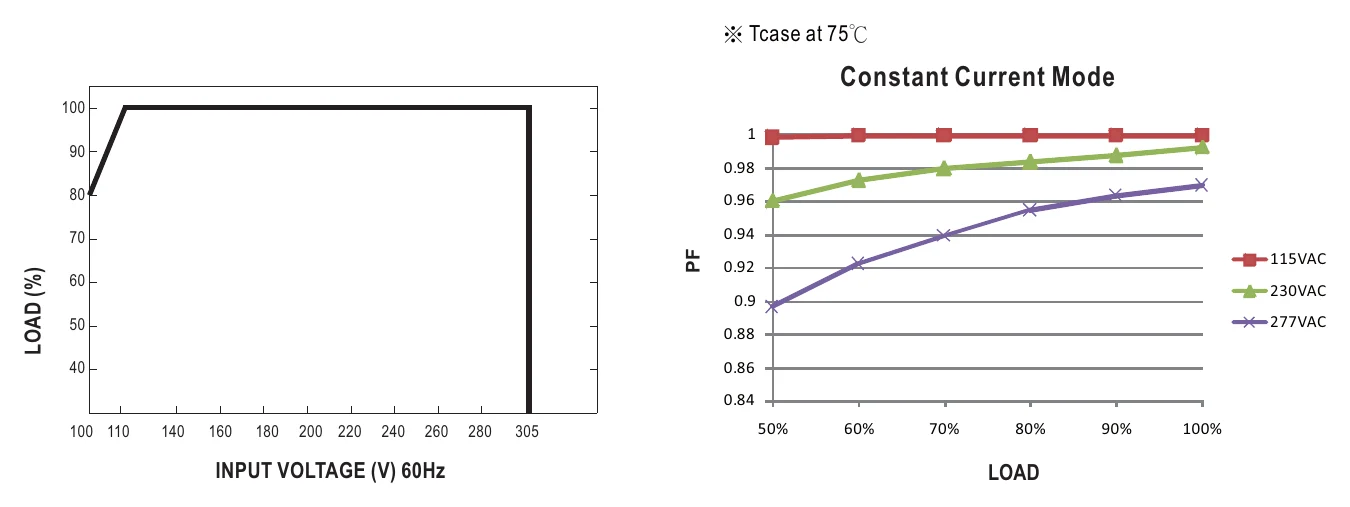

Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current

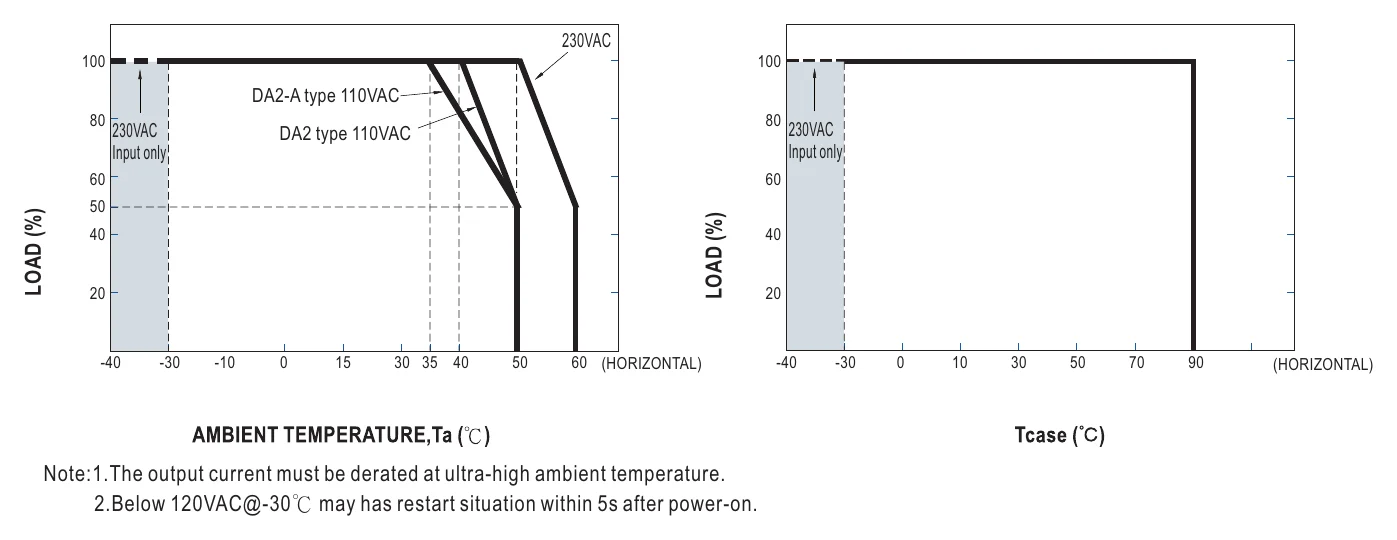

Operating Temperature

-40°C~90°C
Warranty

5 Year

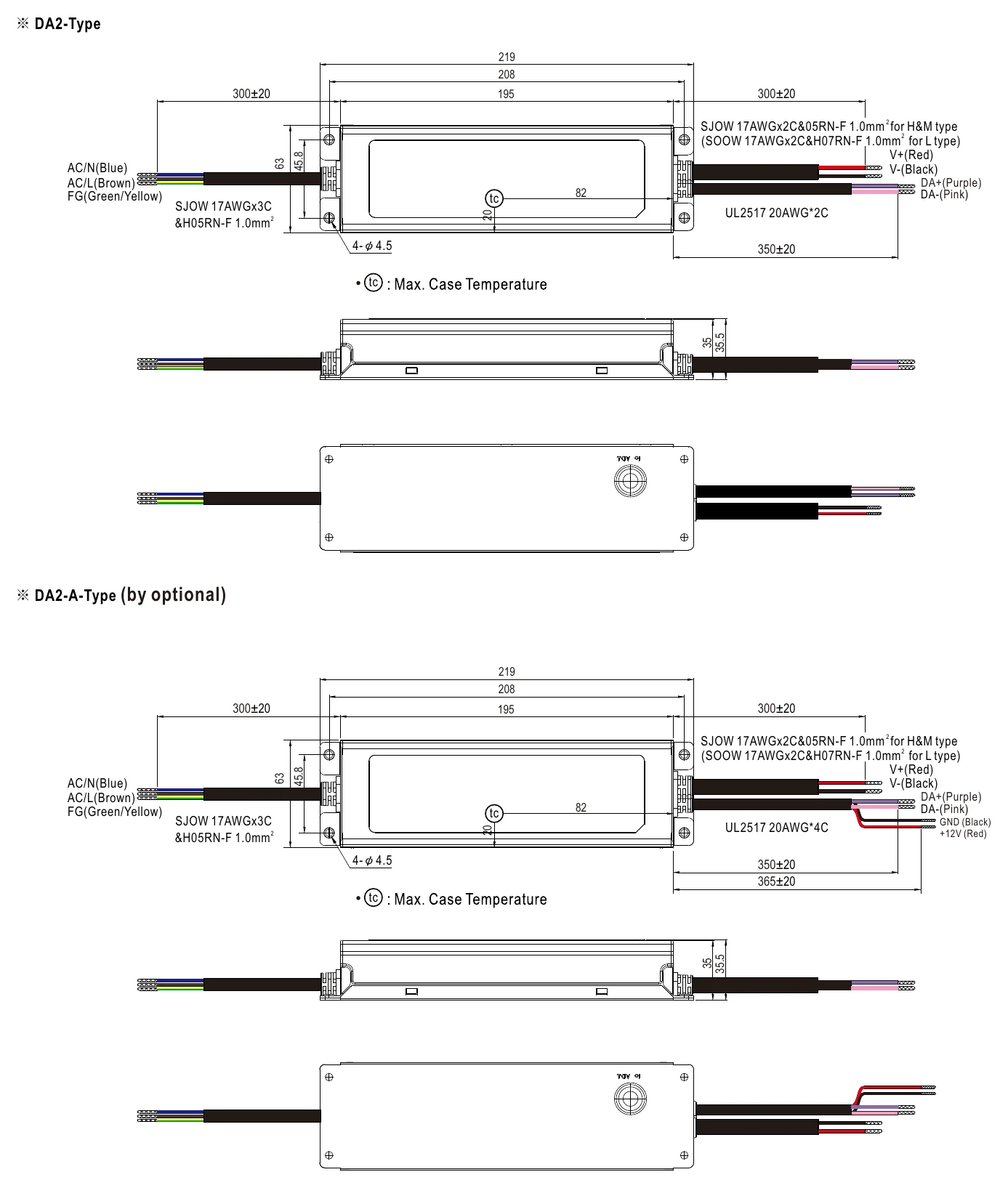

Length

21.9 cm
Width

6.3 cm
Height

3.55 cm
Weight

1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the XLG-240-M-DA2 power LED downlights in a multi-zone commercial space with DALI controls?

Yes. The XLG-240-M-DA2 provides 239.4W at 1400mA constant current (90–171V CC range) with DALI2 dimming, making it suitable for mid-to-high power LED downlight arrays in commercial spaces managed by a DALI building automation system. Dimming is supported down to an 8% minimum level.

Is this driver appropriate for large LED signage modules that need DALI-based scheduling?

Yes. The IP67 rating and –40°C to +90°C operating range suit outdoor sign enclosures. At 239.4W and 1400mA with a 90–171V constant current region, it can drive medium-current LED sign modules with DALI2-controlled brightness scheduling.

Can the XLG-240-M-DA2 be used in architectural or hospitality LED array installations requiring smooth DALI dimming?

Yes. The DALI2 interface provides smooth 8%–100% dimming compatible with hospitality and architectural control systems. The 239.4W output at 1400mA with a 90–171V CC range accommodates multi-module LED arrays in hotels, theatres, and similar venues.

What is the current adjustment range of the XLG-240-M-DA2?

The output current is adjustable from 700mA to 2100mA, with 1400mA as the nominal rating. The DALI2 minimum dimming level is 8% of the configured output current.

Can the XLG-240-M-DA2 be installed in damp or cold outdoor environments?

Yes. The driver is rated IP67 waterproof and operates from –40°C to +90°C, supporting installation in outdoor enclosures, unheated plant rooms, and cold storage facilities. The 100–305VAC input covers global mains voltages.

How many LEDs can be connected in series to the XLG-240-M-DA2?

The constant current output region spans 90–171V at 1400mA. The number of LEDs in a series string depends on each individual LED's forward voltage — no fixed count can be given. Ensure the total string forward voltage is within 90–171V at the chosen drive current.

How does the XLG-240-M-DA2 compare to the XLG-240-H-DA2 and XLG-240-L-DA2?

All three are 239–240W, DALI2, IP67 drivers in the XLG-240 series. The XLG-240-H-DA2 outputs 4900mA over a 27–56V CC region; the XLG-240-M-DA2 outputs 1400mA over a 90–171V CC region; the XLG-240-L-DA2 outputs 700mA over a 178–342V CC region. Select based on your LED string's forward voltage and required drive current.

Model	Power	Voltage	Current	IP Rating
Mean Well XLG-240-48-ABV Power Supply 240W 48V 5A	240W	48V	5A	IP67	View
Mean Well XLG-240-L-DA2 Power Supply 239.4W 700mA - DALI2 Dimmable	239.4W	380V	0.7A	IP67	View
Mean Well XLG-240-H-DA2 Power Supply 239.6W 4900mA - DALI2 Dimmable	239.6W	65V	4.9A	IP67	View
Mean Well XLG-240-M-AB Power Supply 240W 1400mA - Adjustable and Dimmable	239.4W	60V	1.4A	IP67	View
Mean Well XLG-240-M-A Power Supply 240W 1400mA - Adjustable	239.4W	186V	1.4A	IP67	View
Mean Well XLG-240-L-AB Power Supply 240W 700mA - Adjustable and Dimmable	239.4W	60V	0.7A	IP67	View
Mean Well XLG-240-L-A Power Supply 240W 700mA - Adjustable	239.4W	186V	0.7A	IP67	View
Mean Well XLG-240-H-AB Power Supply 240W 1400mA - Adjustable and Dimmable	239.6W	60V	4.9A	IP67	View
Mean Well XLG-240-H-A Power Supply 240W 1400mA - Adjustable	239.6W	186V	4.9A	IP67	View
