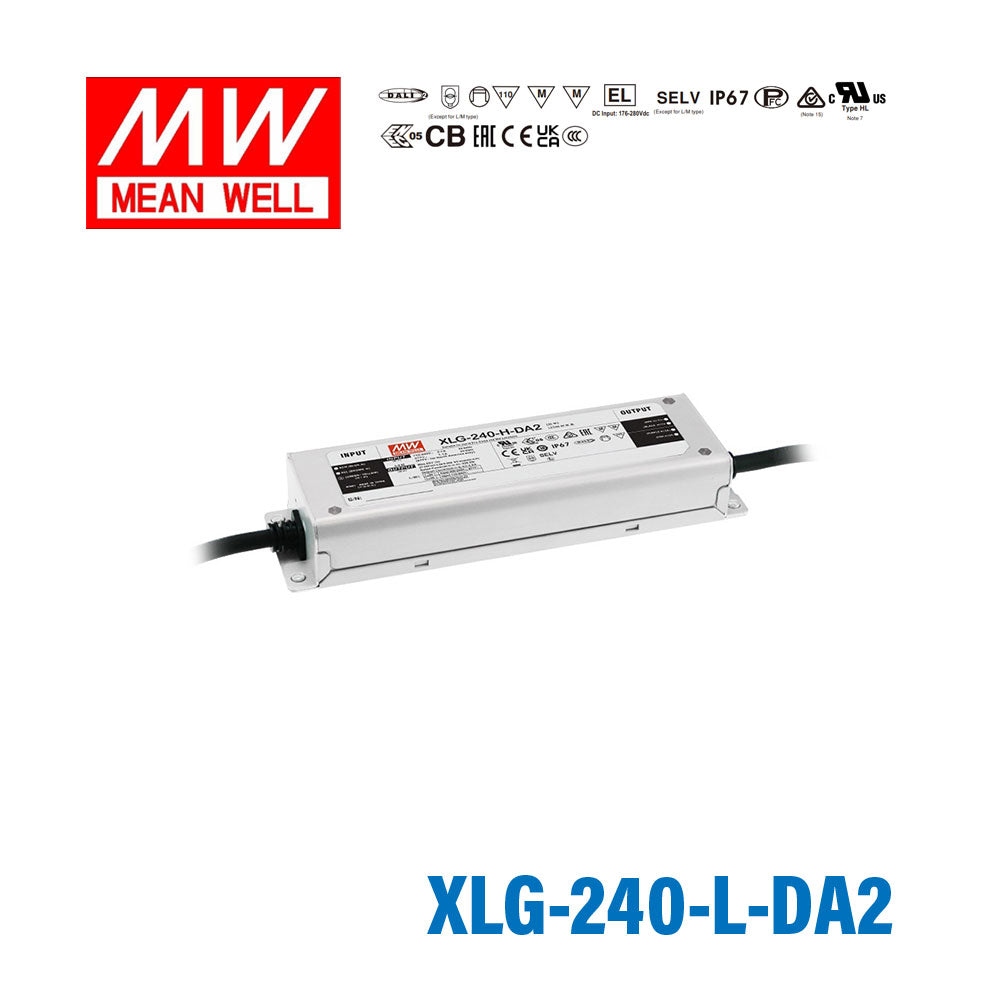

Mean Well XLG-240-L-DA2 Power Supply 239.4W 700mA - DALI2 Dimmable

Yes. The XLG-240-L-DA2 operates at 700mA constant current across a 178–342V output range, supporting long series LED strings typical in tunnel and roadway luminaires. DALI2 integration enables time- or sensor-based dimming down to 8% minimum level.

Yes. The IP67 rating and –40°C to +90°C operating range support outdoor sign enclosures. At 239.4W and 700mA with a constant current region of 178–342V, it can power high-voltage LED sign modules with DALI2-scheduled brightness adjustment.

Yes. The DALI2 protocol enables zone-level dimming from a building management controller. At 239.4W and 700mA, the driver's high output voltage range (178–342V CC region) suits long LED linear arrays without requiring mid-run junction boxes.

Output current is adjustable from 350mA to 1050mA, with 700mA as the nominal value. The DALI2 minimum dimming level is 8%, below which the output turns off.

Yes. The XLG-240-L-DA2 is IP67 waterproof and rated from –40°C to +90°C, making it appropriate for outdoor luminaire housings, underground car parks, and other wet or cold environments. Input accepts 100–305VAC for global deployment.

The XLG-150-L-DA2 outputs 150W at 700mA up to 240V; the XLG-200-L-DA2 outputs 200W at 700mA up to 320V; the XLG-240-L-DA2 outputs 239.4W at 700mA up to 380V. All are DALI2 dimmable and IP67 rated. Select based on your LED array's total wattage and required string forward voltage.

The constant current region spans 178–342V at 700mA. The actual number of LEDs in series depends on each LED's individual forward voltage and cannot be given as a fixed figure. Ensure the total string forward voltage is within 178–342V.
