Mean Well

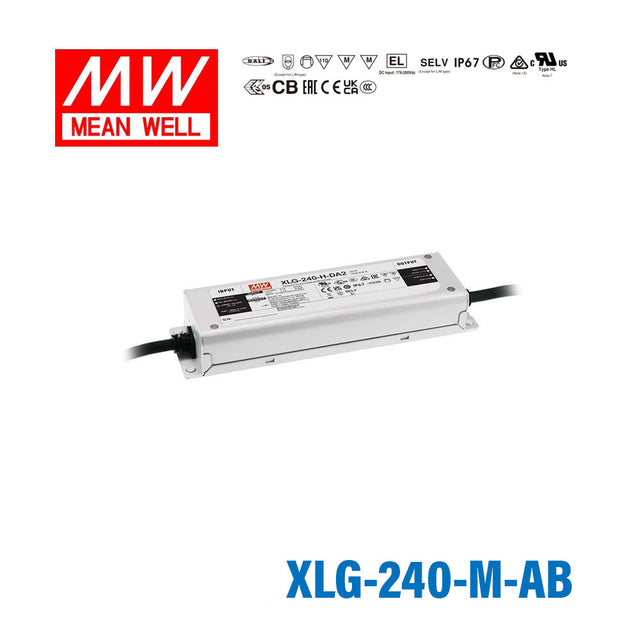

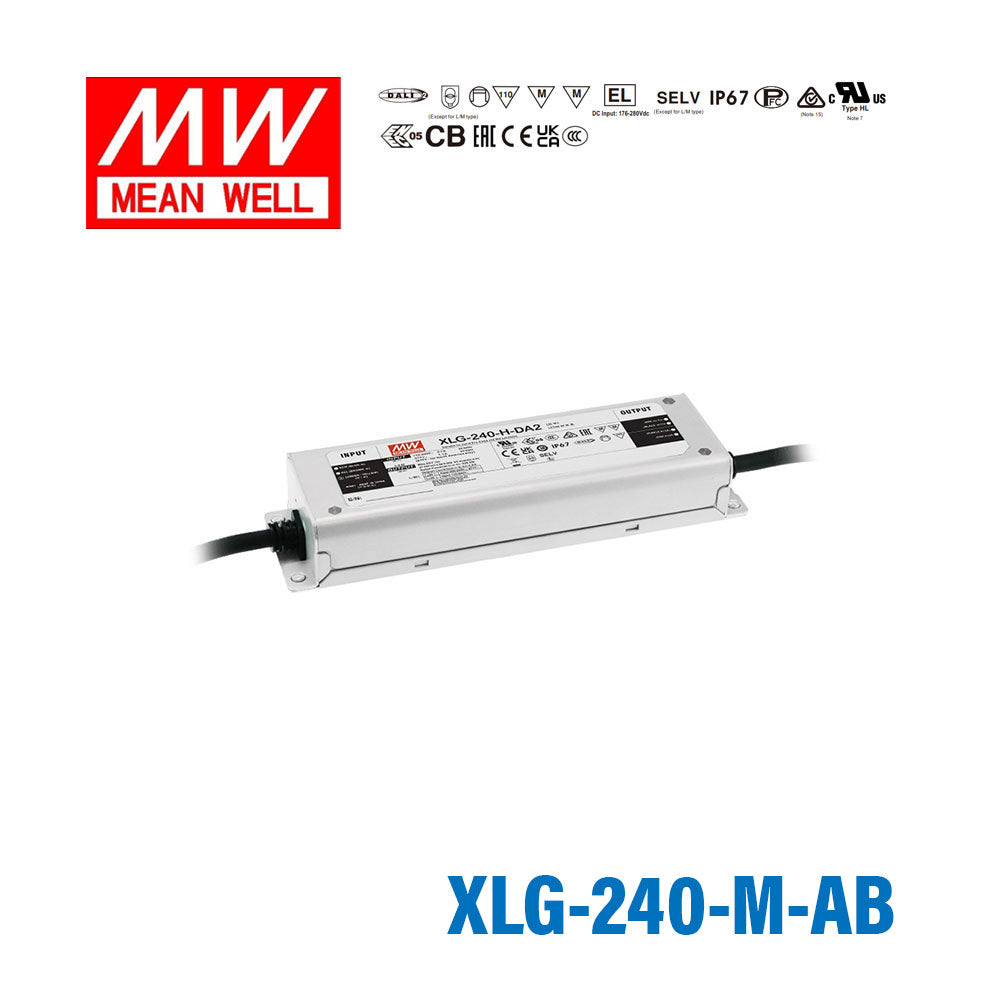

Mean Well XLG-240-M-AB Power Supply 240W 1400mA - Adjustable and Dimmable

metal caseeconomical100~305VAC wide range inputefficiency up to 90%
SKU XLG-240-M-AB
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 8 in this family

XLG-240-M-AB
Available to order
|

Overview

XLG-240-M-AB is the model of this series: rated power 239.4W, typical efficiency 92.5%.

XLG-240 series is a 240W LED AC/DC driver featuring the constant power mode. XLG-240 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 6.66A. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection . The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240 is designed with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the user and luminaire system safety during installation.

Features

  • Wide input range 100~305V AC( Class I)
  • Full power output at 70~100% Constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • 3 in 1 dimming function (Dim to off and Isolation design)
  • India (EESL) version, can survive input voltage stress of 440Vac for 48 hours
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000 hrs. and 5 years warranty
  • Type HL for use in class I, Division 2

Specifications

XLG-240-M-ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT (Default)
1400mA
RATED POWER
239.4W
CONSTANT CURRENT REGIONNote.2
90 ~171V
FULL POWER CURRENT RANGE
1400~2100mA
OPEN CIRCUIT VOLTAGE (max.)
186V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer)
CURRENT ADJ. RANGE
700~2100mA
CURRENT RIPPLE
5.0%(@ Load≥50% rated voltage)
CURRENT TOLERANCE
±4%
SET UP TIMENote.6
500ms/230VAC, 1200ms/115VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" and “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION
THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.)
92.5%
AC CURRENT (Typ.)
2.7A / 115VAC 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 85A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER
2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
STANDBY POWER CONSUMPTION
Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)

PROTECTION

SHORT CIRCUIT
Hiccup mode or constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
190~ 240V Shut down output voltage, re-power on to recovery
INPUT OVER VOLTAGENote.7
320 ~ 390VAC (Shut down output when the input exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note 8)

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1, GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13); NOM-058-SCFI-2017(except for Blank type); IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55015(CISPR15),GB/T 17743
RadiatedBS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic CurrentBS EN/EN61000-3-2 , GB17625.1Class C @load≥50%
Voltage FlickerBS EN/EN61000-3-3-----; BS EN/EN61547
EMC IMMUNITY
ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RadiatedBS EN/EN61000-4-3Level 2
EFT / BurstBS EN/EN61000-4-4Level 3
SurgeBS EN/EN61000-4-54KV/Line-Line 6KV/Line-Earth(6K/10K option)
ConductedBS EN/EN61000-4-6Level 2
Magnetic FieldBS EN/EN61000-4-8Level 4
Voltage Dips and InterruptionsBS EN/EN61000-4-11>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF
2496.2K hrs min. Telcordia SR-332(Bellcore) ; 219.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
1Kg;16pcs / 16Kg / 0.8CUFT

Certifications & ratings

Type
HL
Test conditions and notes20
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.If continually operate with AC on/off in short time , it may causes PWM driver IC into protection status.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time
  7. 7. Only for XLG-240 I series,and Iseries without UL/CSA certificate.
  8. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. H type:RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. M,L type:RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
  14. 14. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
  15. 15. Some products may not have the BIS logo, please contact your MEAN WELL sales for more information.
  16. 16. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  17. 17. When the current adjustment is more than 110% of the rated current, it will be enter the Protection state.
  18. 18. It may has an over-shoot status at output current when AC On/Off operate with lower Vf and lower loading conditions.
  19. 19. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
  20. 20. For A/AB/ABV type need to consider build in using to comply with Type HL application.

Technical drawings

XLG-240-M-AB BLOCK DIAGRAM
BLOCK DIAGRAM
XLG-240-M-AB DRIVING METHODS OF LED MODULE
DRIVING METHODS OF LED MODULE
XLG-240-M-AB DIMMING OPERATION
DIMMING OPERATION
XLG-240-M-AB DIMMING OPERATION
DIMMING OPERATION
XLG-240-M-AB OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
XLG-240-M-AB STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
XLG-240-M-AB TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
XLG-240-M-AB Vout 40.0v
Vout 40.0v
XLG-240-M-AB LIFETIME(Kh)
LIFETIME(Kh)
XLG-240-M-AB MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
XLG-240-M-AB Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • Skyscraper lighting
  • Street lighting
  • Floodlight Lighting
  • Stage lighting
  • Fishing lighting
  • Horticulture lighting
  • Bay lighting
  • LED strip lighting (ABV type)
  • Agricultural lighting (ABV type)

Downloads

FAQ

Can the XLG-240-M-AB be dimmed using a standard 0-10V lighting controller?

Yes. The AB suffix indicates a built-in dimming interface compatible with 0-10V DC, 10V PWM signal, and resistance control signals. This allows the driver to integrate with occupancy sensors, daylight harvesting systems, or building management systems.

Is the XLG-240-M-AB appropriate for dimmable LED high-bay or pendant fixtures in commercial spaces?

Yes. With 239.4W of constant-current output and a 90–171V CC voltage range, the XLG-240-M-AB is well matched to medium-voltage LED module strings used in commercial pendants, high-bays, and linear architectural fixtures where dimming control is required.

Can I install the XLG-240-M-AB in an outdoor enclosure exposed to rain?

Yes. The IP67 waterproof rating confirms protection against dust and water immersion, making the driver suitable for outdoor or wet-location luminaire housings. Its -40°C to +90°C range also handles extreme ambient temperatures.

Will the XLG-240-M-AB work with LED modules in the 100–150V forward voltage range?

Yes. The CC voltage range of 90–171V encompasses LED module strings with forward voltages between 90V and 171V, which includes many medium-voltage commercial module arrays. The driver regulates output current at 1.4A within that window.

How does the XLG-240-M-AB differ from the XLG-240-M-A?

Both share the same 239.4W output, 90–171V CC voltage range, 1.4A output current, and IP67 rating in the same enclosure. The XLG-240-M-AB adds a 3-in-1 dimming control input (0-10V, PWM, resistance) alongside the built-in potentiometer; the XLG-240-M-A offers only manual current adjustment via potentiometer. Choose the AB variant when external dimming is needed.

Does the XLG-240-M-AB support universal input voltage for global or multi-site deployments?

Yes. The 100–305VAC input range covers 120V, 230V, 240V, and 277V mains supplies without any manual reconfiguration, making it practical for projects spanning multiple regions or voltage standards.
