Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

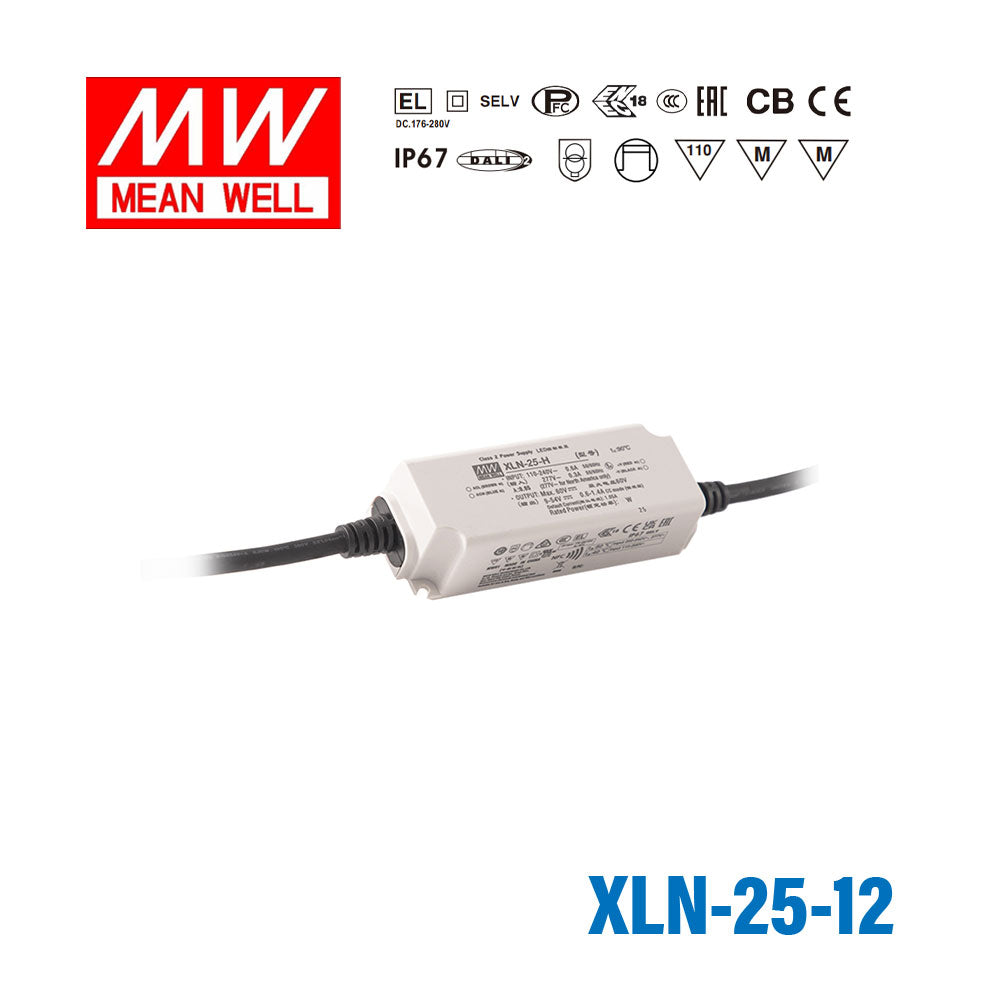

Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 2.1A

Q: What is the output rating of the Mean Well XLN-25-12?

The XLN-25-12 is rated for 25.2W output power. It provides 12V DC output with a rated current of 2.1A.

Q: Is the XLN-25-12 suitable for 12V LED lighting?

Yes, this model is a 12V constant-voltage LED driver. It is intended for LED applications that match its 12V output and 25.2W power rating.

Q: Can the Mean Well XLN-25-12 be used in damp or outdoor environments?

The XLN-25-12 has an IP67 rating and is fully encapsulated. That rating indicates strong protection against dust and water ingress for suitable protected LED driver applications.

Q: What operating temperature range does the XLN-25-12 support?

This LED driver is specified for operation from -25°C to 90°C. Buyers should confirm that the product page conditions and enclosure environment remain within that range.

Q: Is the XLN-25-12 dimmable?

The provided product data lists this SKU with dimming control set to non-dimmable. If dimming is required, verify that you are selecting the correct XLN variant before purchasing.

Q: How does the XLN-25-12 differ from a 24V LED driver?

The XLN-25-12 provides 12V output, while a 24V model is intended for 24V LED loads. Choose the driver voltage that matches the voltage requirement of the LED product being powered.

Q: What warranty is provided for the Mean Well XLN-25-12?

The XLN-25-12 is listed with a 5-year warranty period. This makes it suitable for buyers who need a compact 12V LED driver with longer warranty coverage.

constant voltage, class II and PFC, flicker-free

SKU:

XLN-25-12

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
✓Constant voltage mode output (12V/24V)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) function application
✓Fully Encapsulated with IP67
✓Minimum dimming level 0.1% (DALI-2 DT6)
✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLN Series
Power Rating

25.2 Watt
Output Voltage

12 Volt
Rated Current

2.1 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

11.4 cm
Width

3.2 cm
Height

4.4 cm

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the output rating of the Mean Well XLN-25-12?

The XLN-25-12 is rated for 25.2W output power. It provides 12V DC output with a rated current of 2.1A.

Is the XLN-25-12 suitable for 12V LED lighting?

Yes, this model is a 12V constant-voltage LED driver. It is intended for LED applications that match its 12V output and 25.2W power rating.

Can the Mean Well XLN-25-12 be used in damp or outdoor environments?

The XLN-25-12 has an IP67 rating and is fully encapsulated. That rating indicates strong protection against dust and water ingress for suitable protected LED driver applications.

What operating temperature range does the XLN-25-12 support?

This LED driver is specified for operation from -25°C to 90°C. Buyers should confirm that the product page conditions and enclosure environment remain within that range.

Is the XLN-25-12 dimmable?

The provided product data lists this SKU with dimming control set to non-dimmable. If dimming is required, verify that you are selecting the correct XLN variant before purchasing.

How does the XLN-25-12 differ from a 24V LED driver?

The XLN-25-12 provides 12V output, while a 24V model is intended for 24V LED loads. Choose the driver voltage that matches the voltage requirement of the LED product being powered.

What warranty is provided for the Mean Well XLN-25-12?

The XLN-25-12 is listed with a 5-year warranty period. This makes it suitable for buyers who need a compact 12V LED driver with longer warranty coverage.

Model	Power	Voltage	Current	IP Rating
Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-24 LED Driver 25.2W 24V IP67 1.05A	25.2W	24V	1.05A	IP67	View
