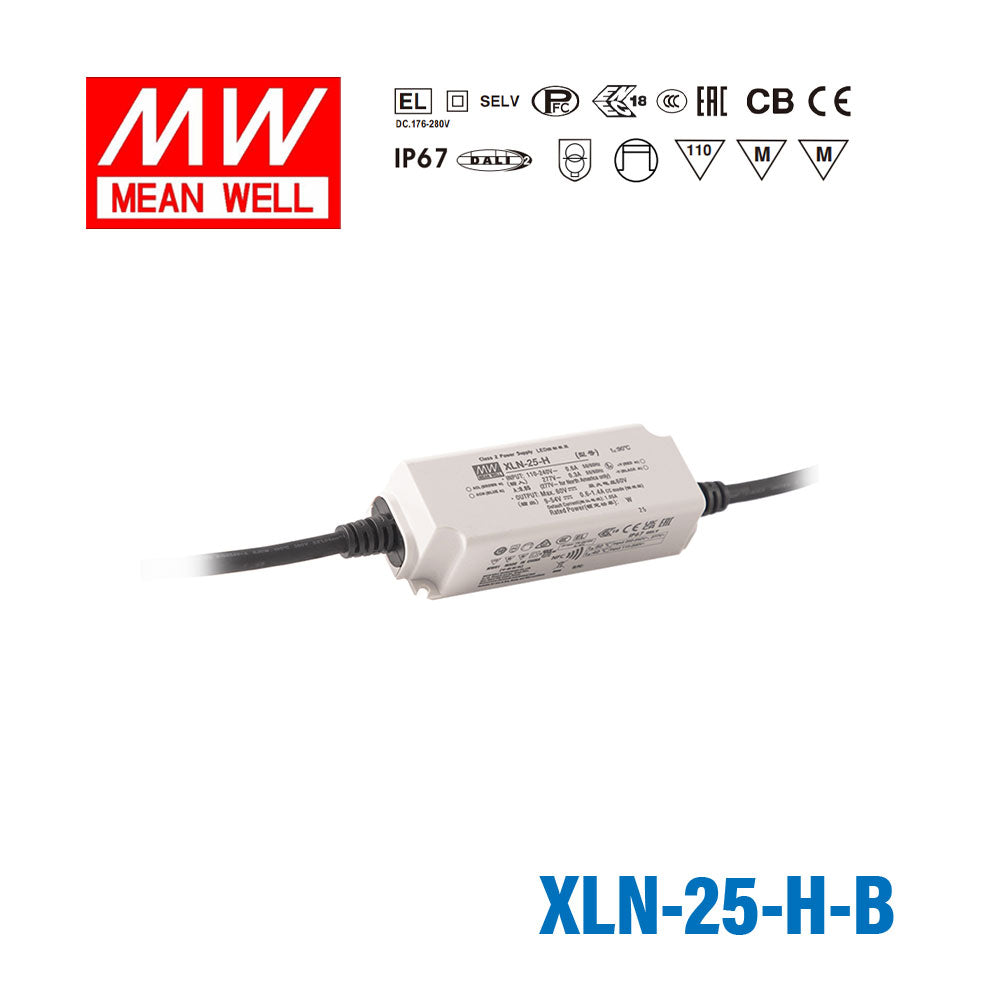

Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length11.4 cm
-
Width3.2 cm
-
Height4.4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the Mean Well XLN-25-H-B?
The XLN-25-H-B is a 25W AC/DC LED driver for constant current LED applications. This model is rated at 700mA and supports a listed output range of 9~54V in constant power mode.
Does the XLN-25-H-B support dimming?
Yes. The XLN-25-H-B supports 3 in 1 dimming, with listed control types including 0-10V, 1-10V, PWM, and resistance dimming. The product description also notes dim-to-off capability.
Is the XLN-25-H-B suitable for outdoor or damp environments?
The XLN-25-H-B is fully encapsulated and rated IP67. That rating makes it suitable for applications where a waterproof LED driver is required, within the product's specified environmental limits.
What operating temperature range does the XLN-25-H-B support?
This model lists an operating temperature range from -25°C to 90°C. Buyers should confirm the full datasheet conditions for their application, especially for enclosed or high-temperature installations.
What LED applications is the XLN-25-H-B commonly used for?
The XLN-25-H-B is intended for LED driver applications that need a 25W, 700mA constant current power source. Its IP67 rating, dimming support, and plastic Class II/2 housing make it relevant for commercial LED lighting projects where those features are required.
Does the XLN-25-H-B include NFC current setting?
Yes. The product name and description specify NFC current setting for this H-type model. The description also states that multiple output stages are selectable by NFC setting.
How is the XLN-25-H-B different from a basic non-dimming LED driver?
Compared with a basic non-dimming driver, the XLN-25-H-B adds 3 in 1 dimming support, dim-to-off functionality, NFC current setting, and an IP67 encapsulated design. It also lists flicker-free performance and compliance with IEEE1789/ErP.
What warranty period applies to the XLN-25-H-B?
The XLN-25-H-B lists a 5-year warranty period. This is useful for commercial and B2B lighting projects where long service life and documented warranty coverage are important purchasing factors.
