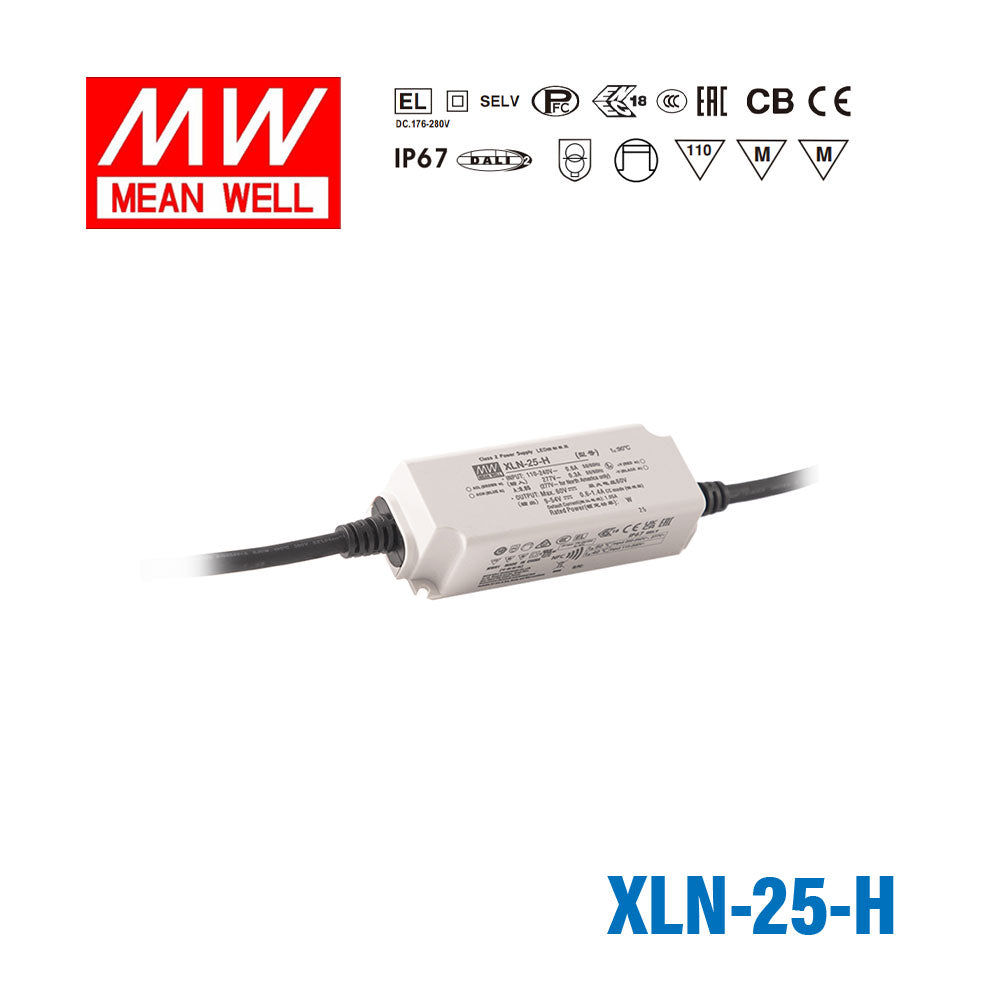

Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, NFC Current Setting

Q: What are the main output specifications of the Mean Well XLN-25-H?

The XLN-25-H is a 25W LED driver with a rated current of 700mA. The product data lists an output voltage of 60V, while the product name identifies a 9~54V constant power operating range.

Q: What type of LED applications is the XLN-25-H intended for?

This model is intended for LED driver applications that require a 25W, 700mA constant power supply. It is categorized for AC/DC LED driver and power supply use across both US and NZ product groupings.

Q: Can the XLN-25-H be used in wet or demanding environments?

The XLN-25-H is fully encapsulated and rated IP67, which supports use in waterproof LED driver applications. Its listed operating temperature range is -25°C to 90°C.

Q: Does the XLN-25-H support NFC current setting?

Yes. The product name and feature data identify NFC current setting for the H-type model, with multiple output stages selectable by NFC setting.

Q: How is the XLN-25-H different from a standard constant current LED driver?

The XLN-25-H is described as a constant power mode LED driver with multiple stages selectable by NFC setting. It is also listed with constant voltage mode output options of 12V and 24V.

Q: Is the XLN-25-H suitable for systems that need flicker-free performance?

Yes. The product description states that the XLN-25-H is flicker-free and complies with IEEE1789/ErP.

Q: What warranty is provided for the XLN-25-H?

The XLN-25-H has a listed warranty period of 5 years. This warranty term applies to this specific Mean Well LED driver model as provided in the product data.

current adjustment range 0.3~1.05A, class II and PFC, flicker-free

SKU:

XLN-25-H

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
✓Constant voltage mode output (12V/24V)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) function application
✓Fully Encapsulated with IP67
✓Minimum dimming level 0.1% (DALI-2 DT6)
✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLN Series
Power Rating

25 Watt
Output Voltage

60 Volt
Rated Current

0.7 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

11.4 cm
Width

3.2 cm
Height

4.4 cm

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main output specifications of the Mean Well XLN-25-H?

The XLN-25-H is a 25W LED driver with a rated current of 700mA. The product data lists an output voltage of 60V, while the product name identifies a 9~54V constant power operating range.

What type of LED applications is the XLN-25-H intended for?

This model is intended for LED driver applications that require a 25W, 700mA constant power supply. It is categorized for AC/DC LED driver and power supply use across both US and NZ product groupings.

Can the XLN-25-H be used in wet or demanding environments?

The XLN-25-H is fully encapsulated and rated IP67, which supports use in waterproof LED driver applications. Its listed operating temperature range is -25°C to 90°C.

Does the XLN-25-H support NFC current setting?

Yes. The product name and feature data identify NFC current setting for the H-type model, with multiple output stages selectable by NFC setting.

How is the XLN-25-H different from a standard constant current LED driver?

The XLN-25-H is described as a constant power mode LED driver with multiple stages selectable by NFC setting. It is also listed with constant voltage mode output options of 12V and 24V.

Is the XLN-25-H suitable for systems that need flicker-free performance?

Yes. The product description states that the XLN-25-H is flicker-free and complies with IEEE1789/ErP.

What warranty is provided for the XLN-25-H?

The XLN-25-H has a listed warranty period of 5 years. This warranty term applies to this specific Mean Well LED driver model as provided in the product data.

Model	Power	Voltage	Current	IP Rating
Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-24 LED Driver 25.2W 24V IP67 1.05A	25.2W	24V	1.05A	IP67	View
Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 2.1A	25.2W	12V	2.1A	IP67	View
