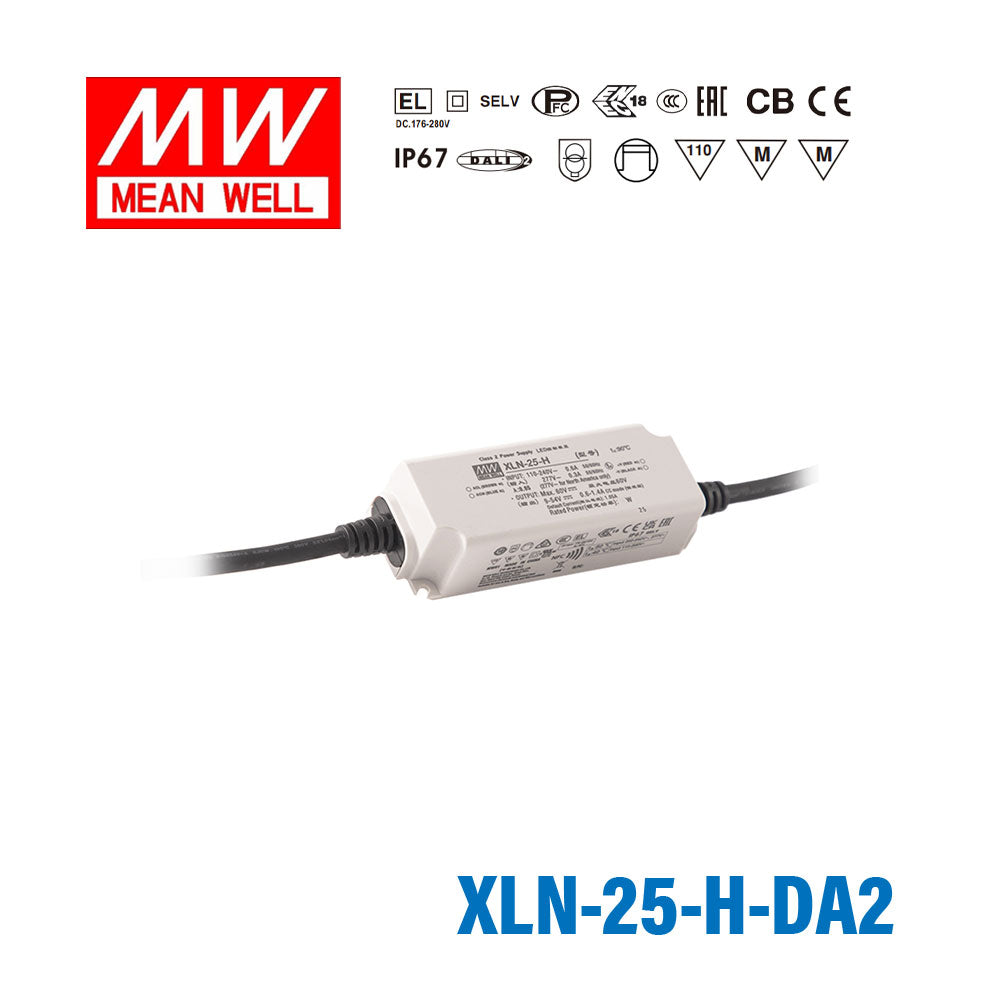

Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting

Q: What output does the Mean Well XLN-25-H-DA2 provide?

The XLN-25-H-DA2 is a 25W constant power LED driver with a rated current of 700mA. Its listed output voltage range is 9~54V, with an output voltage specification shown as 60V.

Q: Does the XLN-25-H-DA2 support DALI dimming?

Yes. This model supports DALI-2 dimming and Push dimming, with DALI-2 DT6 minimum dimming down to 0.1%.

Q: Can the output current be adjusted on the XLN-25-H-DA2?

Yes. The XLN-25-H-DA2 supports NFC current setting for selectable output stages on the H-type constant power version.

Q: Is the XLN-25-H-DA2 suitable for wet or demanding environments?

The XLN-25-H-DA2 is fully encapsulated and rated IP67. It is specified for operating temperatures from -25 °C to 90 °C.

Q: What applications is the XLN-25-H-DA2 designed for?

This driver is intended for LED lighting applications that need a 25W, 700mA constant power driver with dimming support. It also meets emergency lighting function application requirements listed for this model.

Q: How is the XLN-25-H-DA2 different from a basic non-dimming LED driver?

Unlike a basic fixed-output driver, the XLN-25-H-DA2 includes DALI-2, Push dimming, and 3-in-1 dimming with dim-to-off support. It also includes NFC current setting, flicker-free operation, PFC design, IP67 encapsulation, and standby power consumption under 0.5W.

Q: What warranty does the XLN-25-H-DA2 include?

The XLN-25-H-DA2 includes a 5-year warranty. This warranty period is part of the listed product specifications for this Mean Well LED driver.

current adjustment range 0.3~1.05A, class II and PFC, flicker-free, minimum dimming 0.1%

SKU:

XLN-25-H-DA2

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
✓Constant voltage mode output (12V/24V)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) function application
✓Fully Encapsulated with IP67
✓Minimum dimming level 0.1% (DALI-2 DT6)
✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLN Series
Power Rating

25 Watt
Output Voltage

60 Volt
Rated Current

0.7 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

11.4 cm
Width

3.2 cm
Height

4.4 cm

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What output does the Mean Well XLN-25-H-DA2 provide?

The XLN-25-H-DA2 is a 25W constant power LED driver with a rated current of 700mA. Its listed output voltage range is 9~54V, with an output voltage specification shown as 60V.

Does the XLN-25-H-DA2 support DALI dimming?

Yes. This model supports DALI-2 dimming and Push dimming, with DALI-2 DT6 minimum dimming down to 0.1%.

Can the output current be adjusted on the XLN-25-H-DA2?

Yes. The XLN-25-H-DA2 supports NFC current setting for selectable output stages on the H-type constant power version.

Is the XLN-25-H-DA2 suitable for wet or demanding environments?

The XLN-25-H-DA2 is fully encapsulated and rated IP67. It is specified for operating temperatures from -25 °C to 90 °C.

What applications is the XLN-25-H-DA2 designed for?

This driver is intended for LED lighting applications that need a 25W, 700mA constant power driver with dimming support. It also meets emergency lighting function application requirements listed for this model.

How is the XLN-25-H-DA2 different from a basic non-dimming LED driver?

Unlike a basic fixed-output driver, the XLN-25-H-DA2 includes DALI-2, Push dimming, and 3-in-1 dimming with dim-to-off support. It also includes NFC current setting, flicker-free operation, PFC design, IP67 encapsulation, and standby power consumption under 0.5W.

What warranty does the XLN-25-H-DA2 include?

The XLN-25-H-DA2 includes a 5-year warranty. This warranty period is part of the listed product specifications for this Mean Well LED driver.

Model	Power	Voltage	Current	IP Rating
Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, NFC Current Setting	25W	60V	0.7A	IP67	View
Mean Well XLN-25-24 LED Driver 25.2W 24V IP67 1.05A	25.2W	24V	1.05A	IP67	View
Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 2.1A	25.2W	12V	2.1A	IP67	View
