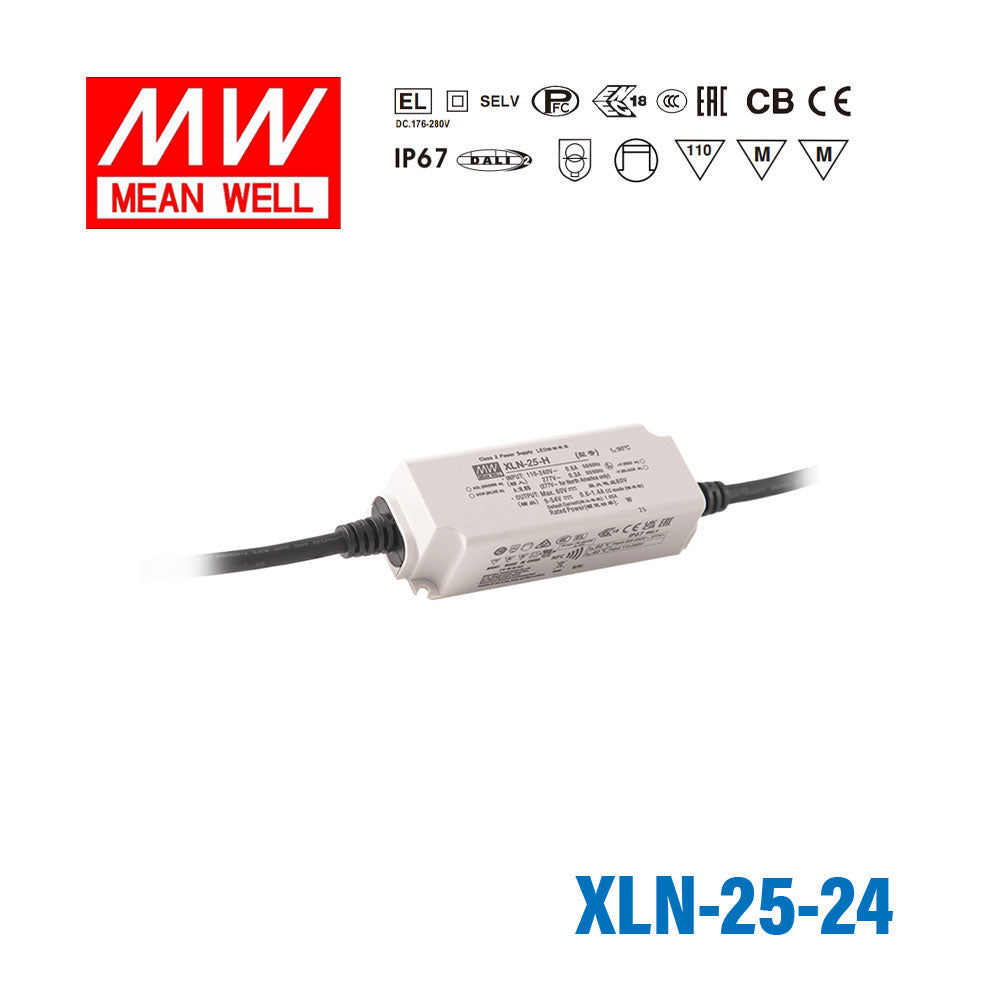

Mean Well XLN-25-24 LED Driver 25.2W 24V IP67 1.05A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length11.4 cm
-
Width3.2 cm
-
Height4.4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XLN-25-24 used for?
The XLN-25-24 is a 24V constant voltage AC/DC LED driver for LED lighting applications that require a 25.2W power supply. It is suited for buyers looking for a compact, IP67-rated LED driver in a plastic Class II housing.
What output voltage and current does the XLN-25-24 provide?
This model provides a 24V DC output with a rated current of 1.05A. Its listed power rating is 25.2W, so connected load requirements should stay within that rating.
Is the XLN-25-24 suitable for outdoor or wet-location environments?
The XLN-25-24 is fully encapsulated and rated IP67. That rating makes it appropriate for demanding environments where protection from dust and water ingress is required, within the product's specified operating limits.
What temperature range is specified for the XLN-25-24?
The listed operating temperature range for this model is -25°C to 90°C. This wide range helps support LED lighting projects exposed to cold starts or elevated ambient conditions.
Is the XLN-25-24 dimmable?
The product data for this SKU lists the dimming control as non-dimmable. Buyers who need dimming should confirm they are selecting a model variant with the required dimming function before purchase.
How does the XLN-25-24 differ from higher-wattage 24V LED drivers?
The XLN-25-24 is rated for 25.2W at 24V and 1.05A. Higher-wattage 24V drivers are intended for larger loads, while this model fits smaller constant-voltage LED applications that need an IP67 enclosure and a 5-year warranty.
What warranty does the Mean Well XLN-25-24 include?
The XLN-25-24 is listed with a 5-year warranty. That warranty period is useful for commercial and B2B buyers comparing LED driver options for long-service lighting projects.
Other XLN-25 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting | 25W | 60V | 0.7A | IP67 | View |
| Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting | 25W | 60V | 0.7A | IP67 | View |
| Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, NFC Current Setting | 25W | 60V | 0.7A | IP67 | View |
| Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 2.1A | 25.2W | 12V | 2.1A | IP67 | View |
