Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

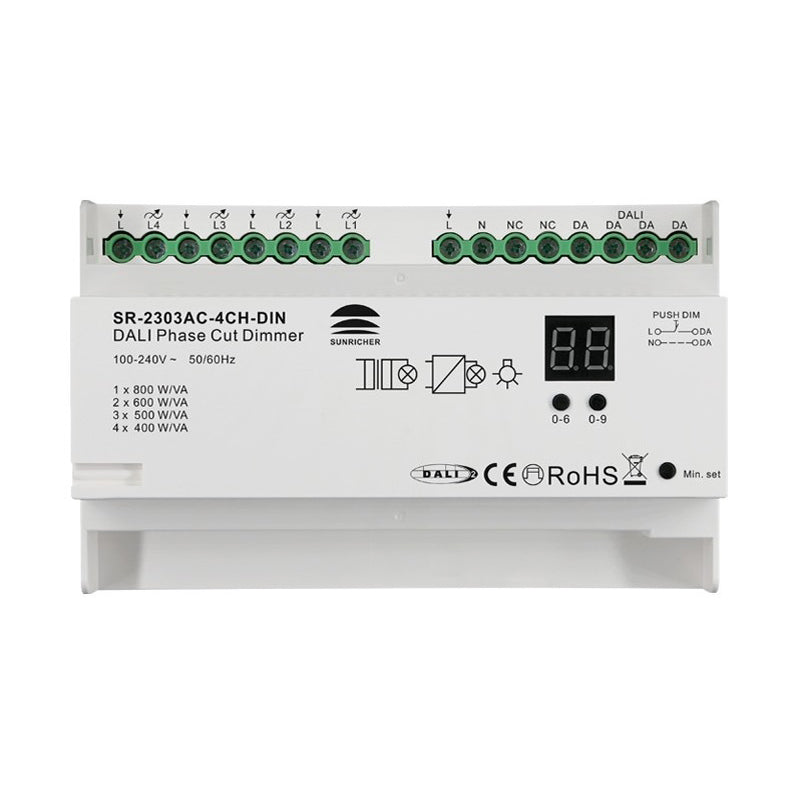

ENVO DALI2 to Triac Dimmer, 4 Channel, 1600W Max, Single Colour/RGBW

4 Channels DIN RAIL DALI + Push Phase Dimmer

SKU SR-2303AC-4CH-DIN

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SR-2303AC-4CH-DIN is the 4x(100-240)VAC output model of this series.

Features

In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
Built-in DALI-2 interface, DALI DT6 device
Match all DALI systems in the market
Safe and reliable full isolation design
DALI phase dimmer, trailing edge dimming
Supports resistive loads and capacitive loads
DALI signal input, DALI address can be set with buttons and displayed on the digital display
DALI address quantity can be set as 1/2/3/4 to control 4 channels load simultaneously or separately
4 channels AC100-240V output
To dim and switch single color dimmable LED lamps, dimmable LED driver, traditional incandescent and halogen lights
Din rail installation, easy and fast
Waterproof grade: IP20

Specifications

SR-2303AC-4CH-DINSpecifications from the official datasheetDownload datasheet PDF

Product Data

Input Voltage: 100-240VAC
Output Voltage: 4x(100-240)VAC
Max. Load Current: 4x1.8A
Max. Load Power: 4x400W @ 230V 4x200W @ 110V
DALI Consumption: < 2mA
Size(LxWxH): 145.4x90x66.4mm

Compatible Load Types

Dimmable LED lamps: 1*200W @ 110V, 1*400W @ 230V; 2*150W @ 110V, 2*300W @ 230V; 3*125W @ 110V, 3*250W @ 230V; 4*100W @ 110V, 4*200W @ 230V
Dimmable LED drivers: 1*200W @ 110V, 1*400W @ 230V; 2*150W @ 110V, 2*300W @ 230V; 3*125W @ 110V, 3*250W @ 230V; 4*100W @ 110V, 4*200W @ 230V
Incandescent lighting, Halogen 240V lamps: 1*400W @ 110V, 1*800W @ 230V; 2*300W @ 110V, 2*600W @ 230V; 3*250W @ 110V, 3*500W @ 230V; 4*200W @ 110V, 4*400W @ 230V
Low voltage halogen lighting with electronic transformers: 1*200W @ 110V, 1*400W @ 230V; 2*150W @ 110V, 2*300W @ 230V; 3*125W @ 110V, 3*250W @ 230V; 4*100W @ 110V, 4*200W @ 230V

Certifications & ratings

Certification marks: CE, FCC, RoHS, DALI

Downloads

Datasheet1

SR-2303AC-4CH-DIN datasheet_70040042_SR_2303AC_4CH_DIN_Spec_sheet.pdf PDF Download

FAQ

What does the Sunricher SR-2303AC-4CH-DIN do?

The SR-2303AC-4CH-DIN is a DALI2 to Triac dimmer designed for LED control applications. It provides 4 channels and supports both single colour and RGBW lighting control in commercial or professional projects.

What is the maximum load rating of this dimmer?

The maximum load power is 4x400W at 230V (1600W total) or 4x200W at 110V (800W total). The maximum load current is 4x1.8A per channel.

Is this model suitable for single colour or RGBW lighting?

This model is specified for single colour dimmable LED lamps, drivers, incandescent, and halogen lights. Its 4-channel design allows for multi-channel lighting control, but the sheet does not list RGBW support.

What control protocol does this dimmer use?

This product uses DALI dimming control. It is intended for projects that require a DALI2 to Triac dimming solution rather than a standalone non-DALI controller.
