Envo

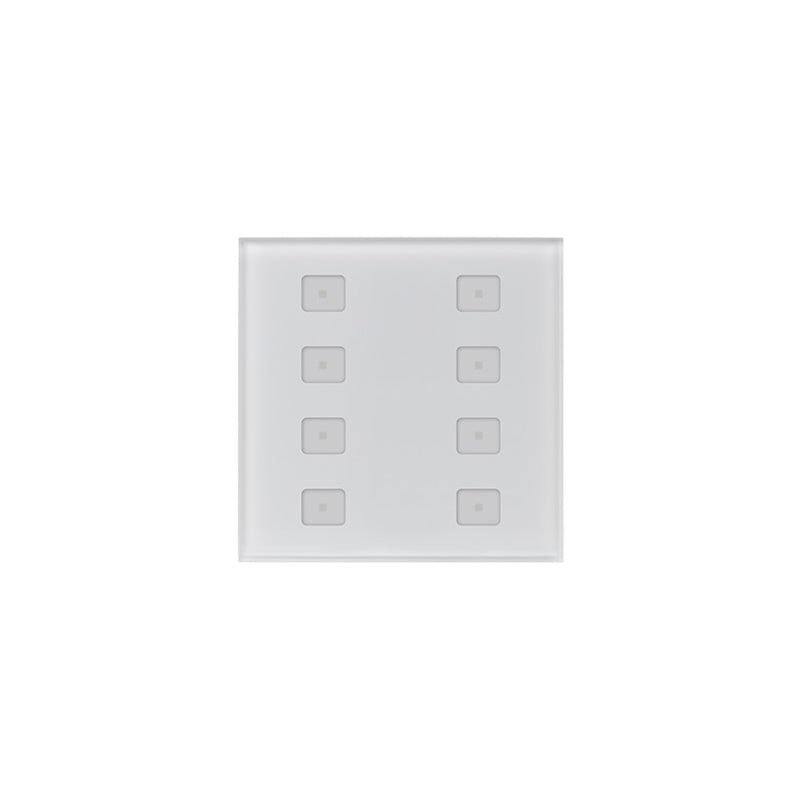

ENVO DALI2 Wall Panel, 8 Touch Buttons, White

8-Key DALI Wall Switch Touch Panel
SKU SR-2422T8-DA2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • DALI-2 control device with 8 touch buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
  • Supports feedback functionality, provides 16 LEDs
  • Suitable for integration and in combination with DALI-2 compliant central control units
  • Multimaster capable, multiple modules can be installed on the DALI- line
  • DALI bus powered, no extra power supply required
  • Easy configuration via DALI-2 compliant central controller USB interface
  • Compatible with universal 55mm frames

Specifications

SR-2422T8-DA2Specifications from the official datasheetDownload datasheet PDF

DALI Interface

Input Type
DALI
Marking
DA
Input Voltage Range
12VDC - 22.5VDC (according IEC62368-101)
Typ. Current Consumption DALI (at 16.5V)
2mA
Max. Current Consumption DALI (Inrush Current at 22.5V)
10mA
Number of Addresses for DALI Control Devices
8 programmable push buttons
Number of Feedback LED
16

General Data

Dimensions (L x W x H)
86x86x21.4mm
Mounting
Wall Mounting or on Conduit Box
Max. casing temperature Tc
75°C
Expected Life Time @Tc
50,000H
Protection Class
II in Intended Use
Protection Degree Housing
IP20
Protection Degree Terminals
IP20
Function
Configurable
Start-up Time
<150ms

Terminals

Connector Type
Push-In
Wire Size Solid Core
0.2 - 1.3 mm2 (AWG26 - AWG16)
Wire Size Fine Core
0.2 - 1.3 mm2 (AWG26 - AWG16)
Wire Size Using Wire End Ferrule
0.25 - 1.0 mm2
Stripping Length
9 - 10 mm / 0.35 - 0.39 inch
Release Connector
Push Button

Environment Conditions

Storing Temperature
-20°C~+50°C
Working Ambient Temperature
-20°C~+50°C
Relative Humidity
8%- 80%

Standards

DALI
IEC62386-101:2014 IEC62386-103:2014 IEC62386-301 IEC62386-332
EMC
EN 61547 EN 50015 / IEC CISPR15
Safety
EN 61347-2-11 EN 61347-1

Certifications & ratings

Certification marks
DALI-2, CE

Downloads

FAQ

What is the Sunricher SR-2422T8-DA2 used for?

The SR-2422T8-DA2 is a DALI2 wall panel intended for LED control system projects that use a wall-mounted touch interface. This model is part of the LED controller category and is designed for buyers who need a white 8-button panel for commercial or professional lighting control applications.

Is the SR-2422T8-DA2 a DALI2 wall panel or a standard wall switch?

This model is a DALI2 wall panel, not a generic wall switch. Its product family and naming indicate it is specified for DALI2 LED control system use, which makes it a more application-specific choice for lighting control projects.

What are the main specifications of the SR-2422T8-DA2?

This model has 8 touch buttons, a white finish, and a max DALI current consumption of 10mA. It has an expected life time of 50,000 hours at a max casing temperature of 75°C, which helps when reviewing accessories and wall-control components for a project schedule.

What operating environment is the SR-2422T8-DA2 rated for?

The stated working ambient temperature range for this model is -20°C to +50°C. That makes it appropriate for indoor projects where the ambient conditions stay within that range and where a touch-button wall control is required.

What should a buyer confirm before specifying the SR-2422T8-DA2?

Buyers should confirm that the project calls for a DALI2 wall panel, prefers an 8-button touch interface, and suits a white-finish device. It is also worth checking that the site conditions stay within the listed -20°C to +50°C range and that the 50,000-hour expected life time aligns with project requirements.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8444682043691, "variants" :[{ "context":"default", "variant_id": 45721368232235, "sku":"SR-2422T8-DA2", "inventory_qty" : 1, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

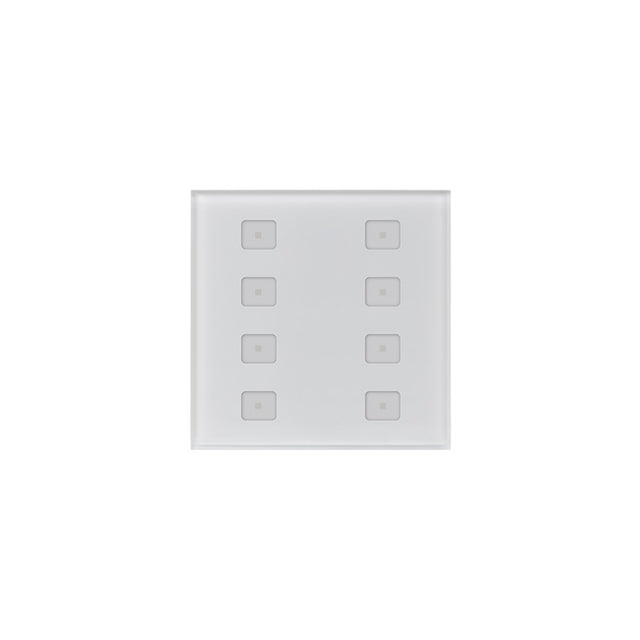

ENVO DALI2 Wall Panel, 8 Touch Buttons, White
