Envo

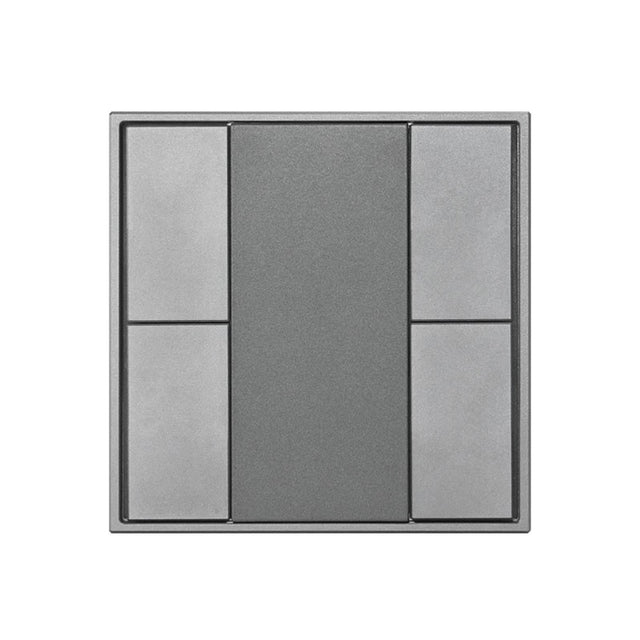

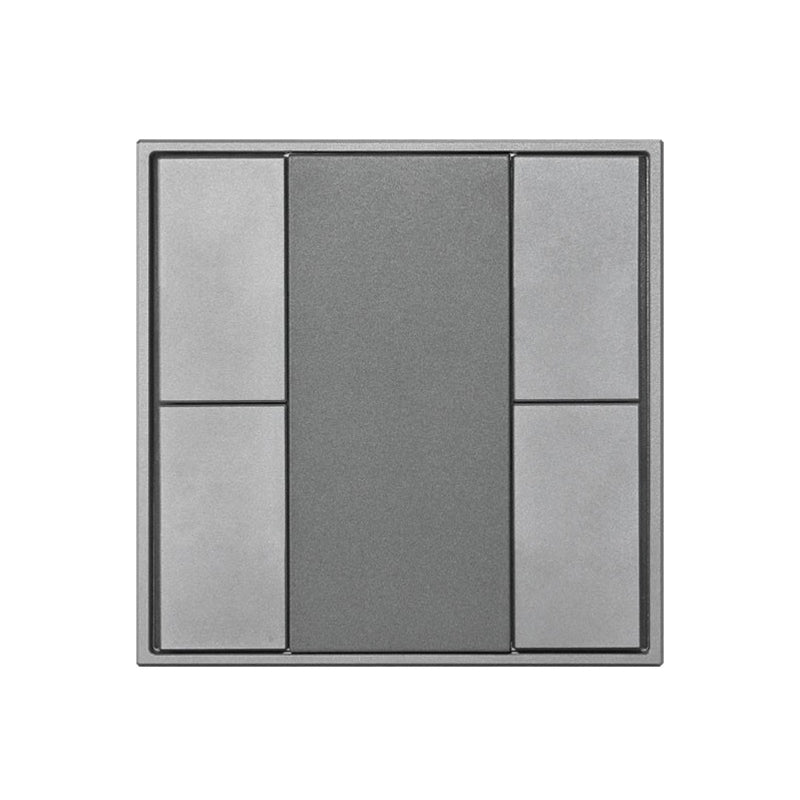

ENVO DALI2 Wall Panel, 4 Buttons, Slim Silver

DALI-2 Certified Sleek Design 4-Button Keypad
SKU SR-2422NK4-DA2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
  • Supports feedback functionality, provides 8 LEDs
  • Suitable for integration and in combination with DALI-2 compliant central control units
  • Multimaster capable, multiple modules can be installed on the DALI- line
  • DALI bus powered, no extra power supply required
  • Easy configuration via DALI-2 compliant central controller USB interface
  • Compatible with universal 55mm frames

Specifications

SR-2422NK4-DA2Specifications from the official datasheetDownload datasheet PDF

DALI Interface

Input Type
DALI
Marking
DA
Input Voltage Range
12VDC - 22.5VDC (according IEC62368-101)
Typ. Current Consumption DALI (at 16.5V)
2mA
Max. Current Consumption DALI (Inrush Current at 22.5V)
10mA
Number of Addresses for DALI Control Devices
4
Number of Feedback LED
8

General Data

Dimensions (L x W x H)
80mm x 80mm x 26.6mm
Mounting
Wall Mounting or on Conduit Box
Max. casing temperature Tc
75°C
Expected Life Time @Tc
50,000H
Protection Class
II in Intended Use
Protection Degree Housing
IP20
Protection Degree Terminals
IP20
Function
Configurable
Start-up Time
<150ms

Terminals

Connector Type
Push-In
Wire Size Solid Core
0.2 - 1.3 mm2 (AWG26 - AWG16)
Wire Size Fine Core
0.2 - 1.3 mm2 (AWG26 - AWG16)
Wire Size Using Wire End Ferrule
0.25 - 1.0 mm2
Stripping Length
9 - 10 mm / 0.35 - 0.39 inch
Release Connector
Push Button

Environment Conditions

Storing Temperature
-20°C~+50°C
Working Ambient Temperature
-20°C~+50°C
Relative Humidity
8%- 80%

Standards

DALI
IEC62386-101:2014 IEC62386-103:2014 IEC62386-301 IEC62386-332
EMC
EN 61547 EN 50015 / IEC CISPR15
Safety
EN 61347-2-11 EN 61347-1

Certifications & ratings

Certification marks
DALI-2, CE

Downloads

FAQ

What is the Sunricher SR-2422NK4-DA2 used for?

The SR-2422NK4-DA2 is a DALI2 wall panel intended for commercial and professional lighting control systems. Its 4-button format makes it a fit for spaces that need simple wall-mounted scene or lighting control, such as offices, meeting rooms, hospitality areas, or similar B2B environments.

Is this wall panel compatible with DALI-2 lighting control systems?

Yes. This model is identified as a DALI2 wall panel, so it is intended for use in DALI-2 based lighting control applications. Buyers should still confirm overall project compatibility against the rest of the control system and the exact control logic required for the space.

What makes this model different from other wall panel options?

This specific model combines a slim form factor, a silver finish, and a 4-button layout. That makes it a good option when the project needs a clean wall appearance and a straightforward button interface rather than a larger or differently finished control point.

Can the SR-2422NK4-DA2 be used in demanding indoor environments?

This model is rated for operation from -20°C to +50°C, which supports use across a wide range of normal indoor commercial conditions. It should be selected for environments that stay within that temperature range during operation.

What are the key specifications of the SR-2422NK4-DA2?

This model is a slim silver DALI2 wall panel with 4 buttons. Its typical current consumption is 2mA at 16.5V, its dimensions are 80mm x 80mm x 26.6mm, and it has an expected life time of 50,000 hours at Tc 75°C.
