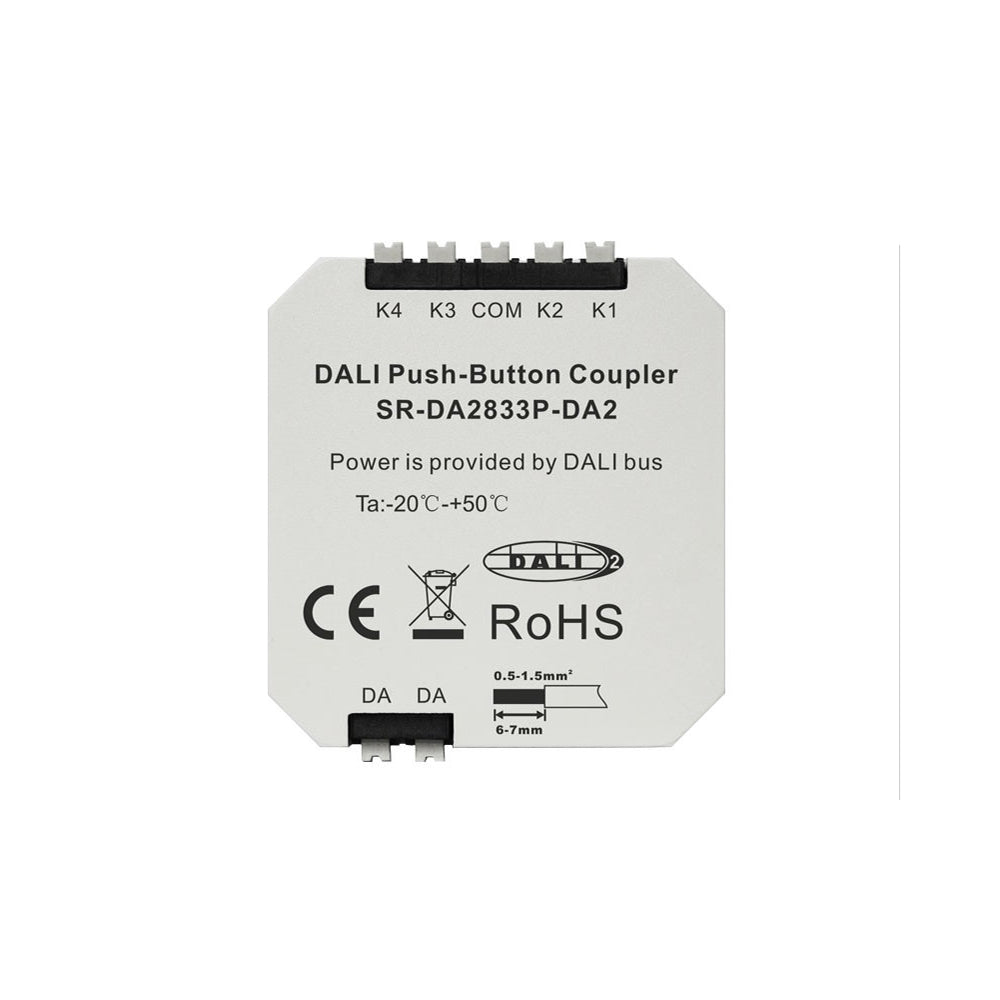

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO Push Button to DALI2 Signal Converter, upto 4 Buttons

DALI-2 Certified DALI Push Button Coupler

SKU SR-DA2833P-DA2

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

DALI-2 control device that integrates existing push switches into DALI system
Four DALI-2 pushbutton instances are available for an easy integration
In compliance with IEC62386-101, IEC62386-103, IEC62386-301
Suitable for integration and in combination with DALI-2 compliant central control units
Multimaster capable, multiple modules can be installed on the DALI- line
DALI bus powered, no extra power supply required
Easy configuration via DALI-2 compliant central controller USB interface
Easy installation: the device can be installed in a flush-mounted installation box

Specifications

SR-DA2833P-DA2Specifications from the official datasheetDownload datasheet PDF

DALI Interface

Output Type: DALI-2, Multimaster
Marking: DA
Voltage Range: 9.5VDC - 22.5VDC (according IEC62368-101)
Typ. Current Consumption DALI (at 16.5V): 2.7mA
Max. Current Consumption DALI (Inrush Current at 22.5V): 3mA
DALI-2 addresses: 1

Input

Input for: Potential free button/switch
Number of inputs: 4
Marking input terminals: K1, K2, K3, K4, COM
Max wire length: 50cm

General Data

Dimensions (L x W x H): 49.8mm x 43mm x 15.1mm
Mounting: back box installation, installation in protection class II devices
Max. casing temperature Tc: 75°C
Expected Life Time @Tc: 50,000H
Protection Class: II in Intended Use
Protection Degree Housing: IP20
Protection Degree Terminals: IP20

Terminals

Connection Type: Spring terminal connectors
Wire Size Solid Core: 0.2 - 1.5mm2 (AWG28 - AWG14)
Wire Size Fine Core: 0.2 - 1.5mm2 (AWG28 - AWG14)
Wire Size Using Wire End Ferrule: 0.25 - 1.0 mm2
Stripping Length: 9 - 10 mm / 0.35 - 0.39 inch
Tightening/ release of wire: Push mechanism

Environment Conditions

Storing Temperature: -20°C~+50°C
Working Ambient Temperature: -20°C~+50°C
Relative Humidity: 8%- 80%

Standards

DALI: IEC62386-101:2014 IEC62386-103:2014 IEC62386-301
EMC: EN 61547 EN 50015 / IEC CISPR15
Safety: EN 61347-2-11 EN 61347-1

Certifications & ratings

Certification marks: DALI-2, CE

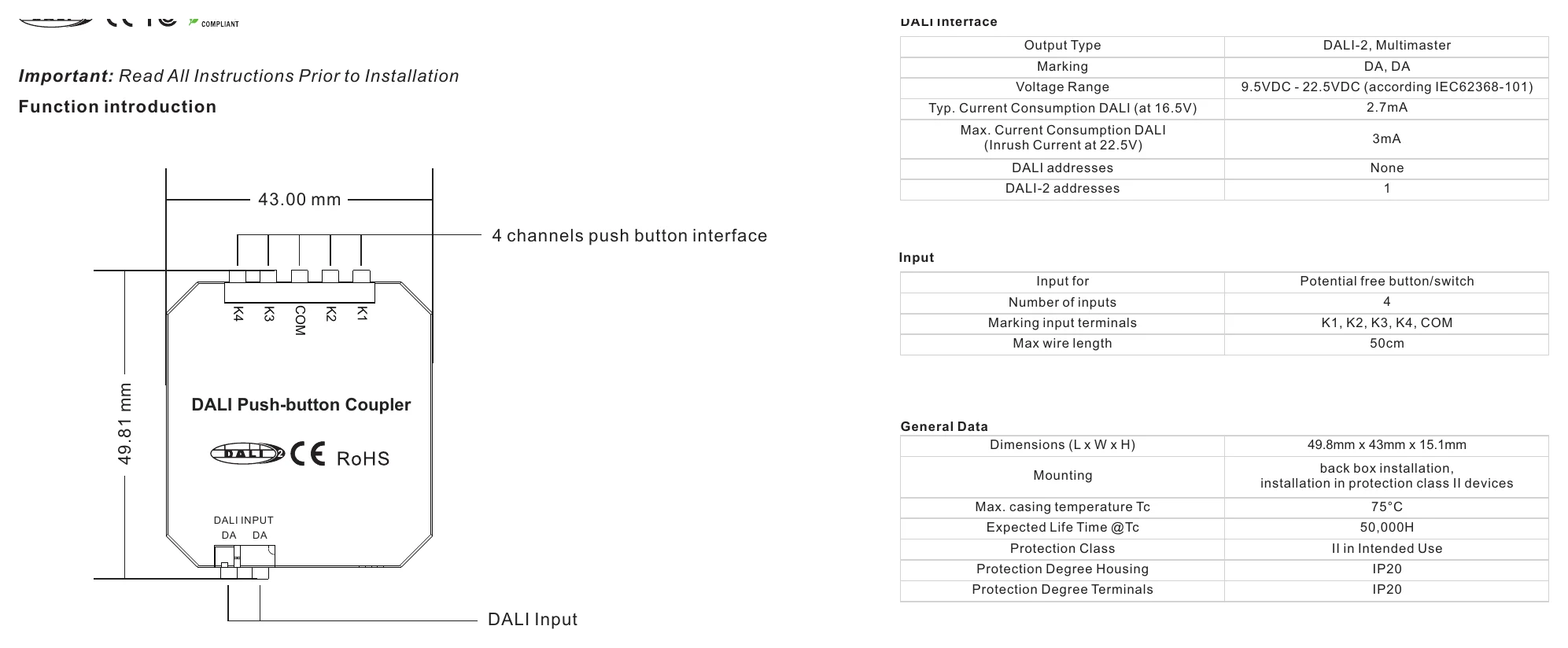

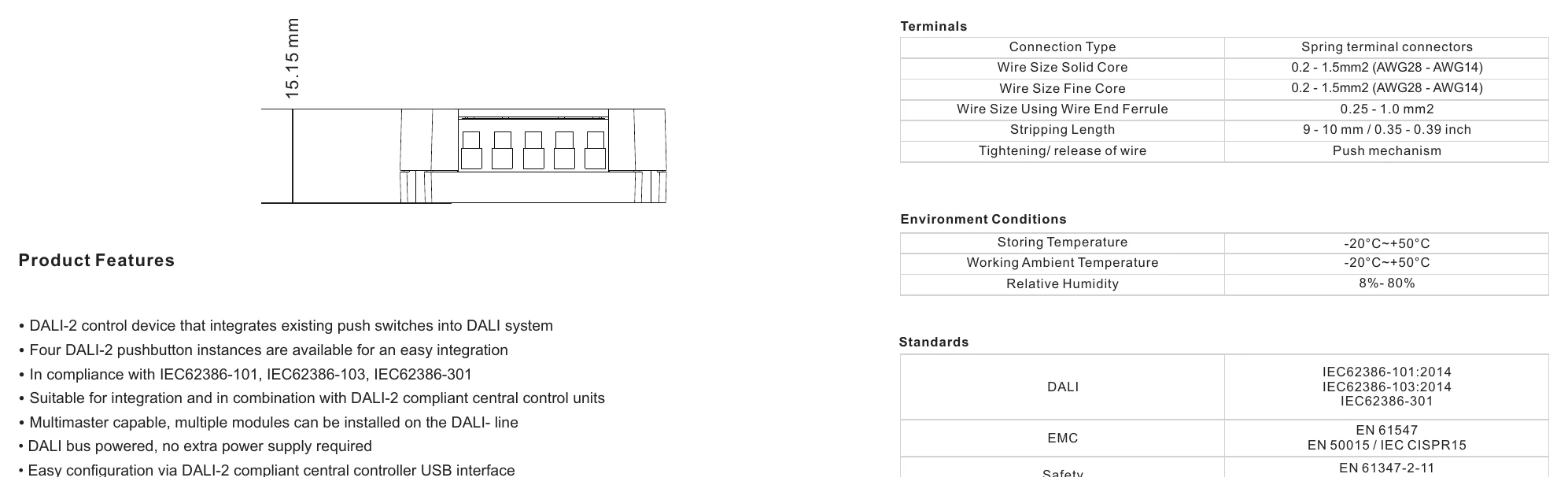

Technical drawings

Downloads

Datasheet1

SR-DA2833P-DA2 datasheetSR_DA2833P_DA2_Spec_sheet.pdf PDF Download

FAQ

What does the Sunricher SR-DA2833P-DA2 do?

The SR-DA2833P-DA2 is a push button to DALI-2 signal converter designed to translate push button input into DALI-2 control signals. It is intended for LED control system applications where a standalone controller is needed. This model supports up to 4 buttons.

How many push buttons can this DALI-2 signal converter support?

This model supports up to 4 buttons. That makes it suitable for projects that need multiple push button control points through one converter. Buyers comparing models should confirm whether 4-button support matches their control layout.

Is the SR-DA2833P-DA2 compatible with DALI-based lighting control systems?

Yes. The product is specified with DALI dimming control and is described as a DALI-2 signal converter. It is intended for use in DALI-2 LED control system environments where push button input needs to be converted into DALI-2 signaling.

What operating environment is this converter rated for?

The specified working ambient temperature range is -20°C to +50°C. This gives it a defined working range for indoor control applications or protected environments within those limits. Buyers should ensure their site conditions stay inside that temperature window.

What are the key specifications of the SR-DA2833P-DA2 for procurement review?

This model features spring terminal connectors for wire sizes 0.2 - 1.5mm², dimensions of 49.8mm x 43mm x 15.1mm, and an expected life time of 50,000 hours at a max casing temperature of 75°C. It is a standalone LED control signal converter with DALI-2 dimming control. These details make it easier to review for panel space, low-current control design, and longevity requirements.
