Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

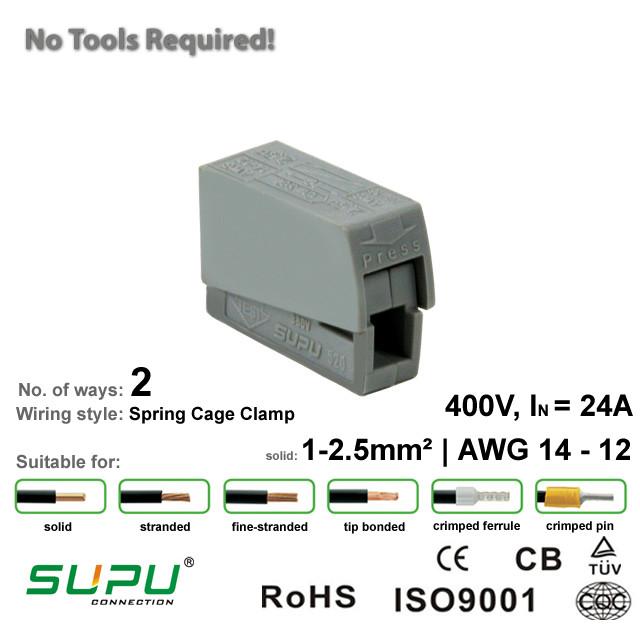

Supu 520101 Lighting Connector - 2 Way

SKU:

520101

Notify me when it's back in stock

Description

Color Gray Connection technology Spring cage clamp connection technology Product conform standard IEC60998、UL486C、CSA-C22.2 No. 188etc Strip length 9-11mm Insulation material PA66 Flammability rating conform to UL94 V0 Rated voltage V 400 Rated current A 24 Wire range mm² 1.0-2.5 UL Rated voltage V 600 UL Rated current A 20 UL Wire range AWG 20-16

Specifications

Brand

SUPU
Series

LED Warehouse Connector
Rated Current

24 Ampere
Warranty

1 Year
Length

2.05 cm
Width

0.85 cm
Height

1.55 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Supu 520101 Lighting Connector - 2 Way used for?

The Supu 520101 is a 2-way lighting connector intended for electrical and lighting accessory applications where a compact connector is needed. It is positioned as an accessory connector for lighting and related power supply or connector categories in B2B use cases.

What are the key electrical ratings of the Supu 520101?

This model is rated for 400 V and 24 A. It also carries UL ratings of 600 V and 20 A, which may be relevant for buyers comparing compliance requirements across markets.

What wire size range is supported by the Supu 520101?

The specified wire range is 1.0-2.5 mm². For UL reference, the listed wire range is 20-16 AWG, giving buyers both metric and AWG sizing information for specification review.

What materials and safety characteristics does this connector have?

The insulation material is PA66, and the flammability rating is UL94 V0. Those specifications make it suitable for buyers looking for a connector with clearly stated material and fire-resistance properties.

Which standards does the Supu 520101 conform to?

The product is listed as conforming to IEC60998, UL486C, and CSA-C22.2 No. 188, among others. This makes it easier to evaluate for projects that require recognized international or North American product standards.

What physical and service details should buyers know about this model?

The Supu 520101 is gray in color, weighs 0.0180 kg, and has a stated warranty period of 1 year. These details are useful when comparing small connector accessories for procurement, stocking, or replacement planning.

Model	Material	Finish
Supu 522408 Push-in Connector - 8 Way	—	—	View
Supu 522406 Push-in Connector - 6 Way	—	—	View
Supu 522404 Push-in Connector - 4 Way	—	—	View
Supu 522402 Push-in Connector - 2 Way	—	—	View
Supu 520201 Lighting Connector - 2 Way	—	—	View
