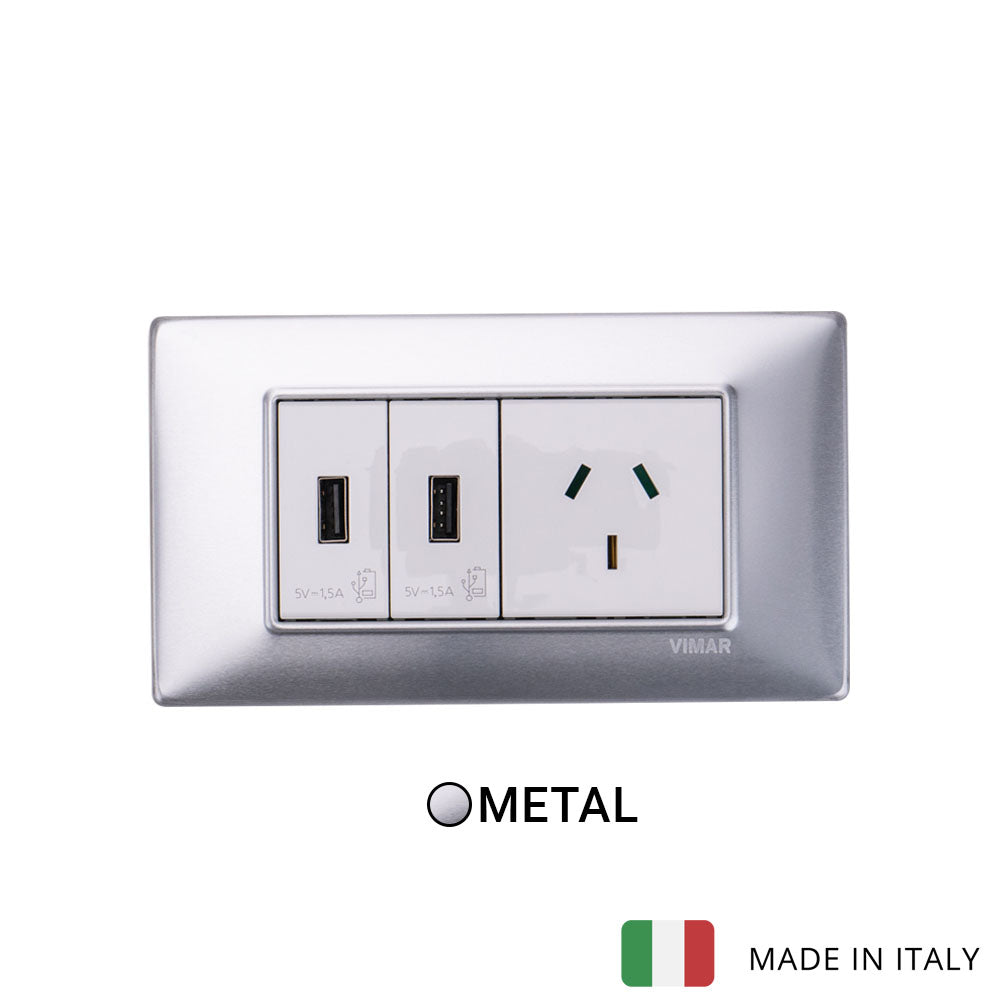

Vimar Plana Metal 2 USB and 1 Socket - Brushed Aluminum - 10A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 4M brushed aluminium (VM-14654.81); 1 × frame 4M +screws (VM-14614); 1 × 2P+E 10A Australian SICURY outlet (VM-14261); 2 × USB supply unit 5V 1,5A 1M (VM-14292). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14654.81 · plate 4M brushed aluminium
- Frame × 1
- VM-14614 · frame 4M +screws
- Socket outlet × 1
- VM-14261 · 2P+E 10A Australian SICURY outlet white
- USB power supply × 2
- VM-14292 · USB supply unit 5V 1,5A 1M white
Cover plate (VM-14654.81)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Material quality
- Aluminium
- Halogen free
- Yes
- Surface protection
- Anodised
- Surface finishing
- Matt
- Colour
- Aluminium
- RAL-number (similar)
- 9006
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 142.5 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 142.5 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14614)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Socket outlet (VM-14261)
- Product type
- Socket outlet
- Model
- Australian standard AS/NZS 3112 (type I)
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- White
- RAL-number (similar)
- 9003
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Nominal current
- 10 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ
- Suitable for degree of protection (IP)
- IP20
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.7 mm
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive
USB power supply (VM-14292)
- Product type
- USB power supply
- Model
- Bus
- Operating voltage
- 120 - 230 V
- Frequency
- 50 - 60 HZ
- Max. output current
- 1.5 A
- Mounting method
- Flush-mounted
- Colour
- White
- Min. depth of built-in installation box
- 36 mm
- Certifications
- CE marking (EU), IMQ (Italy), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Metal 2 USB and 1 Socket used for?
This parent model is a Vimar Plana metal unit with two USB points and one 10A socket. It is suited to B2B switch and socket specifications where a combined socket and USB option is needed in the Plana range.
What finish does this Vimar Plana model have?
The listed finish is brushed aluminum. The child variants shown for this parent model also list the same brushed_aluminum finish.
What are the dimensions of this parent product model?
The parent model is listed as 139.5 mm wide, 80 mm long, and 9 mm high. Its listed weight is 1 kg.
Do the child variants have different specifications?
The provided child variant data shows the same product name, brushed aluminum finish, and 3-year warranty for both listed SKUs. No differing technical specifications are provided in the child data.
Is this product part of the Vimar Plana range?
Yes. The product is categorized under Vimar Plana switch and socket categories, including light_vimar_plana and Plana single socket with USB categories.
What warranty period is listed for this Vimar Plana model?
The parent model has a listed warranty period of 3 years. The same 3-year warranty is also shown for the listed child variants.
