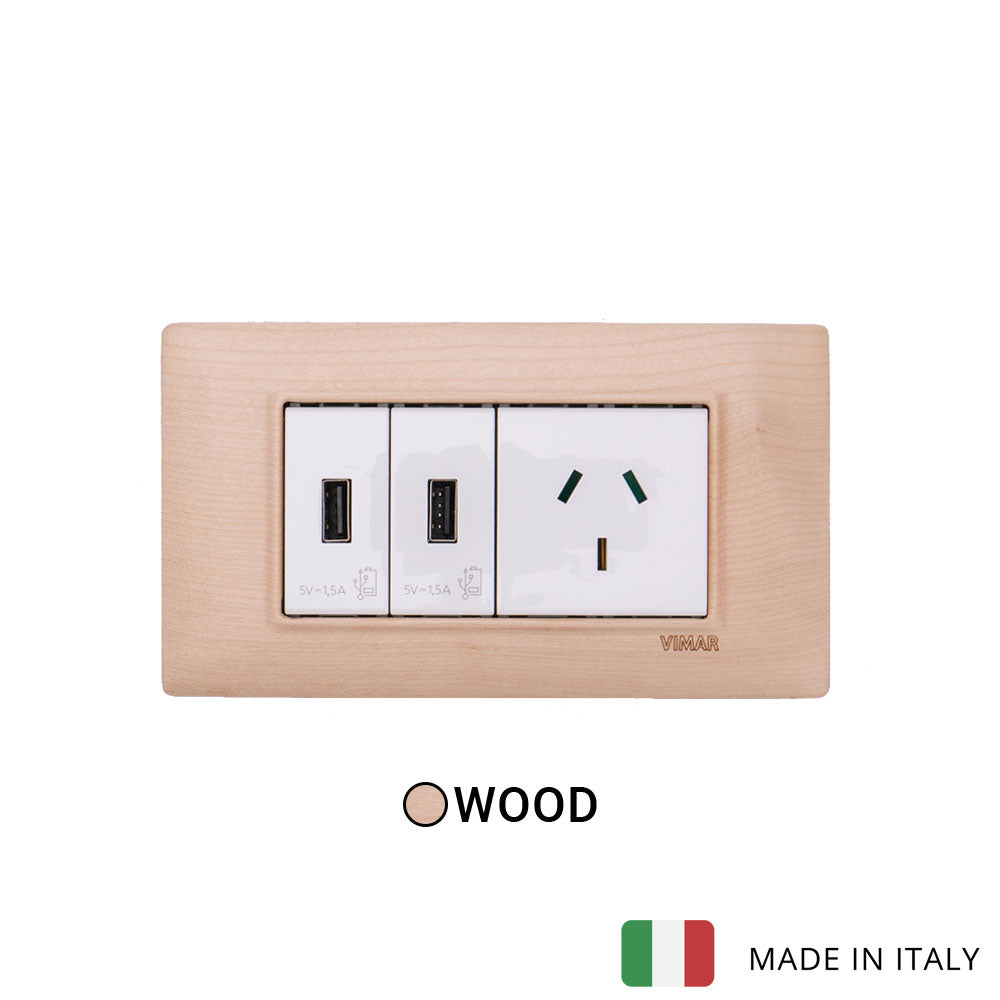

Vimar Plana Wood 2 USB and 1 Socket - Wood Maple - 10A

SKU Z-VM12USB1SOCW-WM

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

This kit is assembled from Vimar parts: 1 × Plate 4M Wood Maple (VM-14654.61); 1 × frame 4M +screws (VM-14614); 1 × 2P+E 10A Australian SICURY outlet (VM-14261); 2 × USB supply unit 5V 1,5A 1M (VM-14292). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12USB1SOC-WMSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.61 · Plate 4M Wood Maple
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 1: VM-14261 · 2P+E 10A Australian SICURY outlet white
USB power supply × 2: VM-14292 · USB supply unit 5V 1,5A 1M white

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

USB power supply (VM-14292)

Product type: USB power supply
Model: Bus
Operating voltage: 120 - 230 V
Frequency: 50 - 60 HZ
Max. output current: 1.5 A
Mounting method: Flush-mounted
Colour: White
Min. depth of built-in installation box: 36 mm
Certifications: CE marking (EU), IMQ (Italy), WEEE Directive

Technical drawings

Z-VM12USB1SOC-WM Frame VM-14614: drawing — Frame VM-14614: drawing

Z-VM12USB1SOC-WM Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

Z-VM12USB1SOC-WM USB power supply VM-14292: drawing — USB power supply VM-14292: drawing

Downloads

Datasheet3

Z-VM12USB1SOC-WM datasheetVimar_14614.pdf PDF Download

Z-VM12USB1SOC-WM datasheetVimar_14292.pdf PDF Download

Z-VM12USB1SOC-WM datasheetVimar_14261.pdf PDF Download

FAQ

What is the Vimar Plana Wood 2 USB and 1 Socket used for?

This parent product is a Vimar Plana switch and socket package with two USB outlets and one 10A socket. It is suited to Plana-style electrical layouts where a wood maple finish is required for a coordinated architectural look.

What finish does this Vimar Plana model have?

This model is supplied in a wood maple finish, shown in the product data as wood_maple. The finish is the same across the listed child variants for this parent product.

Are the child variants different in colour or warranty?

The listed child variants both use the same product name, wood maple finish, and 3 year warranty period. No different colour, power, brightness, beam angle, CCT, CRI, driver, or dimming attributes are provided in the variant data.

What are the dimensions of this Vimar Plana parent product?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The product weight is listed as 1 kg.

What warranty applies to this Vimar Plana USB and socket model?

The warranty period listed for this parent product is 3 years. The same 3 year warranty is also shown for both listed child variants.

Is this product part of the Vimar Plana range?

Yes, the product name and categories identify it as part of the Vimar Plana range. It is grouped with Plana single socket and USB switch/socket categories for product selection.
