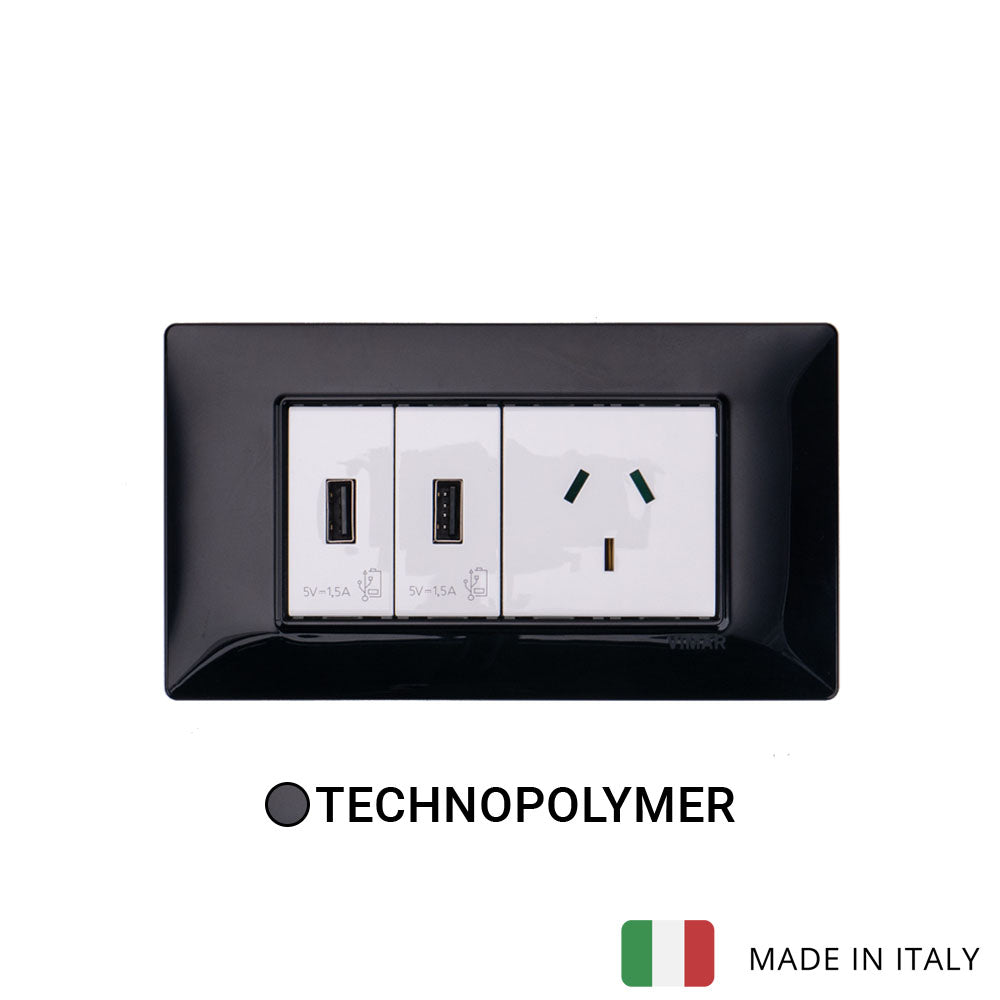

Vimar Plana Plastic 2 USB and 1 Socket - Black - 10A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 4M techn. (VM-14654.05); 1 × frame 4M +screws (VM-14614); 1 × 2P+E 10A Australian SICURY outlet (VM-14261); 2 × USB supply unit 5V 1,5A 1M (VM-14292). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14654.05 · plate 4M techn. black
- Frame × 1
- VM-14614 · frame 4M +screws
- Socket outlet × 1
- VM-14261 · 2P+E 10A Australian SICURY outlet white
- USB power supply × 2
- VM-14292 · USB supply unit 5V 1,5A 1M white
Cover plate (VM-14654.05)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- Black
- RAL-number (similar)
- 9005
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 142.5 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 142.5 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14614)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Socket outlet (VM-14261)
- Product type
- Socket outlet
- Model
- Australian standard AS/NZS 3112 (type I)
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- White
- RAL-number (similar)
- 9003
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Nominal current
- 10 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ
- Suitable for degree of protection (IP)
- IP20
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.7 mm
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive
USB power supply (VM-14292)
- Product type
- USB power supply
- Model
- Bus
- Operating voltage
- 120 - 230 V
- Frequency
- 50 - 60 HZ
- Max. output current
- 1.5 A
- Mounting method
- Flush-mounted
- Colour
- White
- Min. depth of built-in installation box
- 36 mm
- Certifications
- CE marking (EU), IMQ (Italy), WEEE Directive
Technical drawings
Downloads
FAQ
What is included in the Vimar Plana Plastic 2 USB and 1 Socket model?
This parent product is a Vimar Plana plastic unit with 2 USB ports and 1 socket in a black finish. It is listed as a 10A model for the wf_b2b switch and socket category.
Is this product part of the Vimar Plana range?
Yes. The product is categorized under Vimar Plana switch and socket ranges, including Plana single socket and USB categories.
What colour is this Vimar Plana USB and socket unit?
The parent product and listed child variants are all black. No other finish colours are shown in the provided product family data.
Are there differences between the child variants in this parent product family?
The provided child variants use different SKUs, but the visible product data is the same for the key listed attributes. Both child variants are black and show the same 3 year warranty period.
What are the listed dimensions and weight?
The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The listed weight is 1 kg.
What warranty period is listed for this product?
The parent product has a listed warranty period of 3 years. The provided child variants also show a 3 year warranty period.
