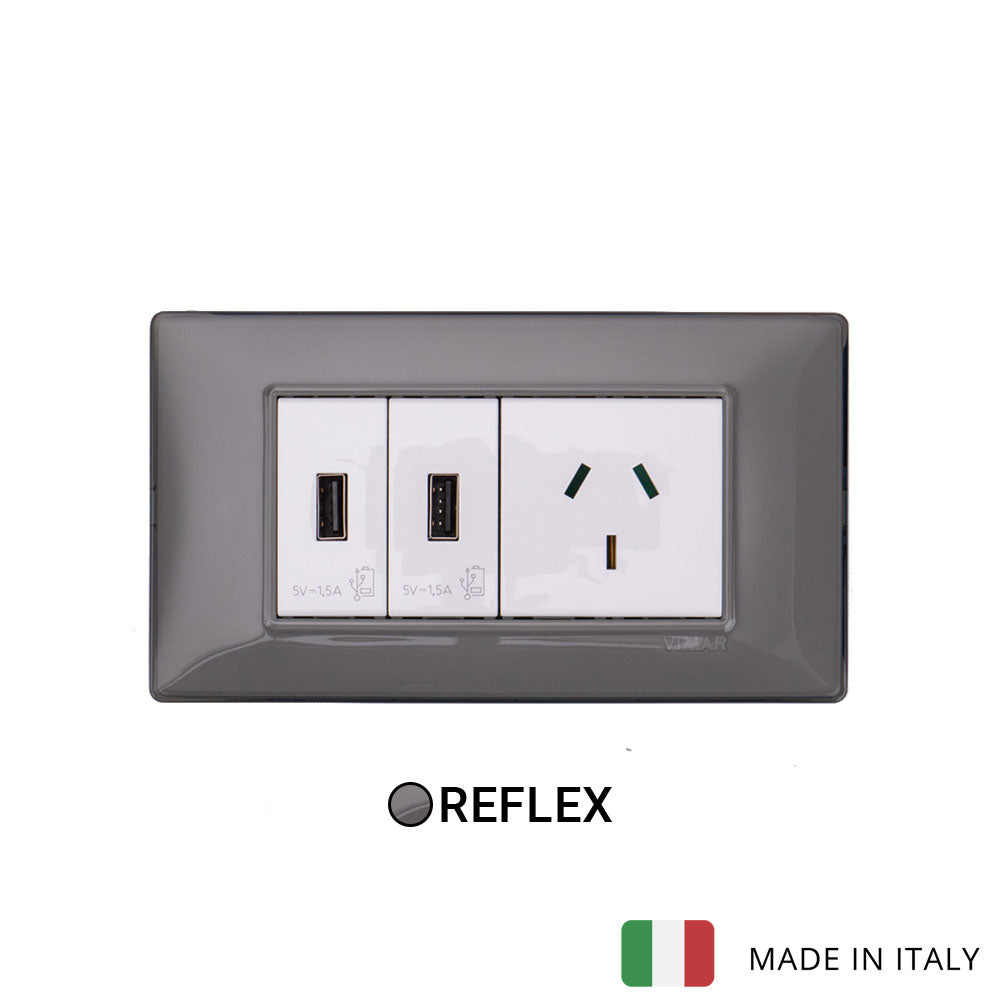

Vimar Plana Plastic 2 USB and 1 Socket - Reflex Ash - 10A
Notify me when it's back in stock
Overview
This kit is assembled from Vimar parts: 1 × plate 4M Reflex ash (VM-14654.40); 1 × frame 4M +screws (VM-14614); 1 × 2P+E 10A Australian SICURY outlet (VM-14261); 2 × USB supply unit 5V 1,5A 1M (VM-14292). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14654.40 · plate 4M Reflex ash
- Frame × 1
- VM-14614 · frame 4M +screws
- Socket outlet × 1
- VM-14261 · 2P+E 10A Australian SICURY outlet white
- USB power supply × 2
- VM-14292 · USB supply unit 5V 1,5A 1M white
Cover plate (VM-14654.40)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Acrylic glass
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- Grey
- RAL-number (similar)
- 7023
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 142.5 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 142.5 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14614)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Socket outlet (VM-14261)
- Product type
- Socket outlet
- Model
- Australian standard AS/NZS 3112 (type I)
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- White
- RAL-number (similar)
- 9003
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Nominal current
- 10 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ
- Suitable for degree of protection (IP)
- IP20
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.7 mm
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive
USB power supply (VM-14292)
- Product type
- USB power supply
- Model
- Bus
- Operating voltage
- 120 - 230 V
- Frequency
- 50 - 60 HZ
- Max. output current
- 1.5 A
- Mounting method
- Flush-mounted
- Colour
- White
- Min. depth of built-in installation box
- 36 mm
- Certifications
- CE marking (EU), IMQ (Italy), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Plastic 2 USB and 1 Socket used for?
This parent product is a Vimar Plana wall accessory that combines two USB points and one 10A socket in a Reflex Ash finish. It is suited to commercial or residential specification where power access and USB charging need to be combined in one matching Plana-style unit.
What finish is this Vimar Plana USB and socket product supplied in?
This model is supplied in Reflex Ash. The listed child variants for this parent product also share the same Reflex Ash finish, so the parent family does not indicate a colour choice within the provided data.
What are the dimensions of this parent product?
The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The product weight is listed as 1 kg.
Are there different variants in this parent product family?
Yes, the child variant data lists two SKUs: Z-VM12USB1SOCS-RASH and Z-VM12USB1SOCW-RASH. Both variants have the same listed product name, Reflex Ash finish, and 3 year warranty in the provided data, with no additional technical differences shown.
What warranty period applies to this Vimar Plana product?
The warranty period listed for this parent product is 3 years. The same 3 year warranty is also shown for both child variants in the provided data.
Is this product part of the Vimar Plana range?
Yes, the product name and categories identify it as part of the Vimar Plana range. It is grouped under Plana-related switch and socket categories, including single socket and USB Plana categories.
