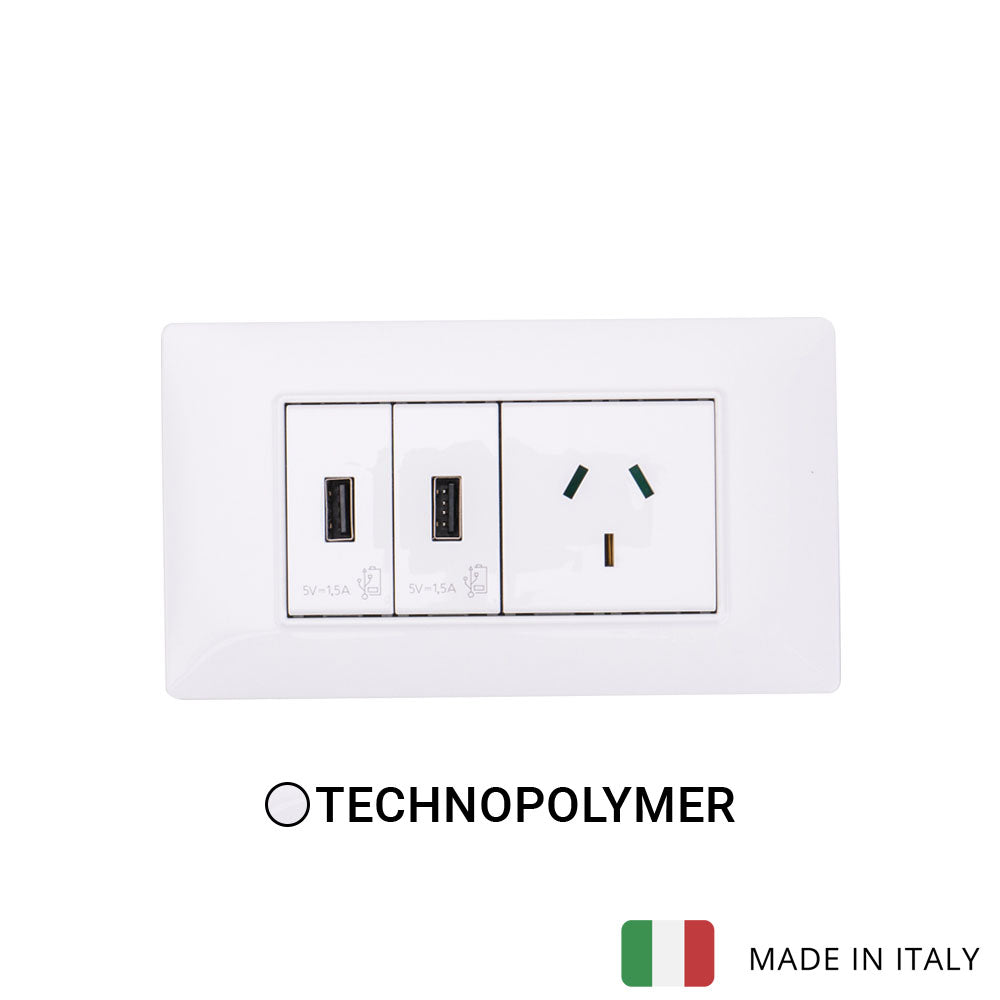

Vimar Plana Plastic 2 USB and 1 Socket - White - 10A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 4M techn. (VM-14654.01); 1 × frame 4M +screws (VM-14614); 1 × 2P+E 10A Australian SICURY outlet (VM-14261); 2 × USB supply unit 5V 1,5A 1M (VM-14292). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14654.01 · plate 4M techn. white
- Frame × 1
- VM-14614 · frame 4M +screws
- Socket outlet × 1
- VM-14261 · 2P+E 10A Australian SICURY outlet white
- USB power supply × 2
- VM-14292 · USB supply unit 5V 1,5A 1M white
Cover plate (VM-14654.01)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9016
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 142.5 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 142.5 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14614)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Socket outlet (VM-14261)
- Product type
- Socket outlet
- Model
- Australian standard AS/NZS 3112 (type I)
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- White
- RAL-number (similar)
- 9003
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Nominal current
- 10 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ
- Suitable for degree of protection (IP)
- IP20
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.7 mm
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive
USB power supply (VM-14292)
- Product type
- USB power supply
- Model
- Bus
- Operating voltage
- 120 - 230 V
- Frequency
- 50 - 60 HZ
- Max. output current
- 1.5 A
- Mounting method
- Flush-mounted
- Colour
- White
- Min. depth of built-in installation box
- 36 mm
- Certifications
- CE marking (EU), IMQ (Italy), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Plastic 2 USB and 1 Socket product?
This parent model is a white Vimar Plana plastic switch and socket product with 2 USB positions and 1 socket. It is rated at 10A and is listed under Plana switch and socket categories for B2B product selection.
What colour and finish does this Vimar Plana model have?
The finish colour for this parent product is white. The supplied product model describes it as a plastic Vimar Plana unit.
What are the dimensions of this parent product?
The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The listed product weight is 1 kg.
What is the electrical rating shown for this product?
The parent product name specifies a 10A rating. No additional power, voltage, or USB output specifications are provided in the supplied data.
Do the child variants differ in colour or warranty?
The supplied child variants both show the same white finish and the same 3-year warranty period. No difference in colour, power rating, USB specification, or lifetime is provided in the child data.
What warranty period is listed for this Vimar Plana product?
The listed warranty period is 3 years. The same warranty period is shown across the supplied child variants.
