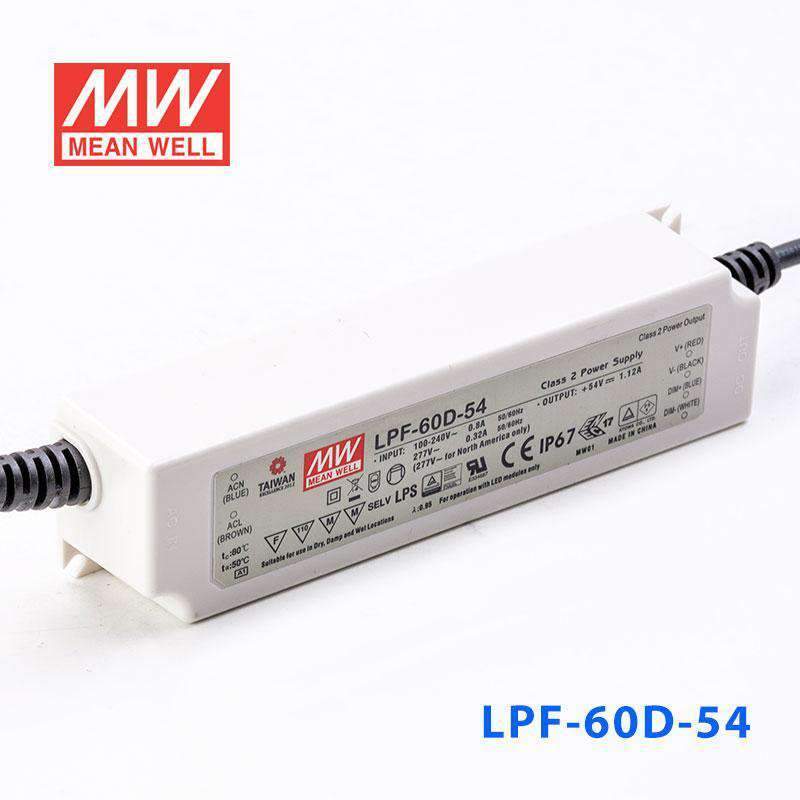

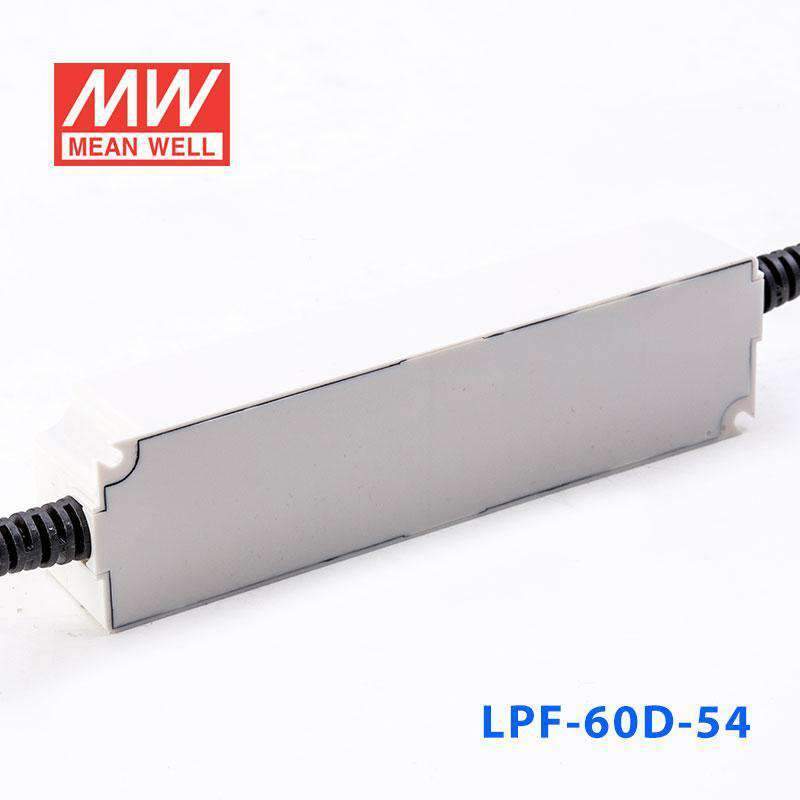

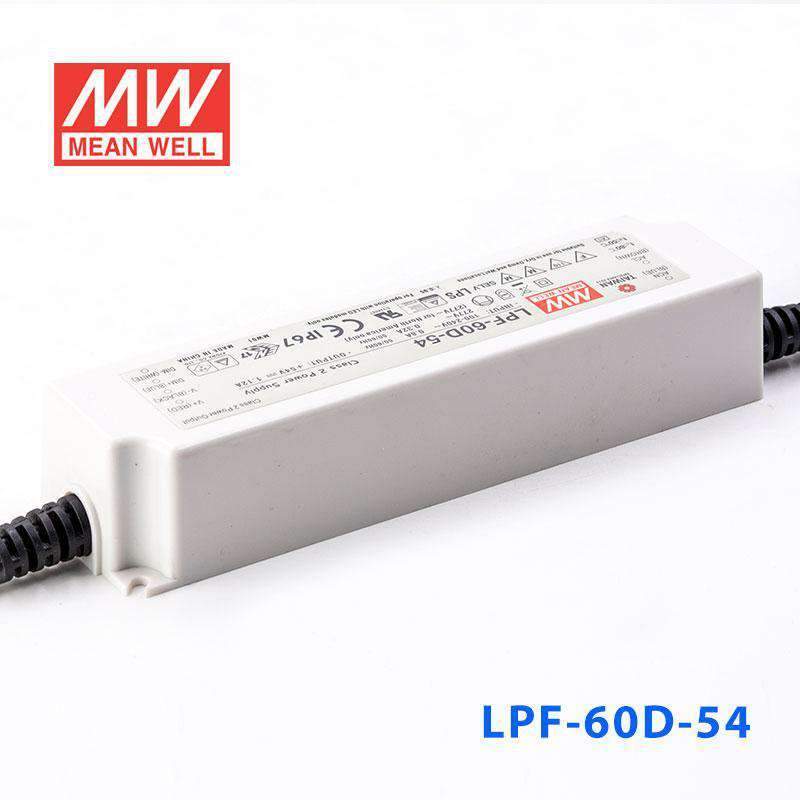

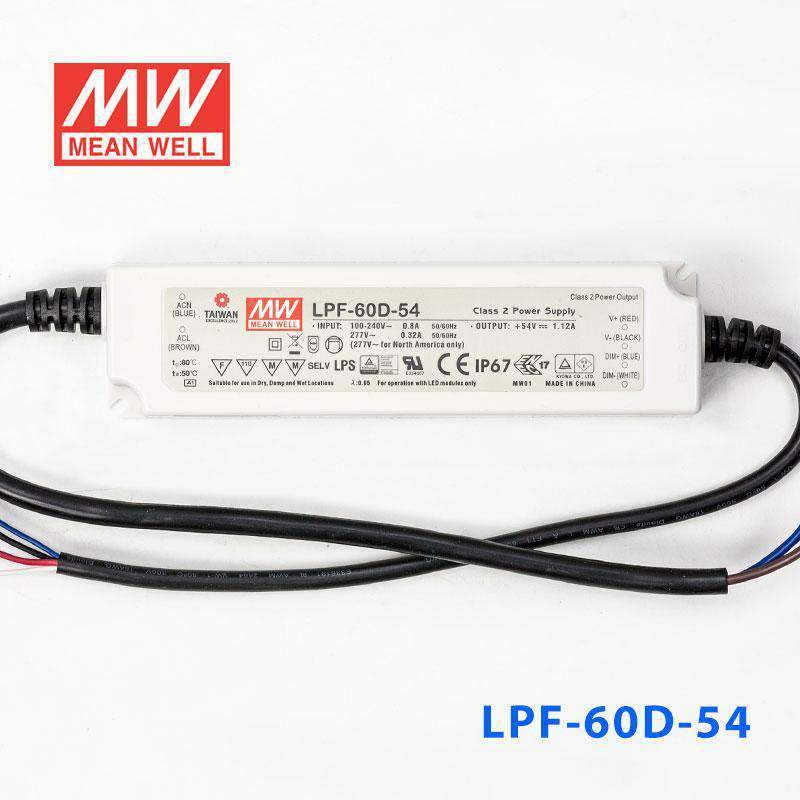

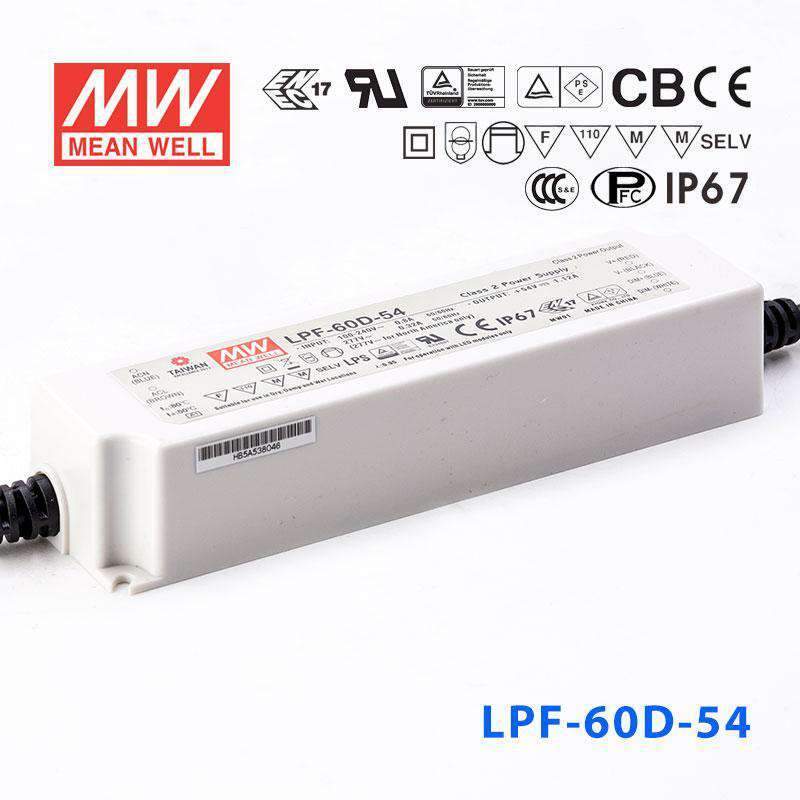

Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | Auckland Distributor

The LPF-60D is a 60.48W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 1.12A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CE, EAC, ENEC, PSE, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

Can I use the LPF-60D-54 for a 54V constant-current LED lighting fixture?

Yes, if the fixture is designed for constant-current operation within the 32-54V range and draws up to 1.12A. This model delivers 60.48W at 54V and is not intended for loads outside that constant-current range.

Is the LPF-60D-54 suitable for outdoor LED signage or architectural lighting?

It can be used in outdoor or exposed lighting applications because the housing is IP67 waterproof. The operating temperature range is -40°C to +80°C, which supports demanding indoor or outdoor environments.

Can this driver work for damp-location or washdown-area LED lighting?

Yes, the IP67 rating means the unit is built for wet or dusty environments where the power supply needs a sealed enclosure. It is better suited to those conditions than an indoor-only driver, provided the LED load matches 54V constant-current operation up to 1.12A.

Can I use the LPF-60D-54 with a long LED strip run?

You can estimate length from the 60.48W maximum output: maximum length = 60.48W divided by your strip wattage per meter. For example, the math is 60.48W / W per meter, but you need to check your strip rated power per meter and confirm the strip is compatible with a 54V constant-current driver.

What is the difference between LPF-60D-54 and the other 60W LPF models?

Within the 60W range, the non-dimming models are LPF-60-12 at 60W, 12V, 5A; LPF-60-15 at 60W, 15V, 4A; LPF-60-20 at 60W, 20V, 3A; LPF-60-24 at 60W, 24V, 2.5A; LPF-60-30 at 60W, 30V, 2A; LPF-60-36 at 60.12W, 36V, 1.67A; LPF-60-42 at 60.06W, 42V, 1.43A; LPF-60-48 at 60W, 48V, 1.25A; and LPF-60-54 at 60.48W, 54V, 1.12A. The dimming versions are LPF-60D-12 at 60W, 12V, 5A; LPF-60D-15 at 60W, 15V, 4A; LPF-60D-20 at 60W, 20V, 3A; LPF-60D-24 at 60W, 24V, 2.5A; LPF-60D-30 at 60W, 30V, 2A; LPF-60D-36 at 60.12W, 36V, 1.67A; LPF-60D-42 at 60.06W, 42V, 1.43A; LPF-60D-48 at 60W, 48V, 1.25A; and this LPF-60D-54 at 60.48W, 54V, 1.12A.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable 1.25A	60W	48V	1.25A	IP67	View
Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable 1.43A	60.06W	42V	1.43A	IP67	View
Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable 1.67A	60.12W	36V	1.67A	IP67	View
Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable 2A	60W	30V	2A	IP67	View
Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable 3A	60W	20V	3A	IP67	View
Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable 4A	60W	15V	4A	IP67	View
Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
