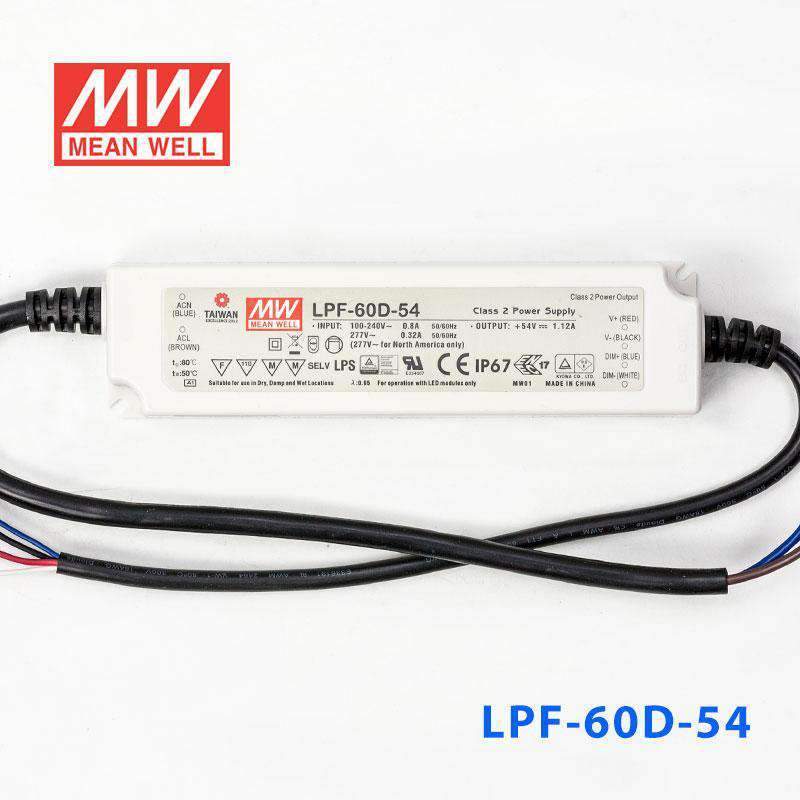

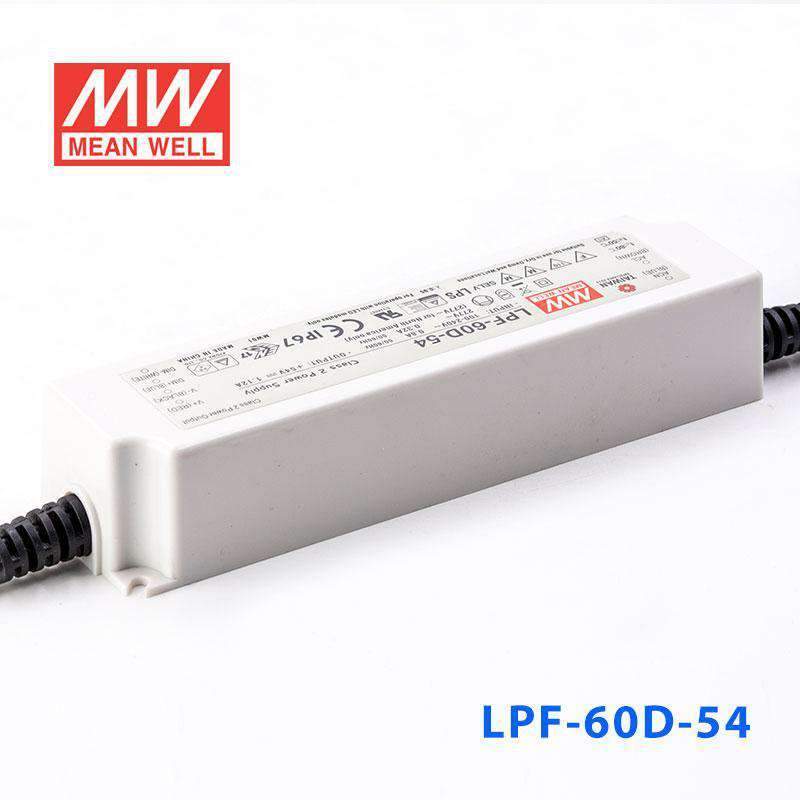

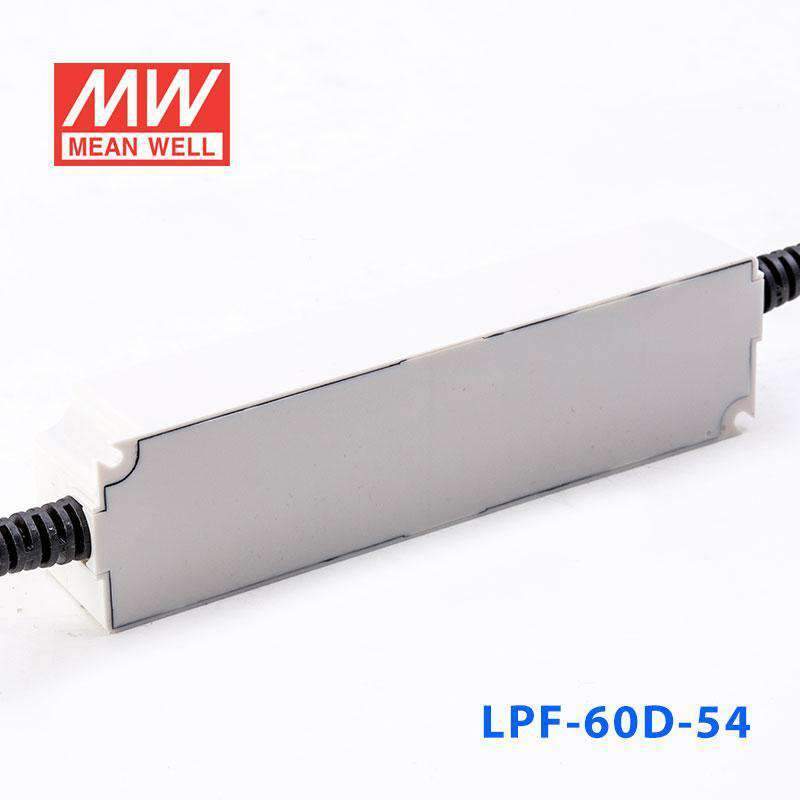

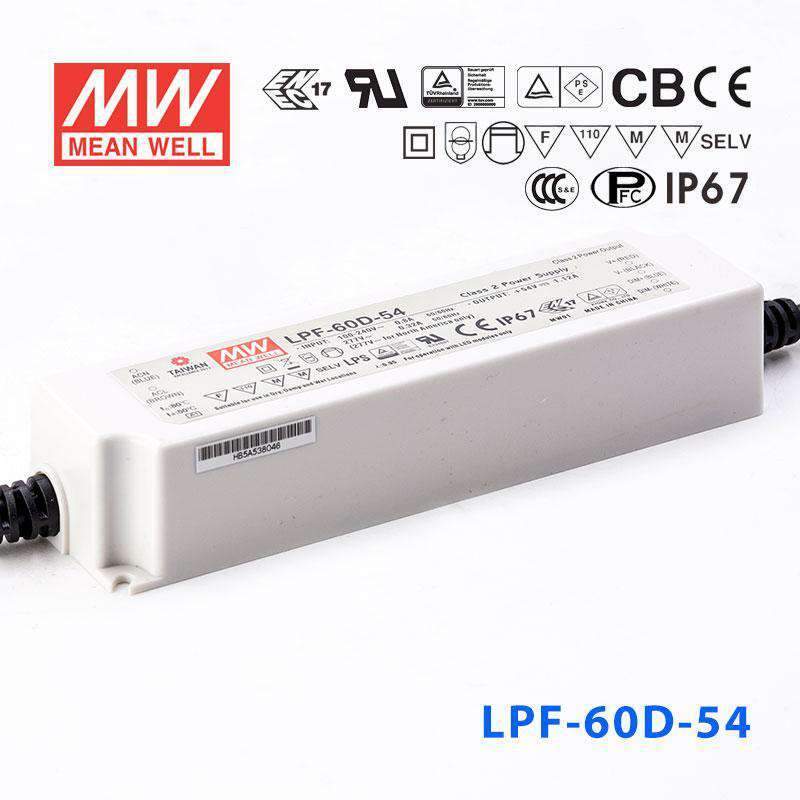

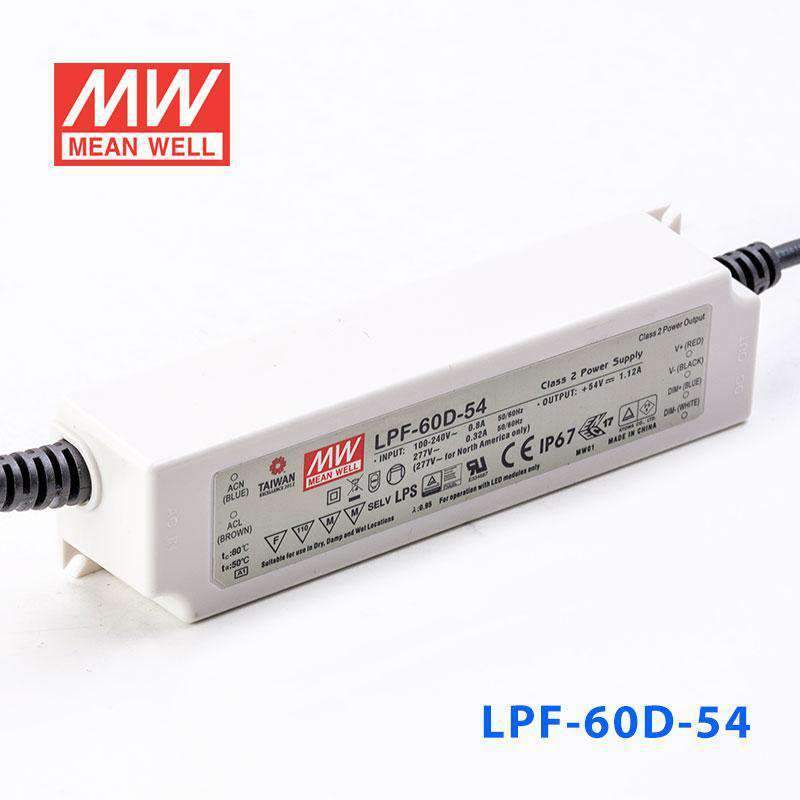

Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable
Please Login for Pricing
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.48 Watt
-
Output Voltage54 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-54 for a 54V constant-current LED lighting fixture?
Yes, if the fixture is designed for constant-current operation within the 32-54V range and draws up to 1.12A. This model delivers 60.48W at 54V and is not intended for loads outside that constant-current range.
Is the LPF-60D-54 suitable for outdoor LED signage or architectural lighting?
It can be used in outdoor or exposed lighting applications because the housing is IP67 waterproof. The operating temperature range is -40°C to +80°C, which supports demanding indoor or outdoor environments.
Can this driver work for damp-location or washdown-area LED lighting?
Yes, the IP67 rating means the unit is built for wet or dusty environments where the power supply needs a sealed enclosure. It is better suited to those conditions than an indoor-only driver, provided the LED load matches 54V constant-current operation up to 1.12A.
Can I use the LPF-60D-54 with a long LED strip run?
You can estimate length from the 60.48W maximum output: maximum length = 60.48W divided by your strip wattage per meter. For example, the math is 60.48W / W per meter, but you need to check your strip rated power per meter and confirm the strip is compatible with a 54V constant-current driver.
What is the difference between LPF-60D-54 and the other 60W LPF models?
Within the 60W range, the non-dimming models are LPF-60-12 at 60W, 12V, 5A; LPF-60-15 at 60W, 15V, 4A; LPF-60-20 at 60W, 20V, 3A; LPF-60-24 at 60W, 24V, 2.5A; LPF-60-30 at 60W, 30V, 2A; LPF-60-36 at 60.12W, 36V, 1.67A; LPF-60-42 at 60.06W, 42V, 1.43A; LPF-60-48 at 60W, 48V, 1.25A; and LPF-60-54 at 60.48W, 54V, 1.12A. The dimming versions are LPF-60D-12 at 60W, 12V, 5A; LPF-60D-15 at 60W, 15V, 4A; LPF-60D-20 at 60W, 20V, 3A; LPF-60D-24 at 60W, 24V, 2.5A; LPF-60D-30 at 60W, 30V, 2A; LPF-60D-36 at 60.12W, 36V, 1.67A; LPF-60D-42 at 60.06W, 42V, 1.43A; LPF-60D-48 at 60W, 48V, 1.25A; and this LPF-60D-54 at 60.48W, 54V, 1.12A.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | View |
| Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | View |
| Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | View |
| Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | View |
| Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | View |
| Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | View |
| Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | View |
