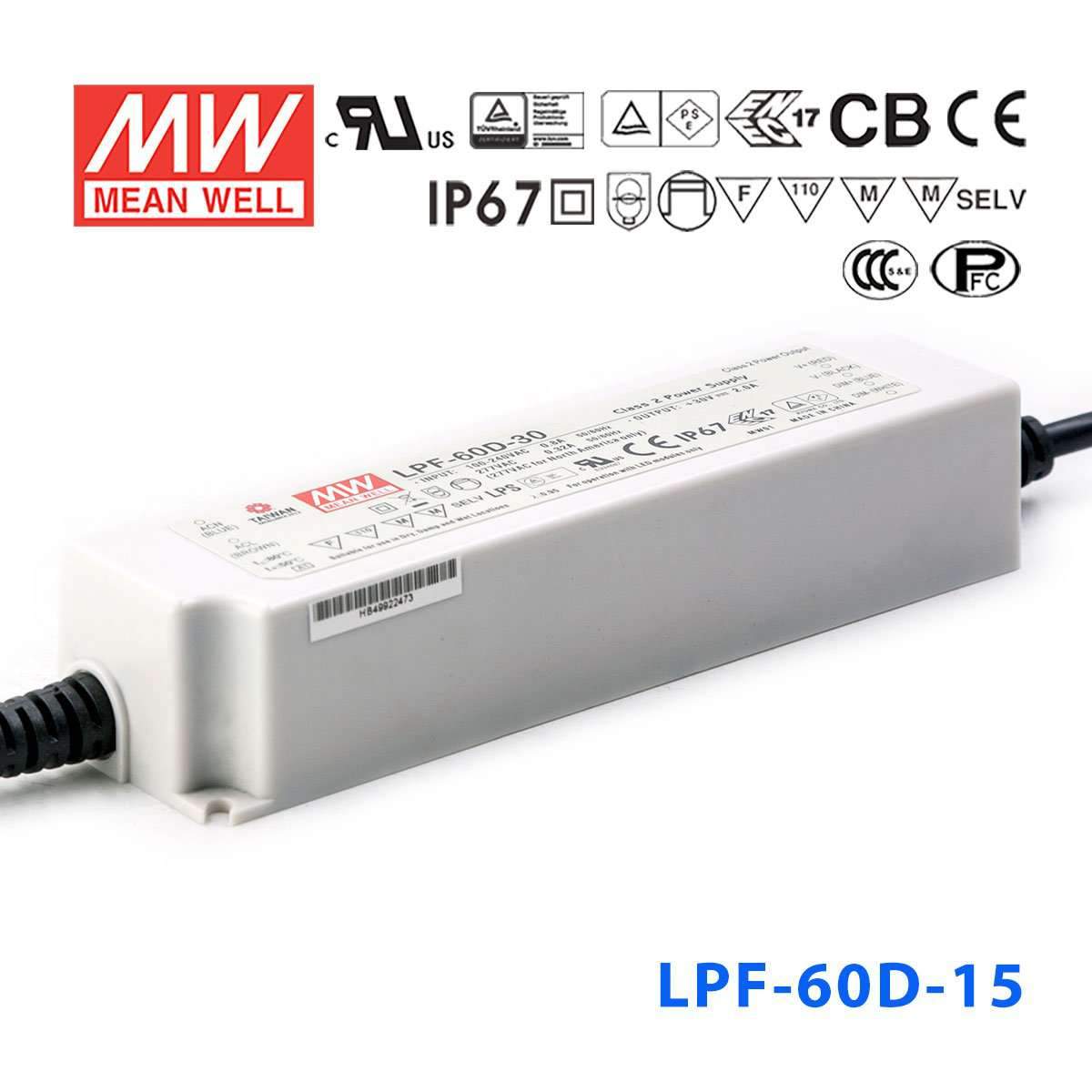

Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable
Please Login for Pricing
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-15 with 15V LED strip lighting?
Yes, if the strip is designed for 15V and the total load stays within 60W and 4A. For estimating strip length, divide 60W by the strip's rated watts per meter, and check your strip rated power per meter before final sizing.
Is this 15V dimmable driver suitable for illuminated signs?
It can be used for 15V sign lighting loads that remain within the 60W maximum and 4A output. The built-in 3 in 1 dimming also suits sign applications where brightness needs to be adjusted.
Can the LPF-60D-15 power 15V decorative or accent lighting in outdoor locations?
Yes, for 15V LED lighting products that fit within the rated 60W output. The IP67 waterproof construction and -40°C to +80°C operating temperature support outdoor use.
Is this a good option for 15V display lighting that needs dimming control?
This model is appropriate for 15V display lighting loads up to 4A and 60W. Its built-in 3 in 1 dimming makes it suitable where adjustable light output is required from the driver.
How well does the LPF-60D-15 handle wet or harsh environments?
The driver is rated IP67, so it is intended for wet and outdoor environments. It also operates from -40°C to +80°C, which supports use in cold and high-heat conditions.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | View |
| Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | View |
| Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | View |
| Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | View |
| Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | View |
| Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | View |
| Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | View |
