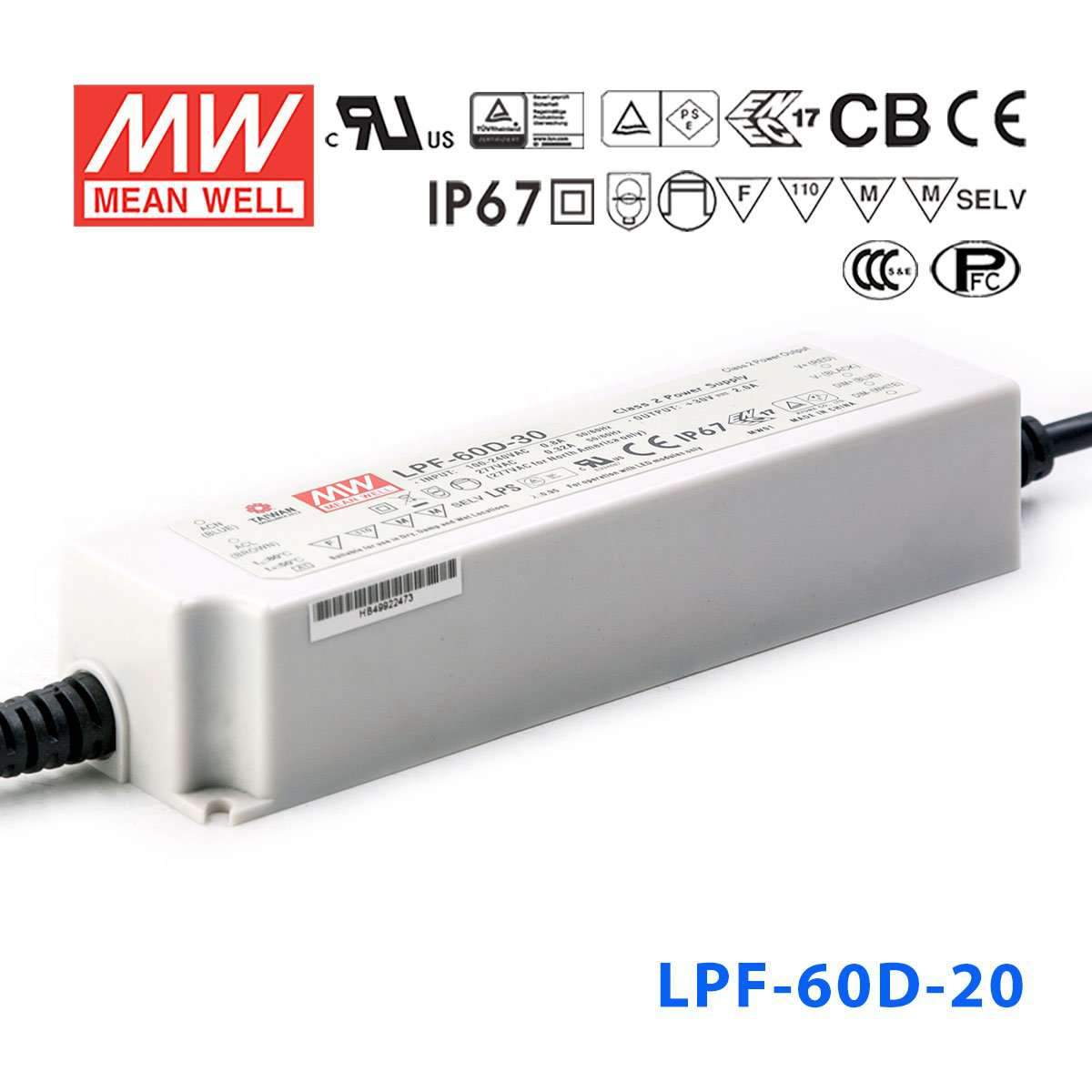

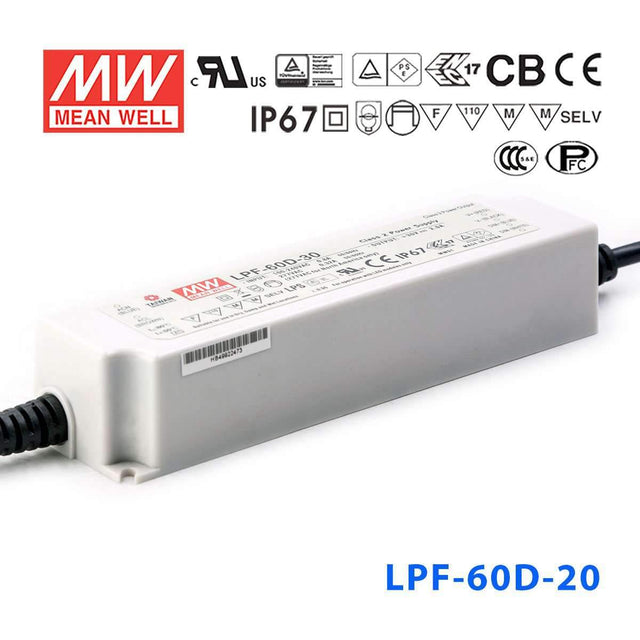

Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable
Please Login for Pricing
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage20 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-20 for 20V LED strip or tape lighting?
Yes, if the 20V lighting load stays within this driver's 60W maximum and 3A output. To estimate maximum strip length, divide 60W by your strip's rated watts per meter, and check your strip rated power per meter before selecting the final length.
Is the LPF-60D-20 suitable for 20V signage lighting?
It can be used for 20V LED sign loads that match the output and stay within 60W and 3A. The built-in 3 in 1 dimming can also be useful where sign brightness needs adjustment.
Can this driver be used for outdoor 20V accent lighting?
Yes, for 20V LED lighting products that do not exceed the rated output. Its IP67 waterproof rating and -40°C to +80°C operating range make it suitable for exposed outdoor conditions.
Would the LPF-60D-20 work for 20V display lighting with dimming?
Yes, when the display lighting is designed for 20V and draws no more than 3A or 60W total. This version includes built-in 3 in 1 dimming, so it is intended for applications that need adjustable light output.
Is the LPF-60D-20 rated for wet locations?
Yes, this model is IP67 waterproof, so it is appropriate for wet-location and outdoor use. The sealed design and wide operating temperature range of -40°C to +80°C support demanding environments.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | View |
| Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | View |
| Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | View |
| Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | View |
| Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | View |
| Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | View |
| Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | View |
