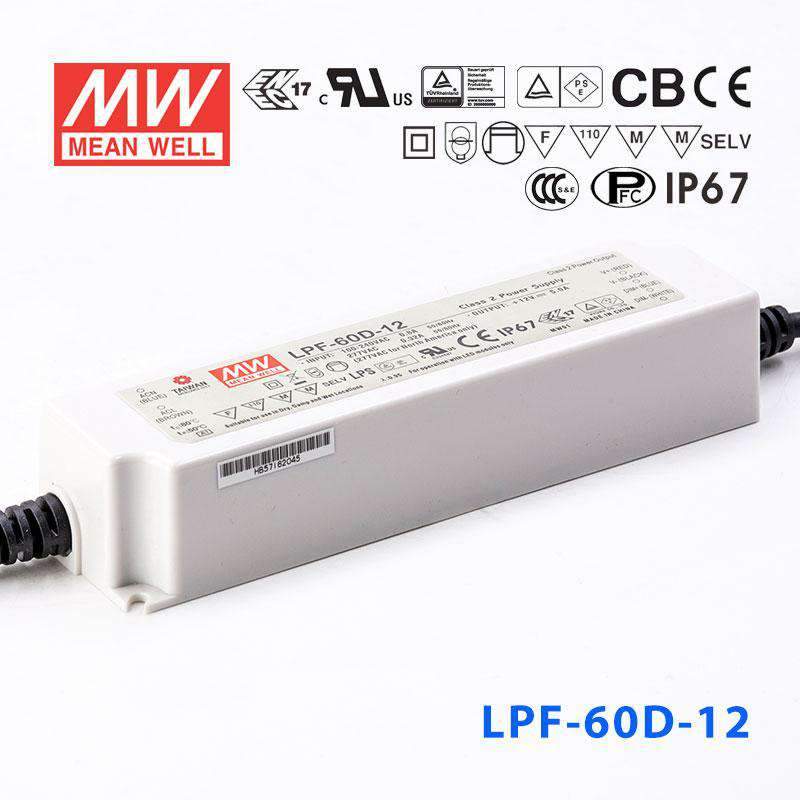

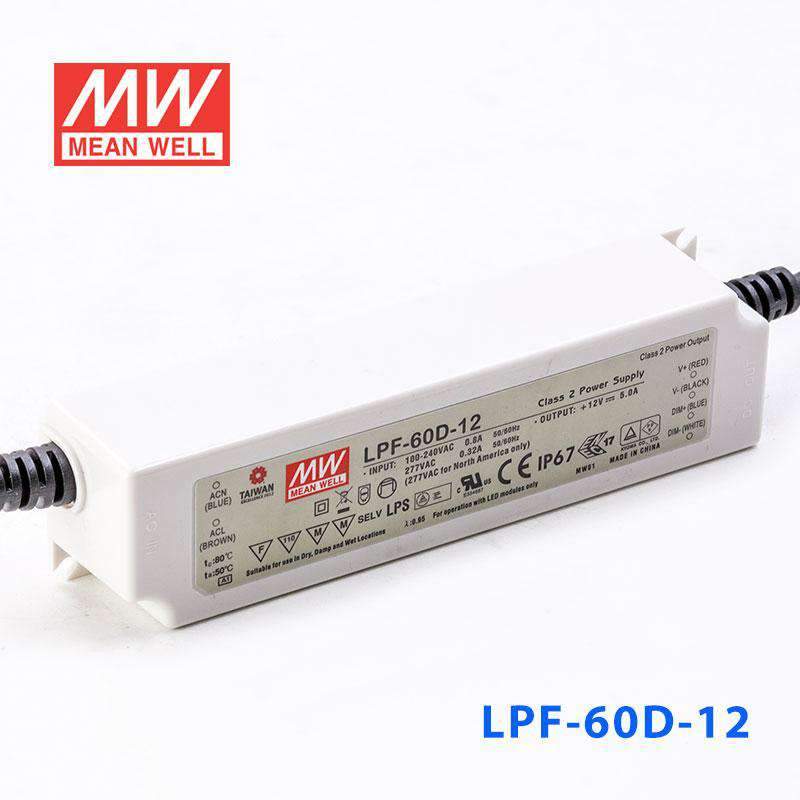

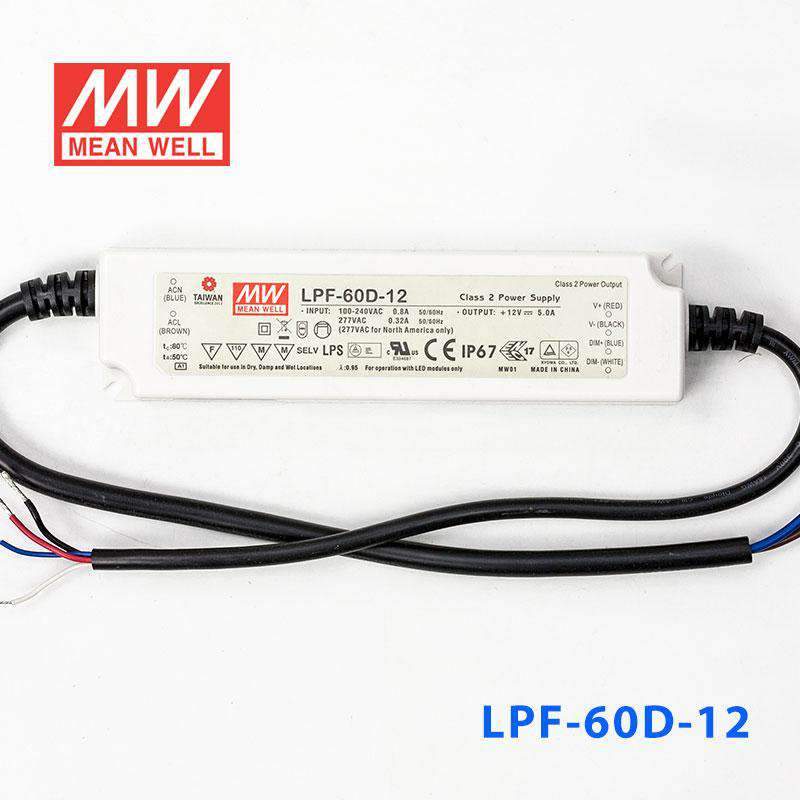

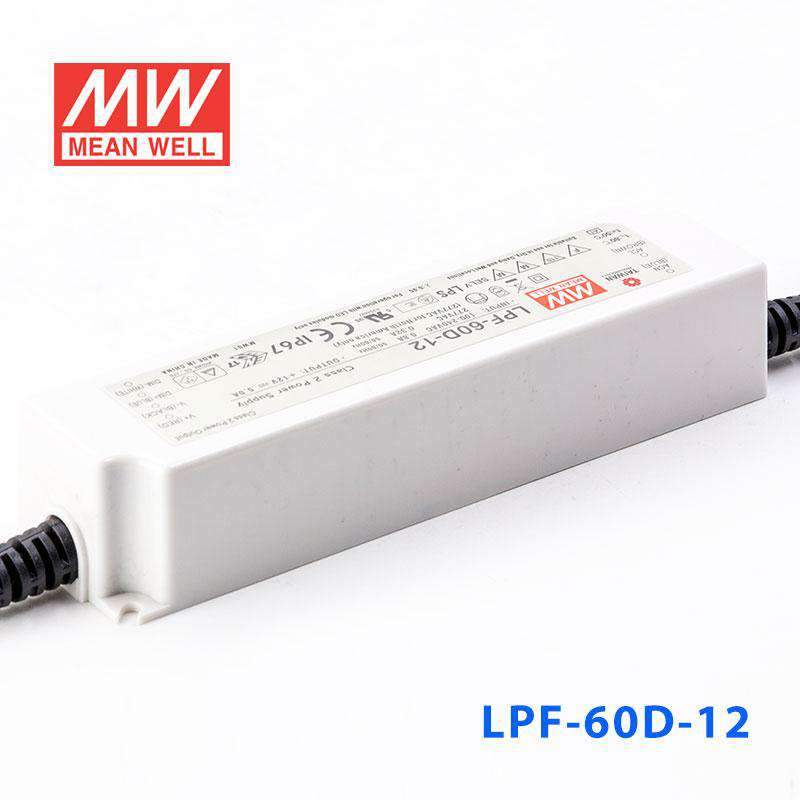

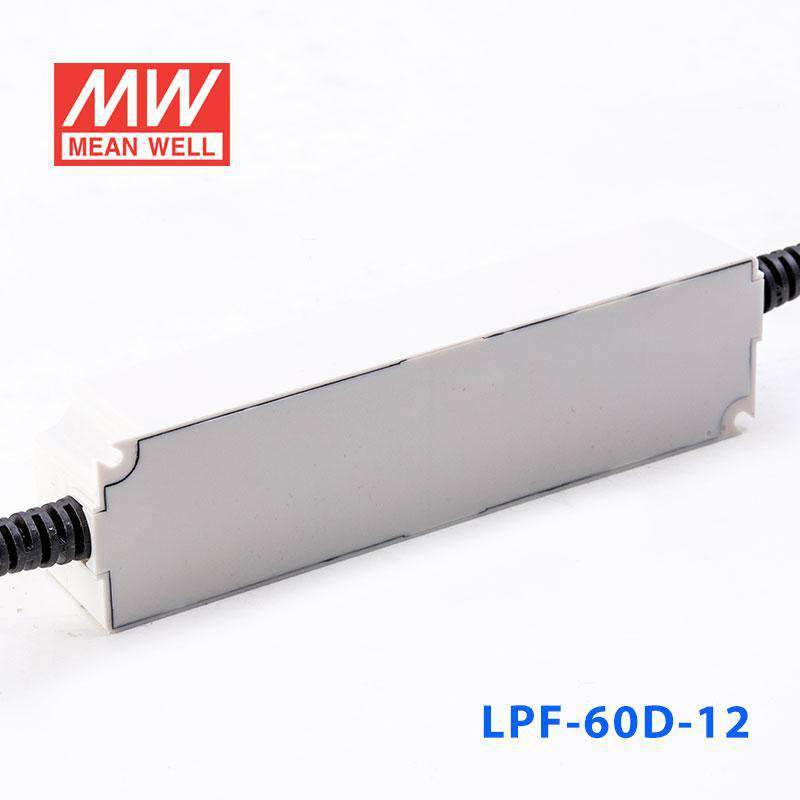

Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable
Please Login for Pricing
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-12 for 12V LED strip lighting that needs dimming?
Yes, if the 12V strip load stays within 60W and 5A. To estimate maximum strip length, divide 60W by your strip's rated watts per meter, and check your strip rated power per meter before sizing the run.
Is this dimmable 12V driver suitable for LED signage?
It can be used for 12V illuminated signage when the total load does not exceed 60W or 5A. The built-in 3 in 1 dimming makes it useful where light level control is part of the sign design.
Can the LPF-60D-12 be used for display or accent lighting in damp areas?
Yes, for 12V LED lighting loads within the 60W rating. Its IP67 waterproof housing supports use in wet or exposed locations, and the operating range is -40°C to +80°C.
Is this model a fit for 12V tape light runs where brightness control is needed?
Yes, when the tape light is a 12V load and the total demand is no more than 5A or 60W. This model includes built-in 3 in 1 dimming, so it is intended for applications where adjustable output is required.
Can the LPF-60D-12 be used outdoors?
Yes, the IP67 rating means it is suitable for outdoor and wet-location use. It is also specified for operation from -40°C to +80°C, which covers a wide range of environmental conditions.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | View |
| Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | View |
| Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | View |
| Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | View |
| Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | View |
| Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | View |
| Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | View |
