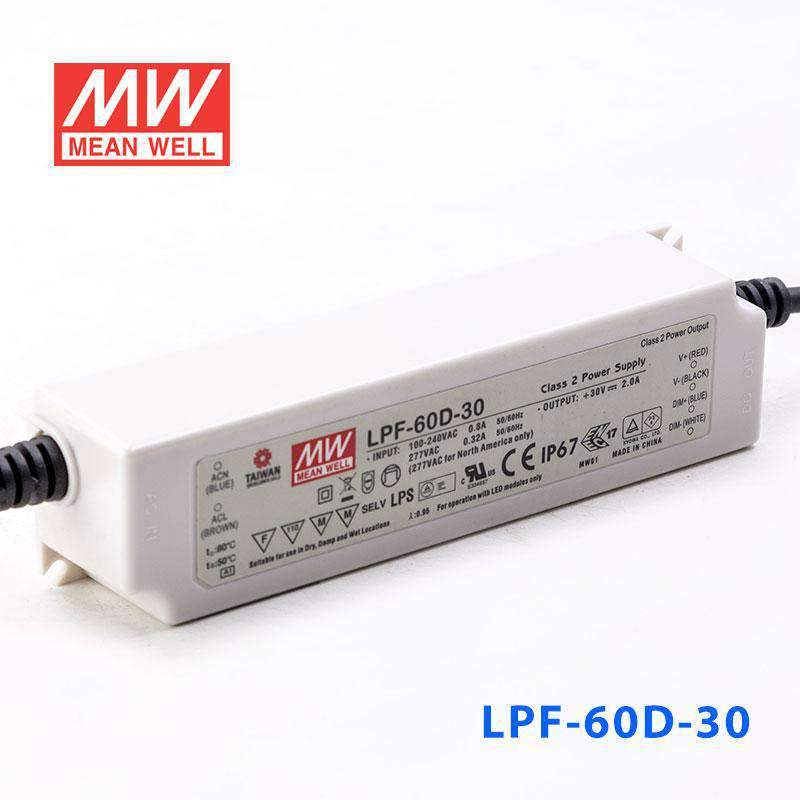

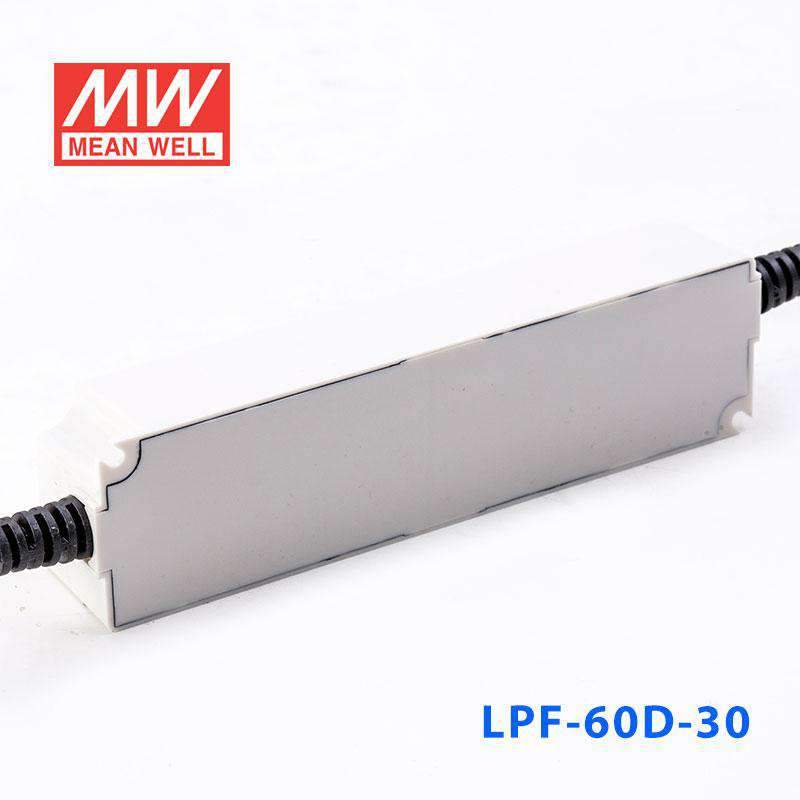

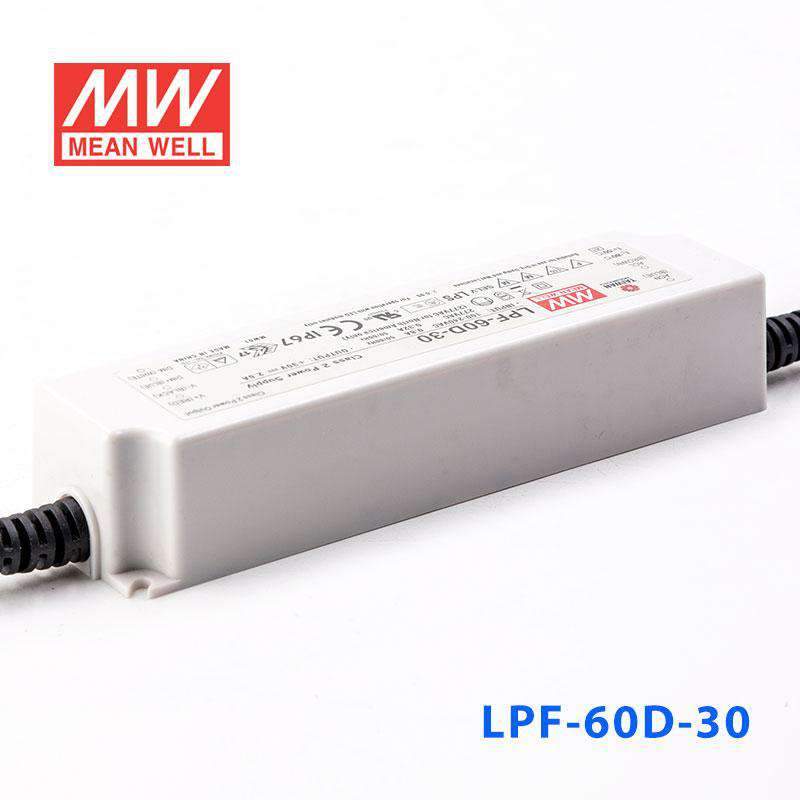

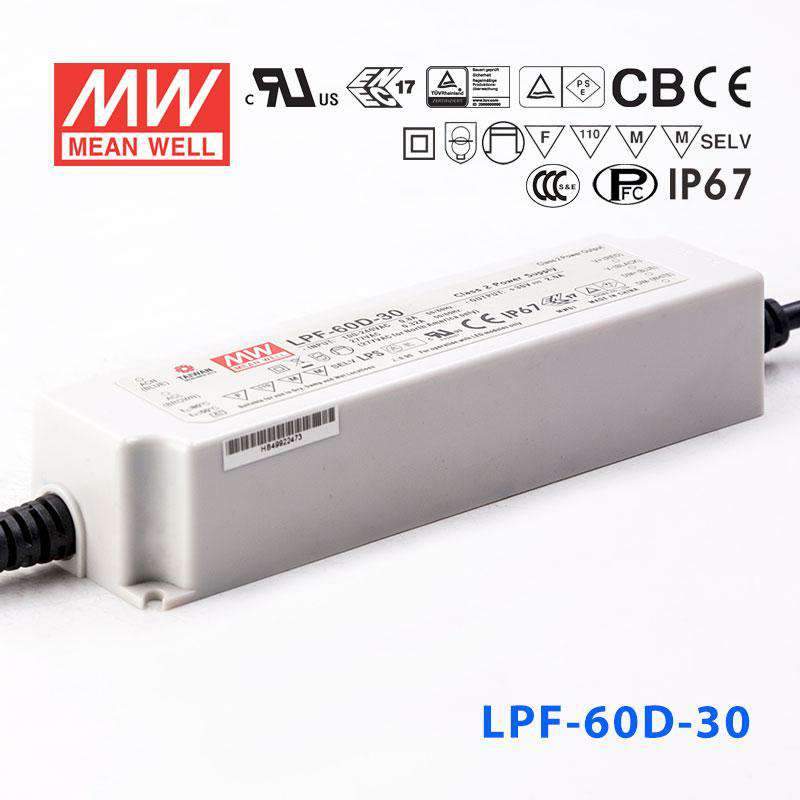

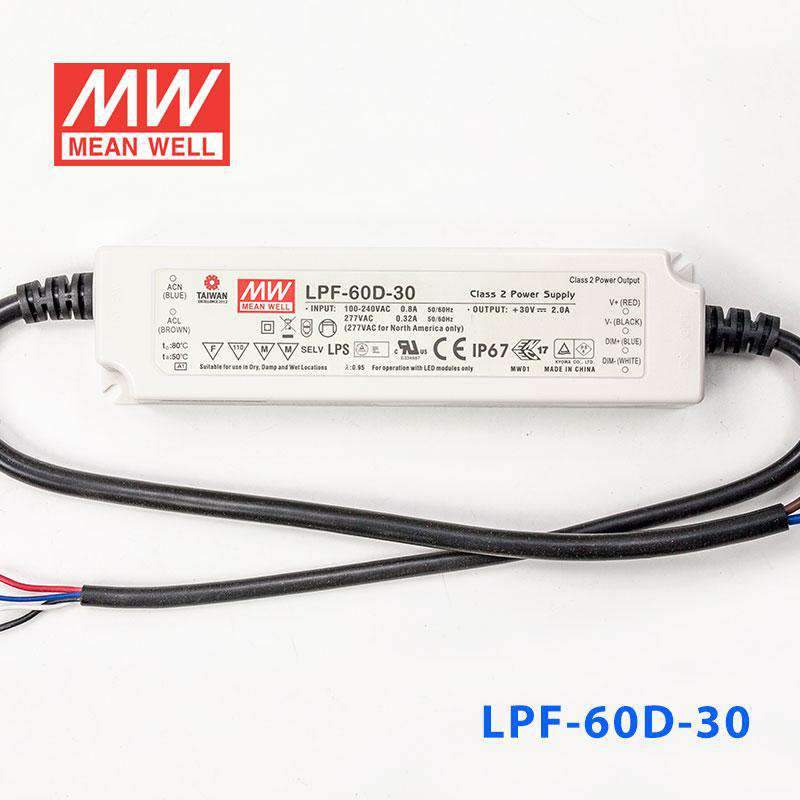

Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable
Please Login for Pricing
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-30 for 30V LED strip or linear lighting?
It can be used with 30V LED strip or linear lighting only when the load is designed for constant current operation and falls within the 18-30V range at 2A. If the strip is a constant voltage type, it is not a match for this driver.
Is this a good choice for outdoor 30V sign lighting or illuminated displays?
Yes, if the sign or display uses a constant current 30V LED load within 18-30V and up to 2A. The IP67 waterproof rating supports outdoor or wet-location use of the driver housing.
Can this driver power a 30V constant current fixture for architectural or facade lighting?
Yes, it is intended for constant current LED fixtures that operate in the 18-30V range and draw up to 2A, with total power up to 60W. Its IP67 construction also fits exposed lighting environments.
How do I estimate the maximum 30V LED strip length for this driver?
The driver can supply up to 60W, which is the same as 30V × 2A = 60W. Estimate length as 60W divided by your strip's watts per meter, and check your strip rated power per meter plus whether that strip is specified for constant current operation.
Can the LPF-60D-30 be mounted where it will see rain or washdown conditions?
The housing is rated IP67, so the driver itself is intended for waterproof outdoor or wet-area use. It is also rated for -40°C to +80°C operation, which supports a wide range of ambient conditions.
What are the differences between the LPF-60D-30 and the other dimmable 60W LPF-60D versions?
The LPF-60D dimmable 60W family includes LPF-60D-12 at 60W 12V 5A, LPF-60D-15 at 60W 15V 4A, LPF-60D-20 at 60W 20V 3A, LPF-60D-24 at 60W 24V 2.5A, LPF-60D-30 at 60W 30V 2A, LPF-60D-36 at 60.12W 36V 1.67A, LPF-60D-42 at 60.06W 42V 1.43A, LPF-60D-48 at 60W 48V 1.25A, and LPF-60D-54 at 60.48W 54V 1.12A. The selection point is the required output voltage and its paired current rating.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | View |
| Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | View |
| Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | View |
| Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | View |
| Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | View |
| Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | View |
| Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | View |
