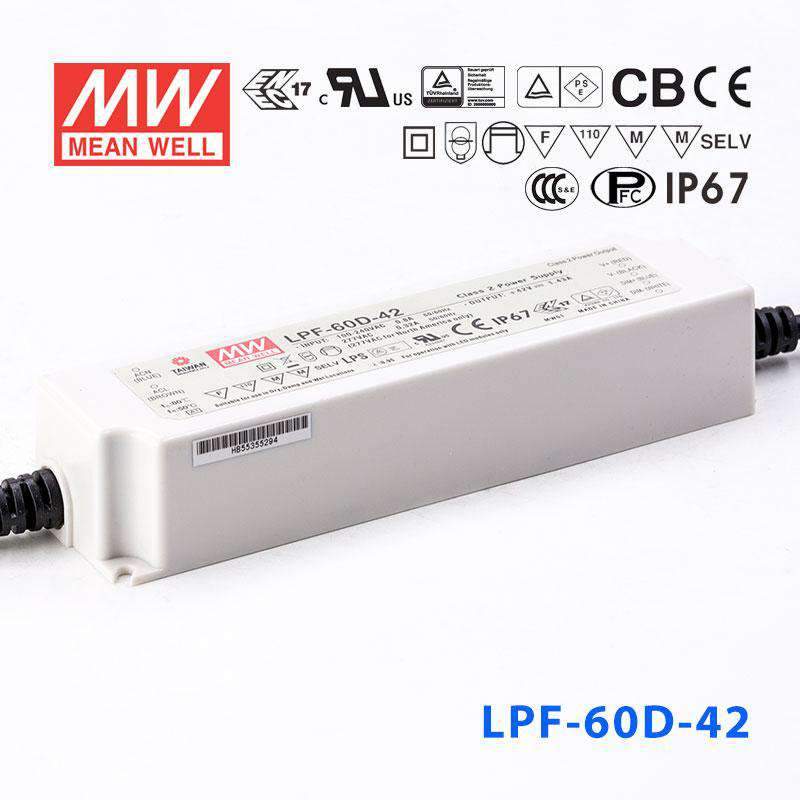

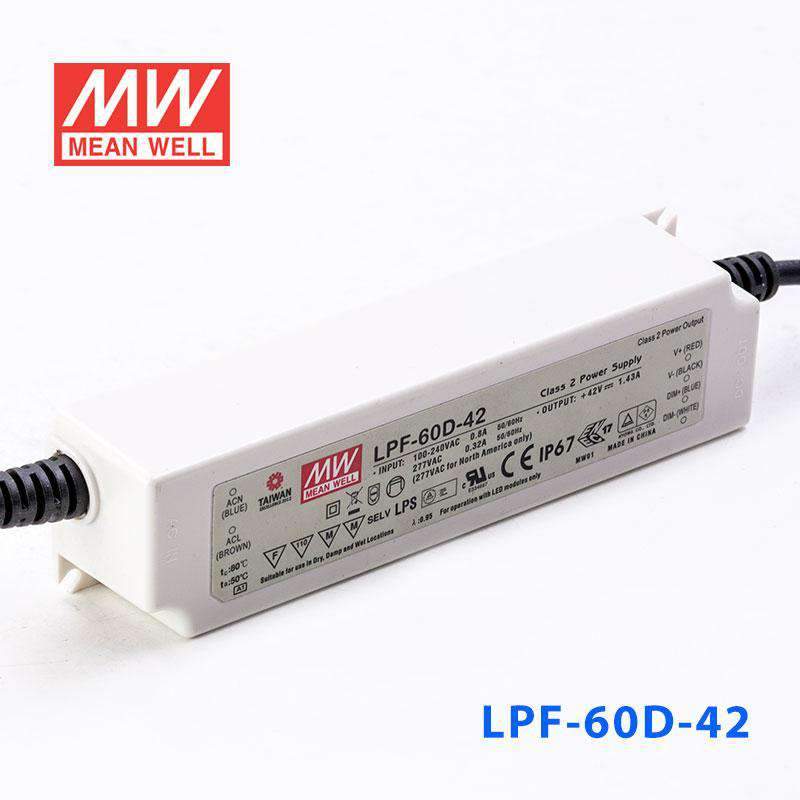

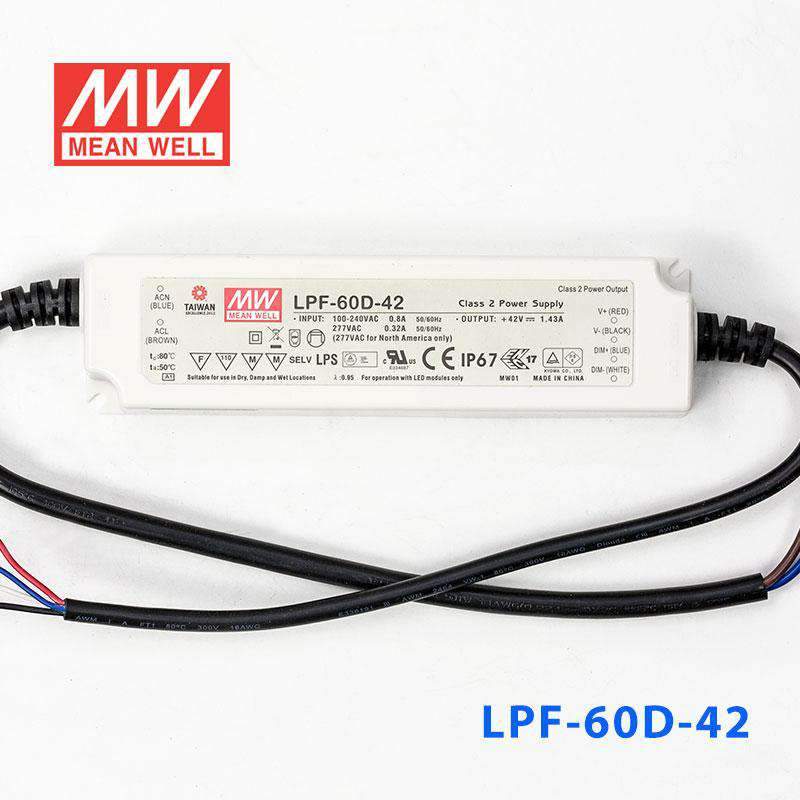

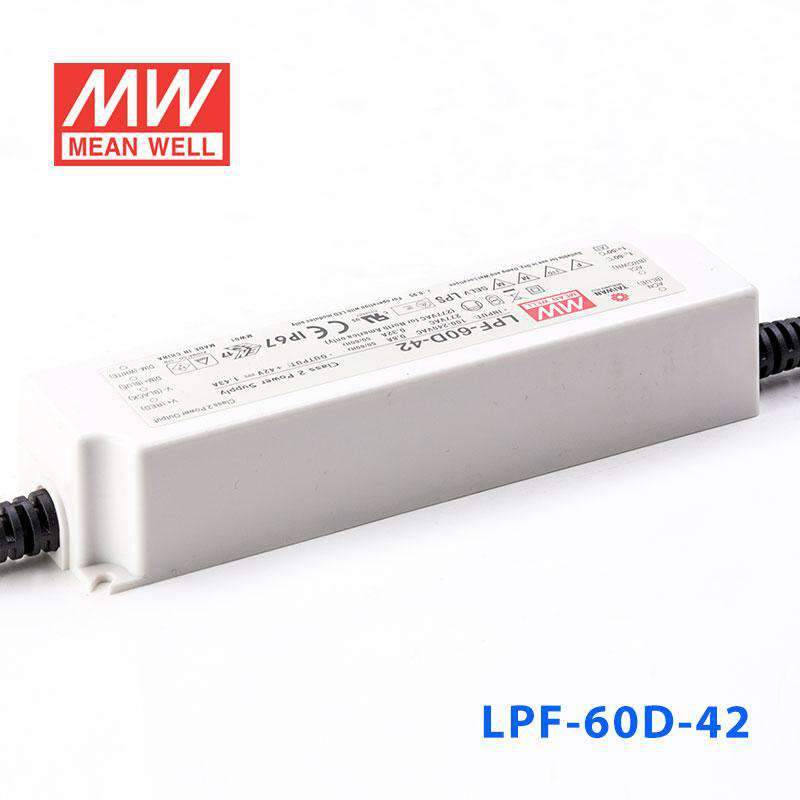

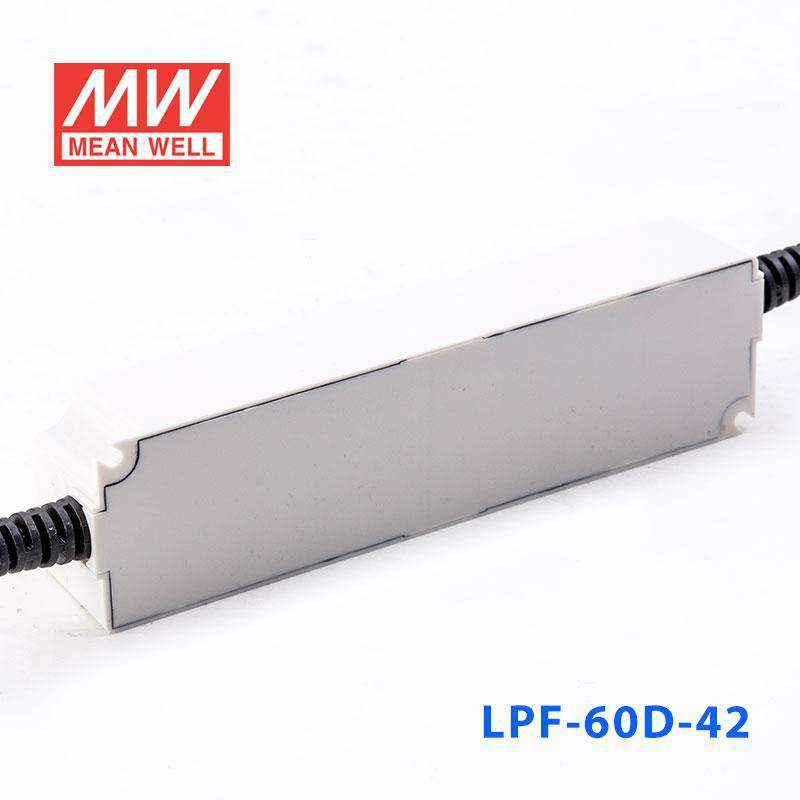

Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable
Please Login for Pricing
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.06 Watt
-
Output Voltage42 Volt
-
Rated Current1.43 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-42 for a 42V constant current linear light or LED engine?
Yes, if the load is specified for constant current operation within 25-42V and up to 1.43A. It is not intended for products that require a fixed constant voltage supply instead.
Is this driver suitable for outdoor 42V signage or architectural lighting?
Yes, when the connected LED load is a constant current 42V product that stays within the 25-42V range and 1.43A output limit. The IP67 waterproof housing supports outdoor and wet-location driver use.
Can the LPF-60D-42 power a higher forward-voltage LED fixture for facade or area lighting?
It can power a constant current fixture that needs up to 60.06W and operates between 25V and 42V at 1.43A. That makes it a fit for higher forward-voltage LED assemblies that match those electrical limits.
How do I size this driver for a 42V LED strip or linear run?
Its maximum output is 60.06W, and 42V × 1.43A = 60.06W. To estimate supported length, divide 60.06W by your strip's rated watts per meter, and check your strip rated power per meter plus whether it is actually designed for constant current operation.
Can this 42V driver be used where water and weather exposure are expected?
Yes. The unit is rated IP67 Waterproof and operates from -40°C to +80°C, so the driver housing is intended for wet and outdoor environments. The connected light still needs to be suitable for the same environment.
What are the LPF-60D-42 alternatives in the same dimmable 60W family?
In the LPF-60D dimmable 60W family, the sibling models are LPF-60D-12 at 60W 12V 5A, LPF-60D-15 at 60W 15V 4A, LPF-60D-20 at 60W 20V 3A, LPF-60D-24 at 60W 24V 2.5A, LPF-60D-30 at 60W 30V 2A, LPF-60D-36 at 60.12W 36V 1.67A, LPF-60D-42 at 60.06W 42V 1.43A, LPF-60D-48 at 60W 48V 1.25A, and LPF-60D-54 at 60.48W 54V 1.12A. The family keeps similar power while changing the output voltage and current combination.
