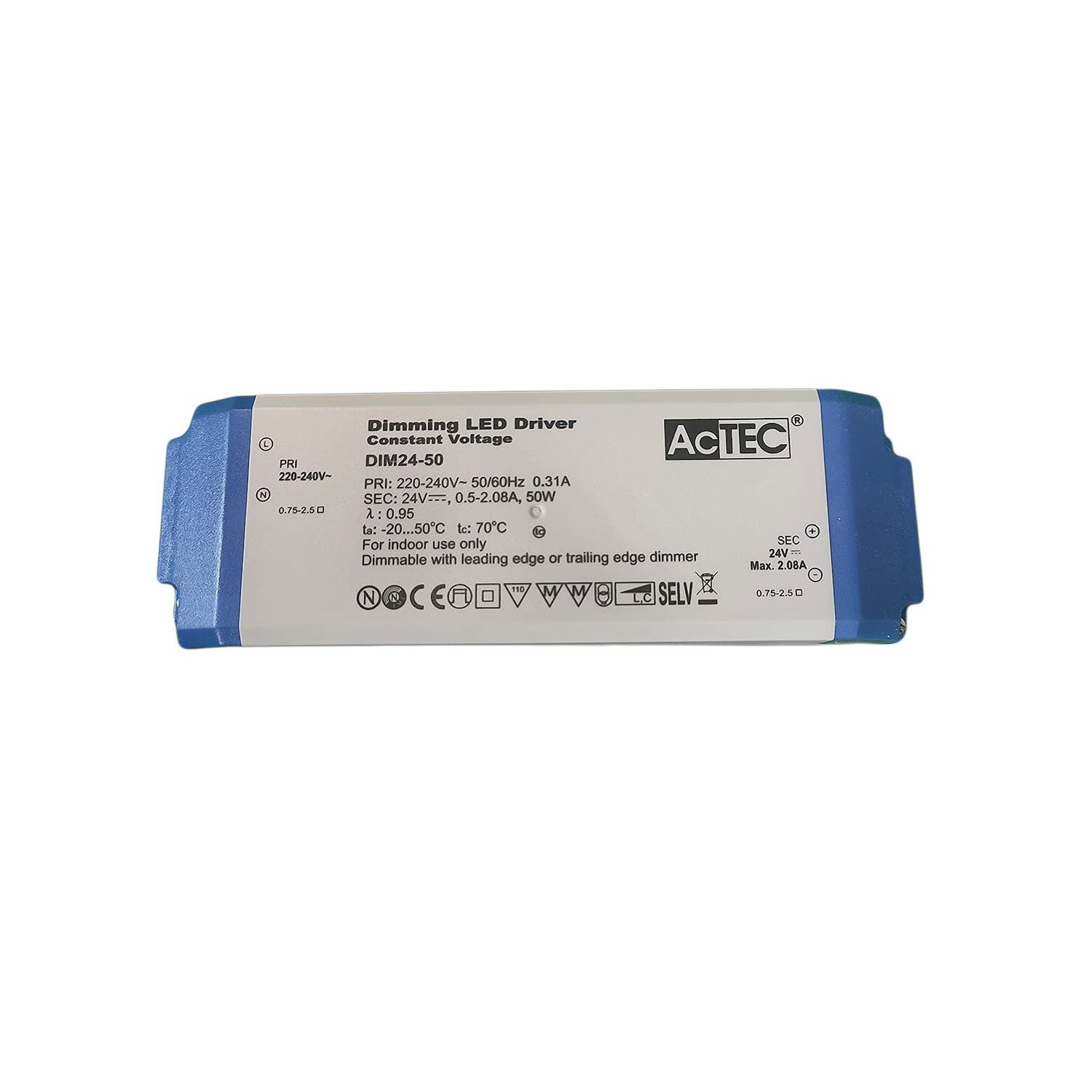

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC DIM24-50 Triac Dimmable Driver 50W 24V 2.08A with Screw Terminal

minimum load 12Wflicker-freesuitable for class I & II luminairesprotection class II

SKU DIM24-50

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The AcTEC DIM24-50 is a 50W, 24V constant voltage triac dimmable LED driver, designed for smooth flicker-free dimming from leading edge or trailing edge wall dimmers. It delivers a regulated 24V DC output at up to 2.08A and dims cleanly across the full 1…100% range.

Accepting 220–240VAC mains (198–264V range, DC input compatible 176–250V DC), the DIM24-50 runs at up to 85% efficiency with a 0.95 power factor and THD of ≤15%. It carries built-in open circuit, short circuit, overload and over-temperature protection, is SELV isolated, and is rated for ambient temperatures of -20…+50°C. Housed in an IP20 plastic enclosure with captured screw terminals. It requires a minimum load of 12W to run and dim correctly.

Key Features

✓Constant voltage output: 24V DC at up to 2.08A (50W max)
✓Minimum load 12W — below this the driver may flicker or fail to start
✓Triac dimmable — works with leading edge or trailing edge dimmers
✓Analogue flicker-free, dimming range 1…100%
✓Analogue dimming method
✓Nominal power range 12–50 W — suitable for 0.5–2.08A loads
✓DC input compatible (176–250V DC)
✓AC input 220–240V (198–264V range), 50/60Hz
✓Efficiency 85% at full load, power factor 0.95, THD ≤15%
✓Captured screw terminals, 0.75–2.5mm² cable
✓Protections: open circuit, short circuit, overload, over temperature
✓SELV galvanic isolation — suitable for class I & II luminaires, protection class II
✓Ambient temperature range -20…+50°C (max case temp 75°C)
✓IP20 indoor rated, max open-circuit voltage ≤27 Vdc
✓Certifications: TUV, CE, CB
✓Dimensions 184 × 61 × 32 mm, weight 240 g

Frequently Asked Questions

What type of lighting applications is the AcTEC DIM24-50 designed for?

The AcTEC DIM24-50 is a 24V constant-voltage dimmable driver intended for LED lighting applications that need mains-phase dimming. Its 50W output suits low-voltage LED systems where smooth brightness adjustment is important. This model is positioned for luminaires that need a compact dimmable driver rather than a non-dimmable power supply.

Is the AcTEC DIM24-50 compatible with leading-edge and trailing-edge dimmers?

Yes. The product description states that the DIM24-50 supports dimming with both leading-edge and trailing-edge dimmers. It is also described as providing smooth dimming and being compatible with most dimmers.

What are the main output and electrical specifications of the AcTEC DIM24-50?

This model is rated at 50W with a 24V output. The listed AC input range is 198 to 264V. Its maximum inrush current is specified as 10 with a pulse width of 100 microseconds.

What dimming performance does the AcTEC DIM24-50 offer?

The DIM24-50 is described as an analogue flicker-free dimmable constant-voltage driver. Its stated dimming range is 1 to 100 percent. That makes it suitable where stable low-level dimming and smooth brightness control matter.

Can the AcTEC DIM24-50 be used in demanding indoor environments?

This driver has an ambient temperature range of -20 to +50 degrees Celsius. It also includes protection for open circuit, short circuit, overload, over temperature, and no-load operation. Those protections make it better suited to commercial and professional indoor lighting applications than a basic driver with fewer safeguards.

What protections and safety standards are listed for the AcTEC DIM24-50?

The product includes open-circuit, short-circuit, overload, over-temperature, and no-load protection. It is described as SELV equivalent, suitable for Class I and II luminaires, and built to Protection Class II. Listed standards include EN 61347-1, EN 61347-2-13, EN 62384, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 60598-1, EN 50581, and EU 2019/2020.

What makes the AcTEC DIM24-50 different from a standard non-dimmable 24V driver?

The main difference is that the DIM24-50 is built specifically for phase-cut dimming, with support for both leading-edge and trailing-edge dimmers. It also specifies a 1 to 100 percent dimming range and analogue flicker-free operation. For projects that need adjustable light output, that is a more targeted choice than a fixed-output non-dimmable driver.

What are the physical size, weight, and warranty for the AcTEC DIM24-50?

The listed dimensions are 184 x 61 x 32 mm. The product weight is 0.240 kg. It also carries a 5-year warranty period.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
AcTEC DIM24-100 Triac Dimmable Driver 100W 24V 4.2A with Screw Terminal	100W	24V	0.6A	IP20	View
AcTEC DIM24-150 Triac Dimmable Driver 150W 24V 6.25A with Screw Terminal	150W	24V	0.9A	IP20	View
AcTEC DIM24-25 Triac Dimmable Driver 25W 24V 1.04A with Push Wire Terminal	25W	24V	0.16A	IP20	View
AcTEC DIM12-50 Triac Dimmable Driver 50W 12V 4.16A with Screw Terminal	50W	12V	0.31A	IP20	View
AcTEC DIM12-25 Triac Dimmable Driver 25W 12V 2.08A with Push Wire Terminal	25W	12V	0.16A	IP20	View
AcTEC DIM12-100 Triac Dimmable Driver 100W 12V 8.3A with Screw Terminal	100W	12V	0.6A	IP20	View
