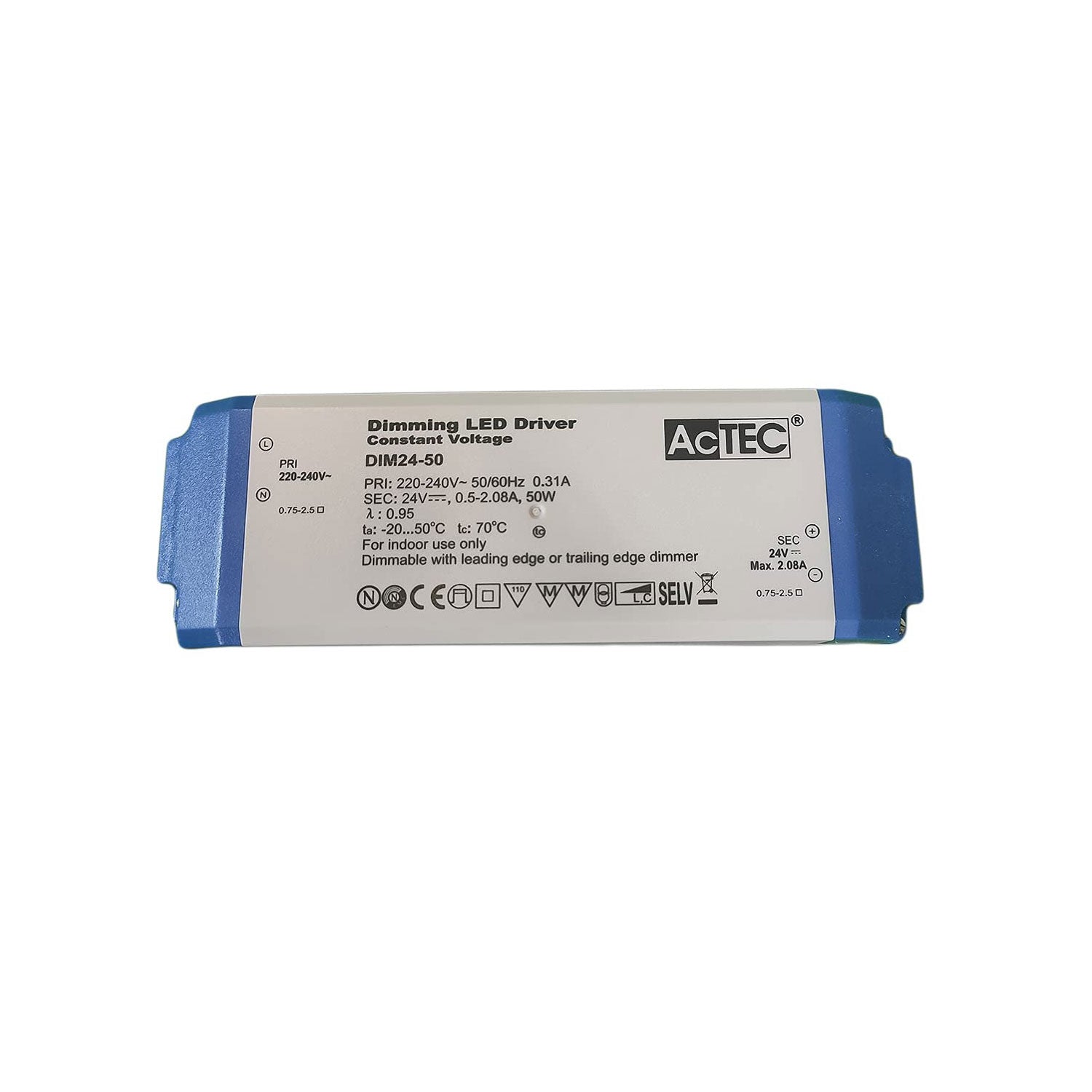

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC DIM24-50 Triac Dimmable Driver 50W 24V with Screw Terminal 310mA

flicker-free, suitable for class I & II luminaires, protection class II

SKU:

DIM24-50

Please for Pricing

Notify me when it's back in stock

Description

Features:

Independent design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Captured terminal screws
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Suitable for class I & II luminaires
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

10 (th = 100 μs)

Surge transient protection

1 | 2 (L/N | LN/PE acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

-20 …+50°C

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

184*61*32mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC DIM Series
Power Rating

50 Watt
Output Voltage

24 Volt
Rated Current

0.31 Ampere
Input Voltage

220V~240V
Standards Met

EN,SELV
Operation Mode

Constant Voltage
Operating Temperature

75°C~-20°C
Warranty

5 Year
Length

18.4 cm
Width

6.1 cm
Height

3.2 cm
Weight

0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of lighting applications is the AcTEC DIM24-50 designed for?

The AcTEC DIM24-50 is a 24V constant-voltage dimmable driver intended for LED lighting applications that need mains-phase dimming. Its 50W output suits low-voltage LED systems where smooth brightness adjustment is important. This model is positioned for luminaires that need a compact dimmable driver rather than a non-dimmable power supply.

Is the AcTEC DIM24-50 compatible with leading-edge and trailing-edge dimmers?

Yes. The product description states that the DIM24-50 supports dimming with both leading-edge and trailing-edge dimmers. It is also described as providing smooth dimming and being compatible with most dimmers.

What are the main output and electrical specifications of the AcTEC DIM24-50?

This model is rated at 50W with a 24V output. The listed AC input range is 198 to 264V. Its maximum inrush current is specified as 10 with a pulse width of 100 microseconds.

What dimming performance does the AcTEC DIM24-50 offer?

The DIM24-50 is described as an analogue flicker-free dimmable constant-voltage driver. Its stated dimming range is 1 to 100 percent. That makes it suitable where stable low-level dimming and smooth brightness control matter.

Can the AcTEC DIM24-50 be used in demanding indoor environments?

This driver has an ambient temperature range of -20 to +50 degrees Celsius. It also includes protection for open circuit, short circuit, overload, over temperature, and no-load operation. Those protections make it better suited to commercial and professional indoor lighting applications than a basic driver with fewer safeguards.

What protections and safety standards are listed for the AcTEC DIM24-50?

The product includes open-circuit, short-circuit, overload, over-temperature, and no-load protection. It is described as SELV equivalent, suitable for Class I and II luminaires, and built to Protection Class II. Listed standards include EN 61347-1, EN 61347-2-13, EN 62384, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 60598-1, EN 50581, and EU 2019/2020.

What makes the AcTEC DIM24-50 different from a standard non-dimmable 24V driver?

The main difference is that the DIM24-50 is built specifically for phase-cut dimming, with support for both leading-edge and trailing-edge dimmers. It also specifies a 1 to 100 percent dimming range and analogue flicker-free operation. For projects that need adjustable light output, that is a more targeted choice than a fixed-output non-dimmable driver.

What are the physical size, weight, and warranty for the AcTEC DIM24-50?

The listed dimensions are 184 x 61 x 32 mm. The product weight is 0.240 kg. It also carries a 5-year warranty period.
