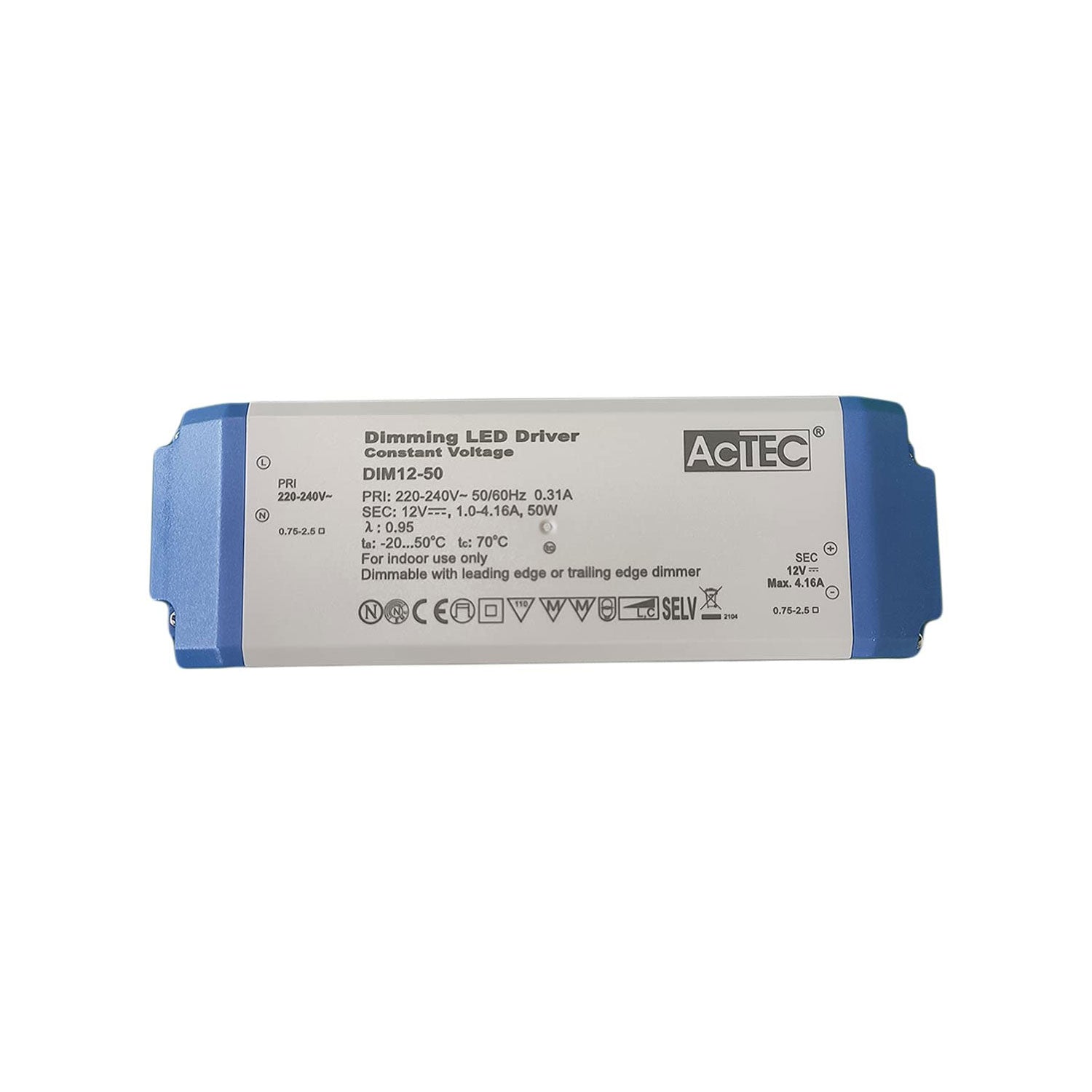

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC DIM12-50 Triac Dimmable Driver 50W 12V with Screw Terminal 310mA

flicker-free, suitable for class I & II luminaires, protection class II

SKU:

DIM12-50

Please for Pricing

Notify me when it's back in stock

Description

Features:

Independent design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Push wire connections
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Suitable for class I & II luminaires
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

10 (th = 100 μs)

Surge transient protection

1 | 2 (L/N | LN/PE acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

-20 …+50°C

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

184*61*32mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC DIM Series
Power Rating

50 Watt
Output Voltage

12 Volt
Rated Current

0.31 Ampere
Input Voltage

220V~240V
Standards Met

EN,SELV
Operation Mode

Constant Voltage
Operating Temperature

75°C~-20°C
Warranty

5 Year
Length

18.4 cm
Width

6.1 cm
Height

3.2 cm
Weight

0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the AcTEC DIM12-50 used for?

The AcTEC DIM12-50 is a 50W constant voltage LED driver designed for 12V lighting applications. It is intended for use where smooth mains dimming is needed with compatible LED lighting systems and luminaires.

Is the DIM12-50 a dimmable LED driver?

Yes. This model is a triac dimmable constant voltage driver that supports both leading edge and trailing edge dimmers. It is specified for smooth, analogue flicker-free dimming across a 1 to 100% range.

What output does the AcTEC DIM12-50 provide?

This model provides a 12V constant voltage output with a 50W power rating. That makes it suitable for 12V LED products that require a constant voltage driver within that power class.

What protection features are included in the DIM12-50?

The driver includes protection for open circuit, short circuit, overload, over temperature, and no-load operation. These built-in protections help support reliable performance in demanding commercial and lighting environments.

Is the AcTEC DIM12-50 suitable for indoor commercial environments?

It is designed to operate with an ambient temperature range of -20 to +50°C, which suits many indoor lighting applications. The unit is also rated as Protection Class II, SELV equivalent, and suitable for Class I and II luminaires.

How does the DIM12-50 compare with a non-dimmable 12V driver?

The main difference is dimming capability. The DIM12-50 is built for 12V constant voltage applications where adjustable light output is required, while a non-dimmable driver is intended for fixed-output operation only.

What are the physical dimensions and warranty for this model?

The AcTEC DIM12-50 measures 184 x 61 x 32 mm and weighs 0.24 kg. It is supplied with a 5-year warranty, which is useful for longer-term commercial lighting projects.

Model	Power	Voltage	Current	IP Rating
AcTEC DIM24-50 Triac Dimmable Driver 50W 24V with Screw Terminal 310mA	50W	24V	0.31A	IP20	View
AcTEC DIM24-100 Triac Dimmable Driver 100W 24V with Screw Terminal 600mA	100W	24V	0.6A	IP20	View
AcTEC DIM24-150 Triac Dimmable Driver 150W 24V with Screw Terminal 900mA	150W	24V	0.9A	IP20	View
AcTEC DIM24-25 Triac Dimmable Driver 25W 24V with Screw Terminal 160mA	25W	24V	0.16A	IP20	View
AcTEC DIM12-25 Triac Dimmable Driver 25W 12V with Screw Terminal 160mA	25W	12V	0.16A	IP20	View
AcTEC DIM12-100 Triac Dimmable Driver 100W 12V with Screw Terminal 600mA	100W	12V	0.6A	IP20	View
