Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

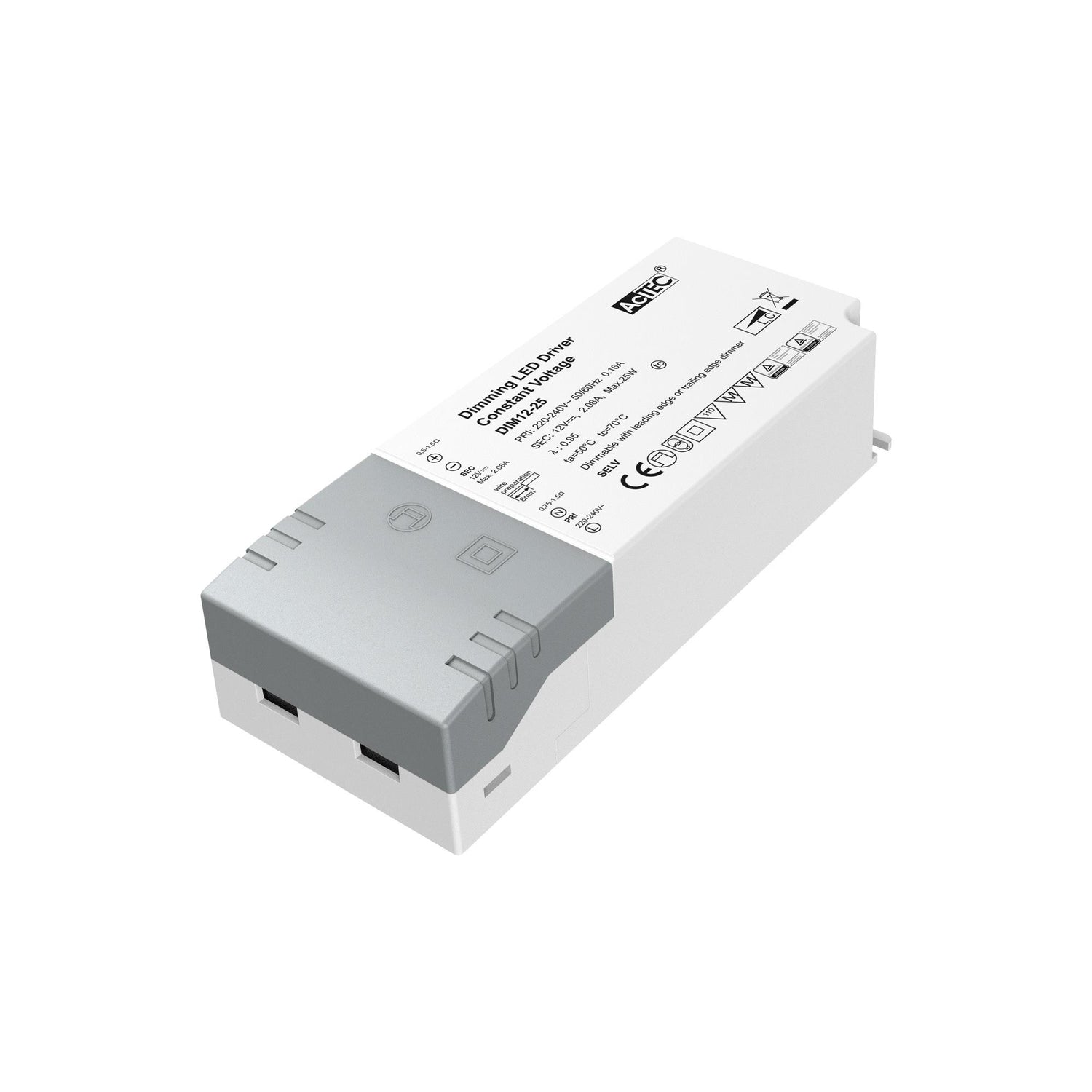

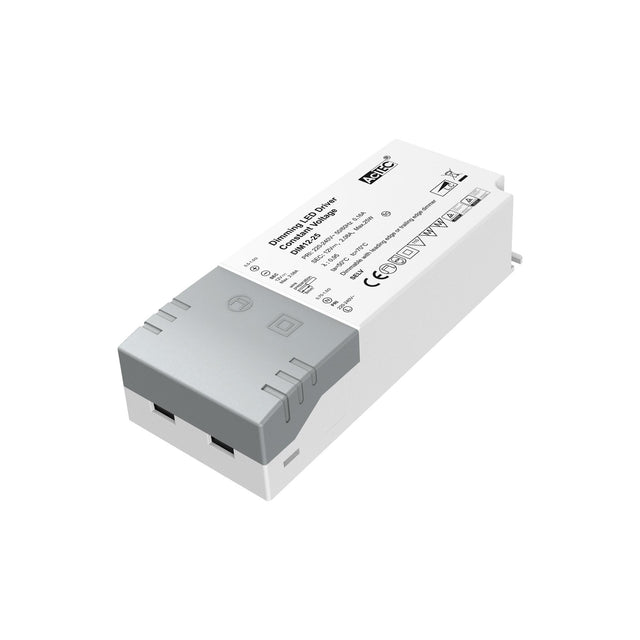

AcTEC DIM12-25 Triac Dimmable Driver 25W 12V with Screw Terminal 160mA

flicker-free, DC input (176-250V) compatible, suitable for class I & II luminaires, protection class II

SKU:

DIM12-25

Please for Pricing

Notify me when it's back in stock

Description

Features:

Independent design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Push wire connections
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Suitable for class I & II luminaires
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

10 (th = 100 μs)

Surge transient protection

1 | 2 (L/N | LN/PE acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

°C -20 …+50

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

128*52*30mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC DIM Series
Power Rating

25 Watt
Output Voltage

12 Volt
Rated Current

0.16 Ampere
Input Voltage

220V~240V
Standards Met

EN,SELV
Operation Mode

Constant Voltage
Operating Temperature

70°C~-20°C
Warranty

5 Year
Length

12.8 cm
Width

5.2 cm
Height

3 cm
Weight

0.11 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the AcTEC DIM12-25 designed for?

The AcTEC DIM12-25 is a 25W constant voltage LED driver for 12V lighting applications. It is intended for use where a dimmable 12V power source is needed for compatible LED luminaires.

Is this driver dimmable, and what type of dimmers does it support?

Yes, this model is a triac dimmable constant voltage driver. It supports both leading edge and trailing edge dimmers and is specified for smooth dimming from 1% to 100%.

What output does the DIM12-25 provide?

This driver provides a 12V constant voltage output with a 25W power rating. It is built for applications that require a stable 12V DC output rather than constant current LED control.

What protections are included in this LED driver?

The DIM12-25 includes protection for open circuit, short circuit, overload, and over temperature conditions. It is also specified for no-load operation, which helps support reliable use in demanding commercial lighting environments.

What input voltage range does this model accept?

This driver accepts an AC input range of 198 to 264V. That makes it suitable for use on mains power within that specified voltage window.

Can the AcTEC DIM12-25 be used in different luminaire classes?

Yes, the product is specified as suitable for class I and class II luminaires. It is also described as SELV equivalent and protection class II.

What operating environment is this driver rated for?

The stated ambient temperature range is -20°C to +50°C. This makes it suitable for installations where the surrounding temperature stays within that range.

What are the physical dimensions and warranty for this model?

The DIM12-25 measures 128 x 52 x 30 mm and weighs 0.11 kg. It also comes with a 5-year warranty period.

Model	Power	Voltage	Current	IP Rating
AcTEC DIM24-50 Triac Dimmable Driver 50W 24V with Screw Terminal 310mA	50W	24V	0.31A	IP20	View
AcTEC DIM24-100 Triac Dimmable Driver 100W 24V with Screw Terminal 600mA	100W	24V	0.6A	IP20	View
AcTEC DIM24-150 Triac Dimmable Driver 150W 24V with Screw Terminal 900mA	150W	24V	0.9A	IP20	View
AcTEC DIM24-25 Triac Dimmable Driver 25W 24V with Screw Terminal 160mA	25W	24V	0.16A	IP20	View
AcTEC DIM12-50 Triac Dimmable Driver 50W 12V with Screw Terminal 310mA	50W	12V	0.31A	IP20	View
AcTEC DIM12-100 Triac Dimmable Driver 100W 12V with Screw Terminal 600mA	100W	12V	0.6A	IP20	View
