Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

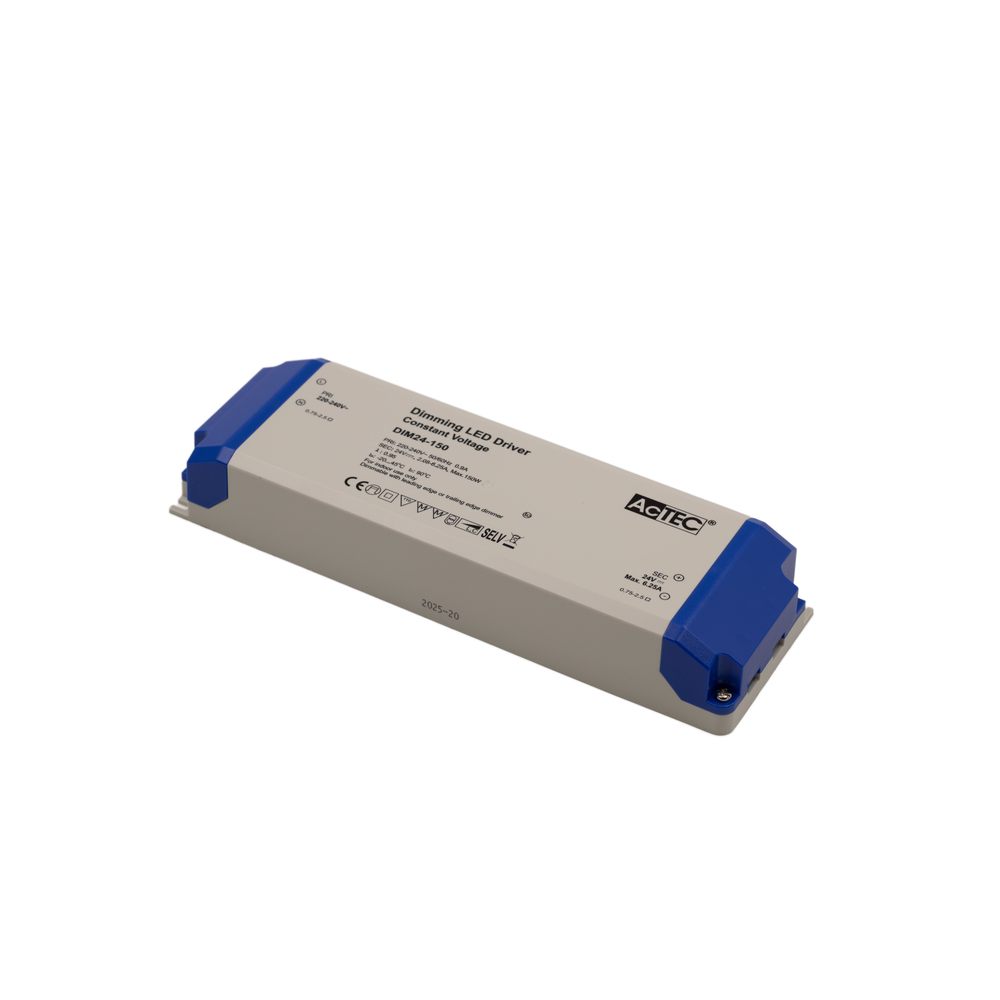

AcTEC DIM24-150 Triac Dimmable Driver 150W 24V with Screw Terminal 900mA

flicker-free, suitable for class I & II luminaires, protection class II

SKU:

DIM24-150

Please for Pricing

Notify me when it's back in stock

Description

Features:

Independent design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Captured terminal screws
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Suitable for class I & II luminaires
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

10 (th = 100 μs)

Surge transient protection

1 | 2 (L/N | LN/PE acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

°C -20 …+50

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

210*67*34mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC DIM Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

0.9 Ampere
Input Voltage

220V~240V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

70°C~-20°C
Warranty

5 Year
Length

21 cm
Width

6.7 cm
Height

3.4 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED applications is the AcTEC DIM24-150 designed for?

The DIM24-150 is a 150W constant voltage LED driver with a 24V output, making it suitable for 24V LED lighting applications that need mains-powered dimming. It is built as an independent dimmable driver for use with compatible luminaires. This model is intended for buyers who need a dedicated 24V dimmable power solution rather than a non-dimming driver.

What dimming methods does the AcTEC DIM24-150 support?

This model supports both leading edge and trailing edge dimmers. It is described as analogue flicker-free and offers a dimming range from 1% to 100%. That makes it a practical choice where smooth dimming performance is important.

What are the main electrical specifications of the DIM24-150?

The AcTEC DIM24-150 is rated at 150W with a 24V constant voltage output. Its AC input voltage range is 198 to 264V. These specifications make it suitable for applications requiring a higher-power 24V dimmable driver.

What protection features are included in this LED driver?

The DIM24-150 includes protection for open circuit, short circuit, overload, and over temperature conditions. It also supports no-load operation. These built-in protections help support reliability in commercial and professional lighting use.

Is the AcTEC DIM24-150 suitable for different operating environments?

This driver has an ambient temperature range of -20°C to +50°C. That allows it to be used in a wide range of indoor operating conditions where a dimmable 24V driver is needed. Buyers should still confirm the surrounding enclosure and luminaire conditions match the product's rated environment.

How does the DIM24-150 differ from a standard non-dimmable 24V power supply?

The main difference is that the DIM24-150 is specifically built for constant voltage dimming with leading edge and trailing edge dimmers. It also offers analogue flicker-free performance and a 1 to 100% dimming range, which a standard non-dimmable supply does not provide. For projects where dimming behavior matters, this is a more appropriate model than a basic fixed-output supply.

What compliance and build features make this model suitable for professional use?

The DIM24-150 is listed with multiple safety and EMC standards, including EN 61347-1, EN 61347-2-13, EN 62384, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 60598-1, and EN 50581. It is described as SELV equivalent, suitable for class I and II luminaires, and protection class II. The unit dimensions are 210 x 67 x 34 mm and the stated warranty period is 5 years.

Model	Power	Voltage	Current	IP Rating
AcTEC DIM24-50 Triac Dimmable Driver 50W 24V with Screw Terminal 310mA	50W	24V	0.31A	IP20	View
AcTEC DIM24-100 Triac Dimmable Driver 100W 24V with Screw Terminal 600mA	100W	24V	0.6A	IP20	View
AcTEC DIM24-25 Triac Dimmable Driver 25W 24V with Screw Terminal 160mA	25W	24V	0.16A	IP20	View
AcTEC DIM12-50 Triac Dimmable Driver 50W 12V with Screw Terminal 310mA	50W	12V	0.31A	IP20	View
AcTEC DIM12-25 Triac Dimmable Driver 25W 12V with Screw Terminal 160mA	25W	12V	0.16A	IP20	View
AcTEC DIM12-100 Triac Dimmable Driver 100W 12V with Screw Terminal 600mA	100W	12V	0.6A	IP20	View
