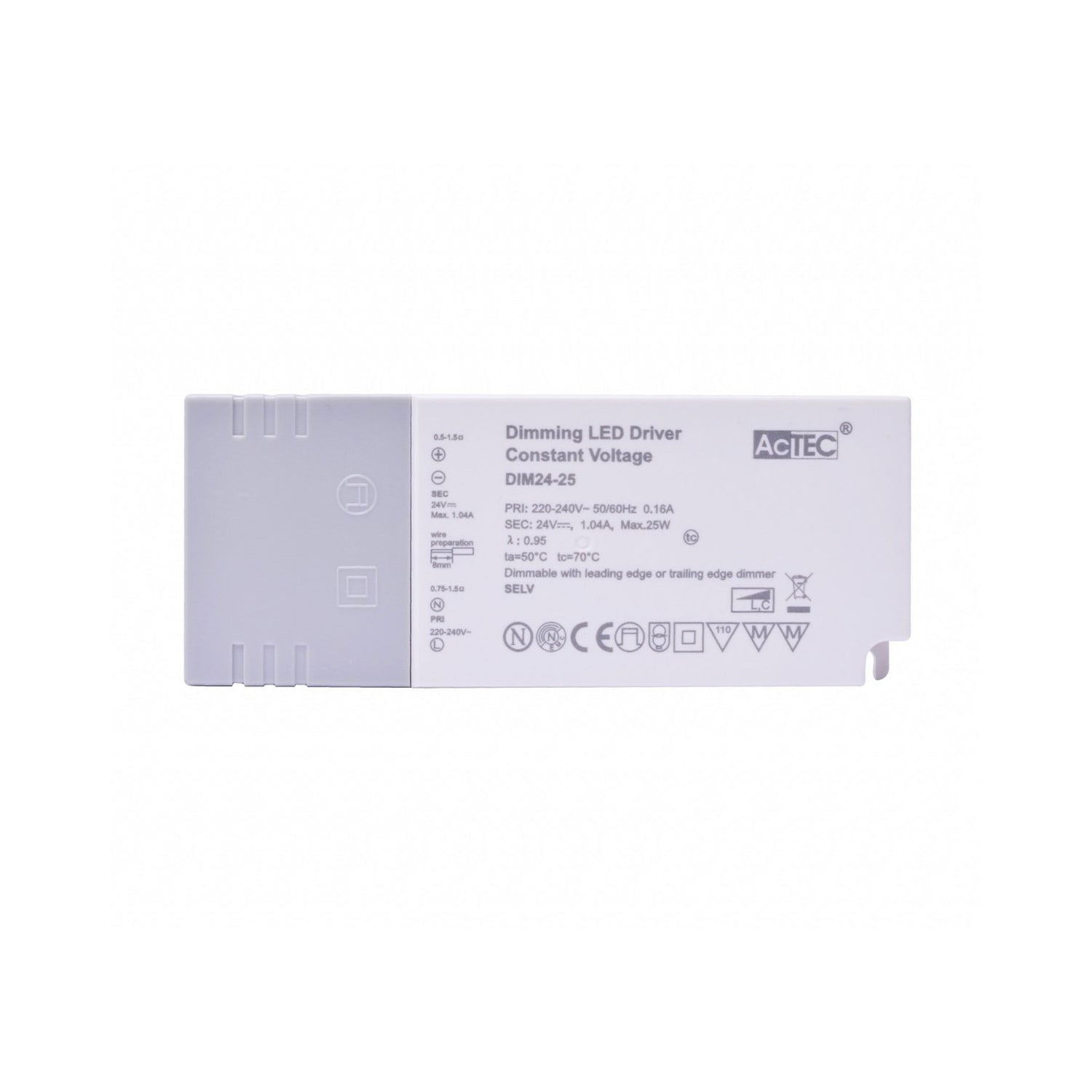

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC DIM24-25 Triac Dimmable Driver 25W 24V with Screw Terminal 160mA

flicker-free, DC input (176-250V) compatible, suitable for class I & II luminaires, protection class II

SKU:

DIM24-25

Please for Pricing

Notify me when it's back in stock

Description

Features:

Independent design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Captured terminal screws
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Suitable for class I & II luminaires
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

10 (th = 100 μs)

Surge transient protection

1 | 2 (L/N | LN/PE acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

°C -20 …+50

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

128*52*30mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC DIM Series
Power Rating

25 Watt
Output Voltage

24 Volt
Rated Current

0.16 Ampere
Input Voltage

220V~240V
Standards Met

EN,SELV
Operation Mode

Constant Voltage
Operating Temperature

70°C~-20°C
Warranty

5 Year
Length

12.8 cm
Width

5.2 cm
Height

3 cm
Weight

0.11 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of LED lighting is the AcTEC DIM24-25 designed for?

This model is a 24V constant-voltage LED driver for lighting applications that need mains dimming and up to 25W output. It is suited to 24V LED products where smooth Triac dimming is required rather than non-dimmable power delivery.

Is the DIM24-25 compatible with leading edge and trailing edge dimmers?

Yes. The DIM24-25 is specified for dimming with both leading edge and trailing edge dimmers. It also supports a 1 to 100% dimming range and is described as analogue flicker-free for smoother light control.

What is the output and input rating of this driver?

This driver is rated at 25W with a 24V constant-voltage output. Its AC input range is 198 to 264V, making it suitable for markets using standard high-voltage mains supply within that range.

How is this different from a standard non-dimmable 24V power supply?

The main difference is built-in Triac dimming support, including compatibility with leading edge and trailing edge dimmers. If the project needs controlled light output rather than simple fixed-output power, the DIM24-25 is the more appropriate choice than a non-dimmable 24V unit.

Can this driver be used in demanding indoor environments?

It is rated for an ambient temperature range of -20 to +50°C, which makes it suitable for a wide range of indoor lighting environments. The unit also includes overload, open-circuit, short-circuit, and over-temperature protection for added operating resilience.

What safety and product protection features does the DIM24-25 include?

This model includes protection for open circuit, short circuit, overload, no load, and over temperature conditions. It is also described as SELV equivalent, protection class II, and suitable for class I and class II luminaires.

What should buyers check when selecting this model for a project?

The key checks are whether the lighting load requires 24V constant-voltage output, whether total load stays within the 25W rating, and whether mains dimming is needed. This model is positioned for projects that specifically need a dimmable 24V driver rather than a basic fixed-output supply.

What are the physical size and warranty for this driver?

The housing dimensions are 128 x 52 x 30 mm. The listed warranty period is 5 years, which is useful for commercial buyers comparing lifecycle support across similar dimmable LED drivers.
